Overview
Features and Benefits
- Guaranteed Phase and Gain Matching Specs
- Programmable BW Up to 2.5MHz
- Programmable Gain (0dB/6dB/12dB/24dB)
- 9th Order Linear Phase Response
- Differential, Rail-to-Rail Inputs and Outputs
- Low Noise: –145dBm/Hz (Input Referred)
- Low Distortion: –75dBc at 200kHz
- Simple Pin Programming or SPI Interface
- Set the Max Speed/Power with an External R
- Operates from 2.7V to 3.6V
- Input Range from 0V to 5.5V
- 4mm × 4mm QFN Package
Product Details
The LTC6603 is a dual, matched, programmable lowpass filter for communications receivers and transmitters. The selectivity of the LTC6603, combined with its linear phase, phase matching and dynamic range, make it suitable for filtering in many communications systems. With 1.5° phase matching between channels, the LTC6603 can be used in applications requiring pairs of matched filters, such as transceiver I and Q channels. Furthermore, the differential inputs and outputs provide a simple interface for most communications systems.
The sampled data filter does not require an external clock yet its cutoff frequency can be set with a single external resistor with an accuracy of 3.5% or better. The external resistor programs an internal oscillator whose frequency is divided prior to being applied to the filter networks. This allows up to three cutoff frequencies that can be obtained for each external resistor value, allowing the cutoff frequency to be programmed over a range of more than six octaves. Alternatively, the cutoff frequency can be set with an external clock. The filter gain can also be programmed to 1, 2, 4 or 16.
The LTC6603 features a low power shutdown mode that can be programmed through the serial interface and is available in a 24-pin 4mm × 4mm QFN package.
Applications
- Small/Low Cost Basestations:
- IDEN, PHS, TD-SCDMA, CDMA2000, WCDMA, UMTS
- Low Cost Repeaters, Radio Links, and Modems
- 802.11x Receivers
- JTRS
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

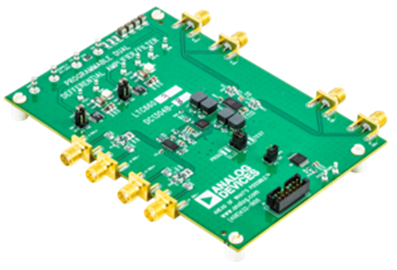

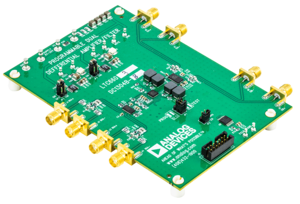

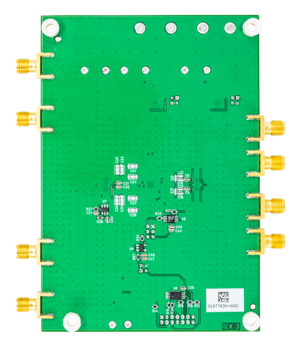

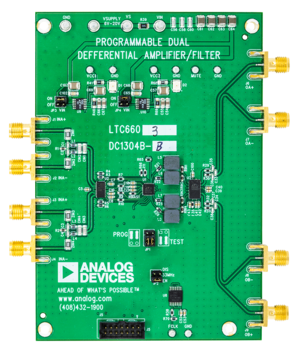

Evaluation Kits (2)
Documentation & Resources
-
R537 Reliability Data3/26/2018
-
DC1304A - Demo Manual9/24/2009
-
High Speed Amplifiers/ADC Drivers4/29/2015
Tools & Simulations
Linduino
Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.
Linduino code repository on GitHub and instructions on how to use the code.
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC6603CUF#PBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
| LTC6603CUF#TRPBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
| LTC6603IUF#PBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
| LTC6603IUF#TRPBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
| Wafer Fabrication Data | R537 Reliability Data |
