Features and Benefits
- Temperature Compensated Internal Schottky Diode RF Detector
- Wide Input Frequency Range: 300MHz to 7GHz*
- Wide Input Power Range: –32dBm to 10dBm
- Buffered Detector Output
- Precision VOUT Offset Control
- Wide VCC Range of 2.7V to 6V
- Low Operating Current: 500µA
- Low Shutdown Current: <2µA
- Available in a Low Profile (1mm) SOT-23 Package

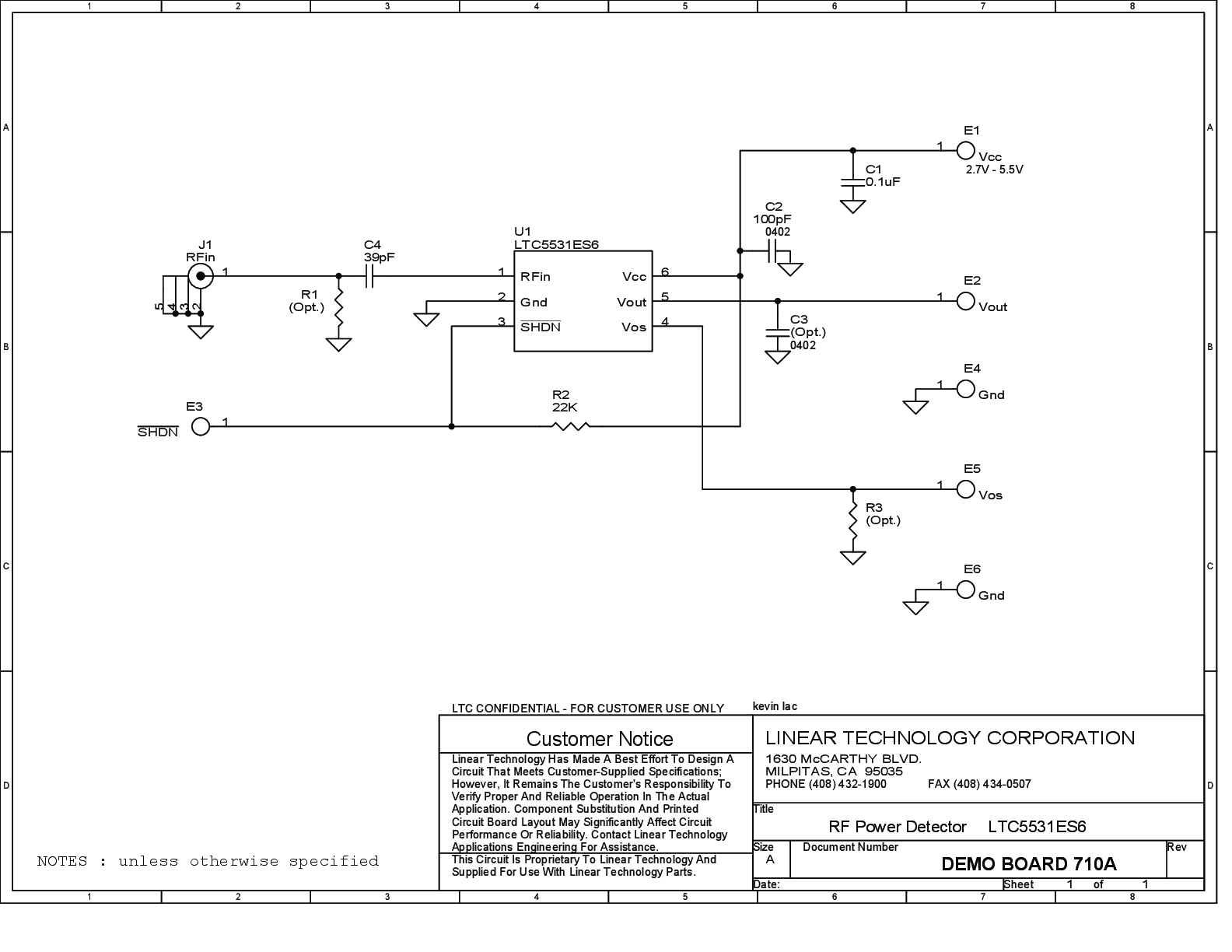

The LTC5531 is an RF power detector for RF applications operating in the 300MHz to 7GHz range. A temperature compensated Schottky diode peak detector and buffer amplifier are combined in a small ThinSOT™ package. The supply voltage range is optimized for operation from a single lithium-ion cell or 3xNiMH.
The RF input voltage is peak detected using an on-chip Schottky diode. The detected voltage is buffered and supplied to the VOUT pin. A power saving shutdown mode reduces current to less than 2µA. The initial offset voltage of 120mV ±35mV can be precisely adjusted using the VOS pin.
The LTC5531 operates with input power levels from –32dBm to 10dBm.
*Higher frequency operation is achievable with reduced performance. Consult factory for more information.
- 802.11a, 802.11b, 802.11g, 802.15, 802.16
- Multimode Mobile Phone Products
- Optical Data Links
- Wireless Data Modems
- Wireless and Cable Infrastructure
- RF Power Alarm
- Envelope Detector
