LTC5505

RF Power Detector with Buffered Output and >40dB Dynamic Range

PRODUCTION

Part Details

Dual Band Mobile Phone Tx Power Control slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $1.49

Features

Internal Schottky Diode RF Detector with Two Input Power Ranges:

LTC5505-1, –28dBm to 18dBm
LTC5505-2, –32dBm to 12dBm

Wide Input Frequency Range: 300MHz to 3GHz (LTC5505-1); 300MHz to 3.5GHz (LTC5505-2)
Temperature Compensated
Buffered Detector Output
Wide V_CC Range of 2.7V to 6V
Low Operating Current: 0.5mA
Low Shutdown Current: <2µA
Low Profile (1mm) ThinSOT^™ Package

Additional Details

The LTC5505-X is an RF power detector for RF applications operating in the 300MHz to 3.5GHz range. A temperature compensated Schottky diode peak detector and buffer amplifier are combined in a small 5-pin ThinSOT package. The supply voltage range is optimized for operation from a single lithium-ion cell or 3xNiMH.

The RF input voltage is peak detected using an on-chip Schottky diode. The detected voltage is buffered and supplied to the V_OUT pin. A power saving shutdown mode reduces supply current to less than 2µA.

The LTC5505-1 operates with input power levels from –28dBm to 18dBm. The LTC5505-2 operates with input power levels from –32dBm to 12dBm.

Applications

Multimode Mobile Phone Products
PCS Devices
Wireless Data Modems
Wireless and Cable Infrastructure
RF Power Alarm
Envelope Detector

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $1.49

Documentation

Technical Documents 6

LTC5505: RF Power Detector with Buffered Output and >40dB Dynamic Range Data Sheet 04/13/2009

R450 Reliability Data 03/22/2018

DC391A - Demo Manual 10/20/2016

AN91 - Low Cost Coupling Methods for RF Power Detectors Replace Directional Couplers 08/20/2007

DN335 - Wideband RF ICs for Power Detection and Control 06/28/2016

Design Note 335: Wideband RF ICs for Power Detection and Control 04/01/2004

Design Resources 4

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC5505-1ES5#TRMPBF	5-Lead TSOT-23	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC5505-1ES5#TRPBF	5-Lead TSOT-23	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC5505-2ES5#TRMPBF	5-Lead TSOT-23	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC5505-2ES5#TRPBF	5-Lead TSOT-23	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LTC5505-1ES5#TRMPBF
Pin/Package Drawing
5-Lead TSOT-23
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC5505-1ES5#TRPBF
Pin/Package Drawing
5-Lead TSOT-23
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC5505-2ES5#TRMPBF
Pin/Package Drawing
5-Lead TSOT-23
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC5505-2ES5#TRPBF
Pin/Package Drawing
5-Lead TSOT-23
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Software & Part Ecosystem

Evaluation Kit

DC391A-B

LTC5505-2ES5 | −32dBm to 12dBm RF Power Detector (Postage Stamp)

DC391A-B

LTC5505-2ES5 | −32dBm to 12dBm RF Power Detector (Postage Stamp)

Buy Now View Details

Product Detail

DC391A-B: Demo Board for LTC5505 RF Power Detector with Buffered Output and >40dB Dynamic Range.

Resources

ZIP

DC391A - Design File

660.00K

PDF

DC391A - Schematic

12.00K

PDF

DC391A - Demo Manual

39.00K

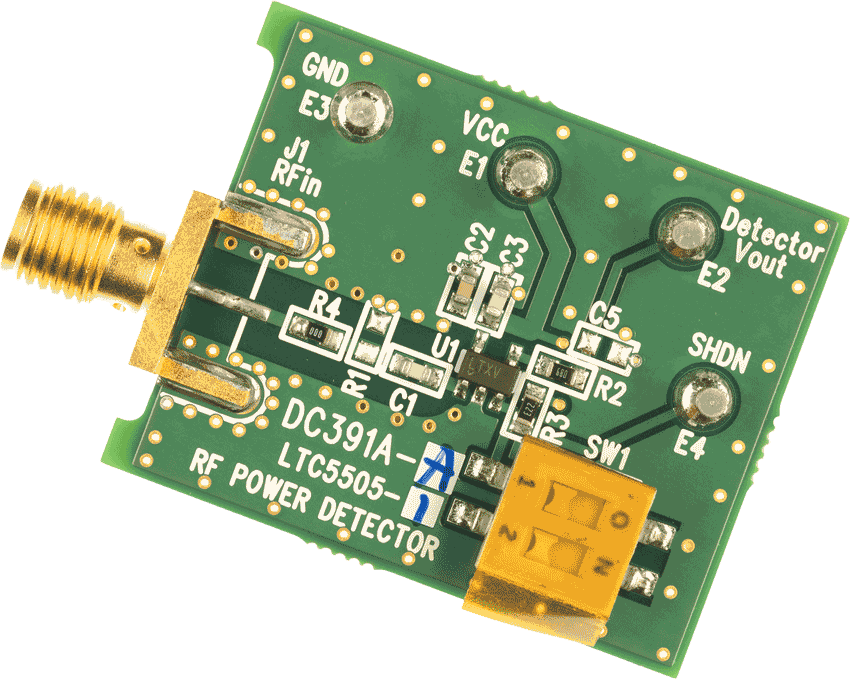

DC391A-A

LTC5505-1ES5 | −28dBm to 18dBm RF Power Detector (Postage Stamp)

LTC5505-1ES5 | −28dBm to 18dBm RF Power Detector (Postage Stamp)

Download

DC391A-A

LTC5505-1ES5 | −28dBm to 18dBm RF Power Detector (Postage Stamp)

Buy Now View Details

Product Detail

DC391A-A: Demo Board for LTC5505 RF Power Detector with Buffered Output and >40dB Dynamic Range.

Resources

ZIP

DC391A - Design File

660.00K

PDF

DC391A - Schematic

12.00K

PDF

DC391A - Demo Manual

39.00K

DC391A-B

LTC5505-2ES5 | −32dBm to 12dBm RF Power Detector (Postage Stamp)

DC391A-A

LTC5505-1ES5 | −28dBm to 18dBm RF Power Detector (Postage Stamp)
