LTC4226

Wide Operating Range Dual Hot Swap Controller

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC4226 Demo Circuit - Dual 12V, 7.6A Ideal Diode and Hot Swap Controller for FireWire Application Download 4.00KB LTspice LTC4226 - Hot Swap Controllers Download 3.56 KB
Part Models 16
1ku List Price Starting From $3.72
Features
  • Allows Safe Board Insertion into Live Backplane
  • Selectable Current Limit and Dual-Rate Timer Accommodate Load Surges
  • Fast Response Limits Peak Fault Current
  • Wide Operating Voltage Range: 4.5V to 44V
  • Optional Auto-Retry or Latchoff after Overcurrent Fault
  • High Side Drive for External N-Channel MOSFET
  • Allows Parallel Power Paths for High Current Applications
  • Available in 16-Pin QFN (3mm × 3mm) and MSOP Packages
Additional Details
show more Icon

The LTC4226 dual Hot Swap™ controller allows two power paths to be safely inserted and removed from a live backplane or powered connector. Using N-channel pass transistors, supply voltages ranging from 4.5V to 44V are ramped up at an adjustable rate.

Three selectable ratios of current limit to circuit breaker threshold accommodate noisy loads and momentary high peak currents without interruption, while a dual-rate fault timer protects the MOSFET from extended output overcurrent events. FAULT outputs indicate the circuit breaker status.The LTC4226-1 remains off after a fault while the LTC4226-2 automatically retries after a 0.5s delay.

The LTC4226 can also be configured as a bidirectional current limiter/circuit breaker. For high current applications, two channels may be configured as parallel power paths.

Applications

  • Apple FireWire/IEEE 1394
  • Disk Drives
  • Rugged 12V, 24V Applications
  • Hot Board/Connector Insertion
  • Uni/Bidirectional Current Limiter/Circuit Breaker
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC4226 Demo Circuit - Dual 12V, 7.6A Ideal Diode and Hot Swap Controller for FireWire Application Download 4.00KB LTspice LTC4226 - Hot Swap Controllers Download 3.56 KB
Part Models 16
1ku List Price Starting From $3.72
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC4226

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • User Guide
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 10/25/2012
English

LTC4226: Wide Operating Range Dual Hot Swap Controller Data Sheet

Open PDF File

redirect
336.00K
download

Download PDF

PDF Vector

PDF

UPDATED 01/09/2013
Japanese

LTC4226: 動作範囲の広いデュアル・ホットスワップ・コントローラ データシート

Open PDF File

redirect
602.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R547 Reliability Data redirect icon

146.93 K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 08/14/2013
English
DC1627A - Demo Manual redirect icon

440.00K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Product Selector Card 1

Hot Swap Controllers

Video

1

Thumbnail Image

Video

2017-09-18

MOSFET Failure Protection for Single Output PolyPhase<sup>®</sup> Converter

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4226CMS-1#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4226CMS-1#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4226CMS-2#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4226CMS-2#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4226CUD-1#PBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4226CUD-1#TRPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4226CUD-2#PBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4226CUD-2#TRPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4226IMS-1#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4226IMS-1#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4226IMS-2#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4226IMS-2#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4226IUD-1#PBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4226IUD-1#TRPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4226IUD-2#PBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4226IUD-2#TRPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LTC4226CMS-1#PBF

PRODUCTION

LTC4226CMS-1#TRPBF

PRODUCTION

LTC4226CMS-2#PBF

PRODUCTION

LTC4226CMS-2#TRPBF

PRODUCTION

LTC4226IMS-1#PBF

PRODUCTION

LTC4226IMS-1#TRPBF

PRODUCTION

LTC4226IMS-2#PBF

PRODUCTION

LTC4226IMS-2#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Feb 4, 2020

- 20_0132

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC4226CMS-1#PBF

PRODUCTION

LTC4226CMS-1#TRPBF

PRODUCTION

LTC4226CMS-2#PBF

PRODUCTION

LTC4226CMS-2#TRPBF

PRODUCTION

LTC4226IMS-1#PBF

PRODUCTION

LTC4226IMS-1#TRPBF

PRODUCTION

LTC4226IMS-2#PBF

PRODUCTION

LTC4226IMS-2#TRPBF

PRODUCTION

pdf

PCN20_0132_Form

external-icon

xls

Material_Report

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LTC4226CMS-1#PBF

PRODUCTION

LTC4226CMS-1#TRPBF

PRODUCTION

LTC4226CMS-2#PBF

PRODUCTION

LTC4226CMS-2#TRPBF

PRODUCTION

LTC4226IMS-1#PBF

PRODUCTION

LTC4226IMS-1#TRPBF

PRODUCTION

LTC4226IMS-2#PBF

PRODUCTION

LTC4226IMS-2#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Feb 4, 2020

- 20_0132

arrow down

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC4226CMS-1#PBF

PRODUCTION

LTC4226CMS-1#TRPBF

PRODUCTION

LTC4226CMS-2#PBF

PRODUCTION

LTC4226CMS-2#TRPBF

PRODUCTION

LTC4226IMS-1#PBF

PRODUCTION

LTC4226IMS-1#TRPBF

PRODUCTION

LTC4226IMS-2#PBF

PRODUCTION

LTC4226IMS-2#TRPBF

PRODUCTION

pdf

PCN20_0132_Form

external-icon

xls

Material_Report

Download
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Low Voltage Hot Swap Controllers1
LTC4222
popup image
Cart

PRODUCTION

Dual Hot Swap Controller with I2C Compatible Monitoring

PowerPath, Ideal Diodes, and Load Switches1
LTC4228-1
LTC4228-2
popup image
Cart

Dual Ideal Diode and Hot Swap Controller

Evaluation Kit

Evaluation Kits 2

reference details image

DC1627A-A

LTC4226CUD-1 Demo Board: Dual Hot Swap Controller with Latch Off

reference details image

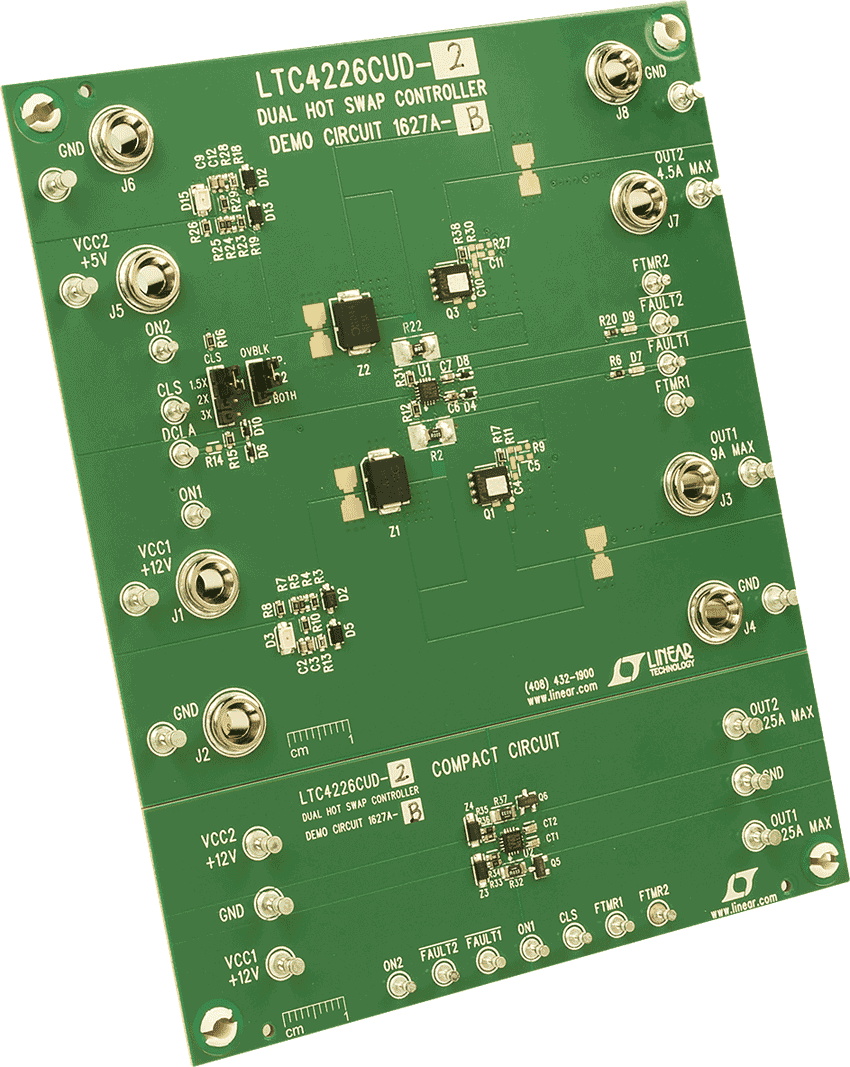

DC1627A-B
