Overview

Features and Benefits

  • Fast 1µs Response Circuit Breaker
  • 3 Selectable Circuit Breaker Thresholds
  • No Sense Resistor Required
  • Dual Level Overcurrent Fault Protection
  • Controls Load Voltages from 0V to 6V
  • High Side Drive for External N-Channel FET
  • Undervoltage Lockout
  • READY Pin Signals When Circuit Breaker Armed

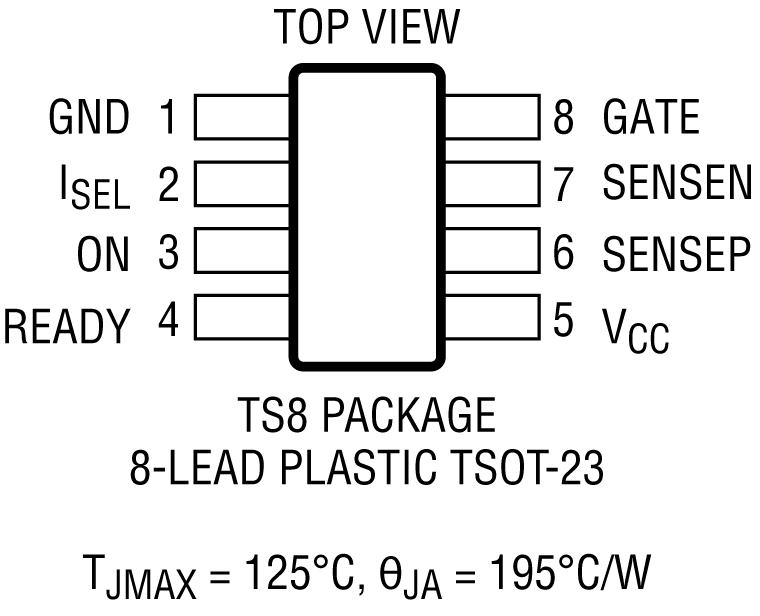

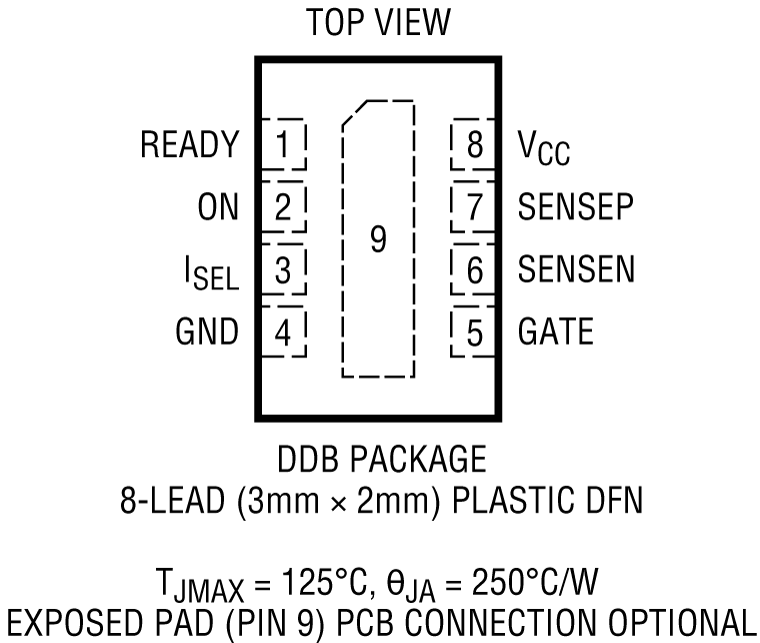

  • Small Plastic (3mm × 2mm) DFN and TSOT-23 (ThinSOT) Packages

Product Details

The LTC4213 is an Electronic Circuit Breaker. An overcurrent circuit breaker senses the voltage across the drain and source terminals of an external N-channel MOSFET with no need for a sense resistor. The advantages are a lower cost and reduced voltage and power loss in the switch path. An internal high-side driver controls the external MOSFET gate.

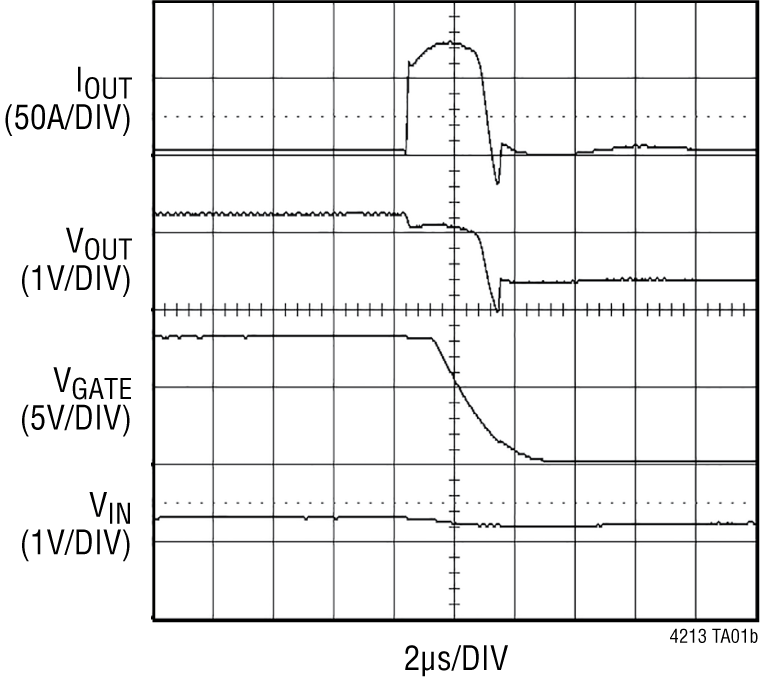

Two integrated comparators provide dual level overcurrent protection over the bias supply to ground common mode range. The slow comparator has 16µs response while the fast comparator trips in 1µs. The circuit breaker has three selectable trip thresholds: 25mV, 50mV and 100mV. An ON pin controls the ON/OFF and resets circuit breaker faults. READY signals the MOSFET is conducting and the circuit breaker is armed. The LTC4213 operates from VCC = 2.3V to 6V.

APPLICATIONS

  • Electronic Circuit Breaker
  • High-Side Switch
  • Hot Board Insertion

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (1)

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
LTC4213CDDB#TRMPBF Material Declaration Reliability Data 8-Lead DFN (3mm x 2mm w/ EP)
LTC4213CDDB#TRPBF Material Declaration Reliability Data 8-Lead DFN (3mm x 2mm w/ EP)
LTC4213CTS8#TRMPBF Material Declaration Reliability Data 8-Lead SOT-23
LTC4213CTS8#TRPBF Material Declaration Reliability Data 8-Lead SOT-23
LTC4213IDDB#TRMPBF Material Declaration Reliability Data 8-Lead DFN (3mm x 2mm w/ EP)
LTC4213IDDB#TRPBF Material Declaration Reliability Data 8-Lead DFN (3mm x 2mm w/ EP)
LTC4213ITS8#TRMPBF Material Declaration Reliability Data 8-Lead SOT-23
LTC4213ITS8#TRPBF Material Declaration Reliability Data 8-Lead SOT-23
