LTC3862-1

Multi-Phase Current Mode Step-Up DC/DC Controller

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC3862-1 Demo Circuit - 2-Phase Boost Converter for Diesel Fuel Injector Actuator (8.5-28V to 72V @ 1.5A) Download 5.00KB
Part Models 18
1ku List Price Starting From $3.95
Features
  • Wide VIN Range: 8.5V to 36V Operation
  • 2-Phase Operation Reduces Input and Output Capacitance
  • Fixed Frequency, Peak Current Mode Control
  • 10V Gate Drive for High Voltage MOSFETs
  • Adjustable Slope Compensation Gain
  • Adjustable Max Duty Cycle (Up to 96%)
  • Adjustable Leading Edge Blanking
  • ±1% Internal Voltage Reference
  • Programmable Operating Frequency with One External Resistor (75kHz to 500kHz)
  • Phase-Lockable Fixed Frequency 50kHz to 650kHz
  • SYNC Input and CLKOUT for 2-, 3-, 4-, 6- or 12-Phase Operation (PHASEMODE Programmable)
  • Internal 10V LDO Regulator
  • 24-Lead Narrow SSOP Package
  • 5mm × 5mm QFN Package with 0.65mm Lead Pitch
  • 24-Lead Thermally Enhanced TSSOP Package
Additional Details
show more Icon

The LTC3862-1 is a two phase constant frequency, current mode boost and SEPIC controller that drives N-channel power MOSFETs. Two phase operation reduces system filtering capacitance and inductance requirements.

The operating frequency can be set with an external resistor over a 75kHz to 500kHz range and can be synchronized to an external clock using the internal PLL. Multi-phase operation is possible using the SYNC input, the CLKOUT output and the PHASEMODE control pin allowing 2-, 3-, 4-, 6- or 12-phase operation.

Other features include an internal 10V LDO with undervoltage lockout protection for the gate drivers, a precision RUN pin threshold with programmable hysteresis, soft-start and programmable leading edge blanking and maximum duty cycle.

Part Number VIN Range INTVCC UV+ UV–
LTC3862 4V to 36V 5V 3.3V 2.9V
LTC3862-1 8.5V to 36V 10V 7.5V 7.0V
LTC3862-2 5.5V to 36V 10V 4.4V 3.9V

Applications

  • Automotive, Telecom and Industrial Power Supplies
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC3862-1 Demo Circuit - 2-Phase Boost Converter for Diesel Fuel Injector Actuator (8.5-28V to 72V @ 1.5A) Download 5.00KB
Part Models 18
1ku List Price Starting From $3.95
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3862-1

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 12/09/2013
English

LTC3862-1: Multi-Phase Current Mode Step-Up DC/DC Controller Data Sheet

Open PDF File

redirect
1.00M
download

Download PDF

PDF Vector

PDF

UPDATED 03/27/2014
Japanese

LTC3862-1: マルチフェーズ電流モード昇圧DC/DCコントローラ データシート

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC1286A - Demo Manual redirect icon

2.00M

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R526 Reliability Data redirect icon

365.77 K

download

Download PDF

Technical Articles

1

PDF Vector

HTML

UPDATED 01/01/2009
English
2-Phase, Non-Synchronous Boost Controller Simplifies Design of High Voltage, High Current Supplies redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3862EFE-1#PBF 24-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862EFE-1#TRPBF 24-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862EGN-1#PBF 24-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862EGN-1#TRPBF 24-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862EUH-1#PBF 24-Lead QFN (5mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862EUH-1#TRPBF 24-Lead QFN (5mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862HFE-1#PBF 24-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862HFE-1#TRPBF 24-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862HGN-1#PBF 24-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862HGN-1#TRPBF 24-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862HUH-1#PBF 24-Lead QFN (5mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862HUH-1#TRPBF 24-Lead QFN (5mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862IFE-1#PBF 24-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862IFE-1#TRPBF 24-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862IGN-1#PBF 24-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862IGN-1#TRPBF 24-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862IUH-1#PBF 24-Lead QFN (5mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3862IUH-1#TRPBF 24-Lead QFN (5mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3862EFE-1#PBF

PRODUCTION

LTC3862EFE-1#TRPBF

PRODUCTION

LTC3862HFE-1#PBF

PRODUCTION

LTC3862HFE-1#TRPBF

PRODUCTION

LTC3862IFE-1#PBF

PRODUCTION

LTC3862IFE-1#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Aug 10, 2022

- 22_0177

Laser Top Mark Conversion for QSOP20_24_28 Assembled in ADPG [PNG] and UTL

LTC3862EGN-1#PBF

PRODUCTION

LTC3862EGN-1#TRPBF

PRODUCTION

LTC3862HGN-1#PBF

PRODUCTION

LTC3862HGN-1#TRPBF

PRODUCTION

LTC3862IGN-1#PBF

PRODUCTION

LTC3862IGN-1#TRPBF

PRODUCTION

pdf

PCN22_0177_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3862EFE-1#PBF

PRODUCTION

LTC3862EFE-1#TRPBF

PRODUCTION

LTC3862HFE-1#PBF

PRODUCTION

LTC3862HFE-1#TRPBF

PRODUCTION

LTC3862IFE-1#PBF

PRODUCTION

LTC3862IFE-1#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Aug 10, 2022

- 22_0177

arrow down

Laser Top Mark Conversion for QSOP20_24_28 Assembled in ADPG [PNG] and UTL

LTC3862EGN-1#PBF

PRODUCTION

LTC3862EGN-1#TRPBF

PRODUCTION

LTC3862HGN-1#PBF

PRODUCTION

LTC3862HGN-1#TRPBF

PRODUCTION

LTC3862IGN-1#PBF

PRODUCTION

LTC3862IGN-1#TRPBF

PRODUCTION

pdf

PCN22_0177_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

Silicon Oscillators2
LTC6908
popup image
Cart

Resistor Set SOT-23 Oscillator with Spread Spectrum Modulation

LTC6909
popup image
Cart

PRODUCTION

1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation

Surge Stopper, Overvoltage, and Overcurrent Protection1
LT4363
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

High Voltage Surge Stopper with Current Limit

Evaluation Kits 1

reference details image

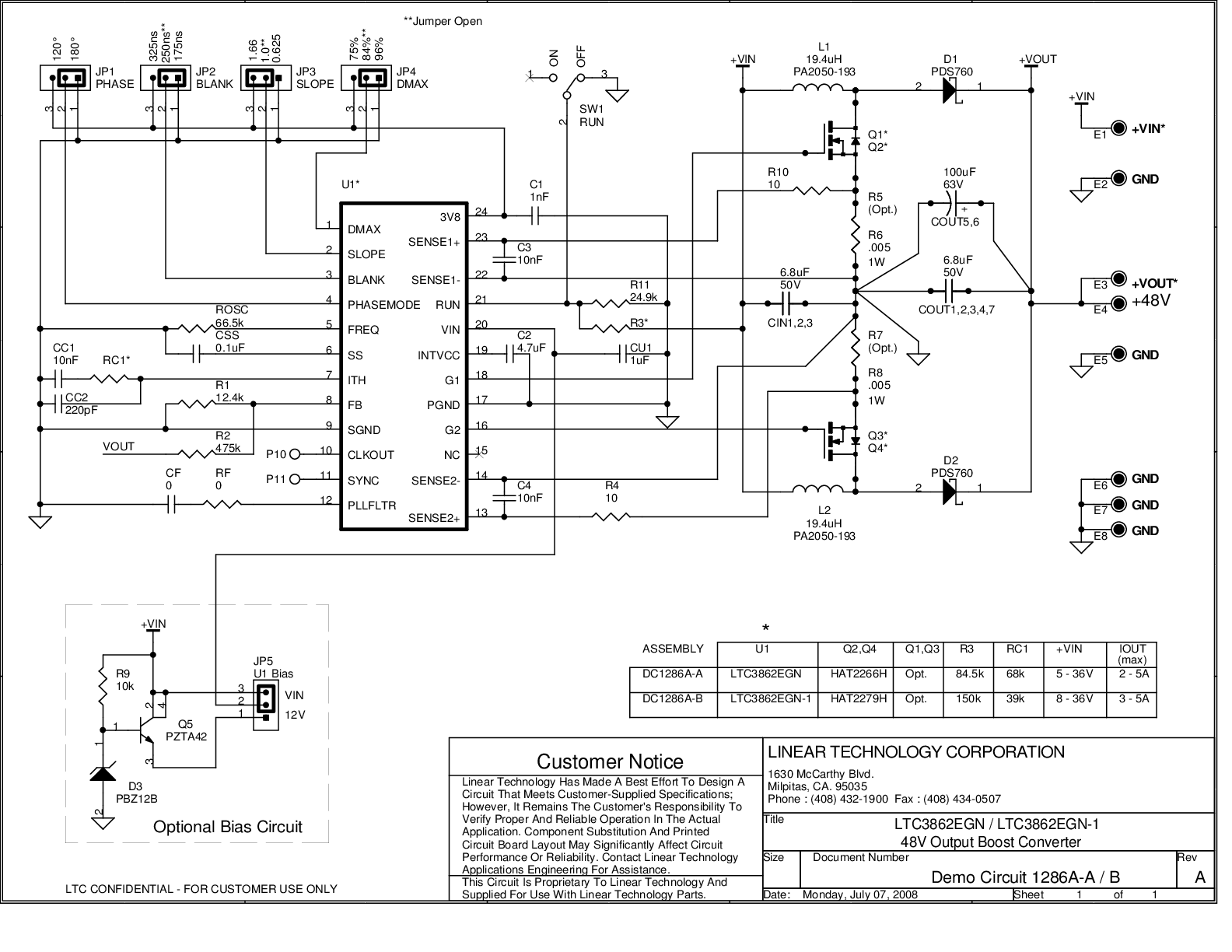

DC1286A-B
