Overview

Features and Benefits

  • No Current Sense Resistors Required
  • Out-of-Phase Controllers Reduce Required Input Capacitance
  • All N-Channel Synchronous Drive
  • VIN Range: 2.75V to 4.5V
  • Constant-Frequency Current Mode Operation
  • 0.6V ±1.5% Voltage Reference
  • Low Dropout Operation: 97% Duty Cycle
  • True PLL for Frequency Locking or Adjustment
  • Selectable Pulse-Skipping/Continuous Operation
  • Tracking Function
  • Internal Soft-Start Circuitry
  • Power Good Output Voltage Monitor
  • Output Overvoltage Protection
  • Micropower Shutdown: IQ = 6.5µA
  • Tiny Low Profile (4mm × 5mm) QFN and Narrow SSOP Packages

Product Details

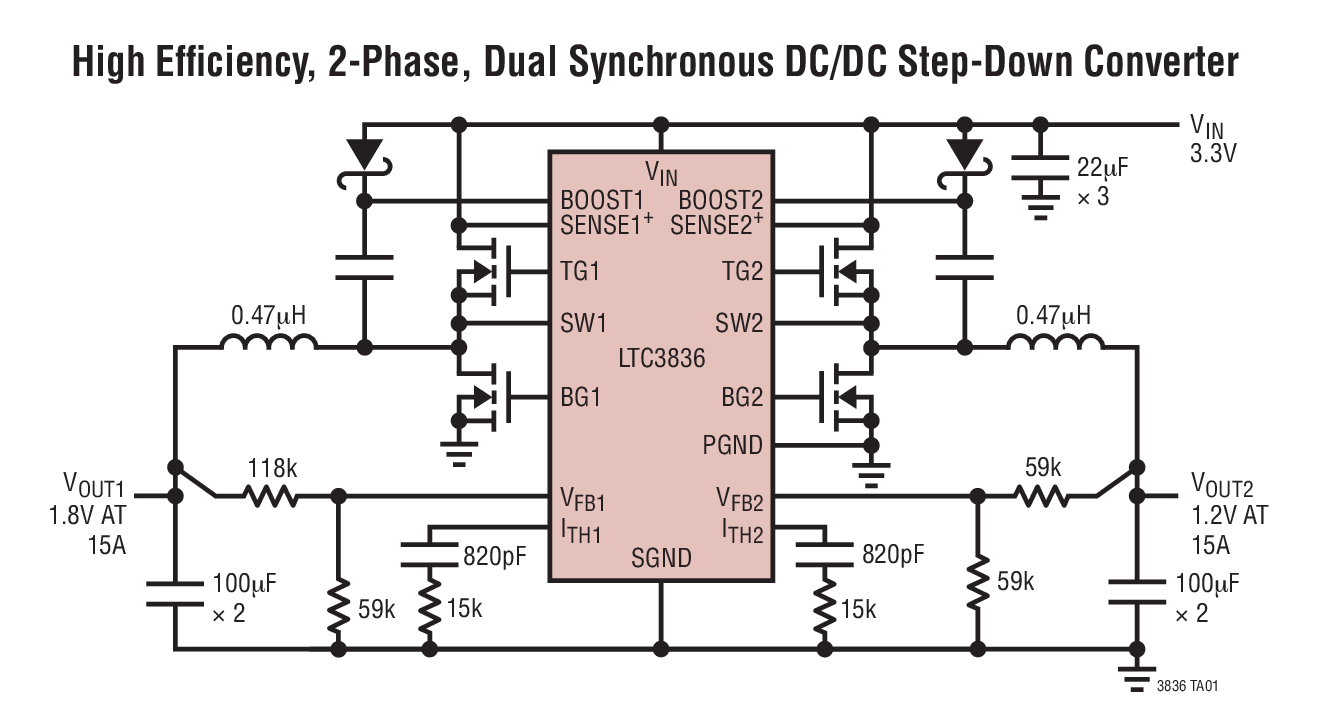

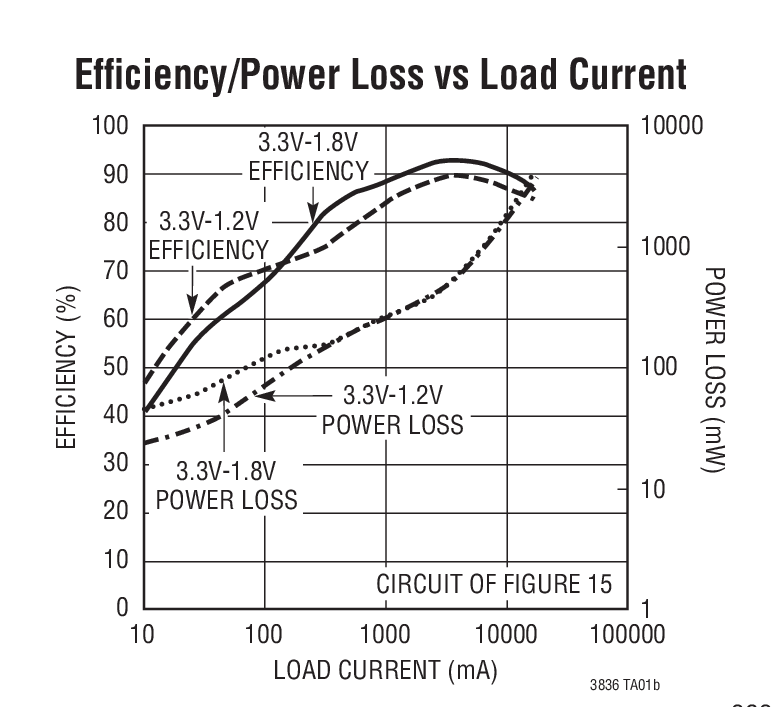

The LTC3836 is a 2-phase dual output synchronous step-down switching regulator controller with tracking that drives external N-channel power MOSFETs using few external components. The constant-frequency current mode architecture with MOSFET VDS sensing eliminates the need for sense resistors and improves efficiency. The power loss and noise due to the ESR of the input capacitance are minimized by operating the two controllers out-of-phase. Pulse-skipping operation provides high efficiency at light loads. The 97% duty cycle capability provides low dropout operation, extending operating time in battery-powered systems.

The operating frequency is selectable from 300kHz to 750kHz, allowing the use of small surface mount inductors and capacitors. For noise sensitive applications, the LTC3836 operating frequency can be externally synchronized from 250kHz to 850kHz.

The LTC3836 features an internal 1ms soft-start that can be extended with an external capacitor. A tracking input allows the second output to track the first during start-up.

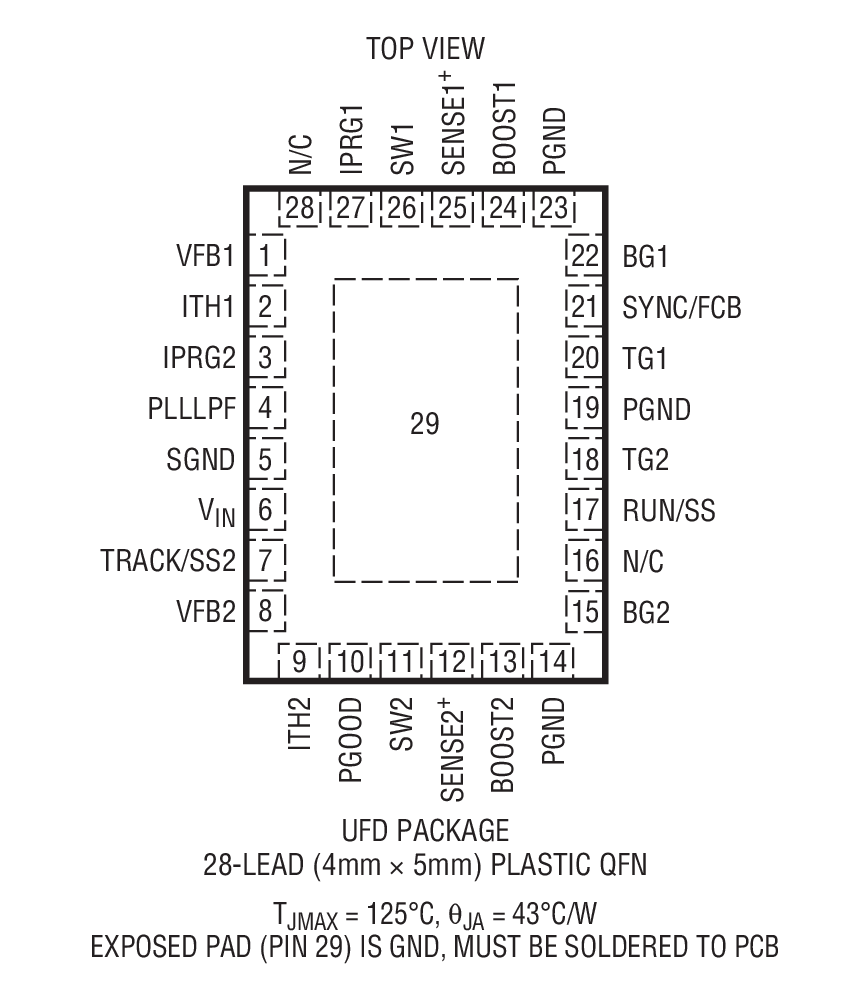

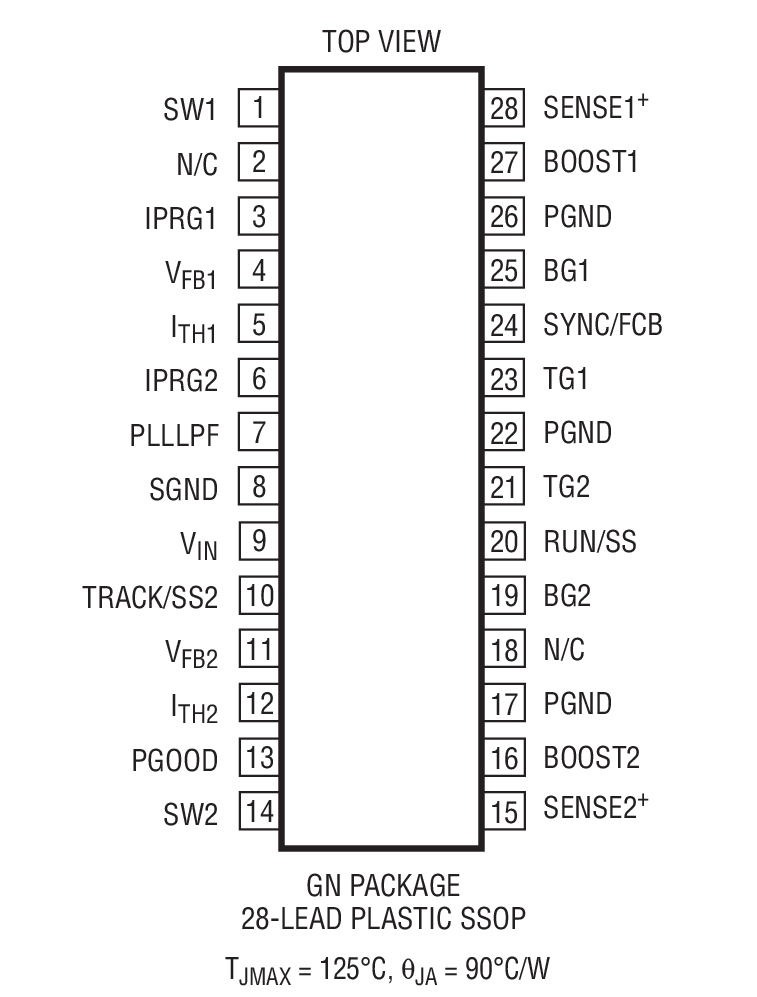

The LTC3836 is available in the tiny thermally enhanced (4mm × 5mm) QFN and 28-lead narrow SSOP packages.

Applications

  • General Purpose 3.3V to 1.X Supplies
  • Single Lithium-Ion Powered Devices
  • Distributed DC Power Systems

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

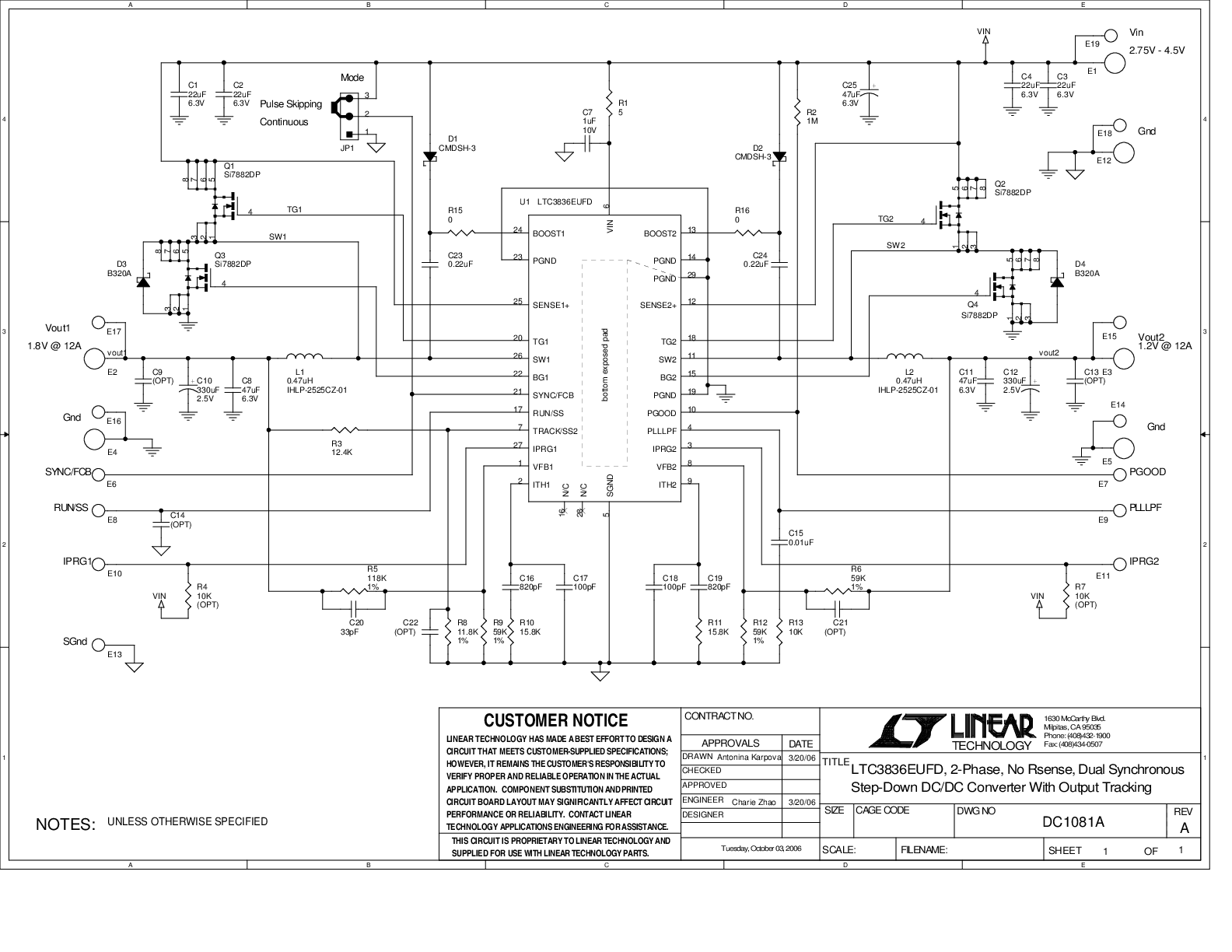

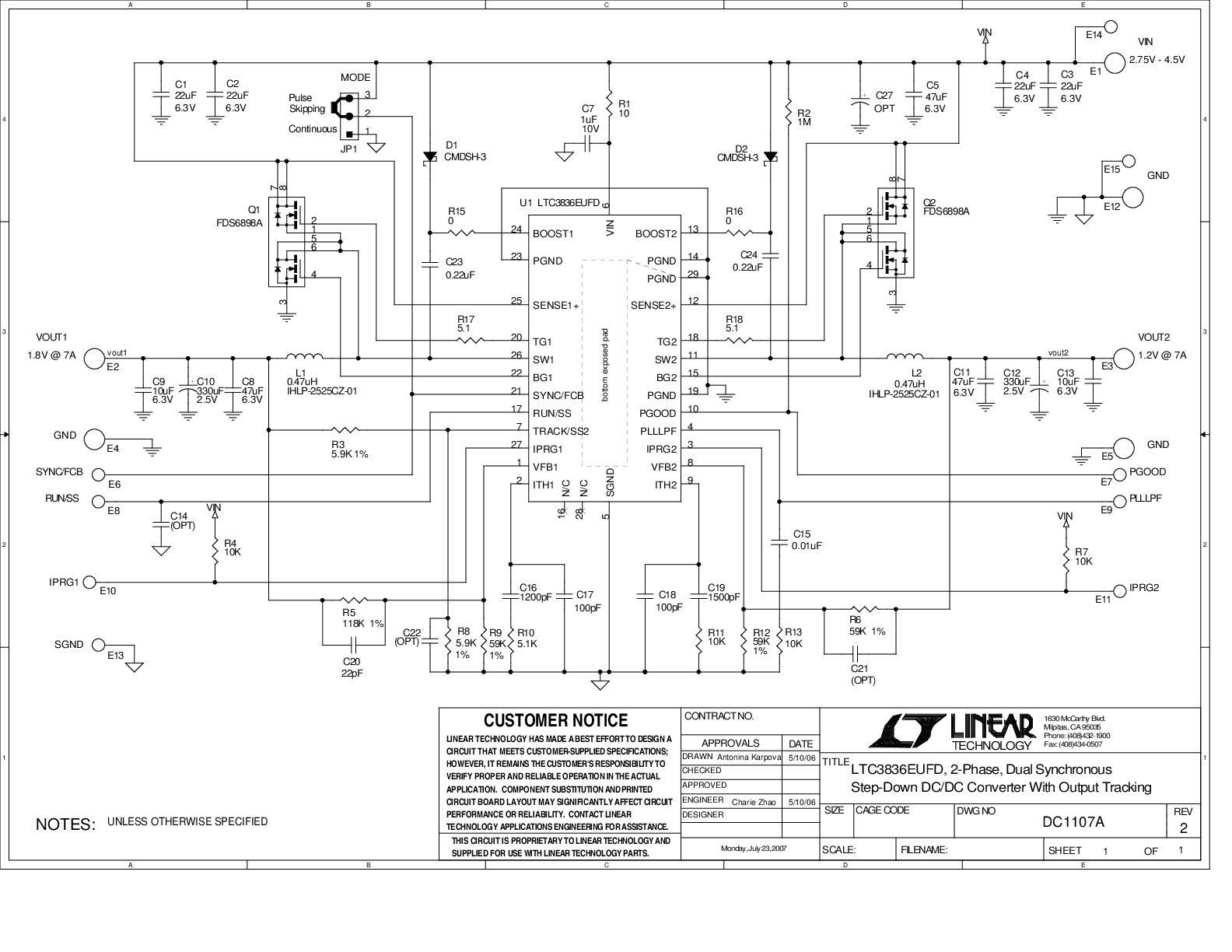

Evaluation Kits (2)

Documentation & Resources

  • View All (4)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (2)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LTC3836

    Product Recommendations

    LTC3836 Companion Parts

    Recommended Related Parts

    Recommended Suggested Oscillator

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC3836EGN#PBF Material Declaration Reliability Data 28-Lead SSOP (Narrow 0.15 Inch)
    LTC3836EGN#TRPBF Material Declaration Reliability Data 28-Lead SSOP (Narrow 0.15 Inch)
    LTC3836EUFD#PBF Material Declaration Reliability Data 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)
    LTC3836EUFD#TRPBF Material Declaration Reliability Data 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)
    Wafer Fabrication Data R421 Reliability Data
