LTC3708

PRODUCTION

LTC3708

Fast 2-Phase, No R_SENSE Buck Controller with Output Tracking

PRODUCTION

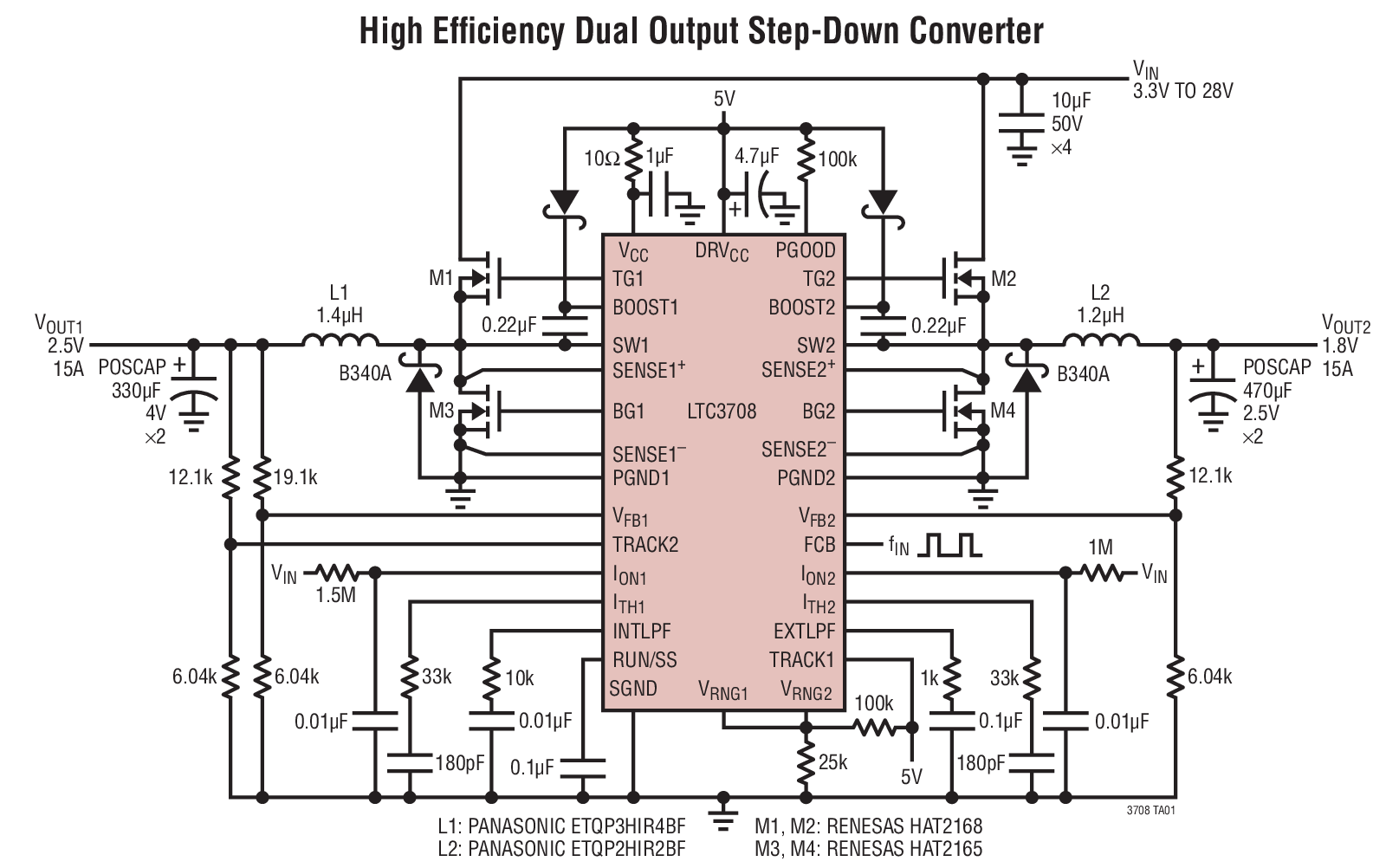

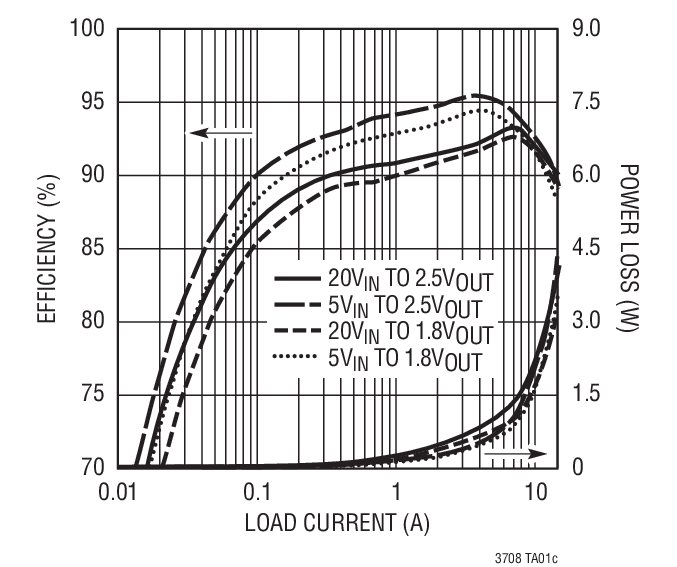

High Efﬁ ciency Dual Output Step-Down Converter slide

High Efﬁ ciency Dual Output Step-Down Converter

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $6.35

Features

Very Low Duty Factor Operation (t_ON(MIN) < 85ns)
No R_SENSE^™ Option for Maximum Efficiency
Very Fast Transient Response

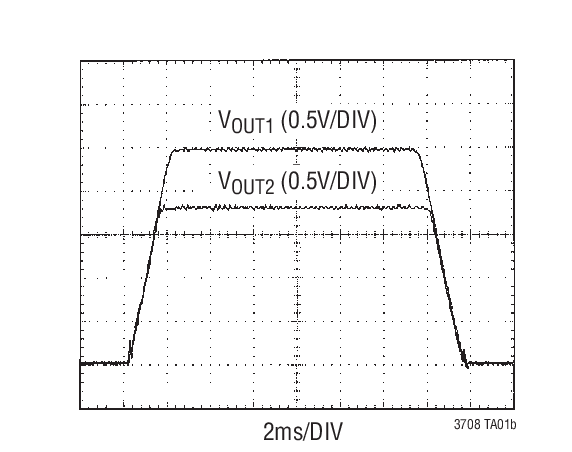

Programmable Output Voltage Up/Down Tracking
2-Phase Operation Reduces Input Capacitance
0.6V ±1% Output Voltage Reference
External Frequency Synchronization
Monotonic Soft-Start
On-board High Current MOSFET Drivers
Wide V_IN Range: Up to 36V
Adjustable Cycle-by-Cycle Current Limit
Instant Output Overvoltage Protection
Optional Short-Circuit Shutdown Timer
Power Good Output with 100µs Masking
Available in 5mm × 5mm QFN Package

Additional Details

The LTC3708 is a dual, 2-phase synchronous step-down switching regulator with output voltage up/down tracking capability. The IC allows either coincident or ratiometric tracking. Multiple LTC3708s can be daisy-chained in applications requiring more than two voltages to be tracked. Power supply sequencing is accomplished using an external soft-start timing capacitor.

The LTC3708 uses a constant on-time, valley current mode control architecture to deliver very low duty factors without requiring a sense resistor. Operating frequency is selected by an external resistor and is compensated for variations in input supply voltage. An internal phase-locked loop allows the IC to be synchronized to an external clock.

Fault protection is provided by an output overvoltage comparator and an optional short-circuit shutdown timer. The regulator current limit level is user programmable. A wide supply range allows voltages as high as 36V to be stepped down to 0.6V output.

Applications

Notebook and Palmtop Computers, PDAs
Digital Signal Processors
Network Servers

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $6.35

Technical Documents 6

LTC3708: Fast 2-Phase, No R_SENSE Buck Controller with Output Tracking Data Sheet 10/05/2016

R419 Reliability Data 03/22/2018

Design Solutions 41 - Dual Output DC/DC Converter Solutions for Xilinx FPGA Based Systems 08/21/2007

Design Solutions 43 - High Performance Switch Mode Power Solutions for Altera Low Voltage FPGAs 08/21/2007

Design Note 334: 2-Phase DC/DC Controller Makes Fast, Efficient and Compact Power Supplies 04/01/2004

2-Phase Controller Makes Small, Fast and Efficient Power Supplies with Output Tracking 02/01/2004

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3708EUH#PBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC3708EUH#TRPBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LTC3708EUH#PBF
Pin/Package Drawing

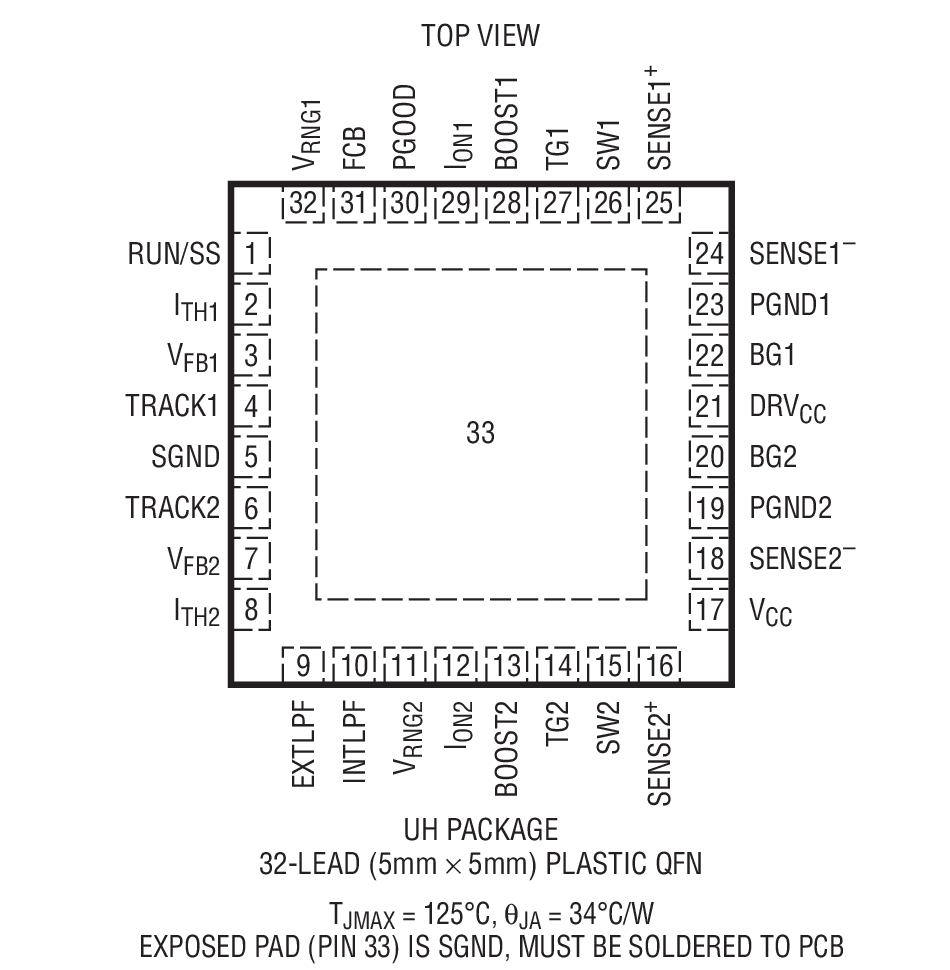

32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)
