LTC3705

2-Switch Forward Controller and Gate Driver

Show More showmore-icon

warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC3705 - Switching Regulators, LT1431 - Voltage References Download 7.24 KB
Part Models 4
1ku List Price Starting From $3.17
Features
  • High-Speed Top and Bottom Gate Drivers for
  • 2-Switch Forward Converter
  • On-Chip Rectifier and Self-Starting Architecture
  • Eliminate Need for Separate Gate Drive Bias Supply
  • Wide Input Voltage Supply Range: 18V to 80V
  • Tolerant of 100V Input Voltage Transients
  • Linear Regulator Controller for Fast Start-Up
  • Precision UVLO with Adjustable Hysteresis
  • Overcurrent Protection
  • Volt-Second Limit Prevents Transformer Core Saturation
  • Voltage Feedforward for Fast Transient Response

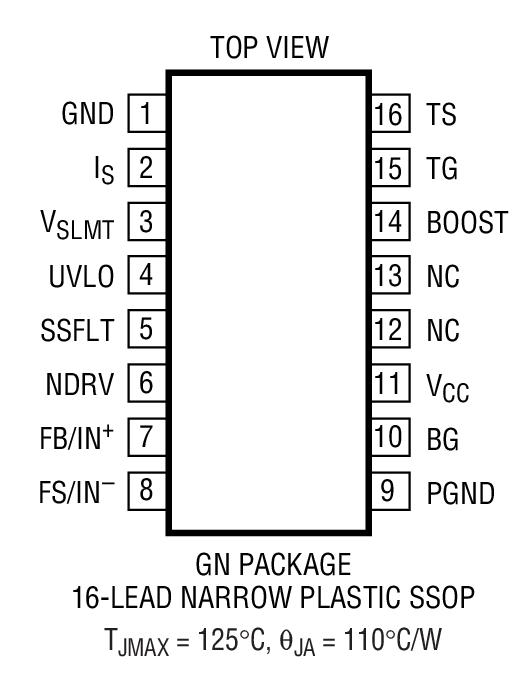

  • Available in 16-Lead Narrow SSOP Package
Additional Details
show more Icon

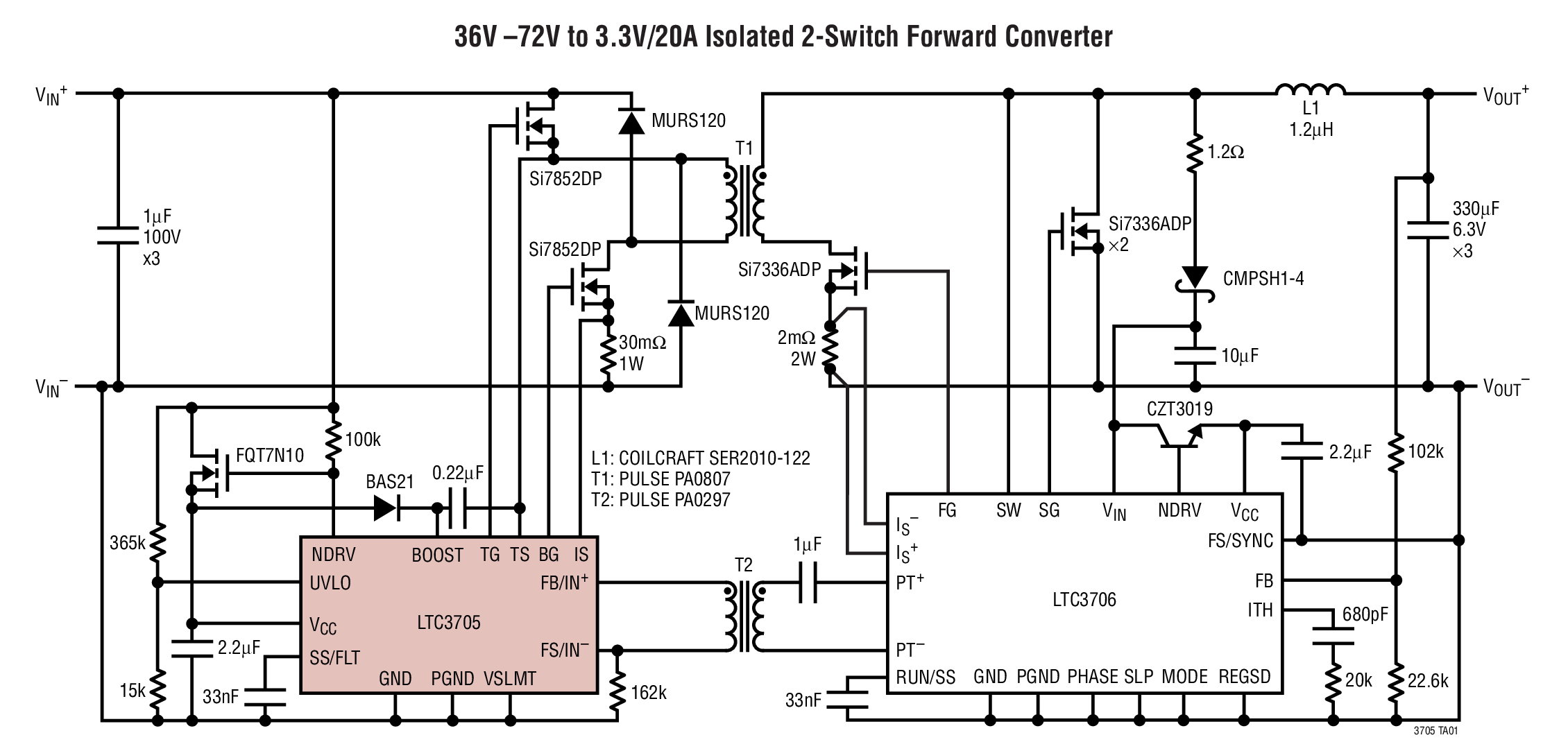

The LTC3705 is a controller for a 2-switch forward converter and includes on-chip bottom and top gate drivers that do not require external transformers. For secondary-side control, combine the LTC3705 with the LTC3706 PolyPhase® secondary-side synchronous forward controller to create a complete forward converter using a minimum of discrete parts. A proprietary scheme is used to multiplex gate drive signals across the isolation barrier through a tiny pulse transformer. The on-chip rectifier and the same pulse transformer provide gate drive bias power.

Alternatively, the LTC3705 can be used as a standalone voltage mode controller in a primary-side control architecture with optoisolator feedback. Voltage feedforward provides excellent line regulation and transient response.

Applications

  • Isolated 48V Telecommunication Systems
  • Internet Servers and Routers
  • Distributed Power Step-Down Converters
  • Automotive and Heavy Equipment
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC3705 - Switching Regulators, LT1431 - Voltage References Download 7.24 KB
Part Models 4
1ku List Price Starting From $3.17
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3705

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Design Note
  • Data Sheet
  • User Guide
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 11/09/2007
English

LTC3705: 2-Switch Forward Controller and Gate Driver Data Sheet

Open PDF File

redirect
293.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/22/2018
English
R419 Reliability Data redirect icon

27.83 K

download

Download PDF

Design Note

2

PDF Vector

PDF

UPDATED 04/01/2014
English
DN377 - Isolated Converters Have Buck Simplicity and Performance redirect icon

82.00K

download

Download PDF

PDF Vector

PDF

UPDATED 04/20/2006
Japanese
DN377 - 降圧コンバータの単純さと性能を備えた絶縁コンバータ redirect icon

66.00K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC776A - Demo Manual redirect icon

716.00K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3705EGN#PBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3705EGN#TRPBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3705IGN#PBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3705IGN#TRPBF 16-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 3, 2024

- 24_0235

(QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking

LTC3705EGN#PBF

PRODUCTION

LTC3705EGN#TRPBF

PRODUCTION

LTC3705IGN#PBF

PRODUCTION

LTC3705IGN#TRPBF

PRODUCTION

pdf

PCN24_0235_Form

external-icon

xls

Material_Report

Download

pdf

Other

external-icon

xlsm

Delta Qualification Matrix

Download

Oct 11, 2022

- 22_0235

Epoxy Change from Henkel 8290 to 8290A for GN Package

LTC3705EGN#PBF

PRODUCTION

LTC3705EGN#TRPBF

PRODUCTION

LTC3705IGN#PBF

PRODUCTION

LTC3705IGN#TRPBF

PRODUCTION

pdf

PCN22_0235_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Apr 6, 2022

- 22_0066

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LTC3705EGN#PBF

PRODUCTION

LTC3705EGN#TRPBF

PRODUCTION

LTC3705IGN#PBF

PRODUCTION

LTC3705IGN#TRPBF

PRODUCTION

pdf

PCN22_0066_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 3, 2024

- 24_0235

arrow down

(QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking

LTC3705EGN#PBF

PRODUCTION

LTC3705EGN#TRPBF

PRODUCTION

LTC3705IGN#PBF

PRODUCTION

LTC3705IGN#TRPBF

PRODUCTION

pdf

PCN24_0235_Form

external-icon

xls

Material_Report

Download

pdf

Other

external-icon

xlsm

Delta Qualification Matrix

Download
Oct 11, 2022

- 22_0235

arrow down

Epoxy Change from Henkel 8290 to 8290A for GN Package

LTC3705EGN#PBF

PRODUCTION

LTC3705EGN#TRPBF

PRODUCTION

LTC3705IGN#PBF

PRODUCTION

LTC3705IGN#TRPBF

PRODUCTION

pdf

PCN22_0235_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Apr 6, 2022

- 22_0066

arrow down

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LTC3705EGN#PBF

PRODUCTION

LTC3705EGN#TRPBF

PRODUCTION

LTC3705IGN#PBF

PRODUCTION

LTC3705IGN#TRPBF

PRODUCTION

pdf

PCN22_0066_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Software & Part Ecosystem

Parts Product Life Cycle Description
LTC3765
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Active Clamp Forward Controller and Gate Driver

Evaluation Kits 1

reference details image

DC776A

LTC3705EGN/LTC3706EGN Demo Board | Forward Converter with Secondary Side Control, 36V ≤ VIN ≤72V, VOUT = 1.5V @ 45A

zoom

DC776A

LTC3705EGN/LTC3706EGN Demo Board | Forward Converter with Secondary Side Control, 36V ≤ VIN ≤72V, VOUT = 1.5V @ 45A

download icon

Download

 print icon

Print
DC776A
LTC3705EGN/LTC3706EGN Demo Board | Forward Converter with Secondary Side Control, 36V ≤ VIN ≤72V, VOUT = 1.5V @ 45A
Buy Now View Details

Product Detail

Demonstration circuit 776 is a 36V-72VIN, 2-switch forward converter with synchronous secondary-side control featuring the LTC3705 and LTC3706. This circuit was designed specifically to attain a high stepdown ratio power supply in one stage in order to efficiently power 1.5V loads from a typical telecom input voltage range. Isolation voltage is 1500VDC. This circuit features secondary-side control of the supply without the need of an optocoupler.

Resources

pdf icon

PDF

DC776A - Demo Manual Download

716.00K

pdf icon

ZIP

DC776A - Design File Download

1.00M

pdf icon

PDF

DC776A - Schematic Download

47.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC776A

LTC3705EGN/LTC3706EGN Demo Board | Forward Converter with Secondary Side Control, 36V ≤ VIN ≤72V, VOUT = 1.5V @ 45A

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LTC3705 - Switching Regulators, LT1431 - Voltage References Download

7.24 K
