LTC3630A

High Efficiency, 76V 500mA Synchronous Step-Down Converter

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.D)
Documentation View All Documentation
LTspice LTC3630A Demo Circuit - High Efficiency High Voltage Step-Down Converter (4-76V to 3.3V @ 500mA) Download 2.00KB LTspice LTC3630A - Step-Down (Buck) Regulators Download 1.3 KB
Part Models 20
1ku List Price Starting From $3.60
Features
  • Wide Operating Input Voltage Range: 4V to 76V
  • Synchronous Operation for Highest Efficiency
  • Internal High Side and Low Side Power MOSFETs
  • No Compensation Required
  • Adjustable 50mA to 500mA Maximum Output Current
  • Low Dropout Operation: 100% Duty Cycle
  • Low Quiescent Current: 12μA
  • Wide Output Range: 0.8V to VIN
  • 0.8V ±1% Feedback Voltage Reference
  • Precise RUN Pin Threshold
  • Internal and External Soft-Start
  • Programmable 1.8V, 3.3V, 5V or Adjustable Output
  • Few External Components Required
  • Low Profile (0.75mm) 3mm × 5mm DFN and Thermally-Enhanced MSE16 Packages
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

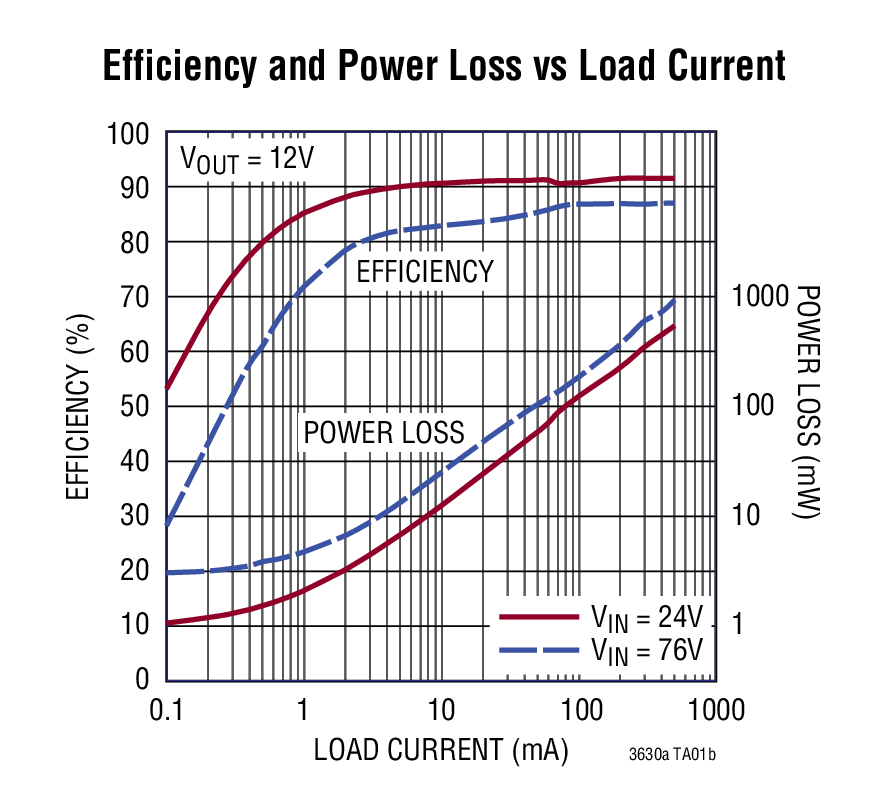

The LTC3630A is a high efficiency step-down DC/DC converter with internal high side and synchronous power switches that draws only 12μA typical DC supply current while maintaining a regulated output voltage at no load.

The LTC3630A can supply up to 500mA load current and features a programmable peak current limit that provides a simple method for optimizing efficiency and for reducing output ripple and component size. The LTC3630A’s combination of Burst Mode® operation, integrated power switches, low quiescent current, and programmable peak current limit provides high efficiency over a broad range of load currents.

With its wide input range of 4V to 76V, the LTC3630A is a robust converter suited for regulating a wide variety of power sources. A feedback comparator output enables multiple LTC3630As to be paralleled in higher current applications.

The LTC3630A is available in the thermally-enhanced 3mm × 5mm DFN and the MSE16 packages.

  Vin Range
LTC3630 4.5V to 65V
LTC3630A 4.5V to 76V

APPLICATIONS

  • Industrial Control Supplies
  • Medical Devices
  • Portable Instruments
  • Automotive
  • Avionics
Show More Arrow image
file View Data Sheet (Rev.D)
Documentation View All Documentation
LTspice LTC3630A Demo Circuit - High Efficiency High Voltage Step-Down Converter (4-76V to 3.3V @ 500mA) Download 2.00KB LTspice LTC3630A - Step-Down (Buck) Regulators Download 1.3 KB
Part Models 20
1ku List Price Starting From $3.60
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3630A

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • User Guide
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 02/20/2014
English

LTC3630A: High Efficiency, 76V 500mA Synchronous Step-Down Converter Data Sheet (Rev.D)

Open PDF File

redirect
1.7 M
download

Download PDF

PDF Vector

PDF

UPDATED 04/21/2014
Japanese

LTC3630A: 高効率、76V、500mA同期整流式降圧コンバータ データシート

Open PDF File

redirect
661.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R526 Reliability Data redirect icon

365.77 K

download

Download PDF

User Guide

2

PDF Vector

PDF

UPDATED 08/01/2013
English
DC2105A - Demo Manual redirect icon

306.00K

download

Download PDF

PDF Vector

PDF

UPDATED 01/19/2015
English
DC1877A - Demo Manual redirect icon

250.00K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models

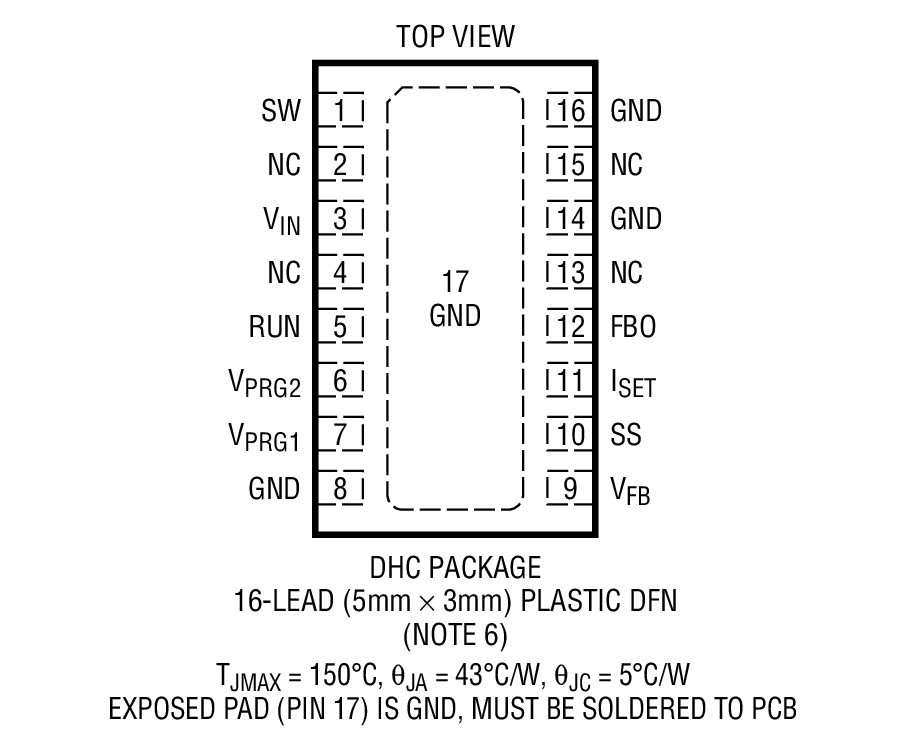

LTC3630AEDHC#PBF 16-Lead DFN (5mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3630AEDHC#TRPBF 16-Lead DFN (5mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

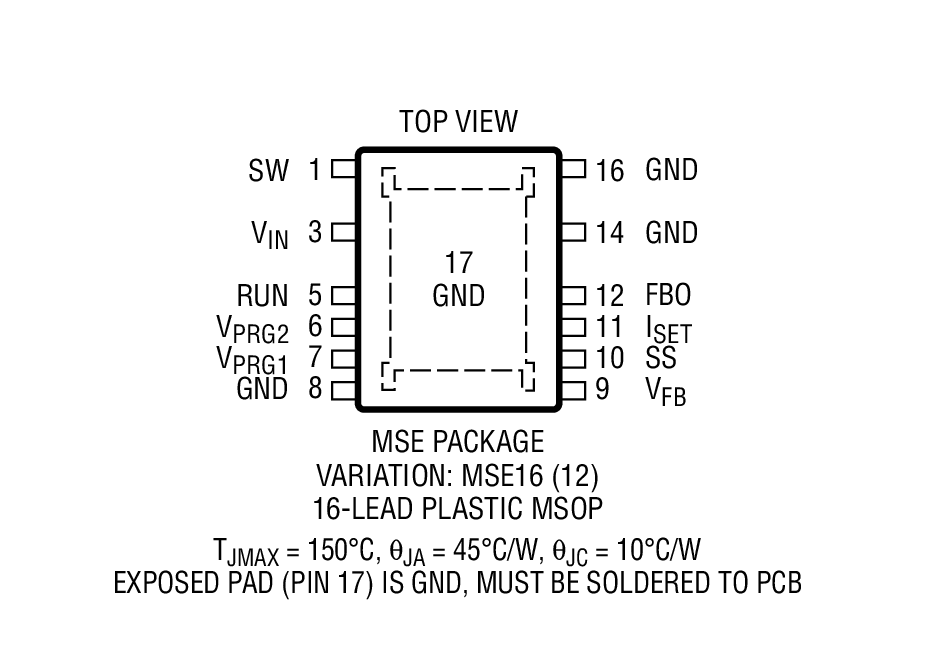

LTC3630AEMSE#PBF 16(12)-Lead MSOP w/ EP external-link
