LTC3588-2
Nanopower Energy Harvesting Power Supply with 14V Minimum VIN
Top
New Content (1)
Overview
Features and Benefits
- 1500nA Input Quiescent Current (Output in Regulation – No Load, VIN = 18V)
- 830nA Input Quiescent Current in UVLO, VIN = 12V
- 14V to 20V Input Operating Range
- Integrated Low-Loss Full-Wave Bridge Rectifier
- 16V UVLO Improves Power Utilization from High Voltage Current Limited Inputs
- Up to 100mA of Output Current
- High Efficiency Integrated Hysteretic Buck DC/DC
- Selectable Output Voltages: 3.45V, 4.1V, 4.5V, 5.0V
- Input Protective Shunt – Up to 25mA Pull-Down at VIN ≥ 20V
- Available in 10-Lead MSE and 3mm × 3mm DFN Packages
Product Details
The LTC3588-2 integrates a low-loss full-wave bridge rectifier with a high efficiency buck converter to form a complete energy harvesting solution optimized for high output impedance energy sources such as piezoelectric, solar, or magnetic transducers.
An ultralow quiescent current undervoltage lockout (UVLO) mode with a 16V rising threshold enables efficient energy extraction from sources with high open circuit voltages. This energy is transferred from the input capacitor to the output via a high efficiency synchronous buck regulator. The 16V UVLO threshold also allows for input to output current multiplication through the buck regulator. The buck features a sleep state that minimizes both input and output quiescent currents while in regulation.
Four output voltages of 3.45V, 4.1V, 4.5V and 5.0V are pin selectable with up to 100mA of continuous output current, and suit Li-Ion and LiFePO4 batteries as well as supercapacitors. An input protective shunt set at 20V provides overvoltage protection.
| Output Voltage (Switcher) | UVLO | Quiescent Current | |
| LTC3588-1 | Selectable 1.8V, 2.5V, 3.3V or 3.6V | 4.04V(Rising) 2.87V(Falling) |
950nA (No Load) 450nA (UVLO) |
| LTC3588-2 | Selectable 3.45V, 4.1V, 4.5V or 5V | 16V(Rising) 14V(Falling) |
1,500nA (No Load) 830nA (UVLO) |
Applications
- Piezoelectric Energy Harvesting
- Electro-Mechanical Energy Harvesting
- Low Power Battery Charging
- Wireless HVAC Sensors
- Mobile Asset Tracking
- Tire Pressure Sensors
- Battery Replacement for Industrial Sensors
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

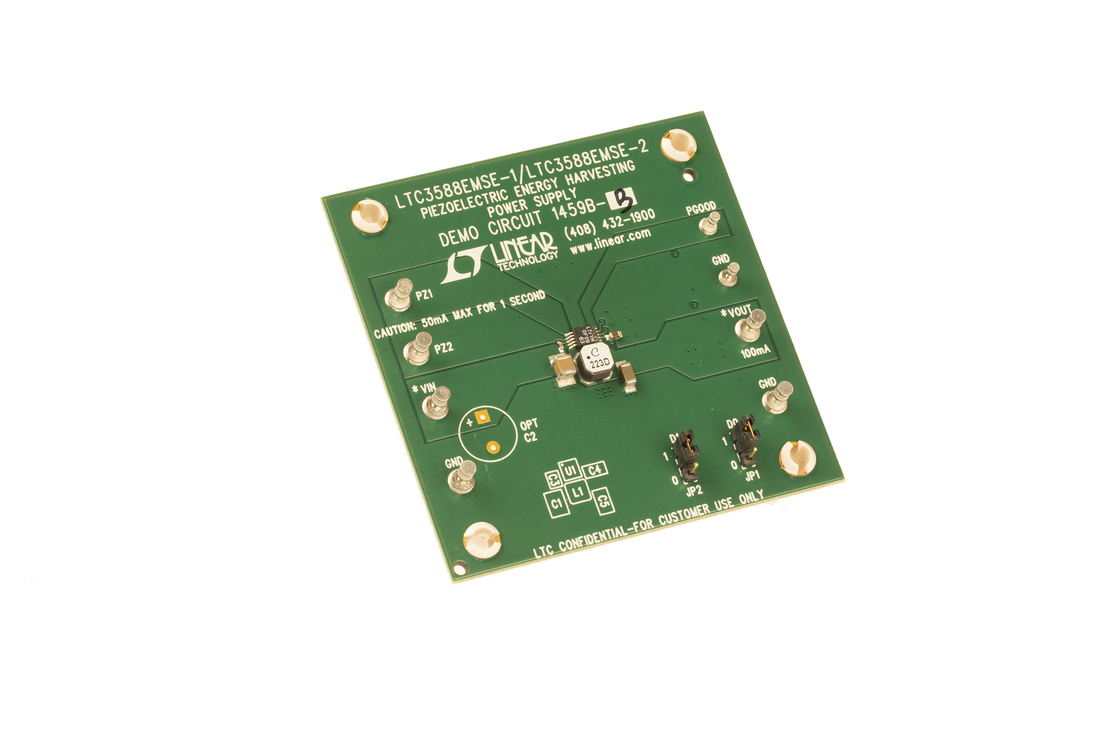

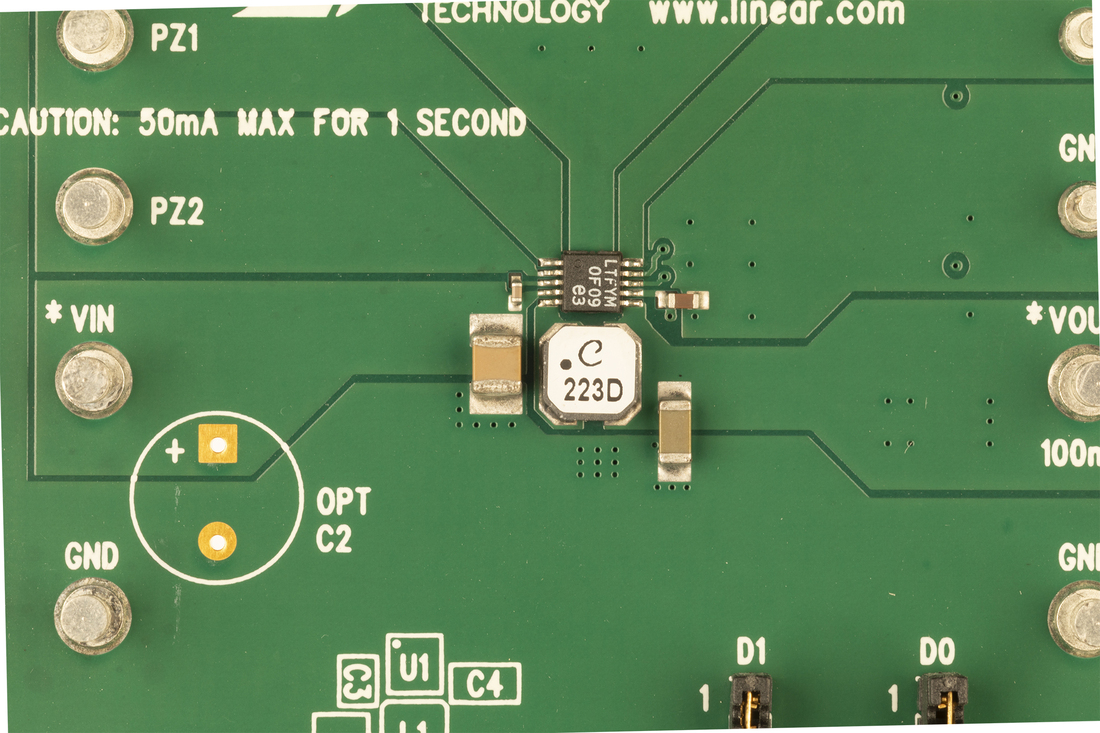

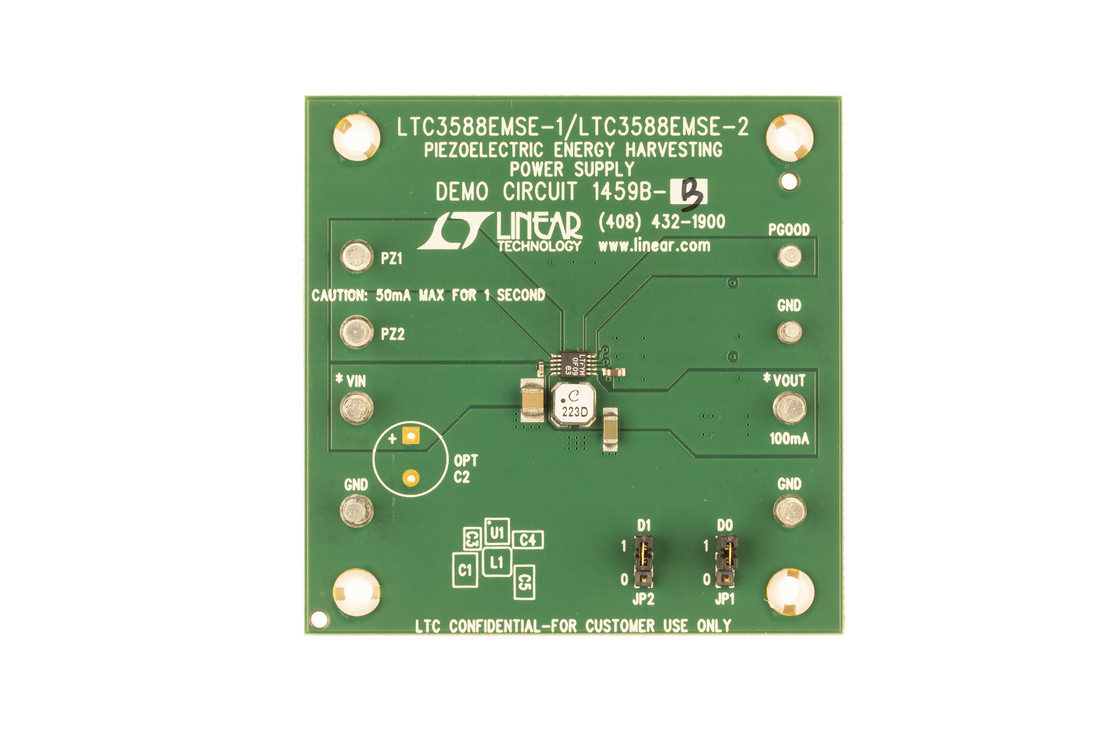

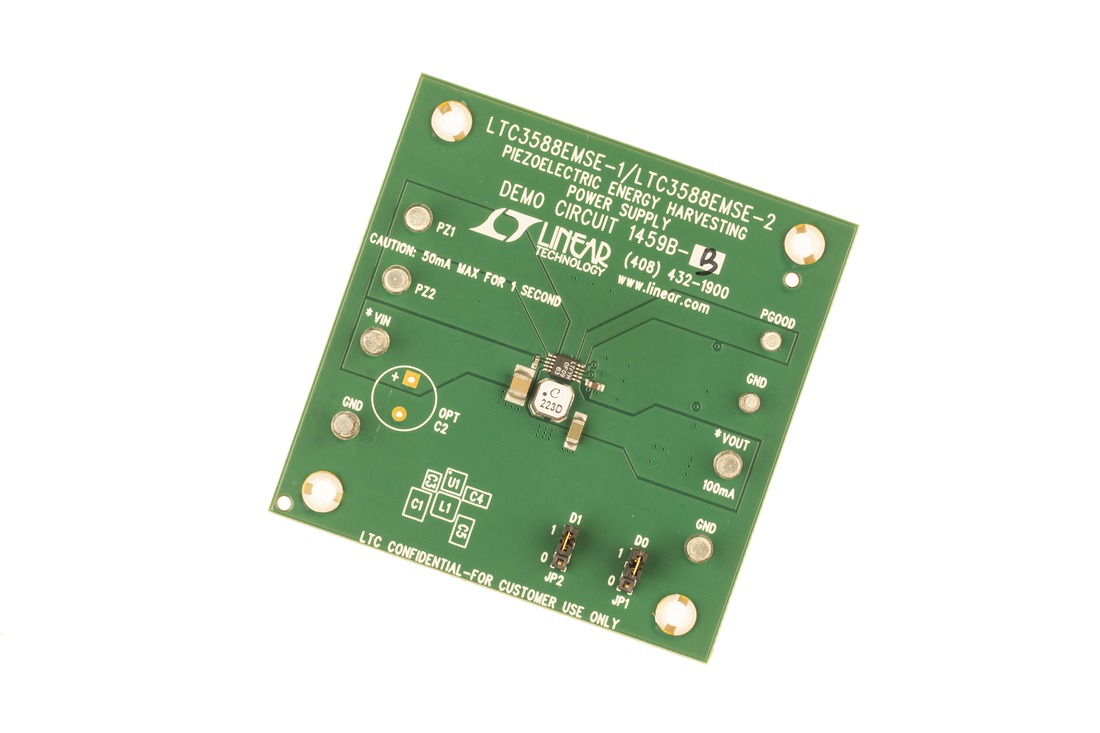

Evaluation Kits (1)
Documentation & Resources
-
R551 Reliability Data3/23/2018
-

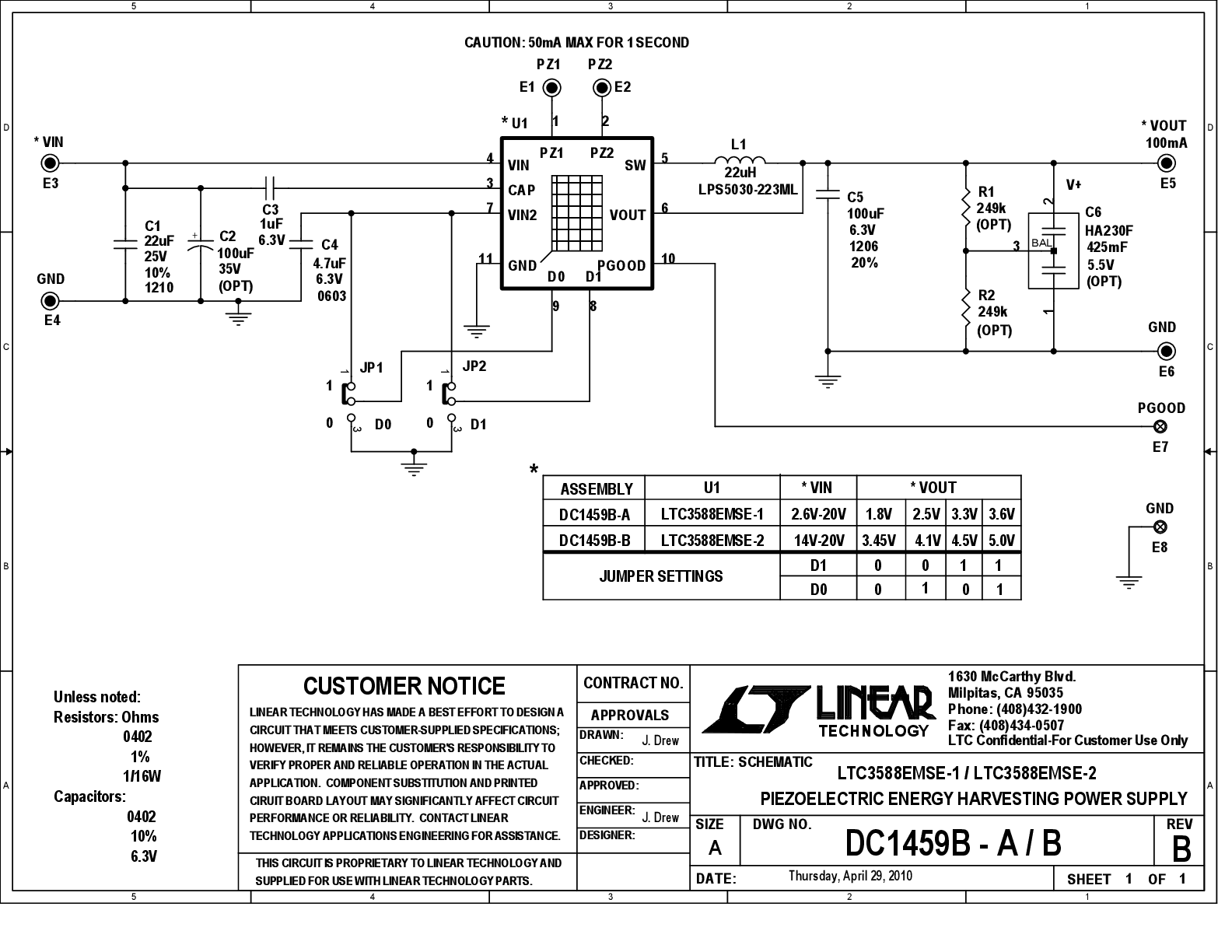

DC1459B - Demo Manual7/16/2010
-
Energy Harvesting Now6/27/2011
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
LTC3588-1
LTC3588-2
Product Recommendations
LTC3588-2 Companion Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC3588EDD-2#PBF | Material Declaration | Reliability Data | 10-Lead DFN (3mm x 3mm w/ EP) | |
| LTC3588EDD-2#TRPBF | Material Declaration | Reliability Data | 10-Lead DFN (3mm x 3mm w/ EP) | |
| LTC3588EMSE-2#PBF | Material Declaration | Reliability Data | 10-Lead MSOP w/ EP | |
| LTC3588EMSE-2#TRPBF | Material Declaration | Reliability Data | 10-Lead MSOP w/ EP | |
| LTC3588IDD-2#PBF | Material Declaration | Reliability Data | 10-Lead DFN (3mm x 3mm w/ EP) | |
| LTC3588IDD-2#TRPBF | Material Declaration | Reliability Data | 10-Lead DFN (3mm x 3mm w/ EP) | |
| LTC3588IMSE-2#PBF | Material Declaration | Reliability Data | 10-Lead MSOP w/ EP | |
| LTC3588IMSE-2#TRPBF | Material Declaration | Reliability Data | 10-Lead MSOP w/ EP | |
| Wafer Fabrication Data | R551 Reliability Data |
