LTC3568
LAST TIME BUY1.8A, 4MHz, Synchronous Step-Down DC/DC Converter
- Part Models
- 4
- 1ku List Price
- Starting From $4.48
Overview
- Uses Tiny Capacitors and Inductor
- High Frequency Operation: Up to 4MHz
- Low RDS(ON) Internal Switches: 0.110Ω
- High Efficiency: Up to 96%
- Stable with Ceramic Capacitors
- Current Mode Operation for Excellent Line and Load Transient Response
- Short-Circuit Protected
- Low Dropout Operation: 100% Duty Cycle
- Low Shutdown Current: IQ ≤ 1μA
- Low Quiescent Current: 60μA
- Output Voltages from 0.8V to 5V
- Selectable Burst Mode® Operation
- Sychronizable to External Clock
- Small 3mm × 3mm, 10-Lead DFN Package
The LTC3568 is a constant frequency, synchronous step- down DC/DC converter. Intended for medium power applications, it operates from a 2.5V to 5.5V input voltage range and has a user configurable operating frequency up to 4MHz, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. The output voltage is adjustable from 0.8V to 5V. Internal sychronous 0.11Ω power switches with 2.4A peak current ratings provide high efficiency. The LTC3568’s current mode architecture and external compensation allow the transient response to be optimized over a wide range of loads and output capacitors.
The LTC3568 can be configured for automatic power saving Burst Mode operation to reduce gate charge losses when the load current drops below the level required for continuous operation. For reduced noise and RF interference, the SYNC/MODE pin can be configured to skip pulses or provide forced continuous operation.
To further maximize battery life, the P-channel MOSFET is turned on continuously in dropout (100% duty cycle) with a low quiescent current of 60μA. In shutdown, the device draws <1μA.
Applications
- Notebook Computers
- Digital Cameras
- Cellular Phones
- Handheld Instruments
- Board Mounted Power Supplies
Documentation
Data Sheet 1
User Guide 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC3568EDD#PBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LTC3568EDD#TRPBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LTC3568IDD#PBF | 10-Lead DFN (3mm x 3mm w/ EP) | ||
| LTC3568IDD#TRPBF | 10-Lead DFN (3mm x 3mm w/ EP) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Jul 29, 2026 - 26_0046 Discontinuation of Parts Manufactured in TSMC Fab 2 and 5 in Hsinchu, Taiwan. |
||
| LTC3568EDD#PBF | ||
| LTC3568EDD#TRPBF | ||
| LTC3568IDD#PBF | ||
| LTC3568IDD#TRPBF | ||
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Oscillators 1 | ||
| LTC6909 | PRODUCTION | 1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation |
| Power System Management (PSM) & Sequencers 1 | ||
| LTC2974 | RECOMMENDED FOR NEW DESIGNS | 4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement |
| Supervisory Circuits & Reset ICs 1 | ||
| LTC2935 | PRODUCTION | Ultra-Low Power Supervisor with Power-Fail Output, Selectable Thresholds |
| Switching Regulators & Controllers 1 | ||
| LTC3880 | RECOMMENDED FOR NEW DESIGNS | Dual Output PolyPhase Step-Down DC/DC Controller with Digital Power System Management |
Tools & Simulations
LTspice 1
Models for the following parts are available in LTspice:
- LTC3568
LTpowerCAD 1
Design tools for the following parts are available in LTpowerCAD:
- LTC3568
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
LTpowerCAD® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.
Evaluation Kits

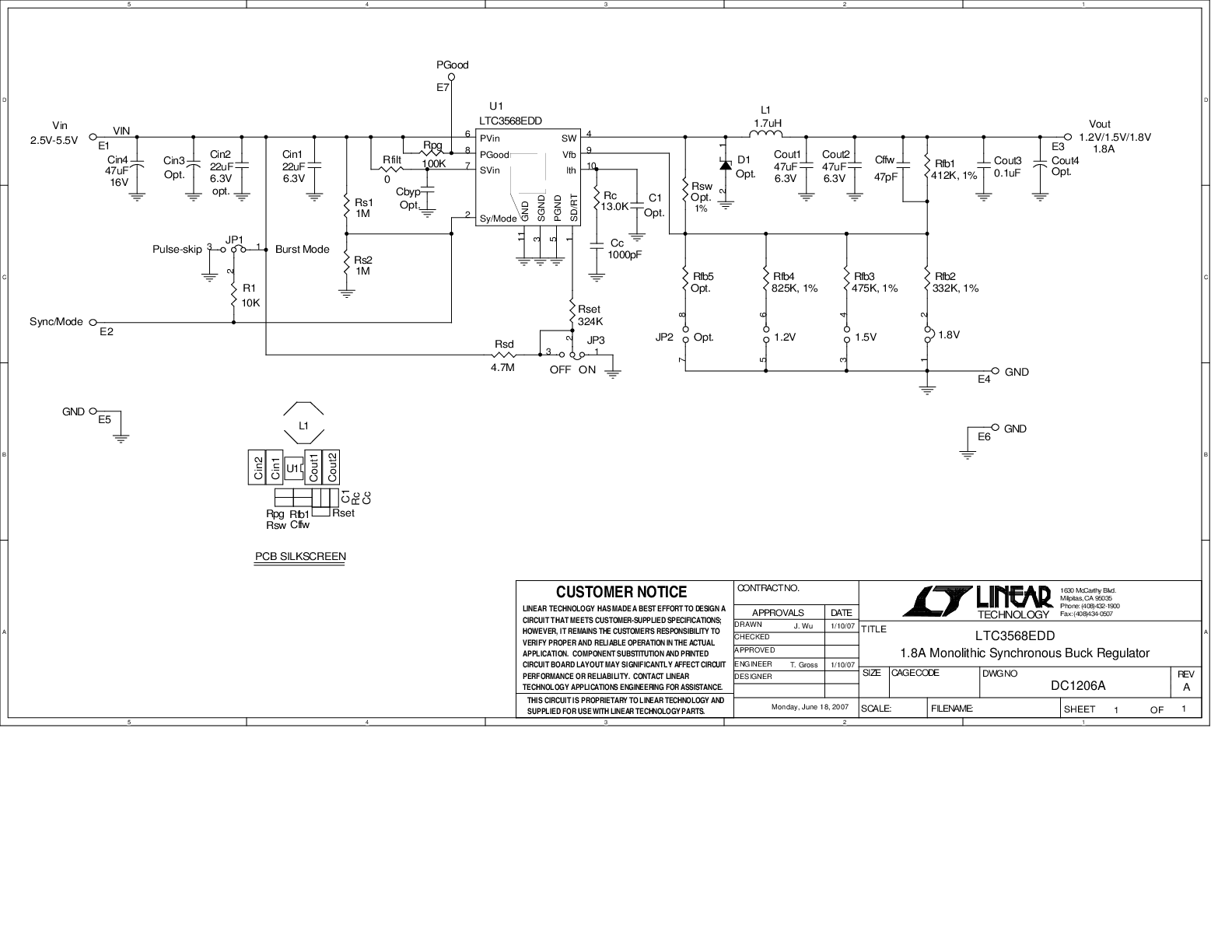

LTC3568EDD Demo Board | 2.25V ≤ VIN ≤ 5.5V, VOUT = 1.2V/1.5V/1.8V at 1.8A
