Overview

Features and Benefits

  • Four Independent I2C Controllable Step-Down Regulators (2 x 600mA, 2 x 400mA)
  • Two I2C Programmable Feedback Voltage Regulators (R600A, R400A): VFB 425mV to 800mV
  • Two I2C Programmable Output Voltage Regulators (R600B, R400B): VOUT 600mV to 3.775V
  • Programmable Modes: Pulse Skip, LDO, Burst Mode®, Forced Burst Mode Operation
  • Quiescent Current <100uA (All Regulators Enabled in LDO Mode)
  • Fixed 2.25MHz Switching Frequency (Pulse Skip Mode)
  • Slew Limiting Reduces Switching Noise
  • Power-On Reset Output for Regulator R600A
  • Small, Thermally Enhanced, 20-Lead 3mm x 3mm QFN Package

Product Details

The LTC3562 is a quad high efficiency monolithic synchronous step-down regulator with an I2C interface. Two regulators are externally adjustable and can have their feedback voltages programmed between 425mV and 800mV in 25mV steps (Type A). The other two regulators are fixed output regulators whose output voltages can be programmed between 600mV and 3.775V in 25mV steps (Type B). All four regulators operate independently and can be put into pulse skip, LDO, Burst Mode operation, or forced Burst Mode operation through I2C control. The Type-A regulators have separate RUN pins that can be enabled if I2C control is unavailable.

The 2.85V to 5.5V input voltage range makes the LTC3562 ideally suited for single Li-Ion battery-powered applications. At low output load conditions, the regulators can be switched into LDO, Burst Mode operation, or forced Burst Mode operation, extending battery life in portable systems. The quiescent current drops to under 100uA with all regulators in LDO mode, and under 0.1uA when all regulators are shut down.

Switching frequency is internally set to 2.25MHz, allowing the use of small surface mount inductors and capacitors. All regulators are internally compensated. The LTC3562 is available in a low profile 3mm x 3mm QFN package.

Applications

  • Miscellaneous Handheld Applications with Multiple Supply Rails
  • Personal Information Appliances
  • Wireless and DSL Modems
  • Digital Still Cameras
  • MP3 Players
  • Portable Instruments

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

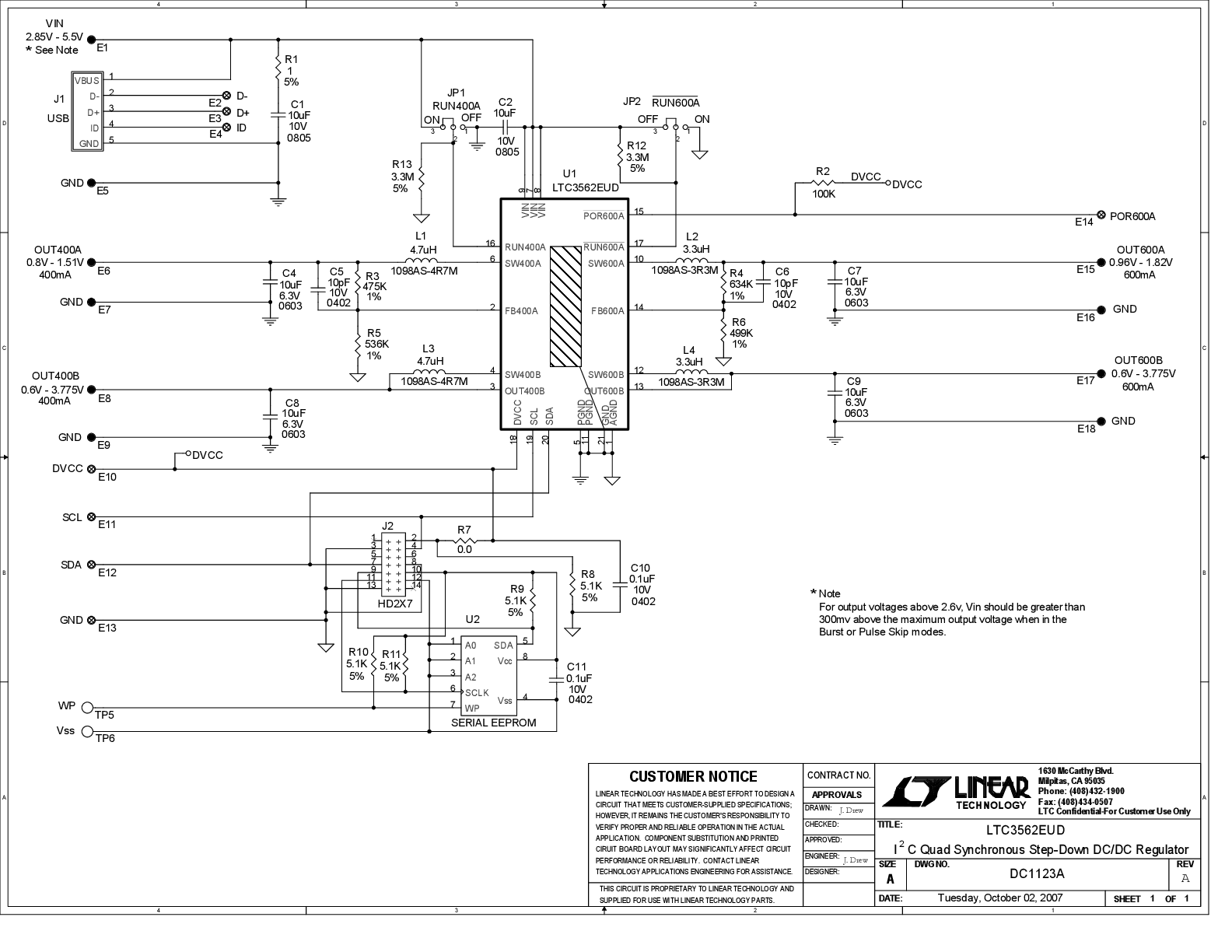

Evaluation Kits (1)

Documentation & Resources

  • View All (5)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Design Notes (1)
  • Technical Articles (1)
    • Document Type

    Product Recommendations

    LTC3562 Companion Parts

    Recommended Related Parts

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC3562EUD#PBF Material Declaration Reliability Data 20-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC3562EUD#TRPBF Material Declaration Reliability Data 20-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    Wafer Fabrication Data R457 Reliability Data
