Overview

Features and Benefits

  • Regulated Output with Input Above, Below or Equal to the Output
  • Single Inductor

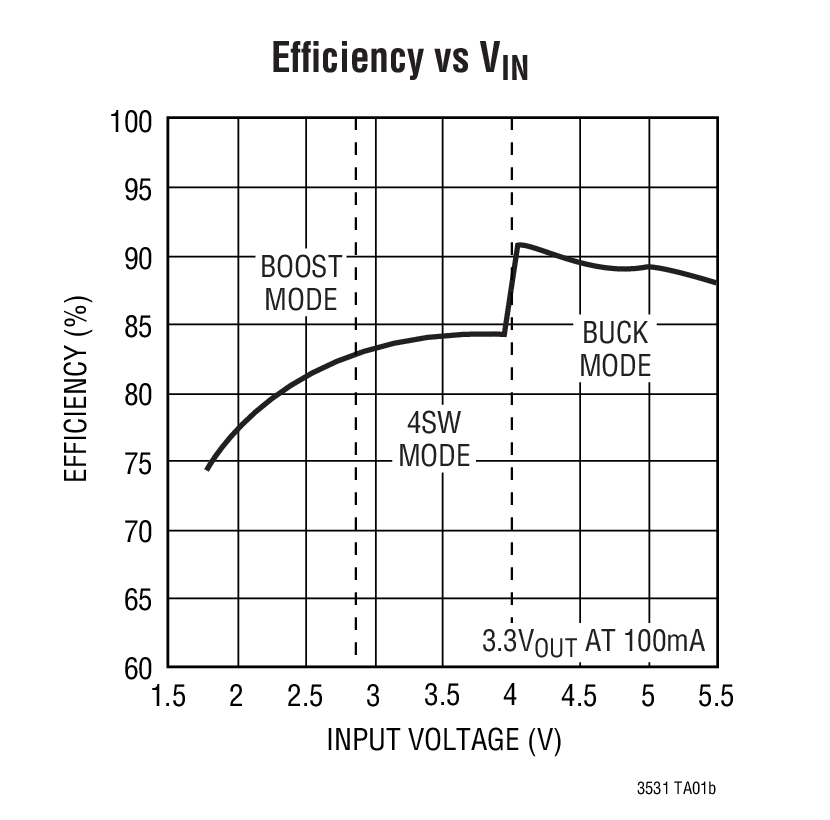

  • Up to 90% Efficiency
  • VIN Range: 1.8V to 5.5V
  • 200mA at 3.3VOUT from 3.6V Input
  • 125mA at 3VOUT from 2.5V Input
  • Fixed VOUT Versions (TSOT, DFN): 3.3V, 3V
  • Adjustable VOUT Version (DFN): 2V to 5V
  • Burst Mode® Operation, No External Compensation
  • Ultra Low Quiescent Current: 16μA, Shutdown Current <1μA
  • Only 3 External Components Required
    (Fixed Voltage Versions)
  • Short-Circuit Protection
  • Output Disconnect in Shutdown

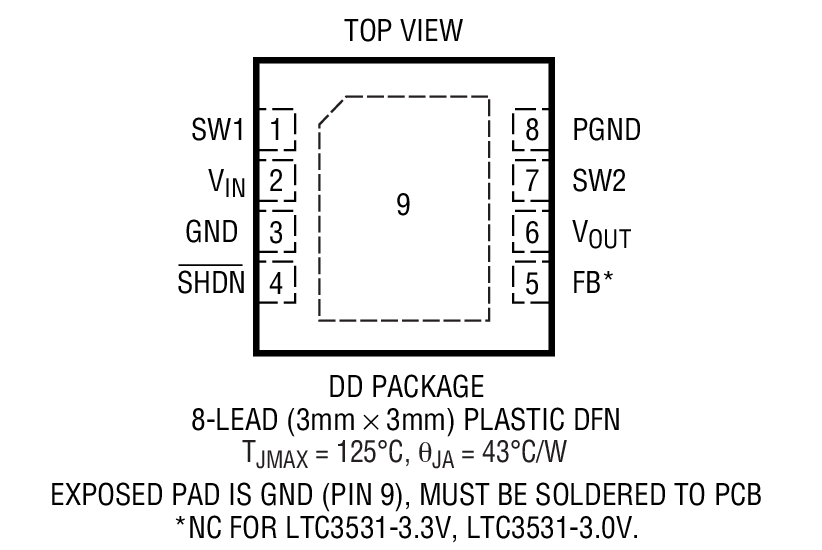

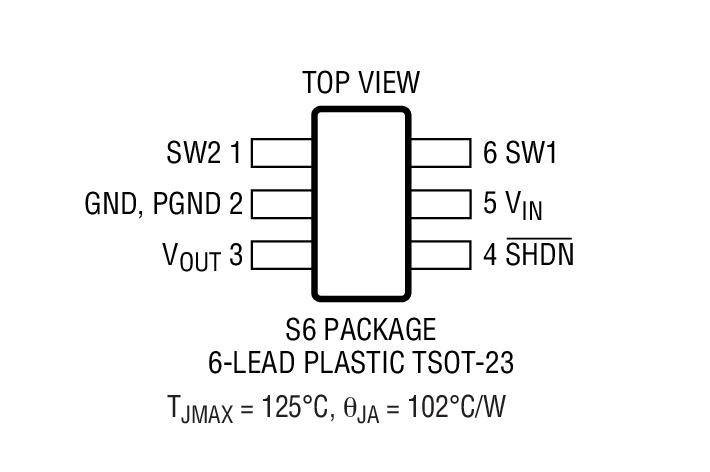

  • Available in 6-Pin ThinSOT and 3mm × 3mm DFN Packages

Product Details

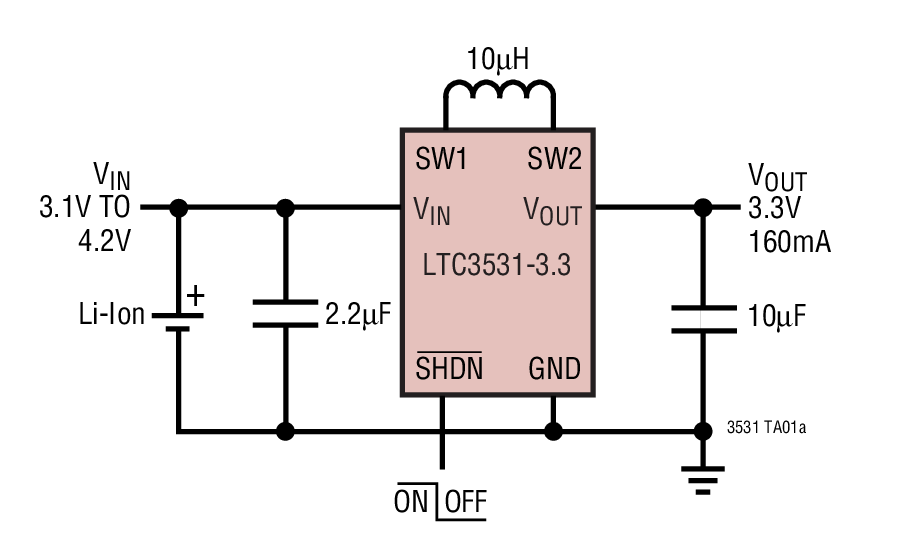

The LTC3531/LTC3531-3.3/LTC3531-3 are synchronous buck-boost DC/DC converters that operate from input voltages above, below or equal to the output voltage. The topology incorporated in the ICs provides a continuous transfer through all operating modes, making the product ideal for single cell Li-Ion and multicell alkaline or nickel applications. The converters operate in Burst Mode, minimizing solution footprint and component count as well as providing high conversion efficiency over a wide range of load currents.

The devices include two 0.5Ω N-channel MOSFET switches and two P-channel switches (0.5Ω, 0.8Ω). Quiescent current is typically 16μA, making the parts ideal for battery power applications. Other features include a <1μA shutdown current, current limiting, thermal shutdown and output disconnect. The parts are offered in a 6-pin ThinSOT package for fixed voltage versions or a 3mm × 3mm DFN package for fixed and adjustable versions.

Applications

  • Handheld Instruments
  • MP3 Players
  • Handheld computers
  • PDA/GPS

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

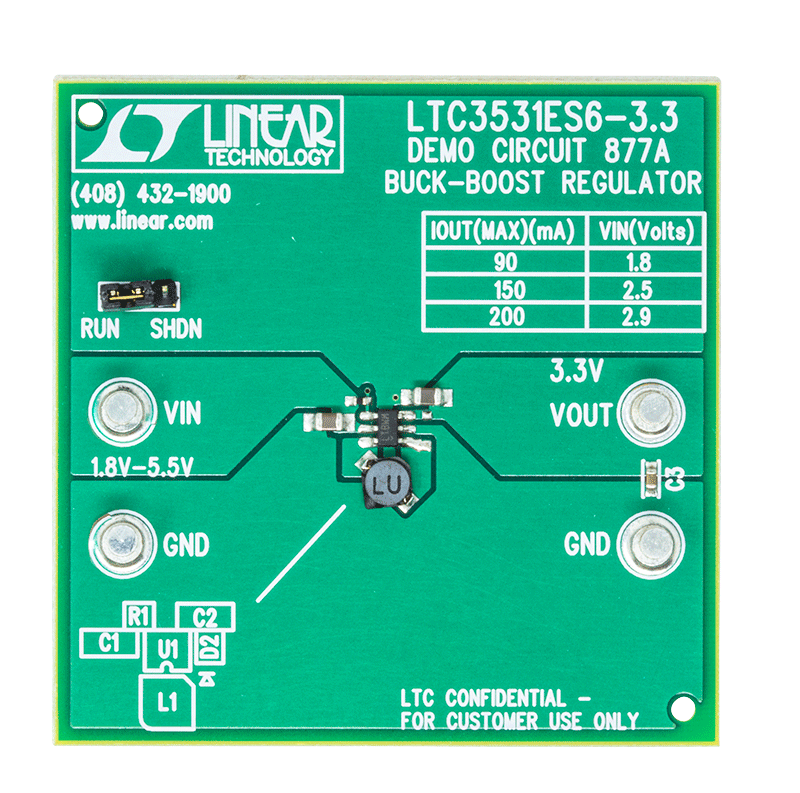

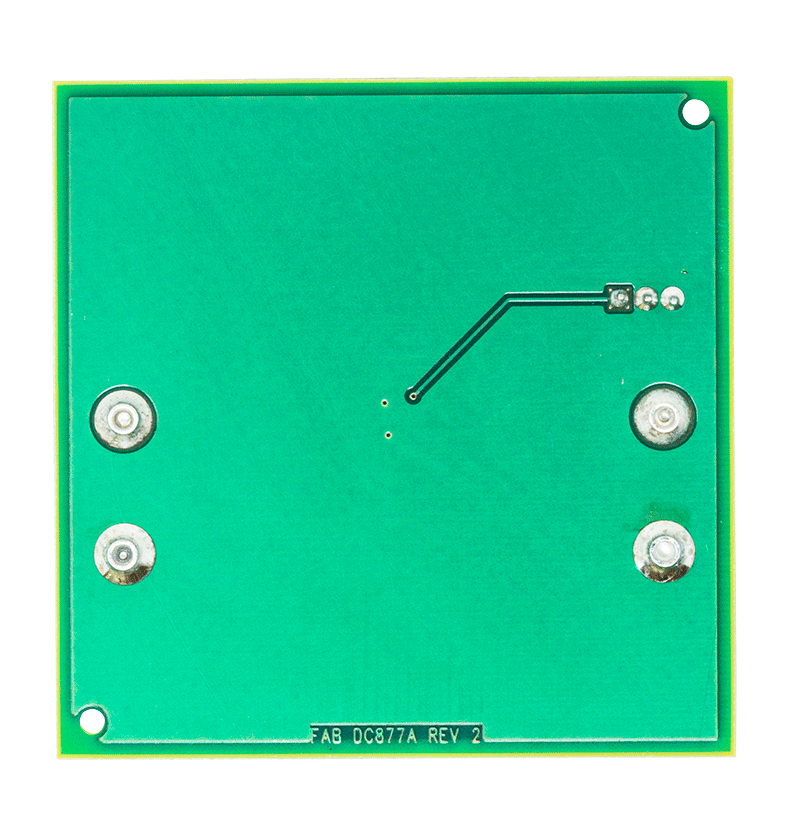

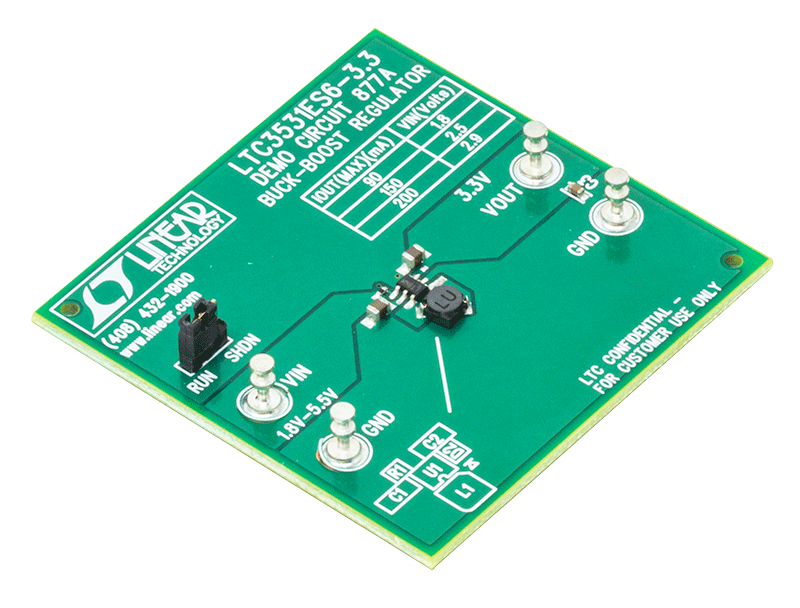

Evaluation Kits (1)

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

LTspice

Models for the following parts are available in LTspice:

LTC3531
LTC3531-3
LTC3531-3.3

Product Recommendations

LTC3531 Companion Parts

Recommended Related Parts

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
LTC3531EDD#PBF Material Declaration Reliability Data 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
LTC3531EDD#TRPBF Material Declaration Reliability Data 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
LTC3531EDD-3#PBF Material Declaration Reliability Data 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
LTC3531EDD-3#TRPBF Material Declaration Reliability Data 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
LTC3531EDD-3.3#PBF Material Declaration Reliability Data 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
LTC3531EDD-3.3#TRPBF Material Declaration Reliability Data 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
LTC3531ES6-3#TRMPBF Material Declaration Reliability Data 6-Lead TSOT-23
LTC3531ES6-3#TRPBF Material Declaration Reliability Data 6-Lead TSOT-23
LTC3531ES6-3.3#TRMPBF Material Declaration Reliability Data 6-Lead TSOT-23
LTC3531ES6-3.3#TRPBF Material Declaration Reliability Data 6-Lead TSOT-23
Wafer Fabrication Data R415 Reliability Data
