DC877A
LTC3531ES6-3.3 | 200mA Buck-Boost Synchronous Converter
Top
Overview
Product Details

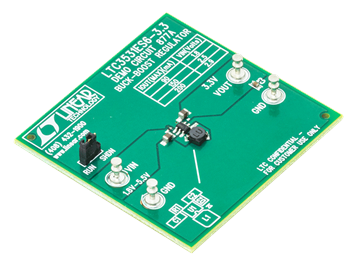

Demonstration circuit 877 is a high efficiency synchronous Buck-Boost converter using the LTC3531-3.3. The input range is from 1.8V to 5.5V making it ideal for single-cell Lithium-Ion, multicell alkaline or nickel battery applications. This converter can provide 200mA when the input voltage is above 2.9V.
The DC877 features the LTC3531-3.3 in a tiny 6-pin ThinSOT package. The converter operates in Burst Mode, which provides conversion efficiency over a wide range of load currents. It has minimum component count and tiny solution size. Other features include current limiting, thermal shutdown and output disconnect.
Markets and Technologies
Applicable Parts
Documentation & Resources
-

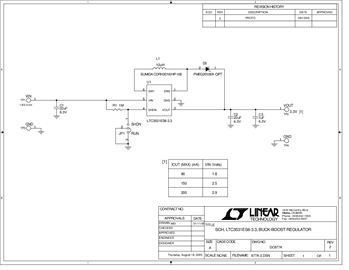

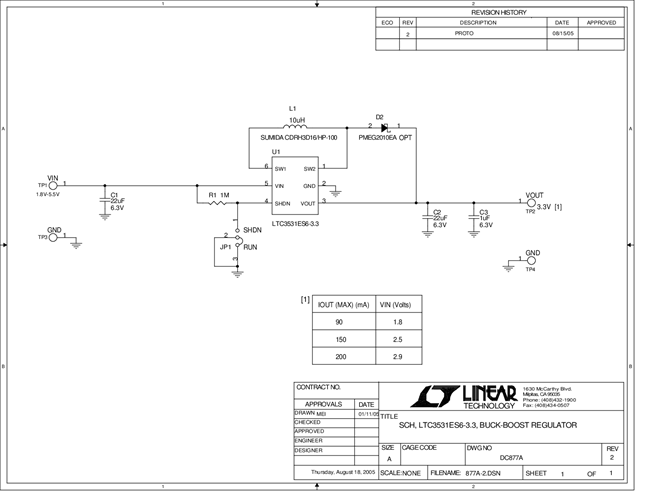

DC877A - Schematic9/24/2009PDF15K
-
DC877A - Demo Manual9/24/2009PDF192K
-
DC877A - Design File9/24/2009ZIP458K
