LTC3416

4A, 4MHz, Monolithic Synchronous Step-Down Regulator with Tracking

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC3416 - Step-Down (Buck) Regulators Download 2.15 KB
Part Models 2
1ku List Price Starting From $6.61
Features

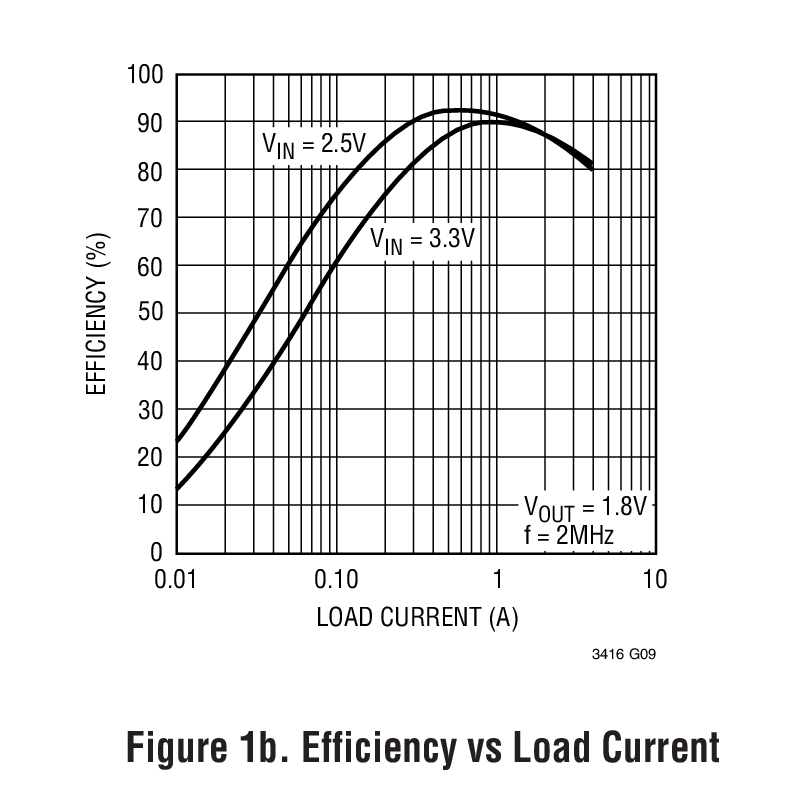

  • High Efficiency: Up to 95%
  • 4A Output Current
  • Low RDS(ON) Internal Switch: 67mΩ
  • Tracking Input to Provide Easy Supply Sequencing
  • Programmable Frequency: 300kHz to 4MHz
  • 2.25V to 5.5V Input Voltage Range
  • ±2% Output Voltage Accuracy
  • 0.8V Reference Allows Low Output Voltage
  • Low Dropout Operation: 100% Duty Cycle
  • Power Good Output Voltage Monitor
  • Overtemperature Protected

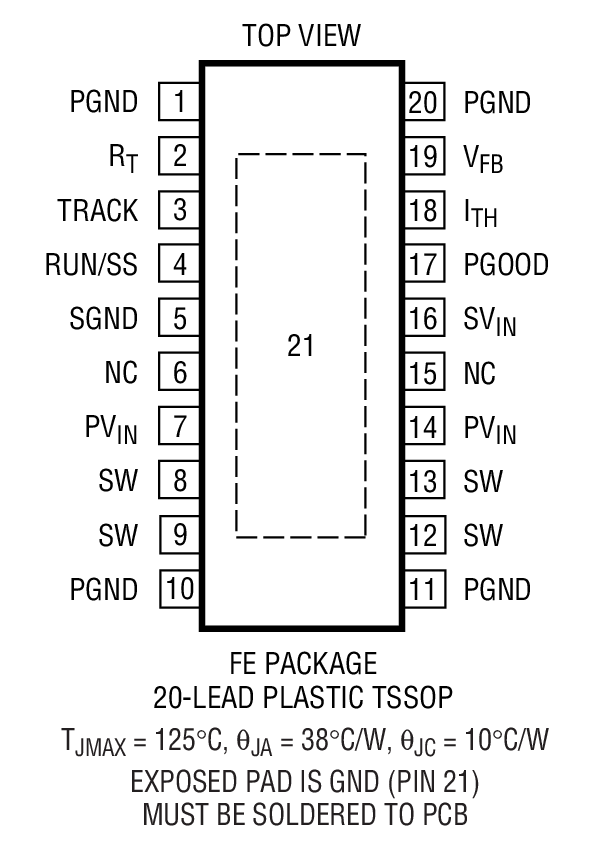

  • Available in a 20-Lead Thermally Enhanced TSSOP Package
Additional Details
show more Icon

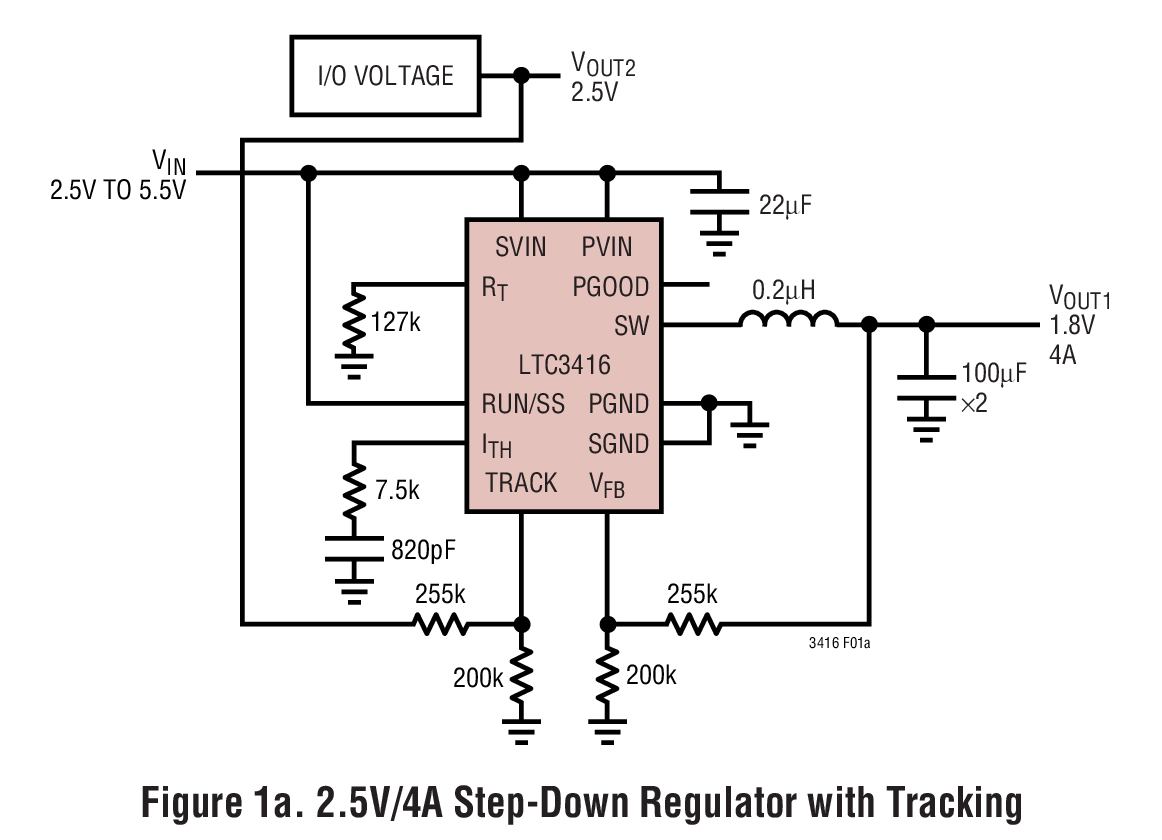

The LTC3416 is a high efficiency monolithic synchronous, step-down DC/DC converter utilizing a constant frequency, current mode architecture. It operates from an input voltage range of 2.25V to 5.5V and provides a regulated output voltage from 0.8V to 5V while delivering up to 4A of output current. The internal synchronous power switch with 67mΩ of on-resistance increases efficiency and eliminates the need for an external Schottky diode. Switching frequency is set by an external resistor. 100% duty cycle provides low dropout operation extending battery life in portable systems. OPTI-LOOP® compensation allows the transient response to be optimized over a wide range of loads and output capacitors.

The LTC3416 operates in forced continuous operation and provides tracking of another power supply rail. Forced continuous operation reduces noise and RF interference and provides excellent transient response. Fault protection is provided by an overcurrent comparator, and adjustable compensation allows the transient response to be optimized over a wide range of loads and output capacitors.

Applications

  • Portable Instruments
  • Notebook Computers
  • Distributed Power Systems
  • Battery-Powered Equipment
  • POL Board Power
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC3416 - Step-Down (Buck) Regulators Download 2.15 KB
Part Models 2
1ku List Price Starting From $6.61
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3416

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 08/29/2007
English

LTC3416: 4A, 4MHz, Monolithic Synchronous Step-Down Regulator with Tracking Data Sheet

Open PDF File

redirect
213.00K
download

Download PDF

PDF Vector

PDF

UPDATED 05/10/2010
Japanese

LTC3416: トラッキング機能付き4A、4MHzモノリシック同期整流式降圧レギュレータ データシート

Open PDF File

redirect
239.00K
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC667A - Demo Manual redirect icon

176.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R457 Reliability Data redirect icon

65.93 K

download

Download PDF

Technical Articles

1

PDF Vector

HTML

UPDATED 05/01/2004
English
4A, 4MHz Monolithic Synchronous Regulator with Tracking Offers a Compact Solution for Power Supply Sequencing redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3416EFE#PBF 20-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3416EFE#TRPBF 20-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3416EFE#PBF

PRODUCTION

LTC3416EFE#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3416EFE#PBF

PRODUCTION

LTC3416EFE#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Software & Part Ecosystem

Parts Product Life Cycle Description
LTC3614
popup image
Cart

PRODUCTION

4A, 4MHz Monolithic Synchronous Step-Down DC/DC Converter

Evaluation Kits 1

reference details image

DC667A

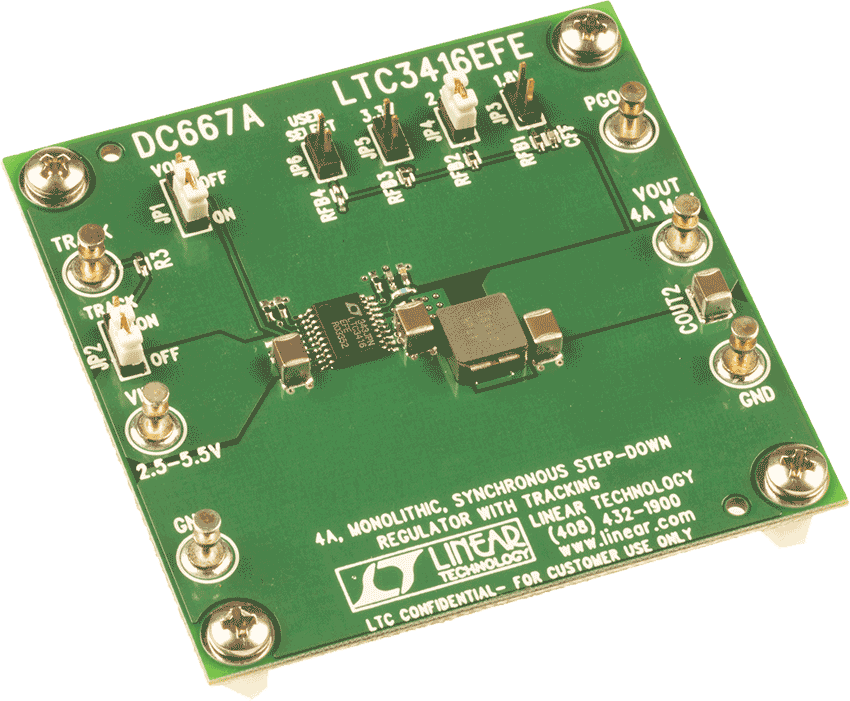

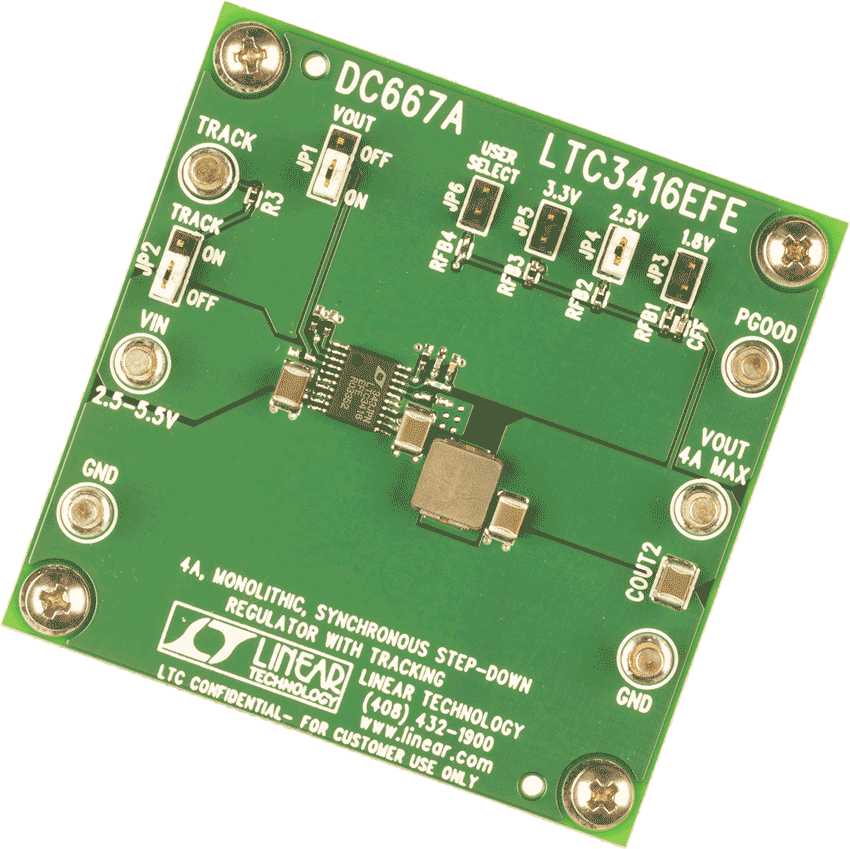

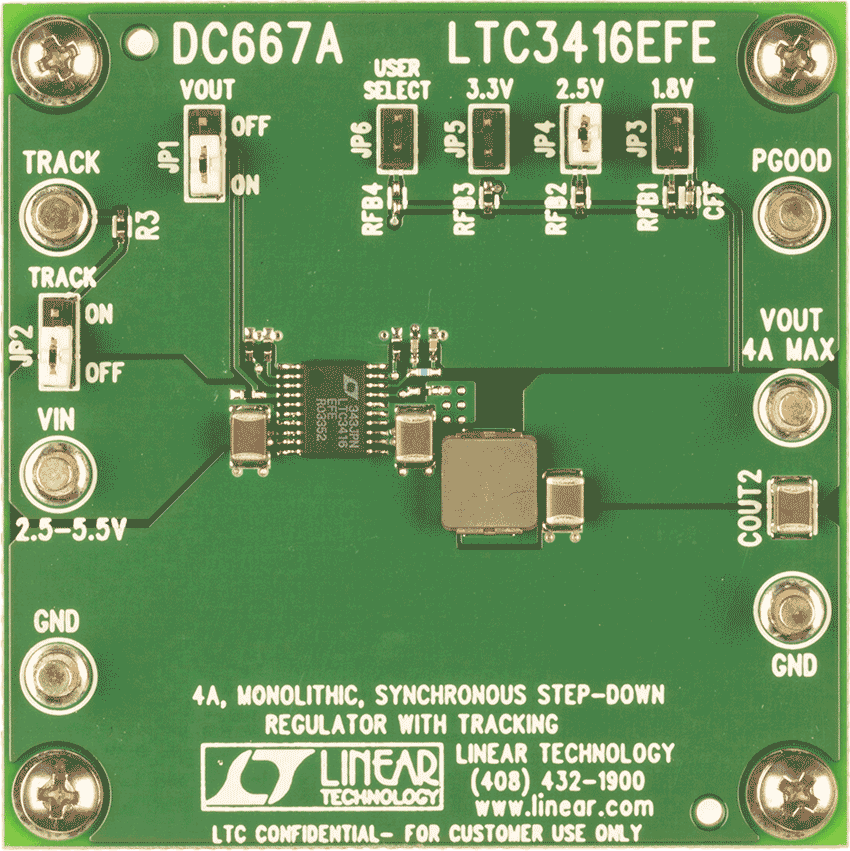

LTC3416EFE Demo Board | 2.25V ≤ VIN ≤ 5.5V, VOUT= 1.8V/2.5V/3.3V/Adjustable @ 4A

zoom

DC667A

LTC3416EFE Demo Board | 2.25V ≤ VIN ≤ 5.5V, VOUT= 1.8V/2.5V/3.3V/Adjustable @ 4A

download icon

Download

 print icon

Print
DC667A
LTC3416EFE Demo Board | 2.25V ≤ VIN ≤ 5.5V, VOUT= 1.8V/2.5V/3.3V/Adjustable @ 4A
Buy Now View Details

Product Detail

Demonstration circuit 667 is a high efficiency, high frequency buck converter, incorporating the LTC3416 monolithic synchronous regulator. DC667 operates in forced continuous operation and provides tracking of another power supply rail. It operates from an input voltage range of 2.25V to 5.5V and provides 4A of output current at jumper-selectable output voltage of 1.8V, 2.5V, 3.3V or a user-determined voltage.



Resources

pdf icon

PDF

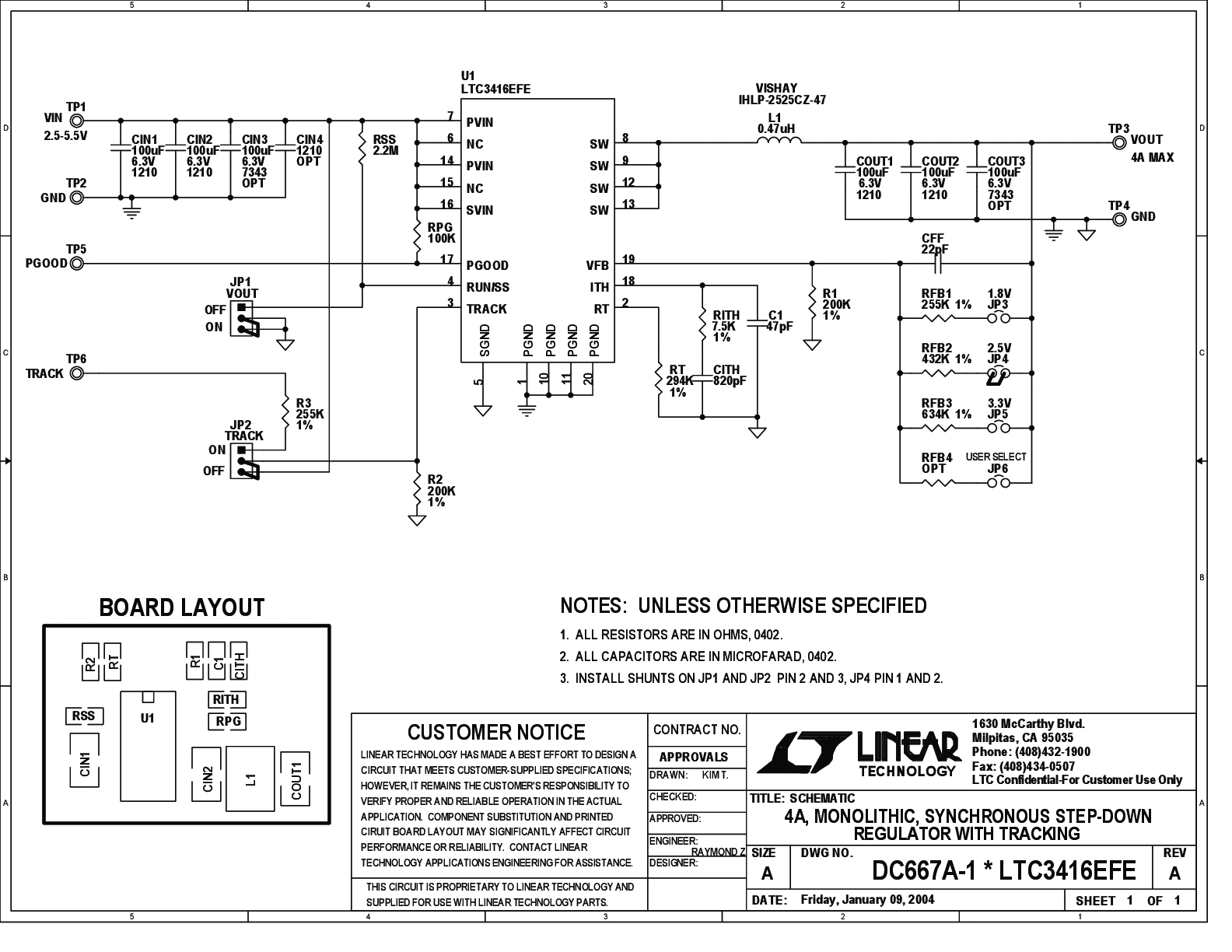

DC667A - Schematic Download
