LTC3412A

3A, 4MHz, Monolithic Synchronous Step-Down Regulator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.G)
Documentation View All Documentation
LTspice LTC3412A Demo Circuit - 3A, 4MHz, Monolithic Synchronous Step-down Regulator (3.3V to 1.8V @ 3A) Download 3.00KB LTspice LTC3412A - Step-Down (Buck) Regulators Download 2.12 KB
Part Models 10
1ku List Price Starting From $4.13
Features

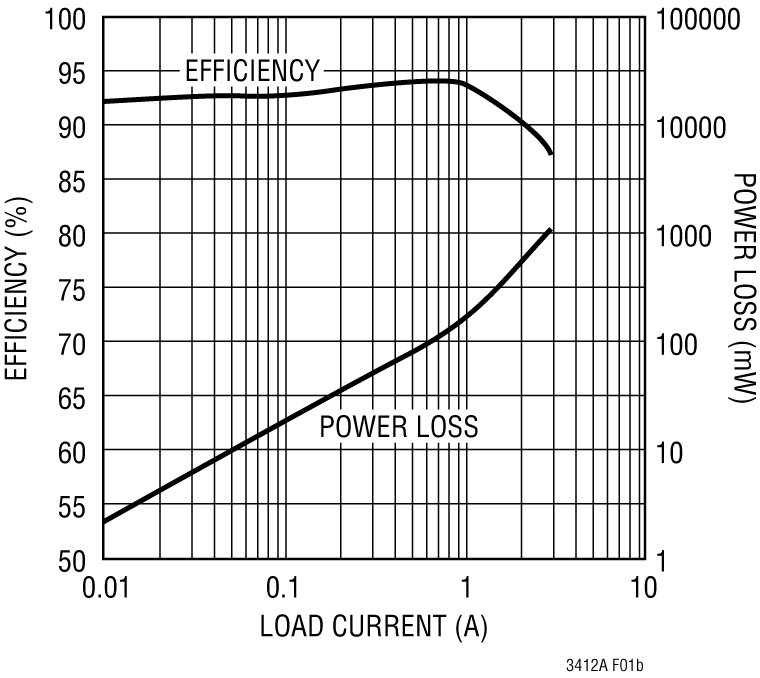

  • High Efficiency: Up to 95%
  • 3A Output Current
  • Low Quiescent Current: 64μA
  • Low RDS(ON) Internal Switch: 77mΩ
  • 2.25V to 5.5V Input Voltage Range
  • Programmable Frequency: 300kHz to 4MHz
  • ±2% Output Voltage Accuracy
  • 0.8V Reference Allows Low Output Voltage
  • Selectable Forced Continuous/Burst Mode® Operation with Adjustable Burst Clamp
  • Synchronizable Switching Frequency
  • Low Dropout Operation: 100% Duty Cycle
  • Power Good Output Voltage Monitor
  • Overtemperature Protected

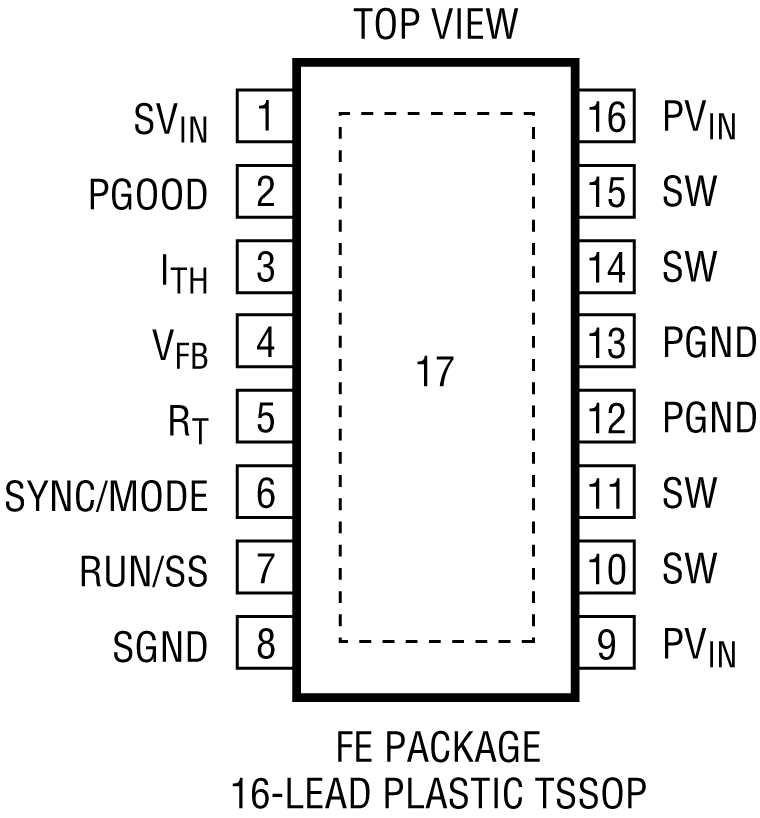

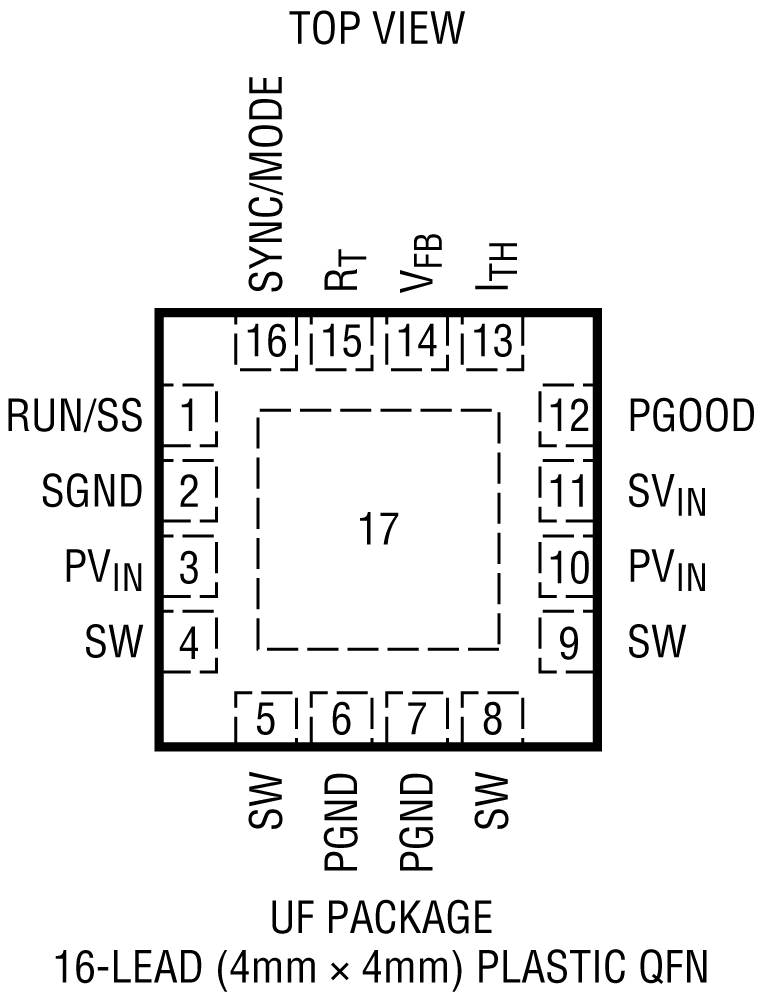

  • Available in 16-Lead Exposed Pad TSSOP and QFN Packages
Additional Details
show more Icon

The LTC3412A is a high efficiency monolithic synchronous, step-down DC/DC converter utilizing a constant frequency, current mode architecture. It operates from an input voltage range of 2.25V to 5.5V and provides a regulated output voltage from 0.8V to 5V while delivering up to 3A of output current. The internal synchronous power switch with 77mΩ on-resistance increases efficiency and eliminates the need for an external Schottky diode. Switching frequency is set by an external resistor or can be synchronized to an external clock. 100% duty cycle provides low dropout operation extending battery life in portable systems. OPTI-LOOP® compensation allows the transient response to be optimized over a wide range of loads and output capacitors.

The LTC3412A can be configured for either Burst Mode operation or forced continuous operation. Forced continuous operation reduces noise and RF interference while Burst Mode operation provides high efficiency by reducing gate charge losses at light loads. In Burst Mode operation, external control of the burst clamp level allows the output voltage ripple to be adjusted according to the application requirements.

APPLICATIONS

  • Point-of-Load Regulation
  • Notebook Computers
  • Portable Instruments
  • Distributed Power Systems
Show More Arrow image
file View Data Sheet (Rev.G)
Documentation View All Documentation
LTspice LTC3412A Demo Circuit - 3A, 4MHz, Monolithic Synchronous Step-down Regulator (3.3V to 1.8V @ 3A) Download 3.00KB LTspice LTC3412A - Step-Down (Buck) Regulators Download 2.12 KB
Part Models 10
1ku List Price Starting From $4.13
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3412A

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 05/12/2017
English

LTC3412A: 3A, 4MHz, Monolithic Synchronous Step-Down Regulator Data Sheet (Rev.G)

Open PDF File

redirect
484.57 K
download

Download PDF

PDF Vector

PDF

UPDATED 05/20/2010
Japanese

LTC3412A: 3A、4MHzモノリシック同期整流式降圧レギュレータ データシート

Open PDF File

redirect
2.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English

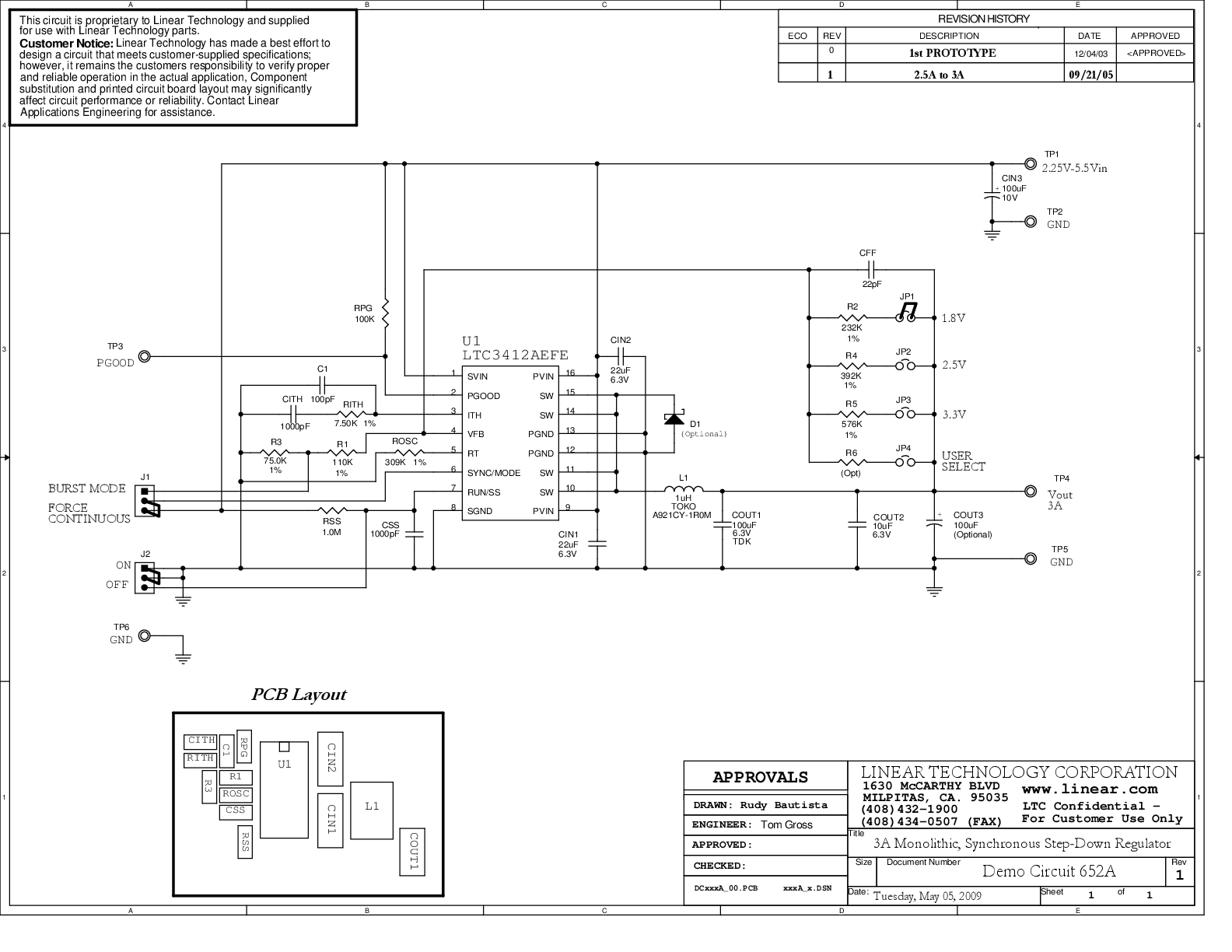

DC652A - Demo Manual redirect icon
