LTC3403

1.5MHz, 600mA Synchronous Step-Down Regulator with Bypass Transistor

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC3403 - Step-Down (Buck) Regulators Download 1.12 KB
Part Models 2
1ku List Price Starting From $2.85
Features
  • Dynamically Adjustable Output from 0.3V to 3.5V
  • Very Low Quiescent Current: Only 20µA During Operation
  • 600mA Output Current
  • Internal P-Channel MOSFET Bypass Transistor
  • High Efficiency: Up to 96%
  • 1.5MHz Constant Frequency Operation
  • No Schottky Diode Required
  • Low Dropout Operation: 100% Duty Cycle
  • 2.5V to 5V Input Voltage Range
  • Drives Optional External P-Channel MOSFET
  • Shutdown Mode Draws < 1µA Supply Current
  • Current Mode Operation for Excellent Line and Load Transient Response
  • Overtemperature Protected
  • Available in 8-Lead 3mm x 3mm DFN Package
Additional Details
show more Icon

The LTC3403 is a high efficiency monolithic synchronous buck regulator optimized for WCDMA power amplifier applications. The output voltage can be dynamically programmed from 0.3V to 3.5V. At VOUT > 3.6V an internal bypass P-channel MOSFET connects VOUT directly to VIN, eliminating power loss through the inductor. Selectable forced continuous mode enables fast VOUT response to the controlling input.

Supply current is only 20µA in Burst Mode® operation and drops to <1µA in shutdown. The 2.5V to 5V input voltage range makes the LTC3403 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems.

Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors. The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode.

The LTC3403 is available in a low profile 8-lead 3mm x 3mm DFN package.

Applications

  • WCDMA Cell Phone Power Amplifiers
  • Wireless Modems
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC3403 - Step-Down (Buck) Regulators Download 1.12 KB
Part Models 2
1ku List Price Starting From $2.85
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3403

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 08/22/2007
English

LTC3403: 1.5MHz, 600mA Synchronous Step-Down Regulator with Bypass Transistor Data Sheet

Open PDF File

redirect
927.00K
download

Download PDF

PDF Vector

PDF

UPDATED 08/09/2004
Japanese

LTC3403: バイパス・トランジスタ付き、1.5MHz、600mA同期整流式降圧レギュレータ データシート

Open PDF File

redirect
159.00K
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC560A - Demo Manual redirect icon

483.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R415 Reliability Data redirect icon

25.65 K

download

Download PDF

Technical Articles

1

PDF Vector

HTML

UPDATED 02/01/2004
English
1.5MHz Monolithic Synchronous Step-Down Regulator Brings High Efficiency to WCDMA Cellular Telephone Applications redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3403EDD#PBF 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3403EDD#TRPBF 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Power System Managers1
LTC2974
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Multiple Output Buck Regulators1
LTC3880
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Dual Output PolyPhase Step-Down DC/DC Controller with Digital Power System Management

Single-Supply Monitors1
LTC2934
popup image
Cart

PRODUCTION

Ultra-Low Power Adjustable Supervisor with Power-Fail Output

Evaluation Kits 1

reference details image

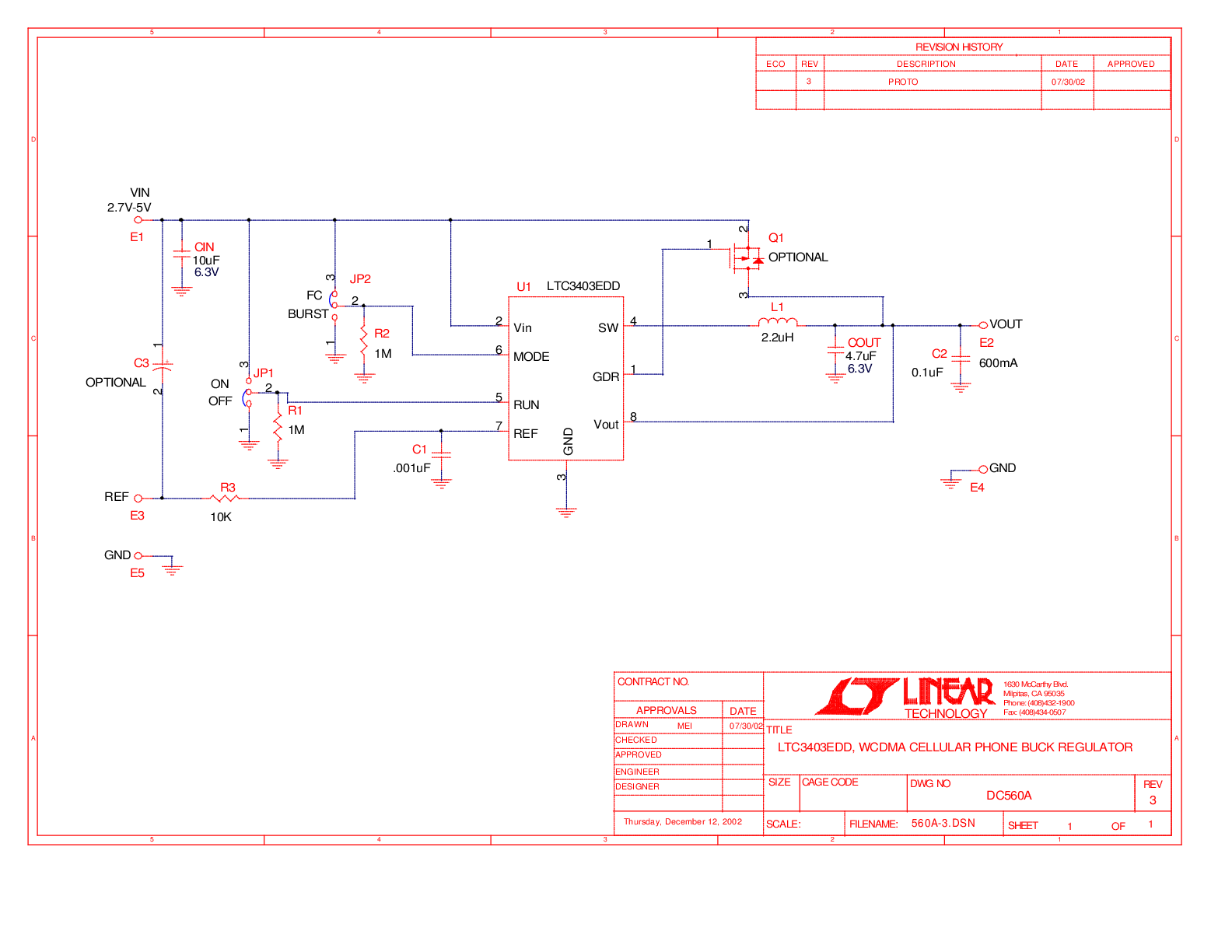

DC560A
