Features and Benefits
- Synchronous Rectification: Up to 97% Efficiency
- 1A Switch Current Rating
- Fixed Frequency Operation Up to 3MHz
- Wide Input Range: 0.5V to 5V (Operating)
- Very Low Quiescent Current: 38µA (Burst Mode® Operation)
- 2.6V to 5V Adjustable Output Voltage
- 0.85V (Typ) Start-Up Voltage
- No External Schottky Diode Required (VOUT < 4.3V)
- Synchronizable Switching Frequency
- Burst Mode Enable Control
- Antiringing Control Reduces Switching Noise
- PGOOD Output
- OPTI-LOOP® Compensation
- Very Low Shutdown Current: <1µA
- Small 10-Pin MSOP Package
The LTC3401 is a high efficiency, fixed frequency, step-up DC/DC converter that operates from an input voltage below 1V. The device includes a 0.16Ω N-channel MOSFET switch and a 0.18Ω P-channel synchronous rectifier. Switching frequencies up to 3MHz are programmed with an external timing resistor and the oscillator can be synchronized to an external clock. An external Schottky diode is optional but will slightly improve efficiency.
Quiescent current is only 38µA in Burst Mode operation, maximizing battery life in portable applications. Burst Mode operation is user controlled and can be enabled by driving the MODE/SYNC pin high. If the MODE/SYNC pin has either a clock or is driven low, then fixed frequency switching is enabled.
Other features include 1µA shutdown, antiringing control, open-drain power good output, thermal shutdown and current limit. The LTC3401 is available in the 10-lead thermally enhanced MSOP package. Higher current applications should use the 2A rated LTC3402 synchronous boost converter. Applications that require VOUT < 2.6V should use the LTC3423.
- Handheld Instruments
- Cordless Phones
- Wireless Handsets
- GPS Receivers
- Battery Backup
- CCFL Backlights
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
R415 Reliability Data3/23/2018

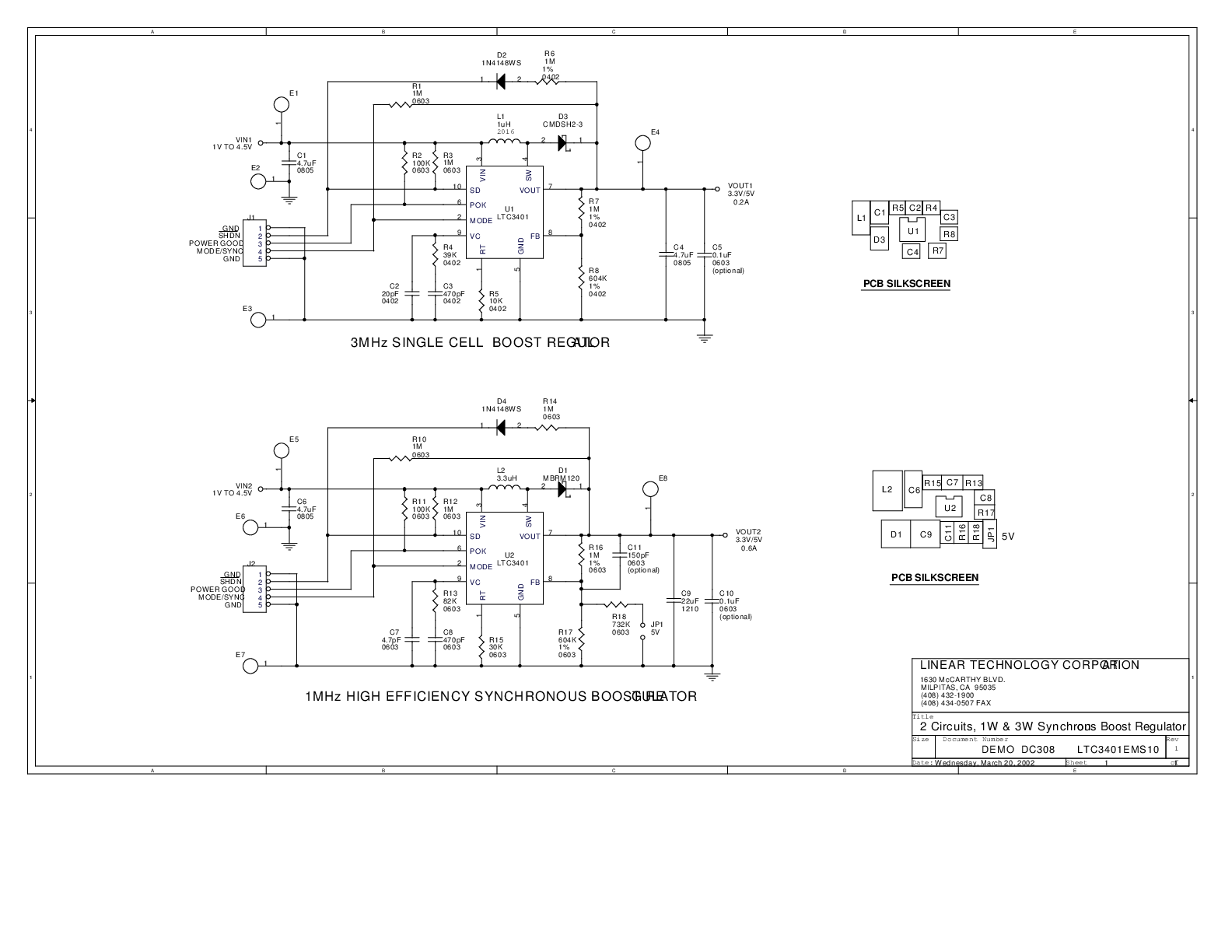

DC308A - Demo Manual9/24/2009
3MHz Synchronous Boost Regulators Save Critical Board Space in Portable Applications11/1/2000 LT Journal
Tools & Simulations
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
LTC3401 Companion Parts
Recommended Related Parts
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LTC3401EMS#PBF||Material Declaration||Reliability Data||10-Lead MSOP|
|LTC3401EMS#TRPBF||Material Declaration||Reliability Data||10-Lead MSOP|
|Wafer Fabrication Data||R415 Reliability Data|
