LTC3374A

High Accuracy 8-Channel Parallelable 1A Buck DC/DCs

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 24
1ku List Price Starting From $5.48
Features
  • 8-Channel 1A Independent Step-Down DC/DCs
  • Master-Slave Configurable for Up to 4A of Output Current with a Single Inductor
  • Independent VIN Supplies for Each DC/DC (2.25V to 5.5V)
  • All DC/DCs Have 0.8V to VIN Output Range
  • ±1% VFB Accuracy, for Buck 1 (1A to 4A)
  • ±1% PGOOD Accuracy
  • Precision Enable Pin Thresholds for Autonomous Sequencing
  • 1MHz to 3MHz Programmable/Synchronizable Oscillator Frequency (2MHz Default)
  • Die Temperature Monitor Output

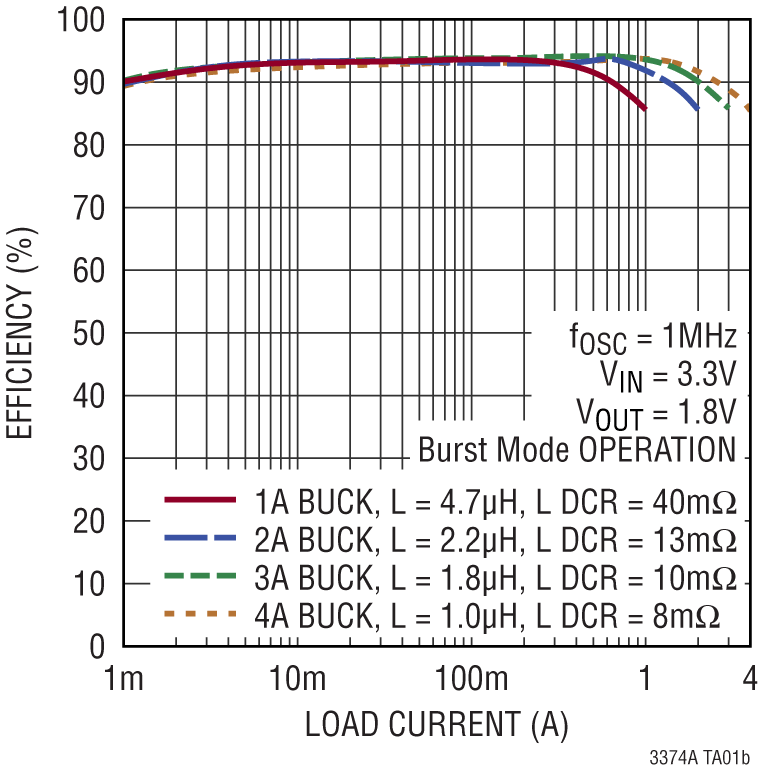

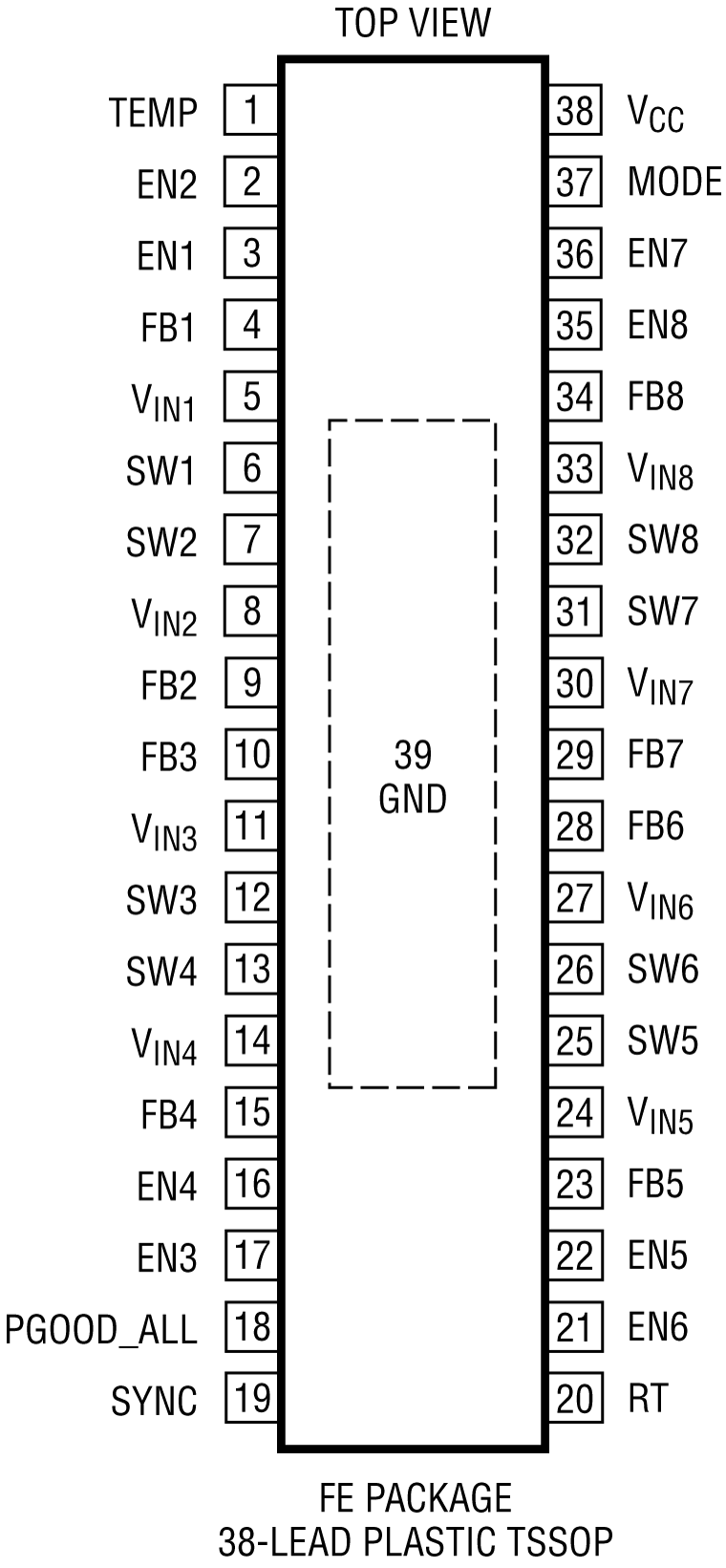

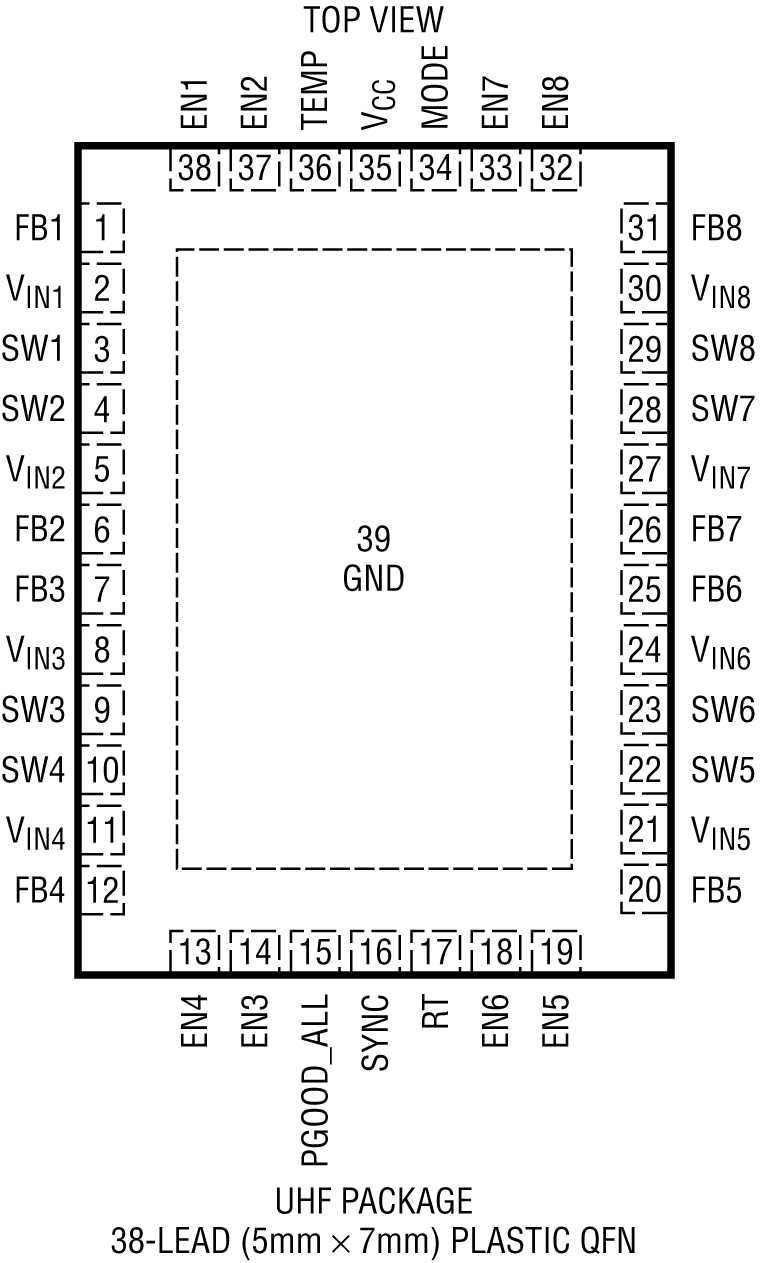

  • Thermally Enhanced 38-Lead 5mm × 7mm QFN and TSSOP Packages
  • Pin-Compatible with LTC3374
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LTC3374A is a multioutput power supply IC consisting of eight synchronous 1A buck converters, all powered from independent 2.25V to 5.5V input supplies. An upgraded pin-compatible version of the LTC3374, the LTC3374A, has higher efficiency, improved output voltage accuracy and an added overvoltage (OV) indicator.

The DC/DCs may be used independently or in parallel to achieve higher output currents of up to 4A with a shared inductor. The common buck switching frequency may be programmed with an external resistor, synchronized to an external oscillator, or set to a default internal 2MHz clock. The operating mode for all DC/DCs may be programmed via the MODE pin.

To reduce input noise the buck converters are phased in 90° steps. Precision enable pin thresholds simplify powerup sequencing. The LTC3374A is available in a 38-lead 5mm × 7mm QFN package as well as a 38-lead exposed pad TSSOP package.


NOTES
LTC3374
LTC3374A Higher efficiency, improved output voltage accuracy and an added overvoltage (OV) indicator

APPLICATIONS

  • General Purpose Multichannel Power Supplies
  • Industrial/Automotive/Communications
Part Models 24
1ku List Price Starting From $5.48

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3374AEFE#PBF
  • HTML
  • HTML
LTC3374AEFE#TRPBF
  • HTML
  • HTML
LTC3374AEFE#WPBF
  • HTML
  • HTML
LTC3374AEFE#WTRPBF
  • HTML
  • HTML
LTC3374AEUHF#PBF
  • HTML
  • HTML
LTC3374AEUHF#TRPBF
  • HTML
  • HTML
LTC3374AEUHF#WPBF
  • HTML
  • HTML
LTC3374AEUHF#WTRPBF
  • HTML
  • HTML
LTC3374AHFE#PBF
  • HTML
  • HTML
LTC3374AHFE#TRPBF
  • HTML
  • HTML
LTC3374AHFE#WPBF
  • HTML
  • HTML
LTC3374AHFE#WTRPBF
  • HTML
  • HTML
LTC3374AHUHF#PBF
  • HTML
  • HTML
LTC3374AHUHF#TRPBF
  • HTML
  • HTML
LTC3374AHUHF#WPBF
  • HTML
  • HTML
LTC3374AHUHF#WTRPBF
  • HTML
  • HTML
LTC3374AIFE#PBF
  • HTML
  • HTML
LTC3374AIFE#TRPBF
  • HTML
  • HTML
LTC3374AIFE#WPBF
  • HTML
  • HTML
LTC3374AIFE#WTRPBF
  • HTML
  • HTML
LTC3374AIUHF#PBF
  • HTML
  • HTML
LTC3374AIUHF#TRPBF
  • HTML
  • HTML
LTC3374AIUHF#WPBF
  • HTML
  • HTML
LTC3374AIUHF#WTRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3374AEFE#PBF

PRODUCTION

LTC3374AEFE#TRPBF

PRODUCTION

LTC3374AEFE#WPBF

PRODUCTION

LTC3374AEFE#WTRPBF

PRODUCTION

LTC3374AHFE#PBF

PRODUCTION

LTC3374AHFE#TRPBF

PRODUCTION

LTC3374AHFE#WPBF

PRODUCTION

LTC3374AHFE#WTRPBF

PRODUCTION

LTC3374AIFE#PBF

PRODUCTION

LTC3374AIFE#TRPBF

PRODUCTION

LTC3374AIFE#WPBF

PRODUCTION

LTC3374AIFE#WTRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3374AEFE#PBF

PRODUCTION

LTC3374AEFE#TRPBF

PRODUCTION

LTC3374AEFE#WPBF

PRODUCTION

LTC3374AEFE#WTRPBF

PRODUCTION

LTC3374AHFE#PBF

PRODUCTION

LTC3374AHFE#TRPBF

PRODUCTION

LTC3374AHFE#WPBF

PRODUCTION

LTC3374AHFE#WTRPBF

PRODUCTION

LTC3374AIFE#PBF

PRODUCTION

LTC3374AIFE#TRPBF

PRODUCTION

LTC3374AIFE#WPBF

PRODUCTION

LTC3374AIFE#WTRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC2440A

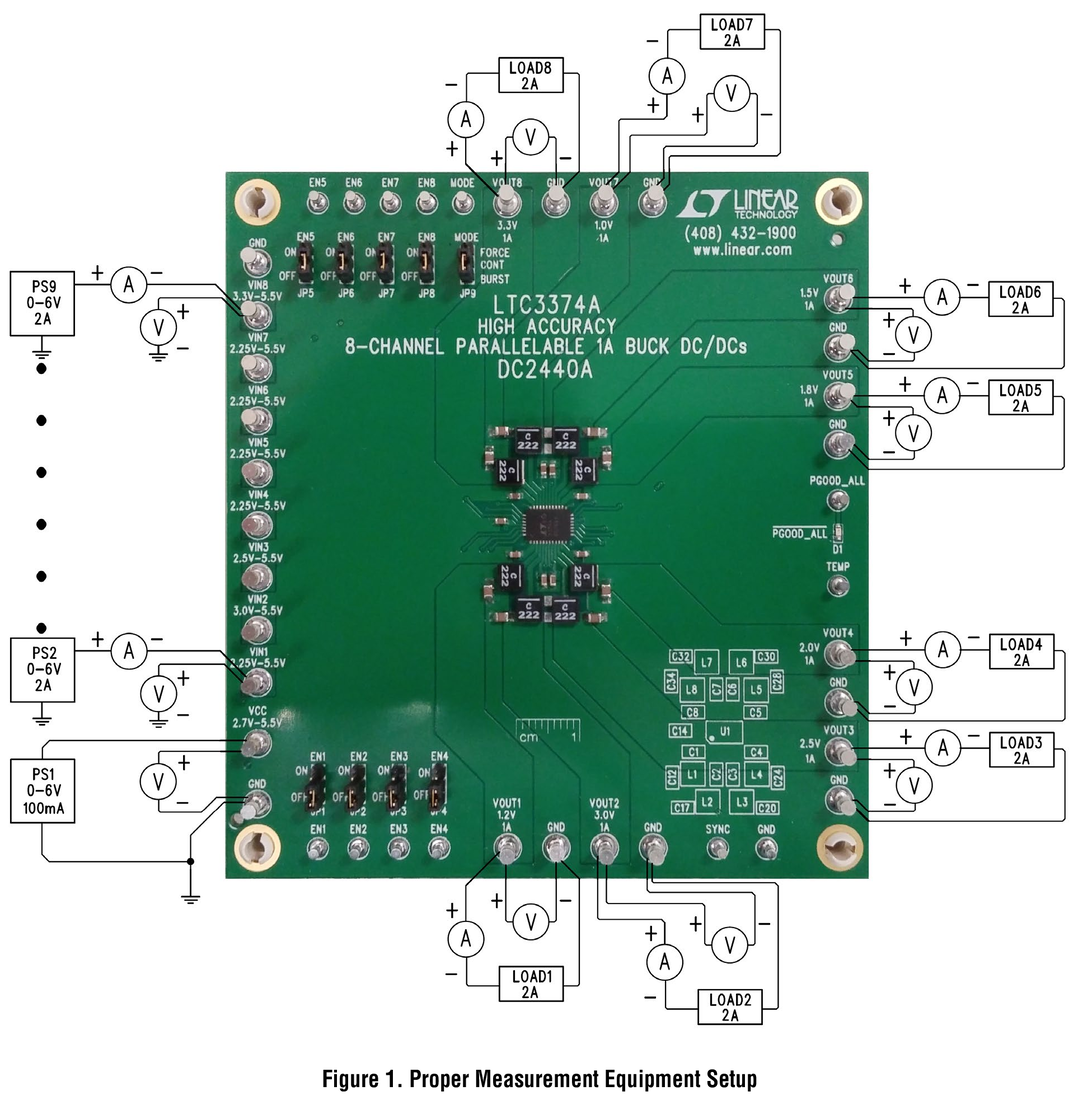

LTC3374AEUHF Demo Board | High Accuracy 8-Ch Parallelable 1A Sync Bucks; 2.25V ≤ VIN ≤ 5.5V, VOUT1 - VOUT8 = 1V to 3.3V @ 1A

zoom

DC2440A

LTC3374AEUHF Demo Board | High Accuracy 8-Ch Parallelable 1A Sync Bucks; 2.25V ≤ VIN ≤ 5.5V, VOUT1 - VOUT8 = 1V to 3.3V @ 1A

LTC3374AEUHF Demo Board | High Accuracy 8-Ch Parallelable 1A Sync Bucks; 2.25V ≤ VIN ≤ 5.5V, VOUT1 - VOUT8 = 1V to 3.3V @ 1A

Product Detail

Demonstration circuit 2440A is an 8-output power supply featuring the LTC3374A with improved efficiency and accuracy compared to the LTC3374. The LTC3374A has eight 1A synchronous buck regulators each with an independent VIN supply that can range from 2.25V to 5.5V (the minimum VCC supply voltage is 2.7V). The input range of the LTC3374A is ideal for single cell Li-Ion/Polymer battery applications. Up to four buck regulators may be paralleled together to create a higher power buck regulator with a single inductor.
