LTC3370

4-Channel 8A Configurable Buck DC/DCs

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 6
1ku List Price Starting From $4.55
Features
  • 8 × 1A Power Stages Configurable as 2, 3, or 4 Output Channels
  • 8 Unique Output Configurations (1A to 4A Per Channel)
  • Independent VIN Supplies for Each DC/DC (2.25V to 5.5V)
  • Low Total No Load Supply Current:
    • Zero Current In Shutdown (All Channels Off)
    • 63μA One Channel Active in Burst Mode® Operation
    • 18μA Per Additional Channel
  • Precision Enable Pin Thresholds for Autonomous Sequencing
  • 1MHz to 3MHz RT Programmable Frequency (2MHz Default) or PLL Synchronization
  • Temp Monitor Indicates Die Temperature
  • PGOODALL Pin Indicates All Enabled Bucks Are in Regulation
  • 32-Lead 5mm × 5mm QFN Package
Additional Details
show more Icon

The LTC3370 is a highly flexible multioutput power supply IC. The device includes four synchronous buck converters, configured to share eight 1A power stages, each of which is powered from independent 2.25V to 5.5V inputs.

The DC/DCs are assigned to one of eight power configurations via pin programmable C1-C3 pins. The common buck switching frequency may be programmed with an external resistor, synchronized to an external oscillator, or set to a default internal 2MHz clock.

The operating mode for all DC/DCs may be programmed via the PLL/MODE pin for Burst Mode or forced continuous mode operation. A PGOODALL output indicates when all enabled DC/DCs are within a specified percentage of their final output value.

To reduce input noise, the buck converters are phased in 90° steps. Precision enable pin thresholds facilitate reliable power-up sequencing. The LTC3370 is available in a 32-lead 5mm × 5mm QFN package.

Applications

  • General Purpose Multichannel Power Supplies: Automotive, Industrial, Distributed Power Systems
Part Models 6
1ku List Price Starting From $4.55

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3370EUH#PBF
  • HTML
  • HTML
LTC3370EUH#TRPBF
  • HTML
  • HTML
LTC3370HUH#PBF
  • HTML
  • HTML
LTC3370HUH#TRPBF
  • HTML
  • HTML
LTC3370IUH#PBF
  • HTML
  • HTML
LTC3370IUH#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 20, 2022

- 21_0269

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC3370EUH#PBF

PRODUCTION

LTC3370EUH#TRPBF

PRODUCTION

LTC3370HUH#PBF

PRODUCTION

LTC3370HUH#TRPBF

PRODUCTION

LTC3370IUH#PBF

PRODUCTION

LTC3370IUH#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 20, 2022

- 21_0269

arrow down

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC3370EUH#PBF

PRODUCTION

LTC3370EUH#TRPBF

PRODUCTION

LTC3370HUH#PBF

PRODUCTION

LTC3370HUH#TRPBF

PRODUCTION

LTC3370IUH#PBF

PRODUCTION

LTC3370IUH#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC2311A

LTC3370EUH Demo Board | 4-Channel 8A Configurable Bucks, 2.25V ≤ VIN ≤ 5.5V, VOUT1-4 = 1.2V, 2.5V, 1.8V, 3.3V@0-2A Each

zoom

DC2311A

LTC3370EUH Demo Board | 4-Channel 8A Configurable Bucks, 2.25V ≤ VIN ≤ 5.5V, VOUT1-4 = 1.2V, 2.5V, 1.8V, 3.3V@0-2A Each

LTC3370EUH Demo Board | 4-Channel 8A Configurable Bucks, 2.25V ≤ VIN ≤ 5.5V, VOUT1-4 = 1.2V, 2.5V, 1.8V, 3.3V@0-2A Each

Product Detail

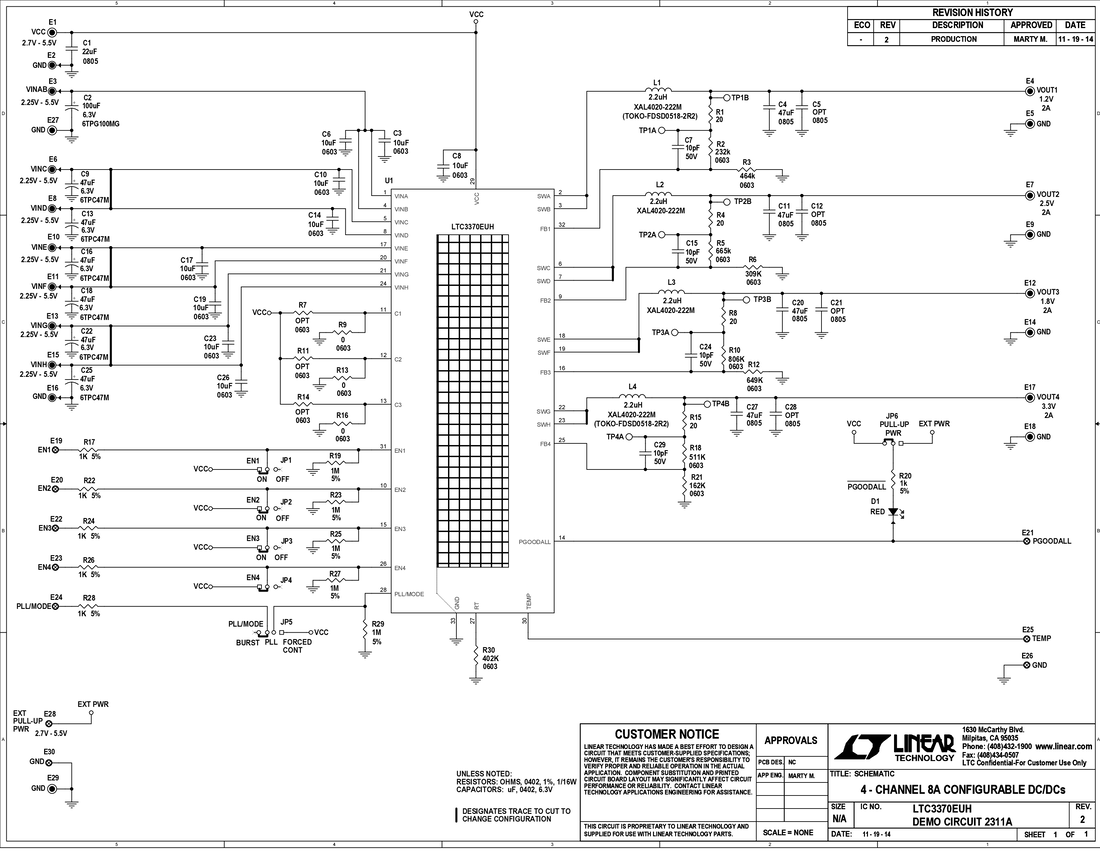

Demonstration circuit 2311A is a 4-output power supply featuring the LTC3370. The LTC3370 has four current mode synchronous buck regulators which can be configured to share eight individual 1A power stages to create one of eight combinations of 1A, 2A, 3A and 4A regulators. The DC2311A is set up as four 2A buck regulators but can be modified to one of the other seven configurations.
