LTC3313

5V, 15A Synchronous Step-Down Silent Switcher in 3mm × 3mm LQFN

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 12
1ku List Price Starting From $4.05
Features
  • Layout Compatible with LTC3310/LTC3311 Family
  • Silent Switcher® Architecture
    • Ultralow EMI Emissions
  • High Efficiency: 3mΩ NMOS and 8mΩ PMOS
  • Wide Bandwidth, Fast Transient Response
  • Safely Tolerates Inductor Saturation in Overload
  • VIN Range: 2.25V to 5.5V
  • VOUT Range: 0.5V to VIN
  • VOUT Accuracy: ±1% with Remote Sense
  • Peak Current Mode Control
  • Minimum On-Time: 35ns
  • Programmable Frequency to 5MHz
  • Shutdown Current: 1μA
  • Precision 400mV Enable Threshold
  • Output Soft-Start with Voltage Tracking
  • Power Good Output
  • Die Temperature Monitor
  • Configurable for Paralleling Power Stages
  • Thermally-Enhanced 3mm × 3mm LQFN Package
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LTC3313 is a very small, low noise, monolithic step-down DC/DC converter capable of providing up to 15A of output current from a 2.25V to 5.5V input supply. The device employs the Silent Switcher architecture to achieve both low EMI and high efficiency at switching frequencies as high as 5MHz. For systems with higher power requirements, multiphasing parallel converters is readily implemented.

The LTC3313 uses a constant frequency, peak current mode control architecture for fast transient response. A 500mV reference allows for low voltage outputs. 100% duty cycle operation delivers low drop out.

Other features include a power good signal when the output is in regulation, a precision enable threshold, output overvoltage protection, thermal shutdown, a temperature monitor, clock synchronization, mode selection, and output short circuit protection. The device is available in a compact 18-pin 3mm × 3mm LQFN package.

APPLICATIONS

  • Automotive/Industrial/Communications
  • Servers, Telecom Power Supplies
  • Distributed DC Power Systems (POL)
  • FPGA, ASIC, μP Core Supplies
Part Models 12
1ku List Price Starting From $4.05

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3313EV#PBF
  • HTML
  • HTML
LTC3313EV#TRMPBF
  • HTML
  • HTML
LTC3313EV#TRPBF
  • HTML
  • HTML
LTC3313EV#WPBF
  • HTML
  • HTML
LTC3313EV#WTRMPBF
  • HTML
  • HTML
LTC3313EV#WTRPBF
  • HTML
  • HTML
LTC3313JV#PBF
  • HTML
  • HTML
LTC3313JV#TRMPBF
  • HTML
  • HTML
LTC3313JV#TRPBF
  • HTML
  • HTML
LTC3313JV#WPBF
  • HTML
  • HTML
LTC3313JV#WTRMPBF
  • HTML
  • HTML
LTC3313JV#WTRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 7, 2024

- 24_0118

LTC3313 - Die Thickness and Thermal Parameters Change

LTC3313EV#PBF

PRODUCTION

LTC3313EV#TRMPBF

PRODUCTION

LTC3313EV#TRPBF

PRODUCTION

LTC3313EV#WPBF

PRODUCTION

LTC3313EV#WTRMPBF

PRODUCTION

LTC3313EV#WTRPBF

PRODUCTION

LTC3313JV#PBF

PRODUCTION

LTC3313JV#TRMPBF

PRODUCTION

LTC3313JV#TRPBF

PRODUCTION

LTC3313JV#WPBF

PRODUCTION

LTC3313JV#WTRMPBF

PRODUCTION

LTC3313JV#WTRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 7, 2024

- 24_0118

arrow down

LTC3313 - Die Thickness and Thermal Parameters Change

LTC3313EV#PBF

PRODUCTION

LTC3313EV#TRMPBF

PRODUCTION

LTC3313EV#TRPBF

PRODUCTION

LTC3313EV#WPBF

PRODUCTION

LTC3313EV#WTRMPBF

PRODUCTION

LTC3313EV#WTRPBF

PRODUCTION

LTC3313JV#PBF

PRODUCTION

LTC3313JV#TRMPBF

PRODUCTION

LTC3313JV#TRPBF

PRODUCTION

LTC3313JV#WPBF

PRODUCTION

LTC3313JV#WTRMPBF

PRODUCTION

LTC3313JV#WTRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 2

reference details image

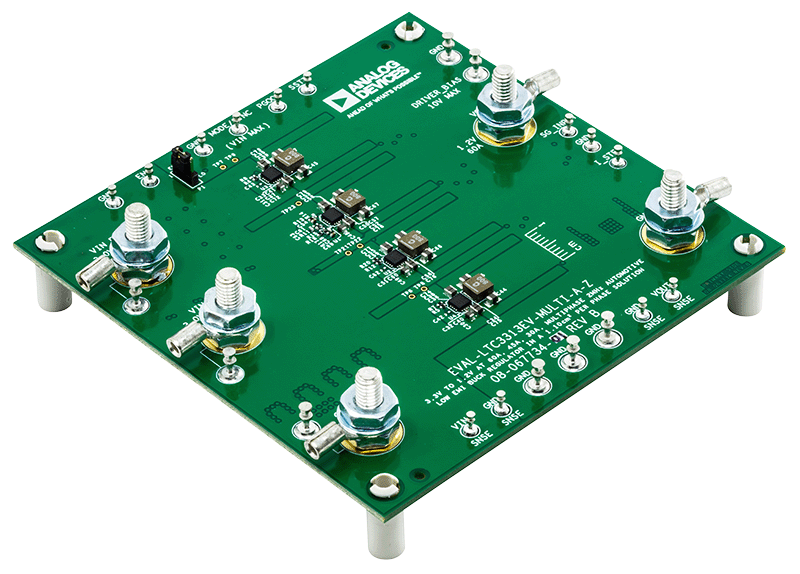

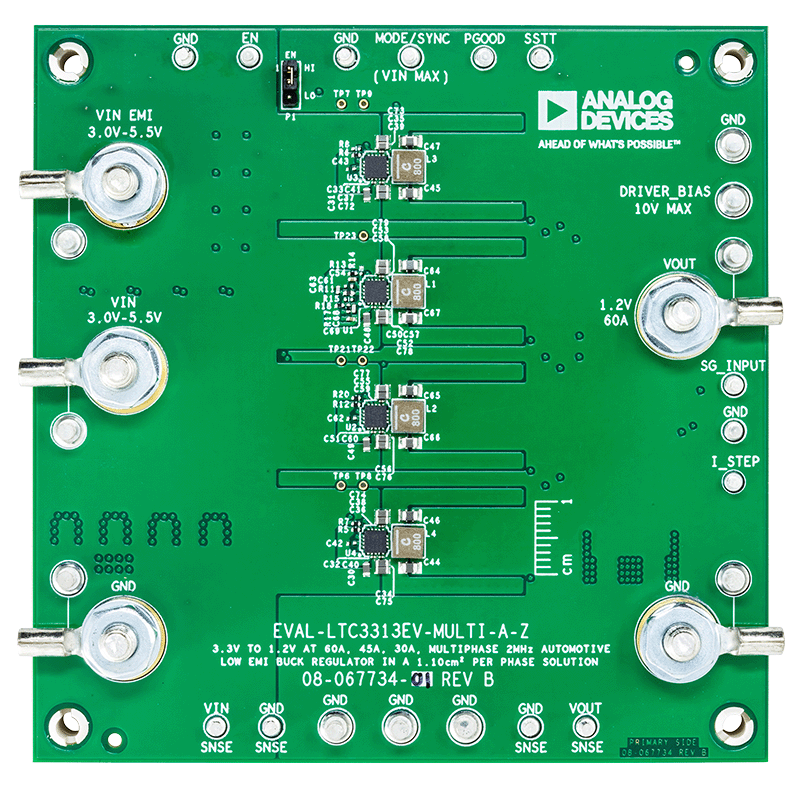

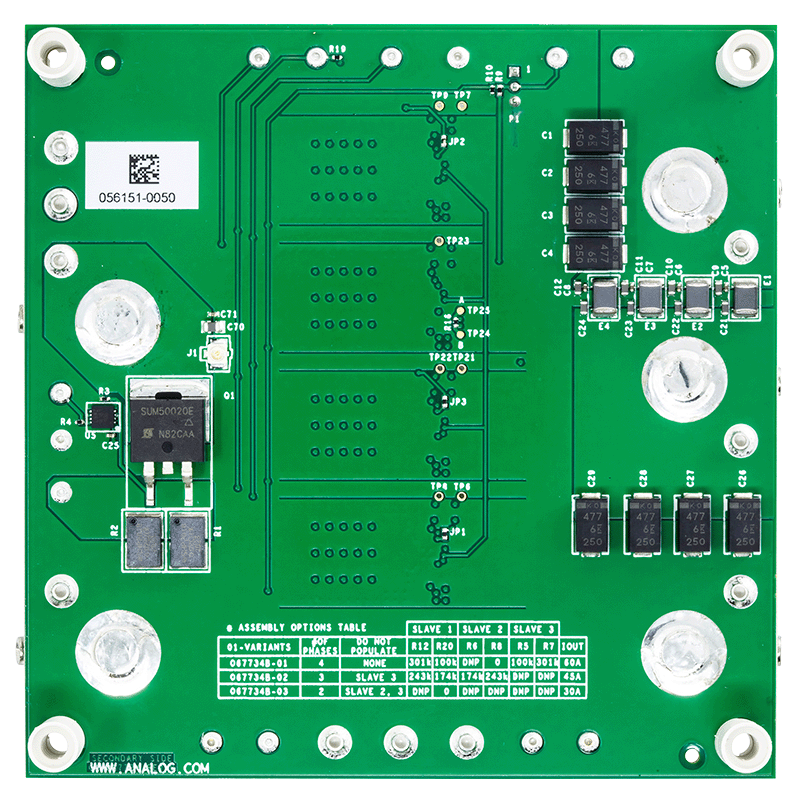

EVAL-LTC3313EV-MULTI-AZ

Evaluating the Multiphase Operation of the LTC3313 5 V, 15 A Synchronous Step-Down Silent Switcher in 3 mm × 3 mm LQFN

zoom

EVAL-LTC3313EV-MULTI-AZ

Evaluating the Multiphase Operation of the LTC3313 5 V, 15 A Synchronous Step-Down Silent Switcher in 3 mm × 3 mm LQFN

Evaluating the Multiphase Operation of the LTC3313 5 V, 15 A Synchronous Step-Down Silent Switcher in 3 mm × 3 mm LQFN

Features and Benefits

  • EVAL-LTC3313EV-MULTI-AZ evaluation board
  • Transient circuit included for load transient evaluation
  • RT pin pull-up option for external clock synchronization

Product Detail

The EVAL-LTC3313EV-MULTI-AZ features the LTC3313, a 15 A, low-voltage, synchronous step-down Silent Switcher®, operating as a multiphase 2 MHz, 3.0 V to 5.5 V input, 1.2 V buck regulator. The EVAL-LTC3313EV-MULTI-AZ has three build options to provide 2-phase 30 A, 3-phase 45 A, or 4-phase 60 A output solutions. The LTC3313 supports adjustable output voltages from 0.5 V to input voltage (VIN) and operating frequencies from 500 kHz up to 5 MHz in multiphase operation.

All phases of EVAL-LTC3313EV-MULTI-AZ operate in forced continuous mode at 2 MHz switching frequency (fSW). The LTC3313 can also synchronize to an external clock using a MODE/SYNC turret when the RT pin of the main phase is pulled up to the VIN pin.

The EVAL-LTC3313EV-MULTI-AZ also has an electromagnetic interference (EMI) filter to reduce conducted EMI. This EMI filter can be included by applying the input voltage at the VIN EMI terminal.

Figure 4 shows the efficiency of the circuit with a 3.3 V input for all three build options.

An on-board transient circuit is included to measure fast transient performance.

The LTC3313 data sheet gives a complete description of the part, operation, and application information. The data sheet must be read in conjunction with this user guide. The LTC3313 is assembled in a 3 mm × 3 mm LQFN package with exposed pads for low thermal resistance. The layout recommendations for low EMI operation and maximum thermal performance are available in the LTC3313 data sheet.

reference details image

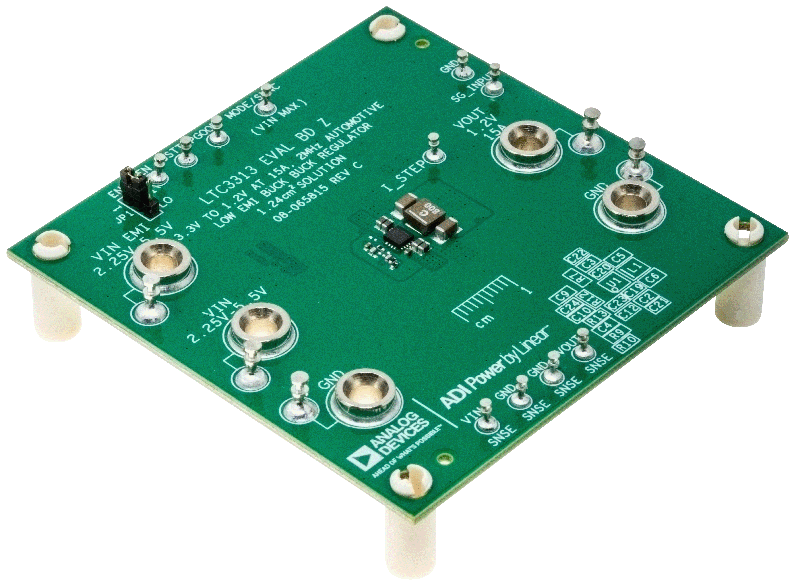

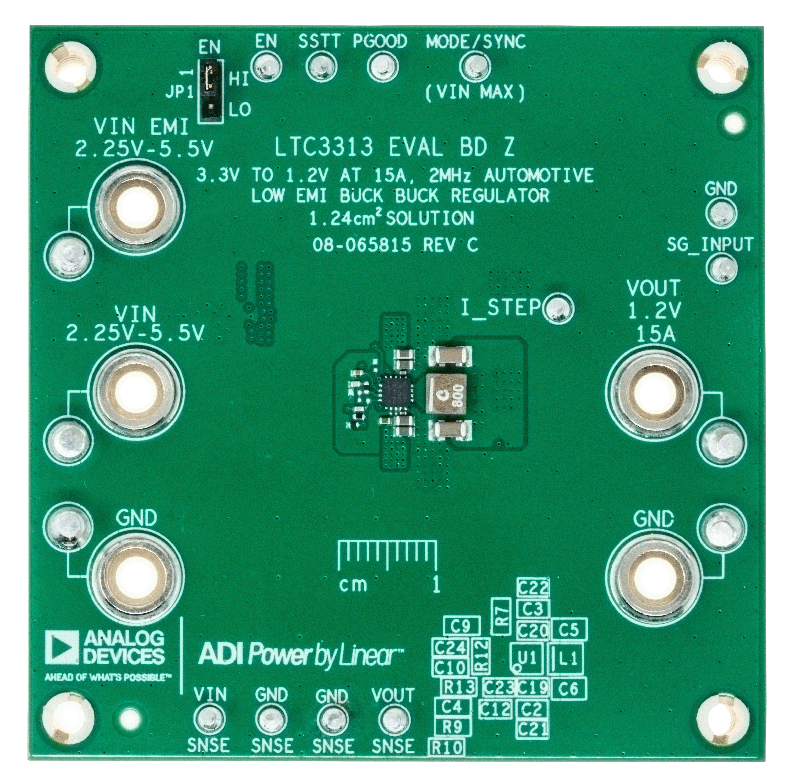

EVAL-LTC3313

LTC3313 5 V, 15 A Synchronous Step-Down Silent Switcher in 3 mm × 3 mm LQFN

zoom

EVAL-LTC3313

LTC3313 5 V, 15 A Synchronous Step-Down Silent Switcher in 3 mm × 3 mm LQFN

LTC3313 5 V, 15 A Synchronous Step-Down Silent Switcher in 3 mm × 3 mm LQFN

Features and Benefits

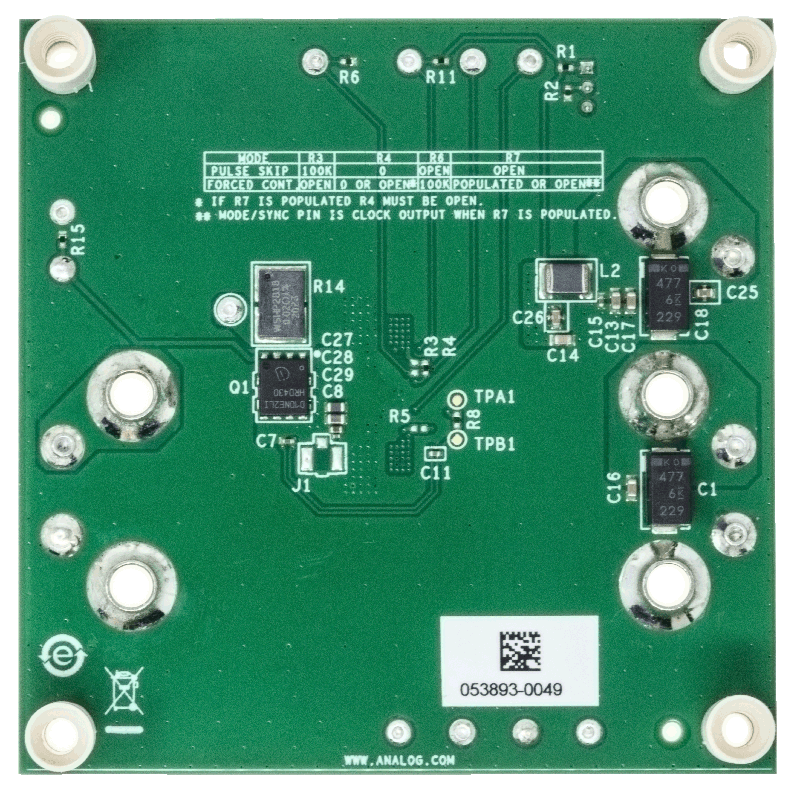

  • EVAL-LTC3313EV-A-Z evaluation board
  • Transient circuit included for load transient evaluation
  • EMI filter included to reduce noise in EMI emission tests
  • MODE pin pull-up option for pulse-skipping mode evaluation

Product Detail

The EVAL-LTC3313EV-A-Z features the LTC3313, 15 A low voltage synchronous step-down Silent Switcher® that operates as a 2 MHz, 2.25 V to 5.5 V input, 1.2 V, 15 A output buck regulator. The LTC3313 supports an output voltage (VOUT) from 0.5 V to the input voltage (VIN) with operating frequencies from 500 kHz up to 5 MHz. The LTC3313 is a compact, ultralow emission, high-efficiency, and high speed synchronous monolithic step-down switching regulator. The Silent Switcher technology optimizes fast-current loops and makes it easier to minimize electromagnetic interference (EMI) and electromagnetic compatibility (EMC) emissions. The minimum on-time of 35 ns typical enables high VIN to low VOUT conversion at a high frequency.

The EVAL-LTC3313EV-A-Z runs in forced continuous mode with a 2 MHz switching frequency (fSW); however, it can be configured to run at different switching frequencies or in pulse-skipping mode. The LTC3313 oscillator can also synchronize to an external clock using a MODE/SYNC turret, with the EVAL-LTC3313EV-A-Z default setup. Figure 4 in the user guide shows the efficiency and power loss of the EVALLTC3313EV-A-Z with a 3.3 V input in both operation modes.

The EVAL-LTC3313EV-A-Z also has an EMI filter to reduce conducted EMI. This EMI filter can be included by applying the input voltage at the VIN EMI terminal. The EMI performance of the board-EVAL-LTC3313EV-A-Z is shown in the EMI Test Results section of the user guide. The red lines in the EMI performance graphs illustrate the CISPR25 Class 5 peak limits for the conducted and radiated emission tests. The LTC3313 data sheet gives a complete description of the device and its application information. The data sheet must be read in conjunction with the evaluation board user guide. The LTC3313 is assembled in a 3 mm × 3 mm LQFN package with an exposed pad for low thermal resistance. The layout recommendations for low EMI operation and maximum thermal performance are available in the LTC3313 data sheet.

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
