Overview

Features and Benefits

  • Low Noise Charge Pump Provides High Efficiency with Automatic Mode Switching
  • Multimode Operation: 1x, 1.5x, 2x
  • Individual Full-Scale Current Set Resistors
  • Up to 500mA Total Output Current
  • Single Wire EN/Brightness Control for MAIN and CAM LEDs (8 Brightness Steps)
  • 64:1 Brightness Control Range for MAIN Display
  • Four 25mA Low Dropout MAIN LED Outputs
  • One 400mA Low Dropout CAM LED Output
  • Low Noise Constant Frequency Operation*
  • Low Shutdown Current: 3μA
  • Internal Soft-Start Limits Inrush Current During Startup and Mode Switching
  • Open/Short LED Protection
  • No Inductors

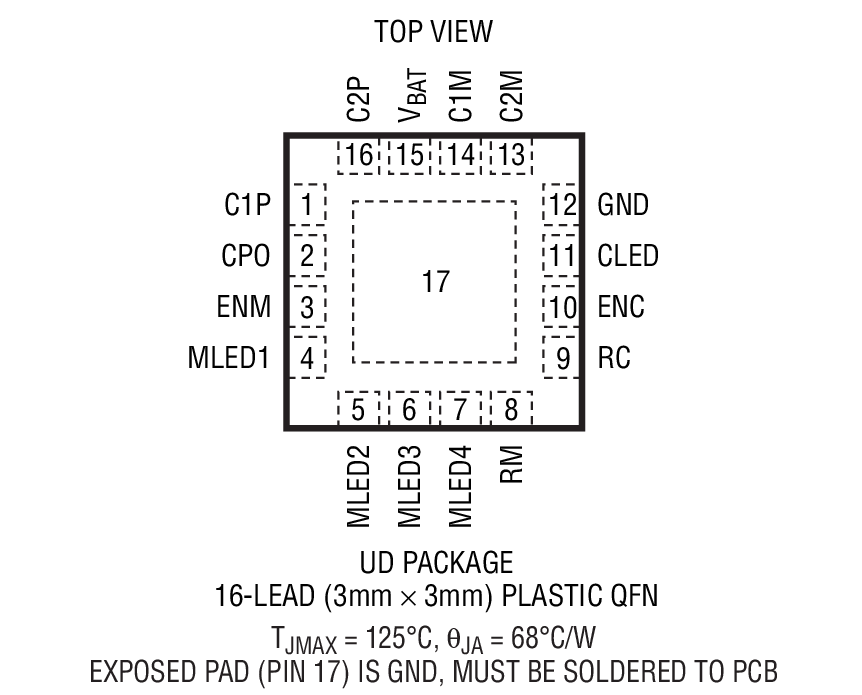

  • 3mm × 3mm 16-Lead Plastic QFN Package

Product Details

The LTC3210 is a low noise charge pump DC/DC converter designed to drive four MAIN LEDs and one high current CAM LED for camera lighting. The LTC3210 requires only four small ceramic capacitors and two current set resistors to form a complete LED power supply and current controller.

Built-in soft-start circuitry prevents excessive inrush current during start-up and mode changes. High switching frequency enables the use of small external capacitors. Independent MAIN and CAM full-scale current settings are programmed by two external resistors. Shutdown mode and current output levels are selected via two logic inputs.

The full-scale current through the LEDs is programmed via external resistors. ENM and ENC are toggled to adjust the LED currents via internal counters and DACs. The part is shut down when both ENM and ENC are low for 150μs (typ).

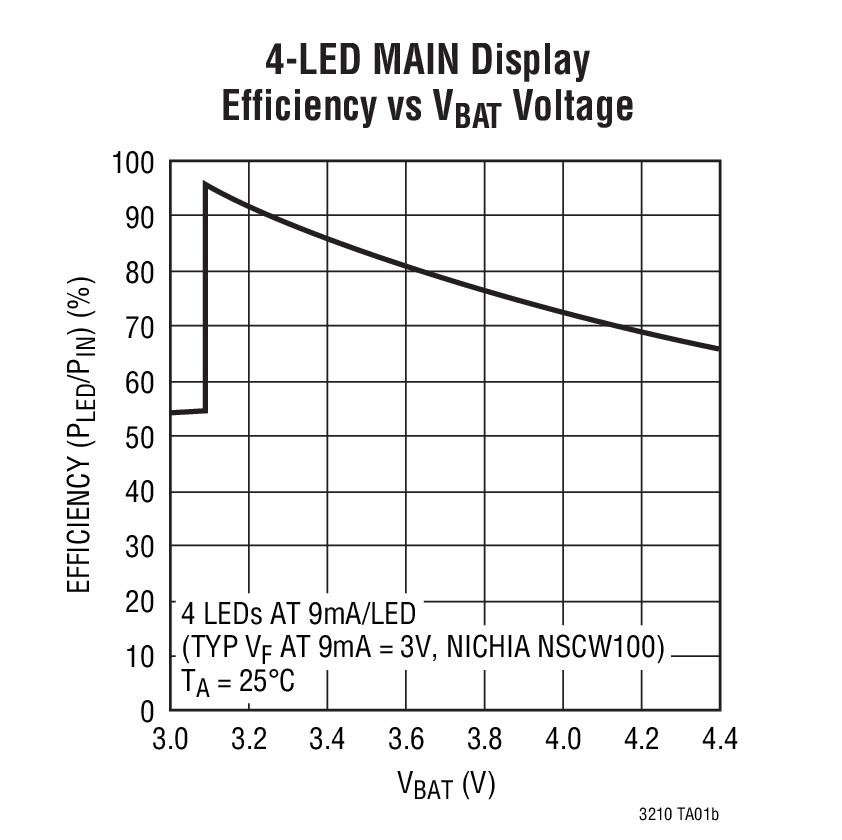

The charge pump optimizes efficiency based on the voltage across the LED current sources. The part powers up in 1x mode and will automatically switch to boost mode whenever any enabled LED current source begins to enter dropout. The LTC3210 is available in a 3mm × 3mm 16-lead QFN package.

Applications

  • Multi-LED Light Supply for Cellphones/DSCs/PDAs

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

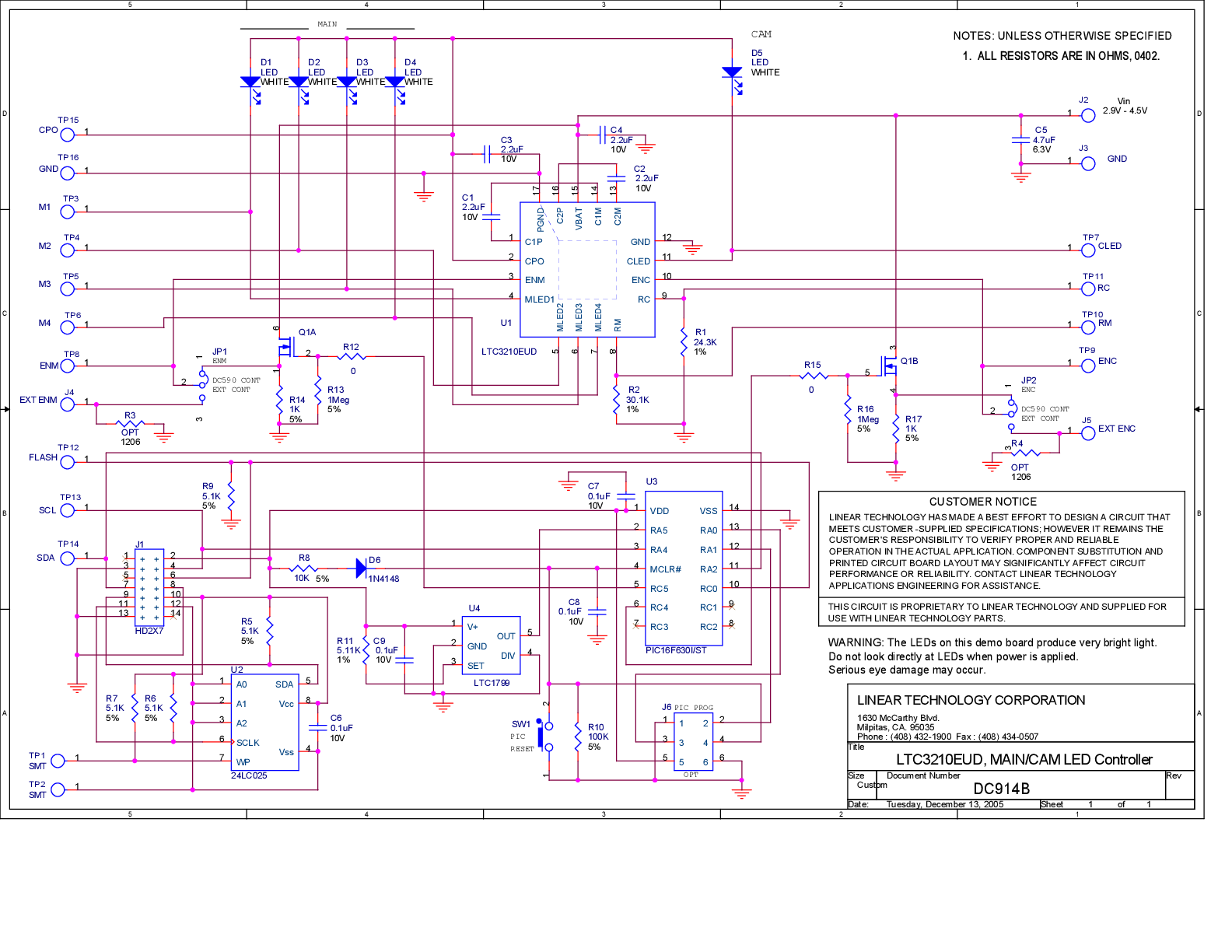

Evaluation Kits (1)

Documentation & Resources

  • View All (3)
  • Data Sheet (1)
  • Reliability Data (1)
  • User Guide (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LTC3210
    LTC3210-1
    LTC3210-2
    LTC3210-3

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC3210EUD#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC3210EUD#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    Wafer Fabrication Data R415 Reliability Data
