LTC2965

100V Micropower Single Voltage Monitor

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC2965 - Supervisory Circuits Download 1.21 KB
Part Models 12
1ku List Price Starting From $2.40
Features
  • Wide Operating Range: 3.5V to 100V

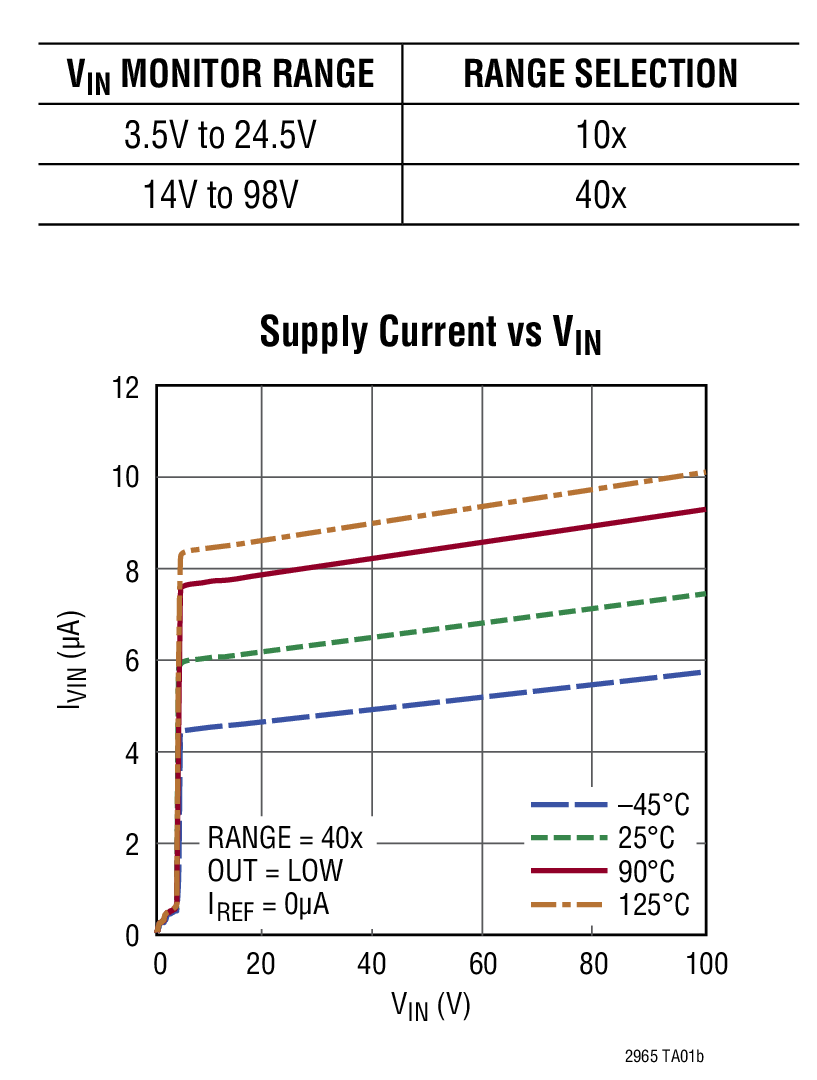

  • Wide Monitoring Range: 3.5V to 98V
  • Quiescent Current: 7μA
  • Adjustable Threshold Range
  • Internal High Value Resistive Dividers
  • ±1.4% (Max) Threshold Accuracy Over Temperature
  • Polarity Selection
  • 100V Rated Outputs
  • Selectable Built-In Hysteresis

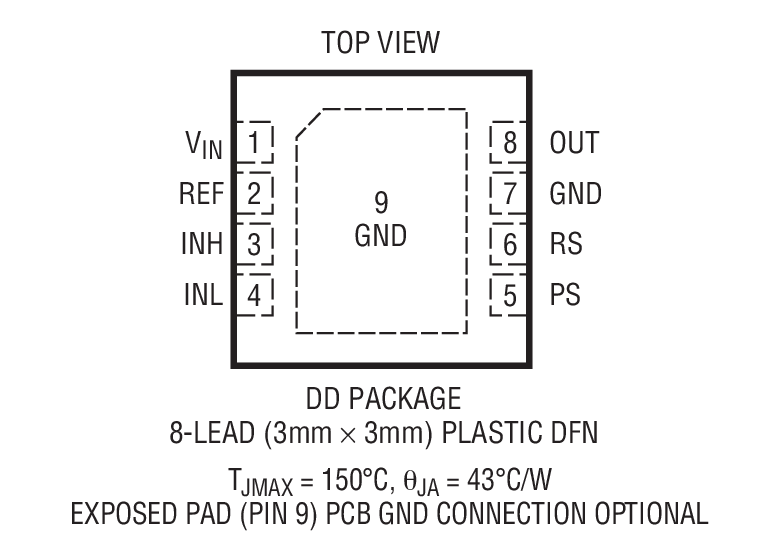

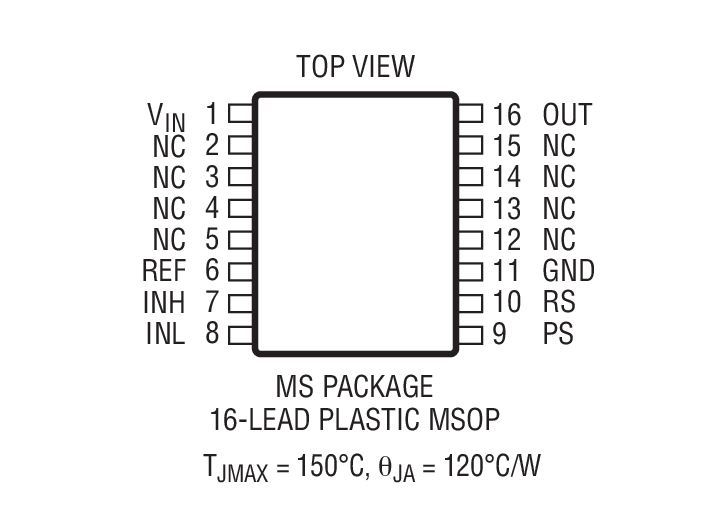

  • 16-Lead MS and 8-Lead 3mm × 3mm DFN Packages
Additional Details
show more Icon

The LTC2965 is a low current, high voltage single channel voltage monitor. Internal high value resistors sense the input monitor pin providing a compact and low power solution for voltage monitoring. Two comparator reference inputs (INH and INL) are included to allow configuration of a high and low threshold using an external resistive divider biased from the on-chip reference. A range selection pin is provided to set the internal resistive divider for 10x or 40x scaling. The thresholds are scaled according to the range selection settings. Additionally, either INH or INL can be grounded to enable built-in hysteresis. Polarity selection pin allows the output to be inverted. The output is 100V capable and includes a 500k pull-up resistor to an internal supply.

Applications

  • Portable Equipment
  • Battery-Powered Equipment
  • Telecom Systems
  • Automotive/Industrial Electronics
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC2965 - Supervisory Circuits Download 1.21 KB
Part Models 12
1ku List Price Starting From $2.40
