LTC2912

Single UV/OV Voltage Monitor

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 36
1ku List Price Starting From $1.77
Features
  • Monitors Single Voltage
  • Adjustable UV and OV Trip Values
  • Guaranteed Threshold Accuracy: ±1.5%
  • Power Supply Glitch Immunity

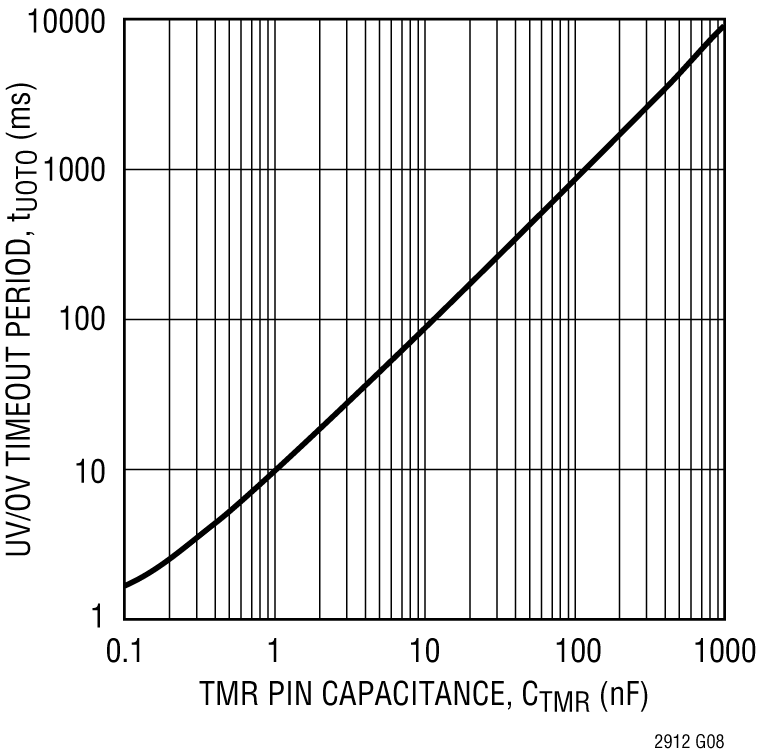

  • Adjustable Reset Timeout with Timeout Disable
  • 29µA Quiescent Current
  • Open-Drain OV and UV Outputs
  • Guaranteed OV and UV for VCC ≥ 1V

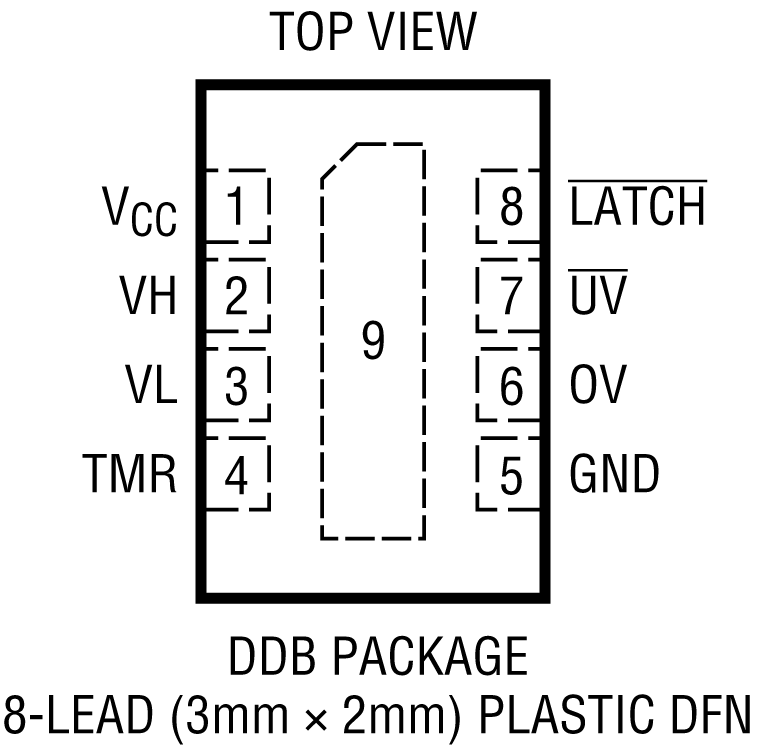

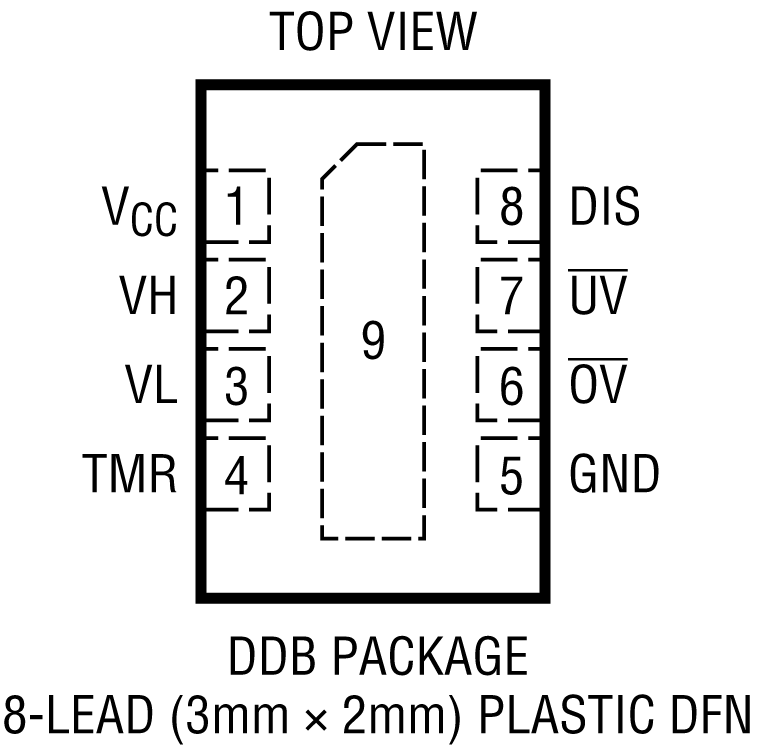

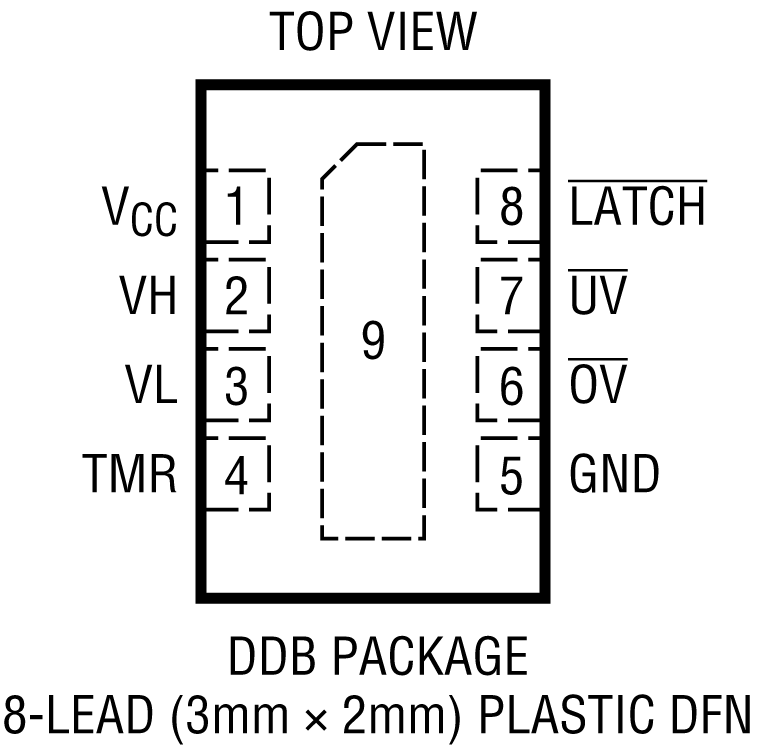

  • Available in 8-Lead ThinSOT and (3mm × 2mm) DFN Packages
Additional Details
show more Icon

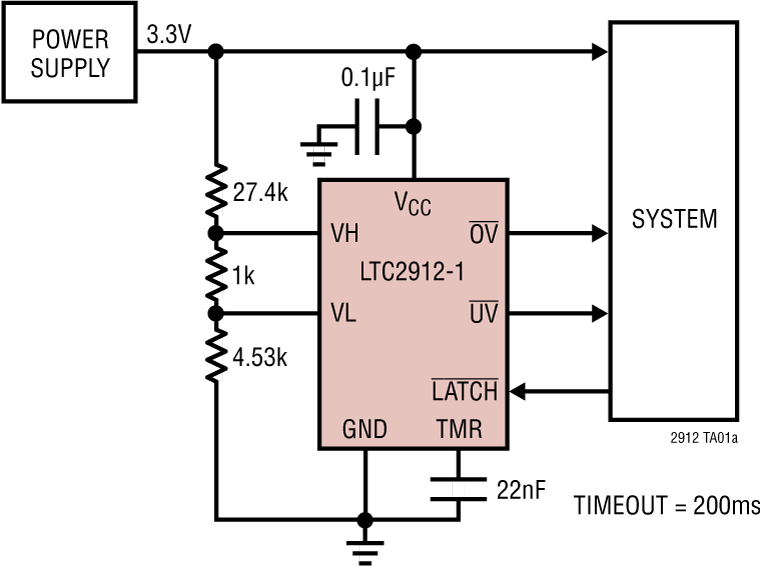

The LTC2912 voltage monitor is designed to detect power supply undervoltage and overvoltage events. The VL and VH monitor inputs include filtering to reject brief glitches, thereby ensuring reliable reset operation without false or noisy triggering. An adjustable timer defines the duration of the overvoltage and undervoltage reset outputs which function independently. While the LTC2912 operates directly from 2.3V to 6V supplies, an internal VCC shunt regulator coupled with low supply current demand allows operation from higher voltages such as 12V, 24V or 48V.

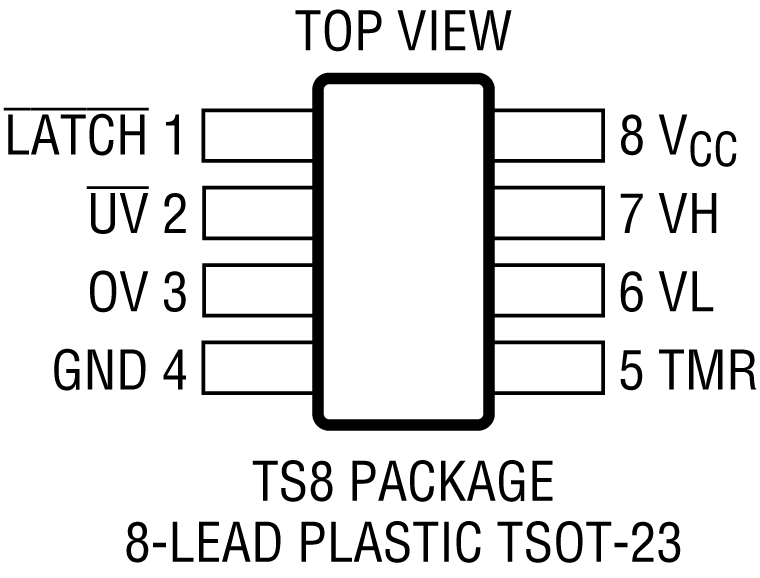

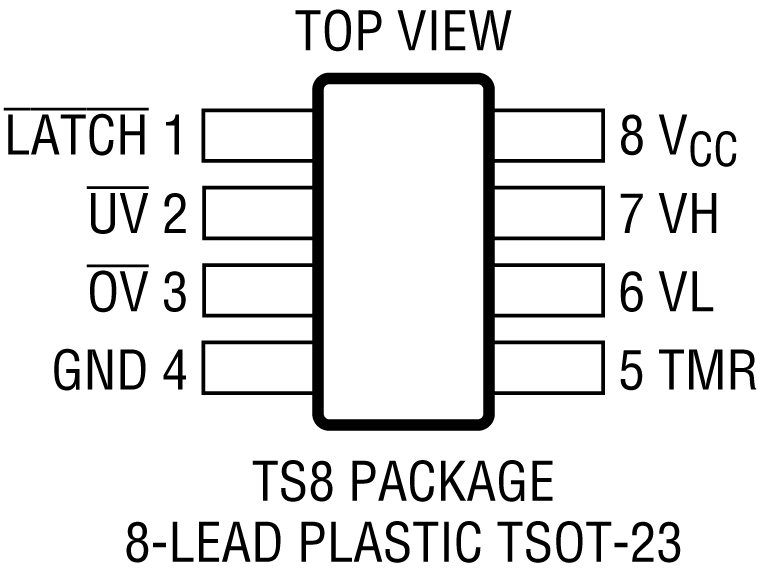

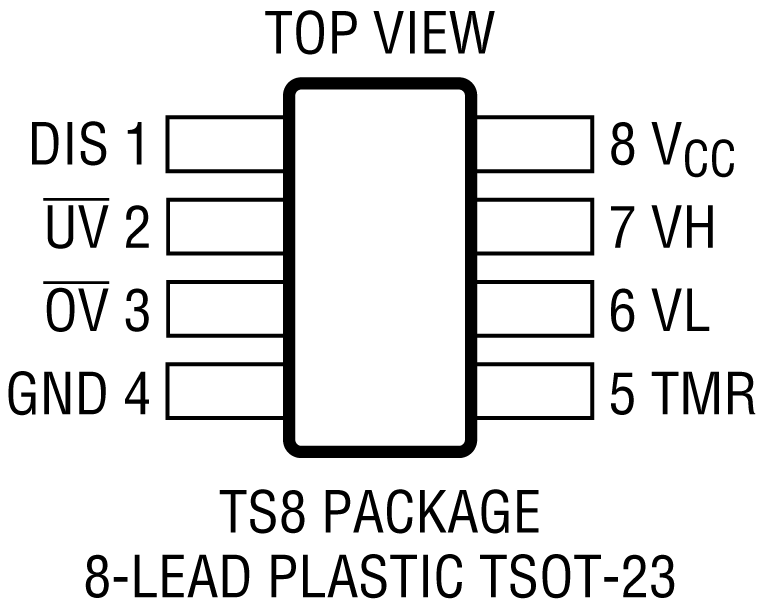

Three output configurations are available: the LTC2912‑1 has a latch control for the OV output; the LTC2912-2 has an OV and UV output disable feature for margining applications; the LTC2912-3 is identical to the LTC2912-1 but with a noninverting, OV output.

The LTC2912 provides a precise, versatile, space-conscious micropower solution for voltage monitoring.

Applications

  • Desktop and Notebook Computers
  • Network Servers
  • Core, I/O Voltage Monitors
Part Models 36
1ku List Price Starting From $1.77

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2912CDDB-1#TRMPBF
  • HTML
  • HTML
LTC2912CDDB-1#TRPBF
  • HTML
  • HTML
LTC2912CDDB-2#TRMPBF
  • HTML
  • HTML
LTC2912CDDB-2#TRPBF
  • HTML
  • HTML
LTC2912CDDB-3#TRMPBF
  • HTML
  • HTML
LTC2912CDDB-3#TRPBF
  • HTML
  • HTML
LTC2912CTS8-1#TRMPBF
  • HTML
  • HTML
LTC2912CTS8-1#TRPBF
  • HTML
  • HTML
LTC2912CTS8-2#TRMPBF
  • HTML
  • HTML
LTC2912CTS8-2#TRPBF
  • HTML
  • HTML
LTC2912CTS8-3#TRMPBF
  • HTML
  • HTML
LTC2912CTS8-3#TRPBF
  • HTML
  • HTML
LTC2912HDDB-1#TRMPBF
  • HTML
  • HTML
LTC2912HDDB-1#TRPBF
  • HTML
  • HTML
LTC2912HDDB-2#TRMPBF
  • HTML
  • HTML
LTC2912HDDB-2#TRPBF
  • HTML
  • HTML
LTC2912HDDB-3#TRMPBF
  • HTML
  • HTML
LTC2912HDDB-3#TRPBF
  • HTML
  • HTML
LTC2912HTS8-1#TRMPBF
  • HTML
  • HTML
LTC2912HTS8-1#TRPBF
  • HTML
  • HTML
LTC2912HTS8-2#TRMPBF
  • HTML
  • HTML
LTC2912HTS8-2#TRPBF
  • HTML
  • HTML
LTC2912HTS8-3#TRMPBF
  • HTML
  • HTML
LTC2912HTS8-3#TRPBF
  • HTML
  • HTML
LTC2912IDDB-1#TRMPBF
  • HTML
  • HTML
LTC2912IDDB-1#TRPBF
  • HTML
  • HTML
LTC2912IDDB-2#TRMPBF
  • HTML
  • HTML
LTC2912IDDB-2#TRPBF
  • HTML
  • HTML
LTC2912IDDB-3#TRMPBF
  • HTML
  • HTML
LTC2912IDDB-3#TRPBF
  • HTML
  • HTML
LTC2912ITS8-1#TRMPBF
  • HTML
  • HTML
LTC2912ITS8-1#TRPBF
  • HTML
  • HTML
LTC2912ITS8-2#TRMPBF
  • HTML
  • HTML
LTC2912ITS8-2#TRPBF
  • HTML
  • HTML
LTC2912ITS8-3#TRMPBF
  • HTML
  • HTML
LTC2912ITS8-3#TRPBF
  • HTML
  • HTML

Software & Part Ecosystem

Evaluation Kits 1

reference details image

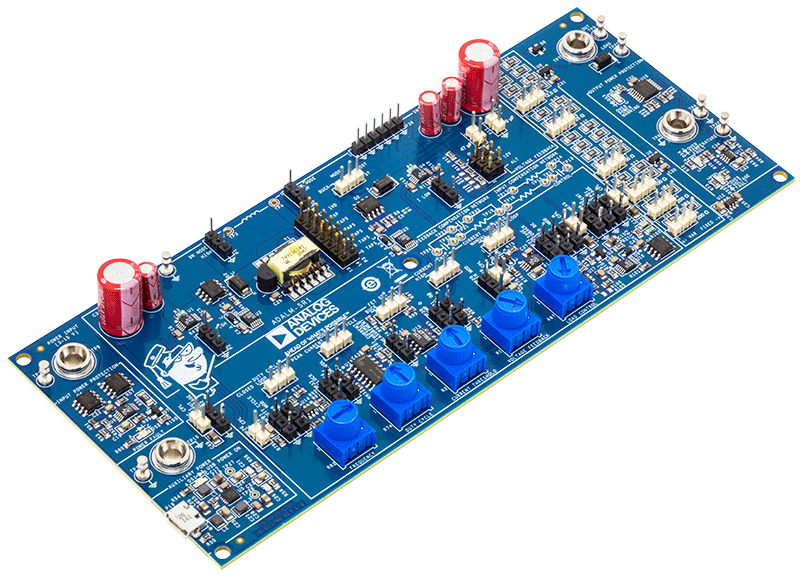

ADALM-SR1
