LTC2875

±60V Fault Protected 3.3V or 5V 25kV ESD High Speed CAN FD Transceiver

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 12
1ku List Price Starting From $2.10
Features
  • Protected from Overvoltage Line Faults to ±60V
  • 3.3V or 5V Supply Voltage
  • High Speed CAN FD Operation Up to 4Mbps
  • ±25kV ESD Interface Pins, ±8kV All Other Pins
  • Variable Slew Rate Driver with Active Symmetry Control and SPLIT Pin for Low Electromagnetic Emission (EME)
  • Extended Common Mode Range (±36V)
  • Ideal Passive Behavior to CAN Bus with Supply Off
  • Current Limited Drivers and Thermal Shutdown
  • Power-Up/Down Glitch-Free Driver Outputs
  • Micropower Shutdown Mode
  • Transmit Data (TXD) Dominant Timeout Function
  • ISO 11898-2 and CAN FD Compliant
  • DeviceNet Compatible
  • Up to MP-Grade Available (–55°C to 125°C)
  • 3mm × 3mm 8-Lead DFN and SO-8 Packages
Additional Details
show more Icon

The LTC2875 is a robust high speed, low power CAN transceiver operating on 3.3V or 5V supplies that features ±60V overvoltage fault protection on the data transmission lines during all modes of operation, including powerdown. The maximum data rate has been extended to 4Mbps to support high speed protocols based on the CAN physical layer. Supports up to 4Mbps CAN with Flexible Data Rate (CAN FD). Enhanced ESD protection allows these parts to withstand ±25kV HBM on the transceiver interface pins without latchup or damage.

Extended ±36V input common mode range and high common mode rejection on the CAN receiver provides tolerance of large ground loop voltages. A sophisticated CAN driver with active symmetry control maintains tight control of the common mode voltage for excellent electromagnetic emission, while the variable slew rate and split termination support allow additional EME reduction.

Applications

  • Industrial Control and Instrumentation Networks
  • Automotive and Transportation Electronics
  • Building Automation, Security Systems, HVAC
  • Medical Equipment
Part Models 12
1ku List Price Starting From $2.10

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2875HDD#PBF
  • HTML
  • HTML
LTC2875HDD#TRPBF
  • HTML
  • HTML
LTC2875HS8#PBF
  • HTML
  • HTML
LTC2875HS8#TRPBF
  • HTML
  • HTML
LTC2875IDD#PBF
  • HTML
  • HTML
LTC2875IDD#TRPBF
  • HTML
  • HTML
LTC2875IS8#PBF
  • HTML
  • HTML
LTC2875IS8#TRPBF
  • HTML
  • HTML
LTC2875MPDD#PBF
  • HTML
  • HTML
LTC2875MPDD#TRPBF
  • HTML
  • HTML
LTC2875MPS8#PBF
  • HTML
  • HTML
LTC2875MPS8#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 31, 2020

- 20_0245

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC2875HDD#PBF

PRODUCTION

LTC2875HDD#TRPBF

PRODUCTION

LTC2875HS8#PBF

PRODUCTION

LTC2875HS8#TRPBF

PRODUCTION

LTC2875IDD#PBF

PRODUCTION

LTC2875IDD#TRPBF

PRODUCTION

LTC2875IS8#PBF

PRODUCTION

LTC2875IS8#TRPBF

PRODUCTION

LTC2875MPDD#PBF

PRODUCTION

LTC2875MPDD#TRPBF

PRODUCTION

LTC2875MPS8#PBF

PRODUCTION

LTC2875MPS8#TRPBF

PRODUCTION

Mar 12, 2019

- 19_0044

Die Revision for LTC2875

LTC2875HDD#PBF

PRODUCTION

LTC2875HDD#TRPBF

PRODUCTION

LTC2875HS8#PBF

PRODUCTION

LTC2875HS8#TRPBF

PRODUCTION

LTC2875IDD#PBF

PRODUCTION

LTC2875IDD#TRPBF

PRODUCTION

LTC2875IS8#PBF

PRODUCTION

LTC2875IS8#TRPBF

PRODUCTION

LTC2875MPDD#PBF

PRODUCTION

LTC2875MPDD#TRPBF

PRODUCTION

LTC2875MPS8#PBF

PRODUCTION

LTC2875MPS8#TRPBF

PRODUCTION

Oct 12, 2022

- 22_0255

Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)

LTC2875HS8#PBF

PRODUCTION

LTC2875HS8#TRPBF

PRODUCTION

LTC2875IS8#PBF

PRODUCTION

LTC2875IS8#TRPBF

PRODUCTION

Jun 16, 2021

- 21_0026

Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM

LTC2875HS8#PBF

PRODUCTION

LTC2875HS8#TRPBF

PRODUCTION

LTC2875IS8#PBF

PRODUCTION

LTC2875IS8#TRPBF

PRODUCTION

LTC2875MPS8#PBF

PRODUCTION

LTC2875MPS8#TRPBF

PRODUCTION

Dec 14, 2023

- 22_0255

Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 31, 2020

- 20_0245

arrow down

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC2875HDD#PBF

PRODUCTION

LTC2875HDD#TRPBF

PRODUCTION

LTC2875HS8#PBF

PRODUCTION

LTC2875HS8#TRPBF

PRODUCTION

LTC2875IDD#PBF

PRODUCTION

LTC2875IDD#TRPBF

PRODUCTION

LTC2875IS8#PBF

PRODUCTION

LTC2875IS8#TRPBF

PRODUCTION

LTC2875MPDD#PBF

PRODUCTION

LTC2875MPDD#TRPBF

PRODUCTION

LTC2875MPS8#PBF

PRODUCTION

LTC2875MPS8#TRPBF

PRODUCTION

Mar 12, 2019

- 19_0044

arrow down

Die Revision for LTC2875

LTC2875HDD#PBF

PRODUCTION

LTC2875HDD#TRPBF

PRODUCTION

LTC2875HS8#PBF

PRODUCTION

LTC2875HS8#TRPBF

PRODUCTION

LTC2875IDD#PBF

PRODUCTION

LTC2875IDD#TRPBF

PRODUCTION

LTC2875IS8#PBF

PRODUCTION

LTC2875IS8#TRPBF

PRODUCTION

LTC2875MPDD#PBF

PRODUCTION

LTC2875MPDD#TRPBF

PRODUCTION

LTC2875MPS8#PBF

PRODUCTION

LTC2875MPS8#TRPBF

PRODUCTION

Oct 12, 2022

- 22_0255

arrow down

Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)

LTC2875HS8#PBF

PRODUCTION

LTC2875HS8#TRPBF

PRODUCTION

LTC2875IS8#PBF

PRODUCTION

LTC2875IS8#TRPBF

PRODUCTION

Jun 16, 2021

- 21_0026

arrow down

Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM

LTC2875HS8#PBF

PRODUCTION

LTC2875HS8#TRPBF

PRODUCTION

LTC2875IS8#PBF

PRODUCTION

LTC2875IS8#TRPBF

PRODUCTION

LTC2875MPS8#PBF

PRODUCTION

LTC2875MPS8#TRPBF

PRODUCTION

Dec 14, 2023

- 22_0255

arrow down

Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC2063A

LTC2875 Demo Board | 4Mbps CAN Transceiver

zoom

DC2063A

LTC2875 Demo Board | 4Mbps CAN Transceiver

LTC2875 Demo Board | 4Mbps CAN Transceiver

Product Detail

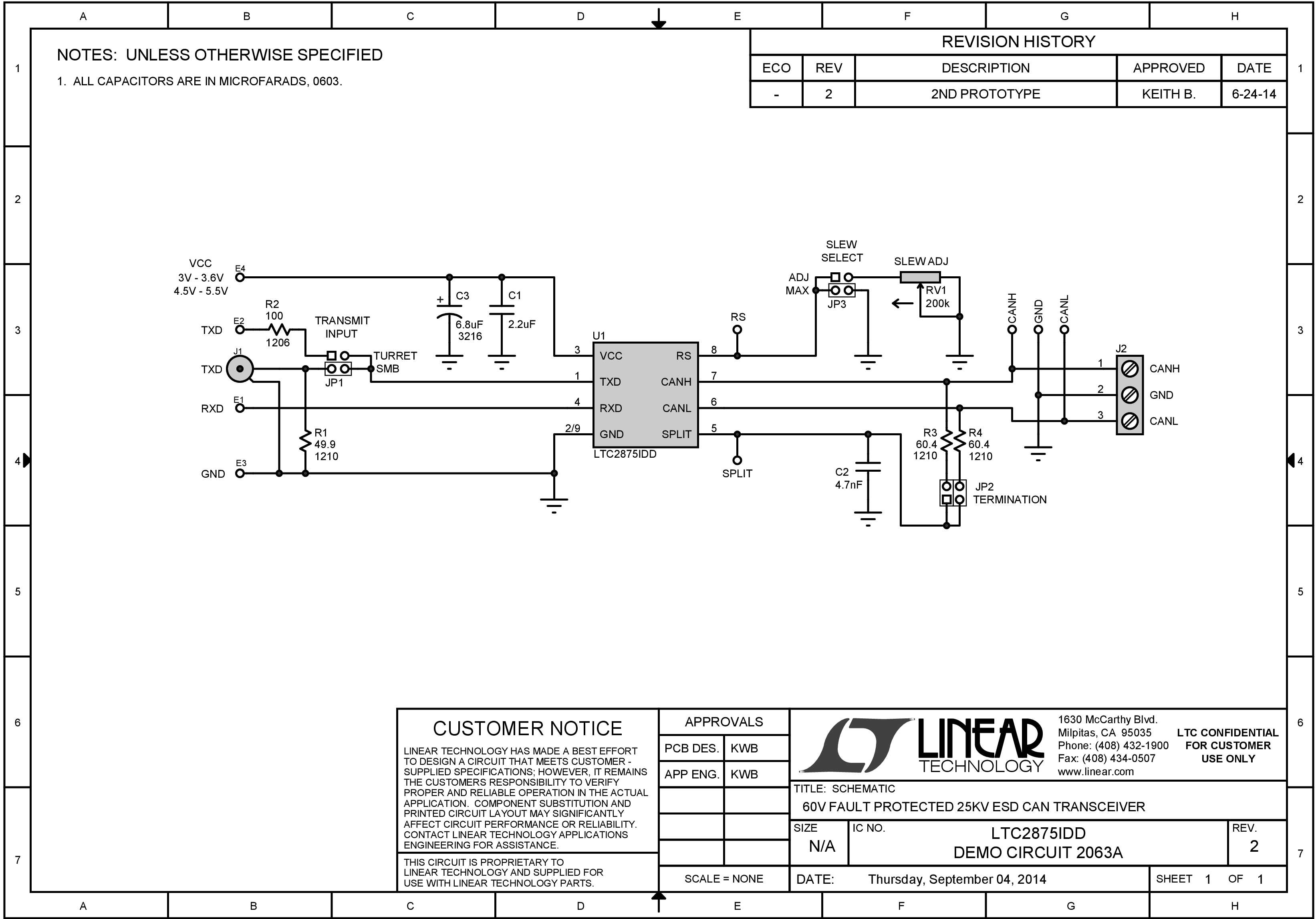

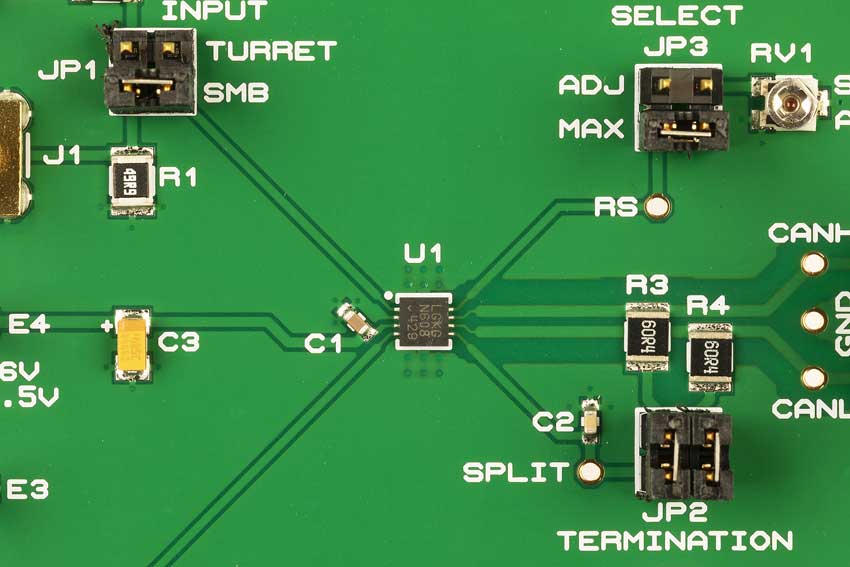

Demonstration circuit 2063A is a robust high speed, low power, ISO 11898-2 compliant CAN transceiver featuring the LTC2875. The demo circuit operates on 3.3V or 5V supplies and features ±60V overvoltage fault protection on the data transmission lines during all modes of operation. The demo circuit contains all the components necessary to demonstrate the features of the LTC2875 in a CAN network, including a terminated SMB jack for TXD data input, jumper selectable CAN bus termination (supporting either single or split termination configurations), and a jumper selectable variable slew rate control.

Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
