LTC2862

PRODUCTION

±60V Fault Protected 3V to 5.5V RS485/RS422 Transceivers

Part Models: 28
1ku List Price: Starting From $2.46

Viewing:

Part Details

Protected from Overvoltage Line Faults to ±60V
3V to 5.5V Supply Voltage
20Mbps or Low EMI 250kbps Data Rate
±15kV ESD Interface Pins, ±8kV All Other Pins
Extended Common Mode Range: ±25V
Guaranteed Fail-safe Receiver Operation
High Input Impedance Supports 256 Nodes
1.65V to 5.5V Logic Supply Pin (V_L) for Flexible Digital Interface (LTC2865)
MP-Grade Option Available (–55°C to 125°C)
Fully Balanced Differential Receiver Thresholds for Low Duty Cycle Distortion
Current Limited Drivers and Thermal Shutdown
Pin Compatible with LT1785 and LT1791

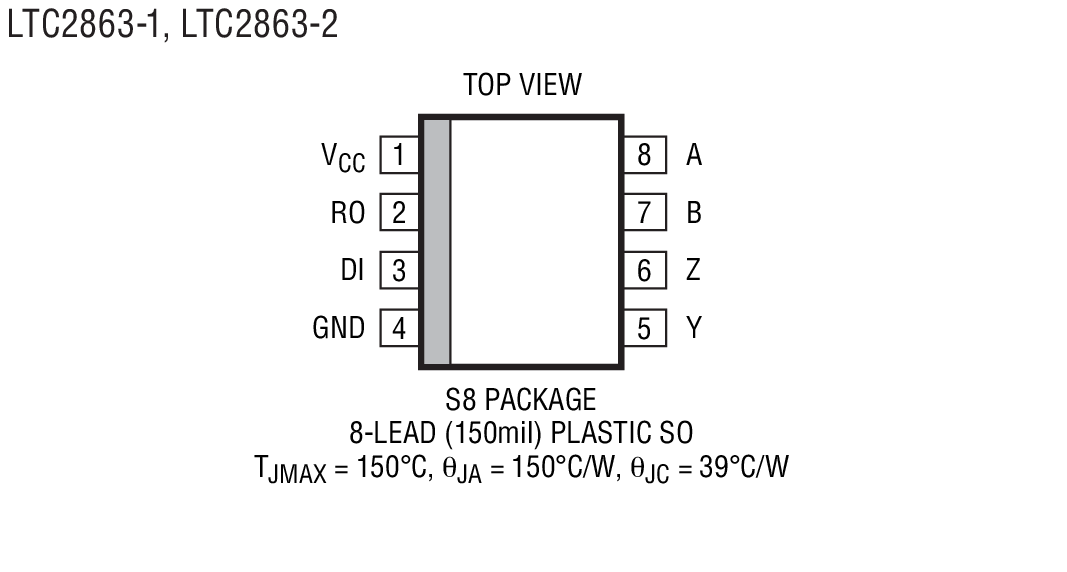

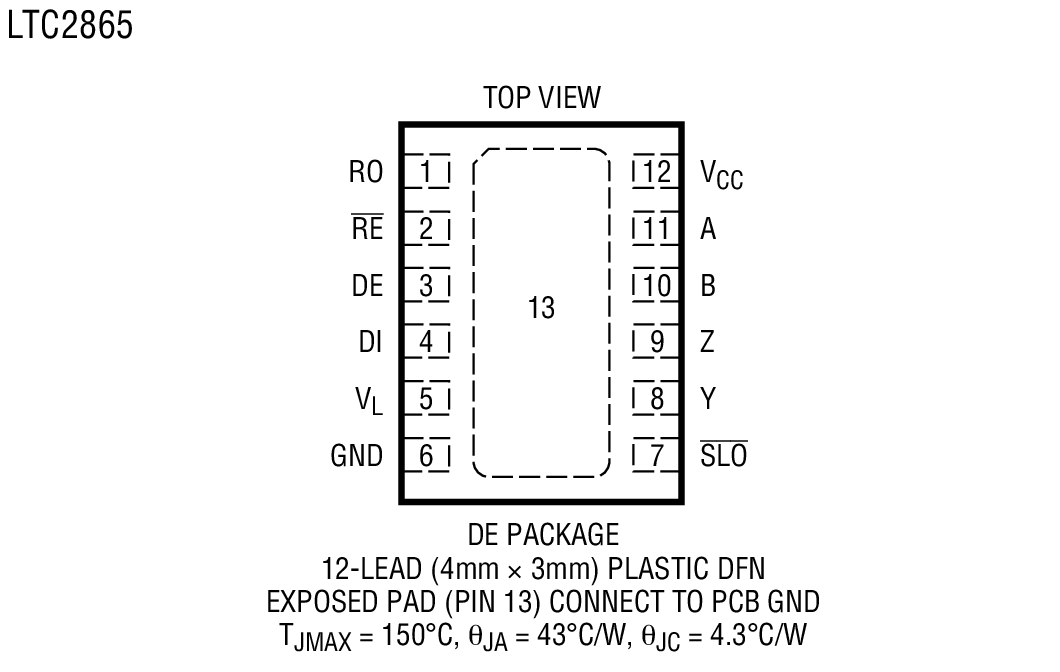

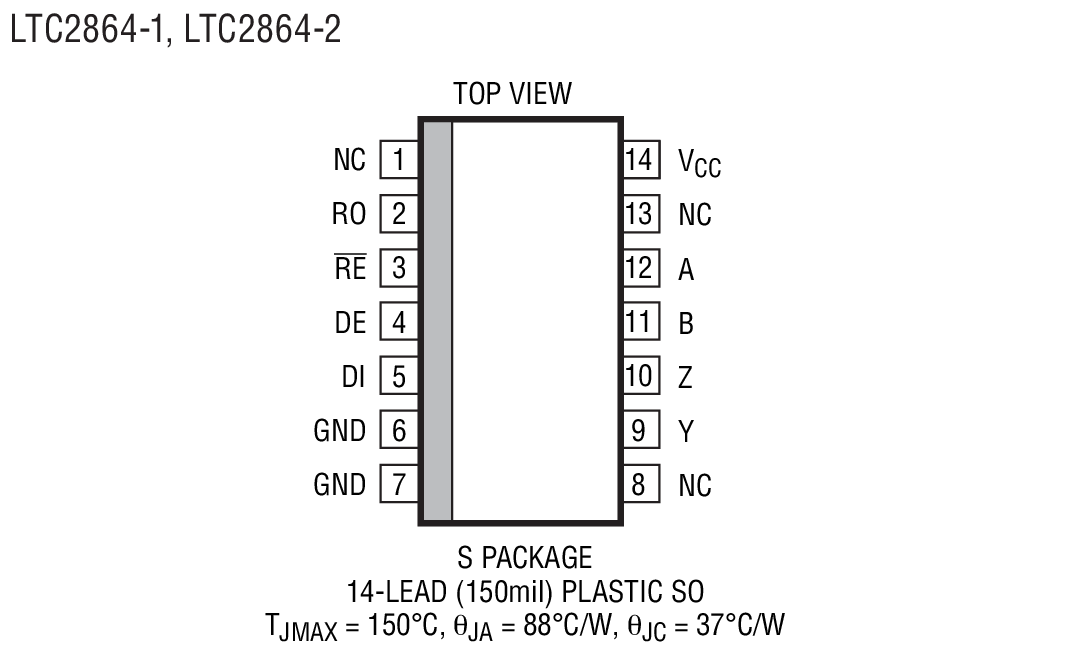

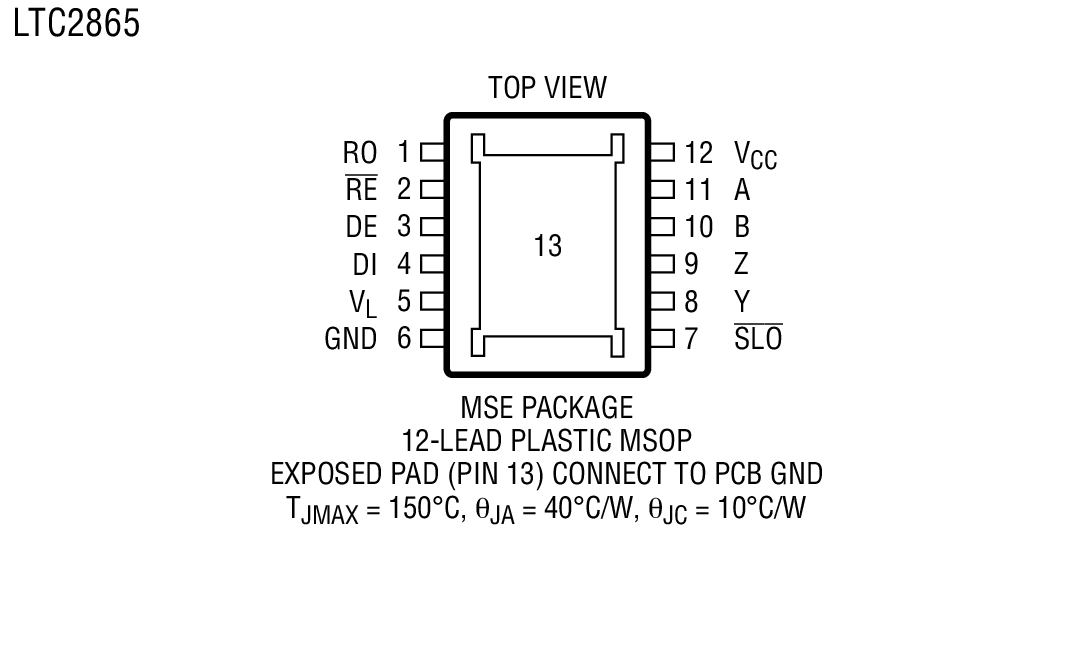

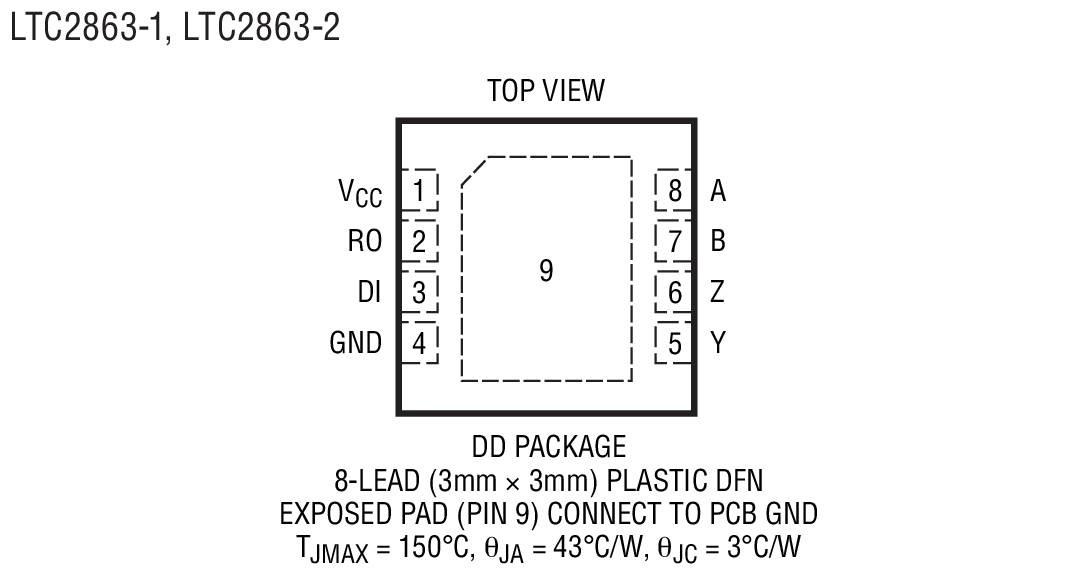

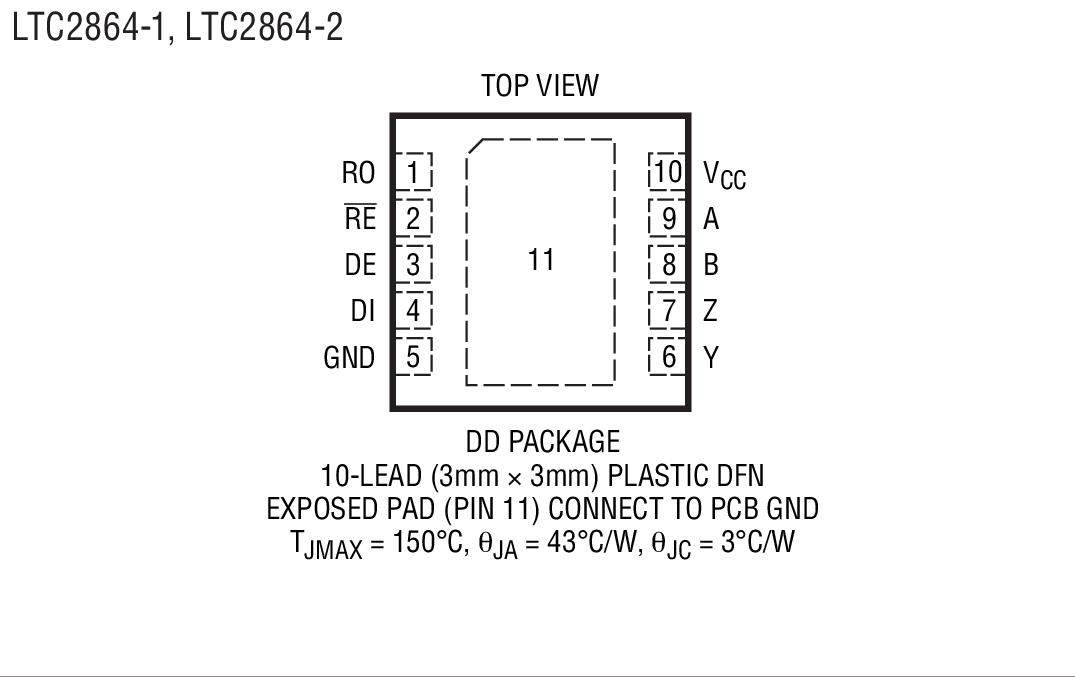

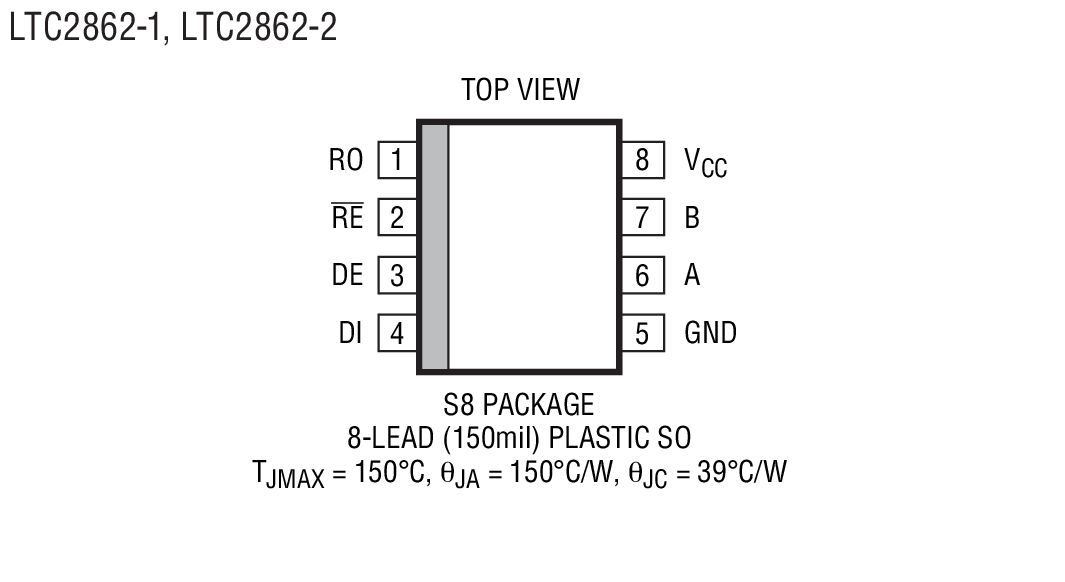

Available in DFN and Leaded Packages

The LTC2862/LTC2863/LTC2864/LTC2865 are low power, 20Mbps or 250kbps RS485/RS422 transceivers operating on 3V to 5.5V supplies that feature ±60V overvoltage fault protection on the data transmission lines during all modes of operation, including power-down. Low EMI slew rate limited data transmission is available in a logic-selectable 250kbps mode in the LTC2865 and in 250kbps versions of the LTC2862-LTC2864. Enhanced ESD protection allows these parts to withstand ±15kV HBM on the transceiver interface pins without latch-up or damage.

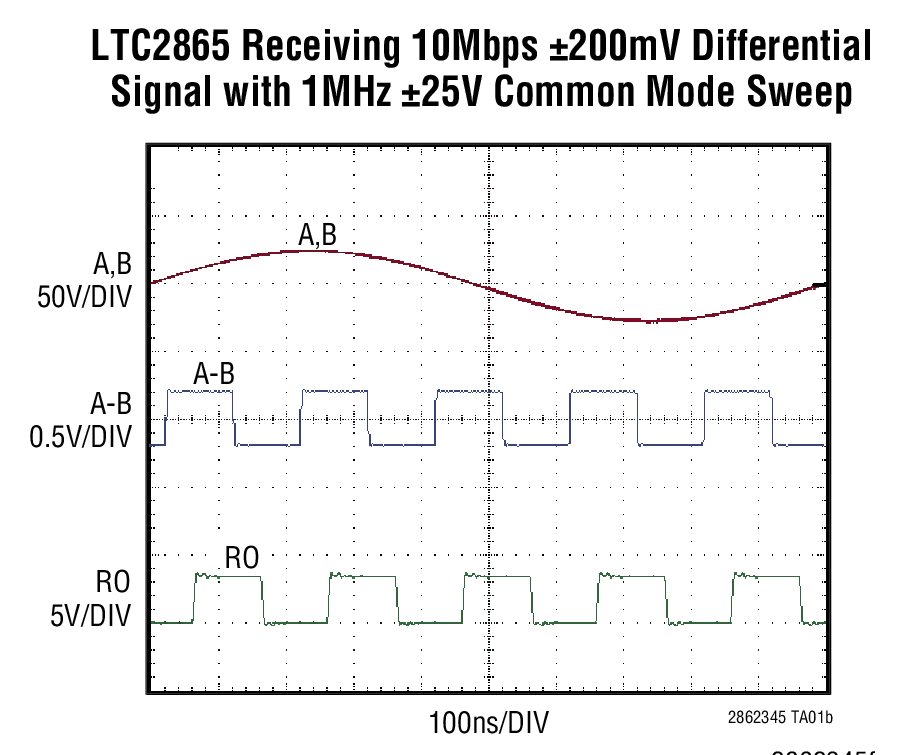

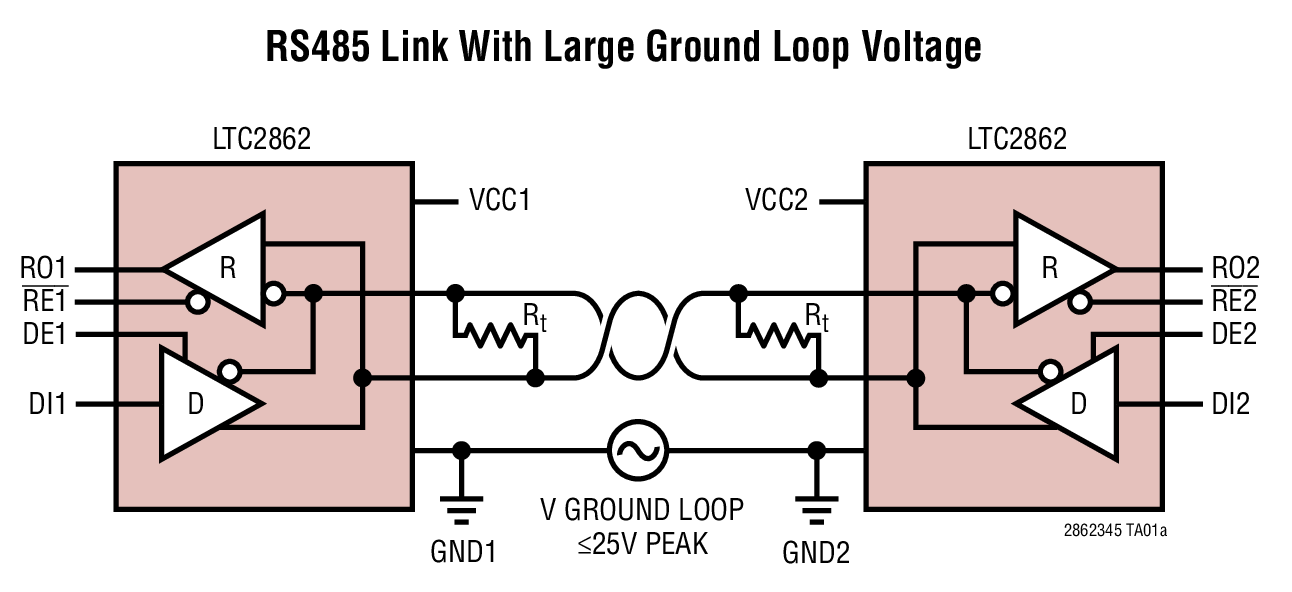

Extended ±25V input common mode range and full fail-safe operation improve data communication reliability in electrically noisy environments and in the presence of large ground loop voltages.


Part Number	Duplex	Enables	Max Data Rate	V_L Pin
LTC2862-1	Half	Yes	20M	No
LTC2862-2	Half	Yes	250k	No
LTC2863-1	Full	No	20M	No
LTC2863-2	Full	No	250k	No
LTC2864-1	Full	Yes	20M	No
LTC2864-2	Full	Yes	250k	No
LTC2865	Full	Yes	20M/250k	Yes

Applications

Supervisory Control and Data Acquisition (SCADA)
Industrial Control and Instrumentation Networks
Automotive and Transportation Electronics
Building Automation, Security Systems and HVAC
Medical Equipment
Lighting and Sound System Control

Part Models: 28
1ku List Price: Starting From $2.46

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

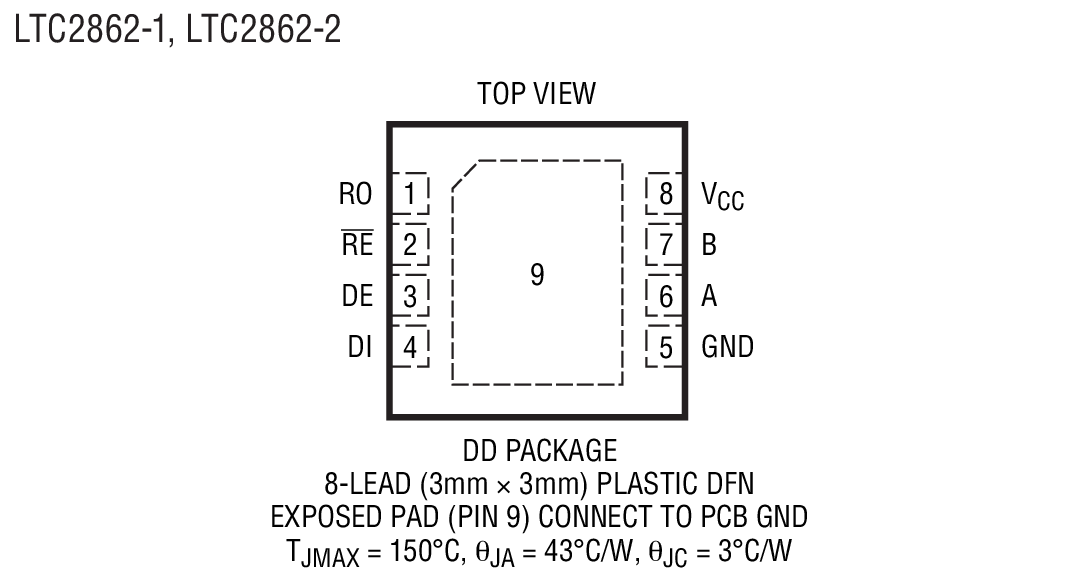

LTC2862CDD-1#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862CDD-1#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862CDD-2#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862CDD-2#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862CS8-1#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862CS8-1#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862CS8-2#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862CS8-2#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862HDD-1#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862HDD-1#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862HDD-2#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862HDD-2#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862HS8-1#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862HS8-1#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862HS8-2#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862HS8-2#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862IDD-1#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862IDD-1#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862IDD-2#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862IDD-2#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862IS8-1#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862IS8-1#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862IS8-2#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862IS8-2#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862MPS8-1#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862MPS8-1#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862MPS8-2#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2862MPS8-2#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN
No Match Found
Oct 24, 2024 - 24_0246 Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package
		PCN24_0246_Form Material_Report Marking Comparison Delta Qualification Matrix
LTC2862CS8-1#PBF	PRODUCTION
LTC2862CS8-1#TRPBF	PRODUCTION
LTC2862IS8-2#PBF	PRODUCTION
LTC2862IS8-2#TRPBF	PRODUCTION
Oct 12, 2022 - 22_0255 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)
		PCN22_0255_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC2862CS8-1#PBF	PRODUCTION
LTC2862CS8-1#TRPBF	PRODUCTION
LTC2862IS8-2#PBF	PRODUCTION
LTC2862IS8-2#TRPBF	PRODUCTION
Jun 16, 2021 - 21_0026 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0026_Form Material_Report Delta Qualification Matrix
LTC2862CS8-1#PBF	PRODUCTION
LTC2862CS8-1#TRPBF	PRODUCTION
LTC2862CS8-2#PBF	PRODUCTION
LTC2862CS8-2#TRPBF	PRODUCTION
LTC2862HS8-1#PBF	PRODUCTION
LTC2862HS8-1#TRPBF	PRODUCTION
LTC2862HS8-2#PBF	PRODUCTION
LTC2862HS8-2#TRPBF	PRODUCTION
LTC2862IS8-1#PBF	PRODUCTION
LTC2862IS8-1#TRPBF	PRODUCTION
LTC2862IS8-2#PBF	PRODUCTION
LTC2862IS8-2#TRPBF	PRODUCTION
LTC2862MPS8-1#PBF	PRODUCTION
LTC2862MPS8-1#TRPBF	PRODUCTION
LTC2862MPS8-2#PBF	PRODUCTION
LTC2862MPS8-2#TRPBF	PRODUCTION
Dec 14, 2023 - 22_0255 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)
		PCN22_0255_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC2862CS8-2#PBF	PRODUCTION
LTC2862CS8-2#TRPBF	PRODUCTION
LTC2862HS8-1#PBF	PRODUCTION
LTC2862HS8-1#TRPBF	PRODUCTION
LTC2862HS8-2#PBF	PRODUCTION
LTC2862HS8-2#TRPBF	PRODUCTION
LTC2862IS8-1#PBF	PRODUCTION
LTC2862IS8-1#TRPBF	PRODUCTION
LTC2862MPS8-1#PBF	PRODUCTION
LTC2862MPS8-1#TRPBF	PRODUCTION
LTC2862MPS8-2#PBF	PRODUCTION
LTC2862MPS8-2#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
TimerBlox 1
LTC6993		TimerBlox: Monostable Pulse Generator (One Shot)

Parts	Product Life Cycle	Description
LTC2862A	PRODUCTION	±60V Fault Protected 3V to 5.5V RS485/RS422 Transceiver with Level 4 IEC ESD
LTC2863	PRODUCTION	±60V Fault Protected 3V to 5.5V RS485/RS422 Transceivers
LTC2864	PRODUCTION	±60V Fault Protected 3V to 5.5V RS485/RS422 Transceivers
LTC2865	PRODUCTION	±60V Fault Protected 3V to 5.5V RS485/RS422 Transceivers

Tools & Simulations

LTspice 1

LTC2862 - RS-232 / RS-422 / RS-485 / RS-562

Models for the following parts are available in LTspice:

LTC2862-1
LTC2862-2

IBIS Model 1

LTC2862 IBIS Model

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Standard RS-485 Half-Duplex Evaluation Board, EVAL-RS485HDEBZ

Buy Now View Details

Product Details

The EVAL-RS485HDEBZ allows quick and easy evaluation of half-duplex RS-485 transceivers with standard 8-lead SOIC footprints. The evaluation board allows interfacing via screw terminal block to digital I/O for driver input (DI), receiver output (RO), driver enable (DE) and receiver output (RO). Bus signals A and B (half-duplex bus) can be connected to a bus screw terminal block. One or two termination resistors can be connected to A and B via jumper settings, in order to evaluation the half-duplex RS-485 driver and receiver. Footprints are provided for pull-up and pull-down (biasing resistors) on the bus.

Devices for evaluation on the board must be ordered separately.
