Overview
Features and Benefits
- 12-Bit Resolution
- Low Noise: 73dB SNR
- Low Power Dissipation: 1.5mW at 100ksps
- 100ksps/250ksps/500ksps Sampling Rates
- Single Supply 2.35V to 3.6V Operation
- No Data Latency
- Sleep Mode with 0.1μA Typical Supply Current
- Dedicated External Reference (TSOT23-8)
- 1V to 3.6V Digital Output Supply (TSOT23-8)
- SPI/MICROWIRE™ Compatible Serial I/O
- Guaranteed Operation from –40°C to 125°C
- Tiny 6- and 8-Lead TSOT-23 Packages
Product Details
The LTC2360/LTC2361/LTC2362 are 100ksps/250ksps/500ksps, 12-bit, sampling A/D converters that draw only 0.5mA, 0.75mA and 1.1mA, respectively, from a single 3V supply. The supply current drops at lower sampling rates because these devices automatically power down after conversions. The full-scale input of the LTC2360/LTC2361/LTC2362 is 0V to VDD or VREF. These ADCs are available in tiny 6- and 8-lead TSOT-23 packages.
The serial interface, tiny TSOT-23 package and extremely high sample rate-to-power ratio make the LTC2360/LTC2361/LTC2362 ideal for compact, low power, high speed systems.
The high impedance single-ended analog input and the ability to operate with reduced spans (down to 1.4V full scale) allow direct connection to sensors and transducers in many applications, eliminating the need for gain stages.
Applications
- Communication Systems
- Data Acquisition Systems
- Handheld Portable Devices
- Uninterrupted Power Supplies
- Battery-Operated Systems
- Automotive
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
R478 Reliability Data3/26/2018
-

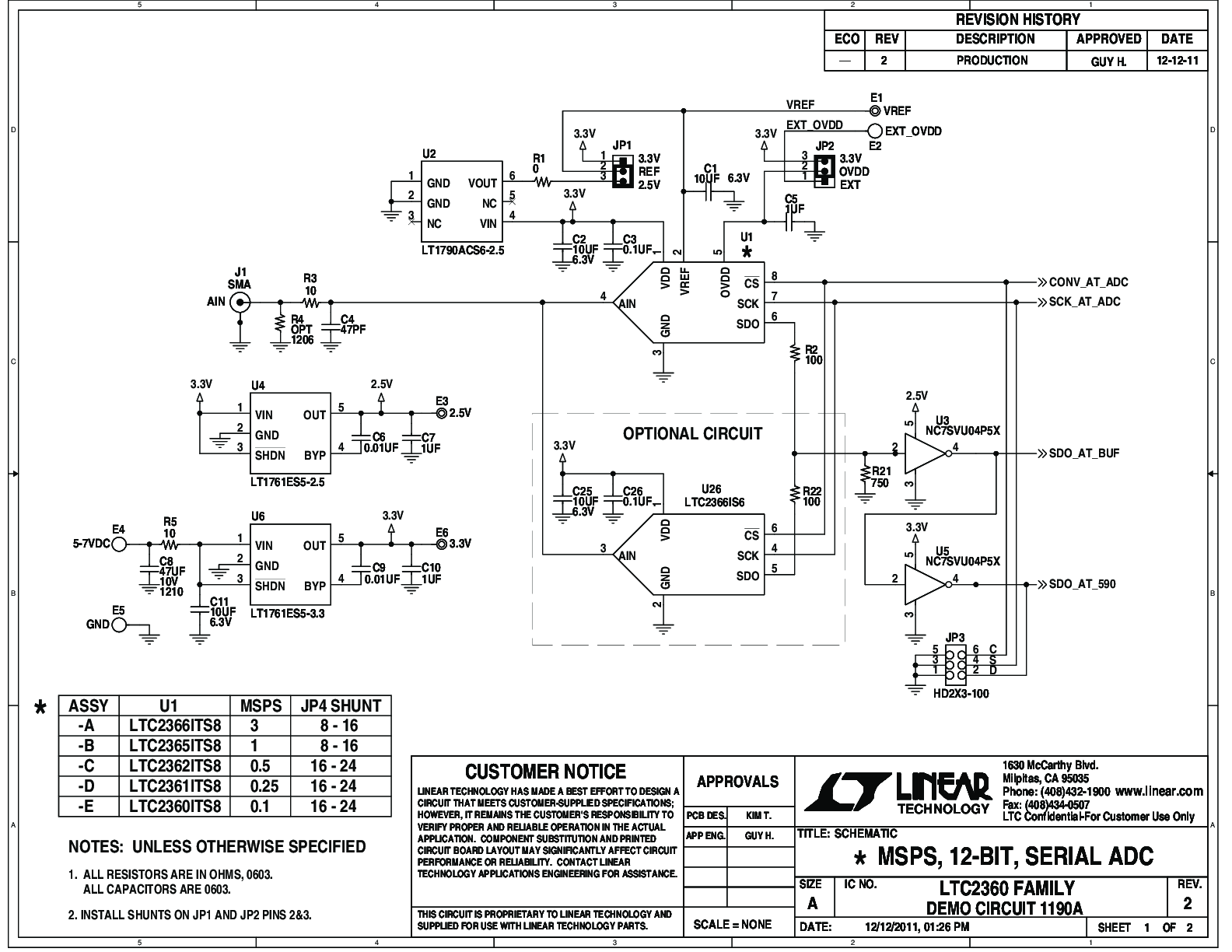

DC1190A_A-E - Demo Manual9/24/2009
-
SAR ADC Input Types6/2/2015
-
General Purpose SAR ADCs10/12/2010
Software & Systems Requirements
Evaluation Software
LinearLab Tools
A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.
Tools & Simulations
Linduino
Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.
Linduino code repository on GitHub and instructions on how to use the code.
Product Recommendations
LTC2360 Companion Parts
Recommended µModule Isolator
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC2360CS6#TRMPBF | Material Declaration | Reliability Data | 6-Lead TSOT-23 | |
| LTC2360CS6#TRPBF | Material Declaration | Reliability Data | 6-Lead TSOT-23 | |
| LTC2360CTS8#TRMPBF | Material Declaration | Reliability Data | 8-Lead SOT-23 | |
| LTC2360CTS8#TRPBF | Material Declaration | Reliability Data | 8-Lead SOT-23 | |
| LTC2360HS6#TRMPBF | Material Declaration | Reliability Data | 6-Lead TSOT-23 | |
| LTC2360HS6#TRPBF | Material Declaration | Reliability Data | 6-Lead TSOT-23 | |
| LTC2360HTS8#TRMPBF | Material Declaration | Reliability Data | 8-Lead SOT-23 | |
| LTC2360HTS8#TRPBF | Material Declaration | Reliability Data | 8-Lead SOT-23 | |
| LTC2360IS6#TRMPBF | Material Declaration | Reliability Data | 6-Lead TSOT-23 | |
| LTC2360IS6#TRPBF | Material Declaration | Reliability Data | 6-Lead TSOT-23 | |
| LTC2360ITS8#TRMPBF | Material Declaration | Reliability Data | 8-Lead SOT-23 | |
| LTC2360ITS8#TRPBF | Material Declaration | Reliability Data | 8-Lead SOT-23 | |
| Wafer Fabrication Data | R478 Reliability Data |
