LTC2358-18

PRODUCTION

Buffered Octal, 18-Bit, 200ksps/Ch Differential ±10.24V ADC with 30V_P-P Common Mode Range

Part Models: 3
1ku List Price: Starting From $30.55

Viewing:

Overview

Simultaneous Sampling of 8 Buffered Channels
200ksps per Channel Throughput
500pA/12nA Max Input Leakage at 85°C/125°C
±3.5LSB INL (Maximum, ±10.24V Range)
Guaranteed 18-Bit, No Missing Codes
Differential, Wide Common Mode Range Inputs
Per-Channel SoftSpan Input Ranges:
- ±10.24V, 0V to 10.24V, ±5.12V, 0V to 5.12V
- ±12.5V, 0V to 12.5V, ±6.25V, 0V to 6.25V
96.4dB Single-Conversion SNR (Typical)
−111dB THD (Typical) at f_IN = 2kHz
128dB CMRR (Typical) at f_IN = 200Hz
Rail-to-Rail Input Overdrive Tolerance
Integrated Reference and Buffer (4.096V)
SPI CMOS (1.8V to 5V) and LVDS Serial I/O
Internal Conversion Clock, No Cycle Latency
219mW Power Dissipation (27mW/Ch Typical)
48-Lead (7mm x 7mm) LQFP Package

The LTC2358-18 is an 18-bit, low noise 8-channel simultaneous sampling successive approximation register (SAR) ADC with buffered differential, wide common mode range picoamp inputs. Operating from a 5V low voltage supply, flexible high voltage supplies, and using the internal reference and buffer, each channel of this SoftSpan^™ ADC can be independently configured on a conversion-by-conversion basis to accept ±10.24V, 0V to 10.24V, ±5.12V, or 0V to 5.12V signals. Individual channels may also be disabled to increase throughput on the remaining channels.

The integrated picoamp-input analog buffers, wide input common mode range and 128dB CMRR of the LTC2358-18 allow the ADC to directly digitize a variety of signals using minimal board space and power. This input signal flexibility, combined with ±3.5LSB INL, no missing codes at 18 bits, and 96.4dB SNR, makes the LTC2358-18 an ideal choice for many high voltage applications requiring wide dynamic range.

The LTC2358-18 supports pin-selectable SPI CMOS (1.8V to 5V) and LVDS serial interfaces. Between one and eight lanes of data output may be employed in CMOS mode, allowing the user to optimize bus width and throughput.

Applications

Programmable Logic Controllers
Industrial Process Control
Power Line Monitoring
Test and Measurement

Part Models: 3
1ku List Price: Starting From $30.55

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC2358CLX-18#PBF	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2358HLX-18#PBF	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2358ILX-18#PBF	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 6, 2021 - 21_0046 Transfer of LQFP and LQFP_EP from AEM to AET
		PCN21_0046_Form Material_Report Qualification Results Summary Other
LTC2358CLX-18#PBF	PRODUCTION
LTC2358HLX-18#PBF	PRODUCTION
LTC2358ILX-18#PBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Device Drivers 1

LTC235x GitHub Linux Driver Source Code

Can't find the software or driver you need?

Hardware Ecosystem

Parts	Product Life Cycle	Description
Voltage References 1
LTC6655	PRODUCTION	0.25ppm Noise, Low Drift Precision References

Parts	Product Life Cycle	Description
LTC2335-18	PRODUCTION	18-Bit, 1Msps 8-Channel Differential ±10.24V Input SoftSpan ADC with Wide Input Common Mode Range
LTC2348-18	PRODUCTION	Octal, 18-Bit, 200ksps Differential ±10.24V Input SoftSpan ADC with Wide Input Common Mode Range

Tools & Simulations

Linduino 3

Software and Simulation 1

LTC2358 IBIS MODEL

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

Linduino code repository on GitHub and instructions on how to use the code.

Purchase Linduino

Evaluation Kits

LTC2358-18, LTM2893, ADA4522-1, LT6658 Demo Board | Isolated Industrial Data Acquisition Board (Requires ArrowSoCkit)

Buy Now View Details

Product Details

Demonstration circuit 2542A is a reference design for robust industrial data acquisition applications based on the LTC2358-18. The LTC2358-18 is capable of high voltage measurements with a large input common range; however, the DC2542A implements input protection that allows up to 400V of continuous input protection. Combined with gas discharge tubes, which provide protection from surges, the DC2542A is capable of surviving extreme abuse.

Please click here for the Arrow SoCkit

Resources

DC2542A - Schematic
9/15/2017

DC2542A - Design Files
9/15/2017

DC2542A - Demo Manual
9/15/2017

Software

LinearLab Tools

LTC2358-18 Demo Board | Buffered Octal, 18-Bit, 200ksps Simultaneous Sampling SAR ADC (Requires DC590, DC2026 or DC890)

Buy Now View Details

Product Details

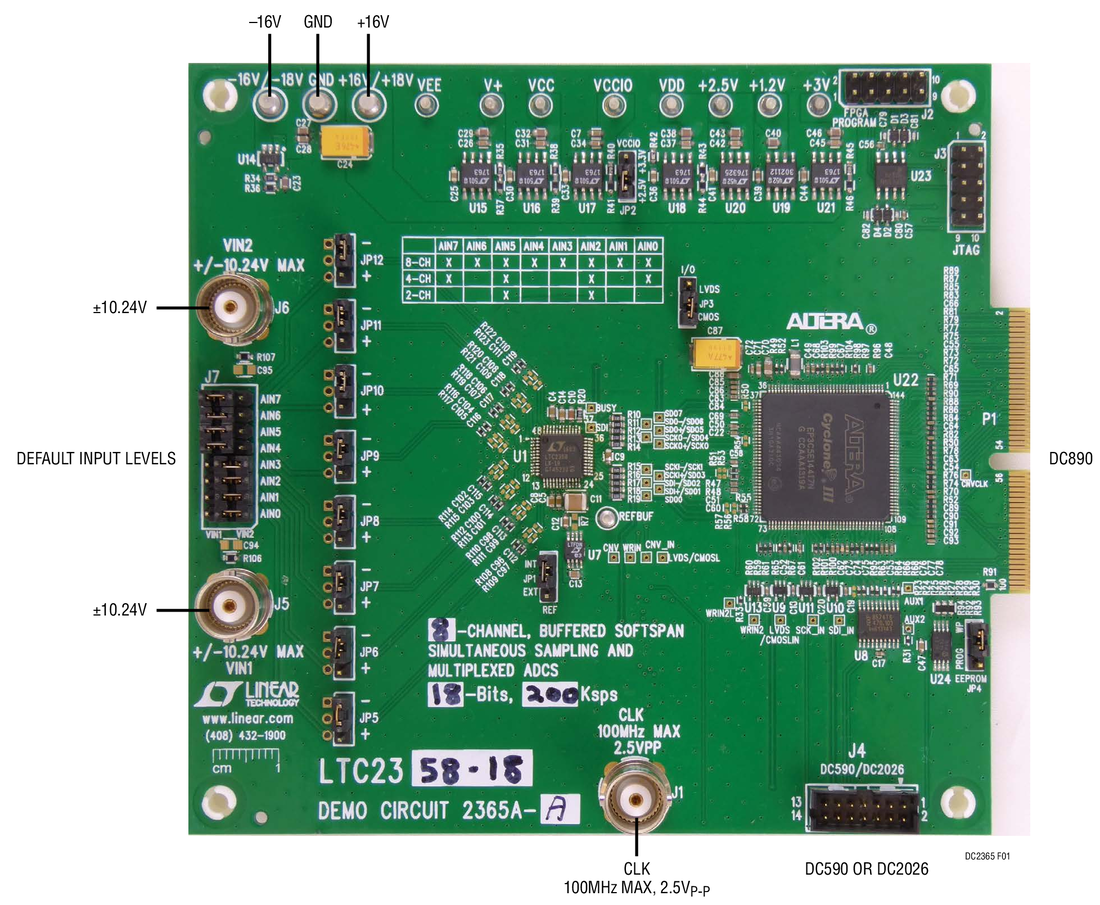

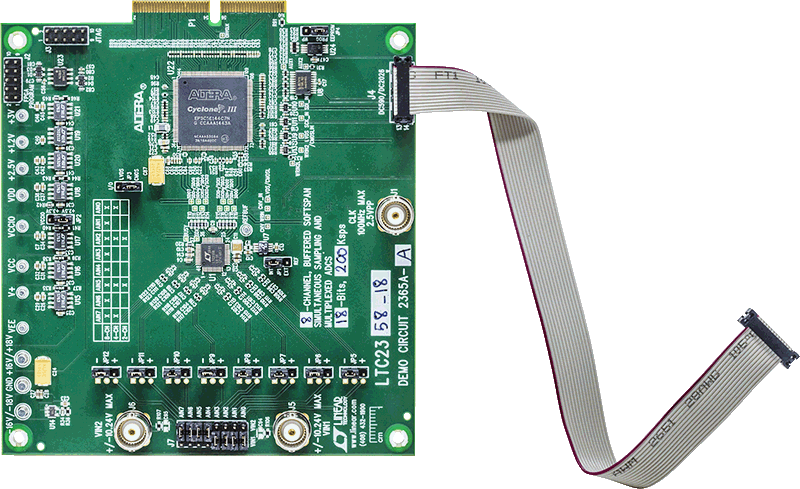

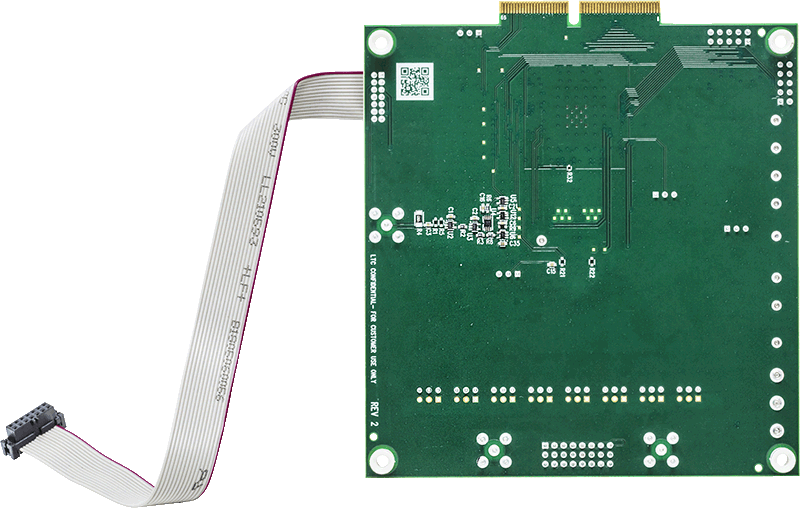

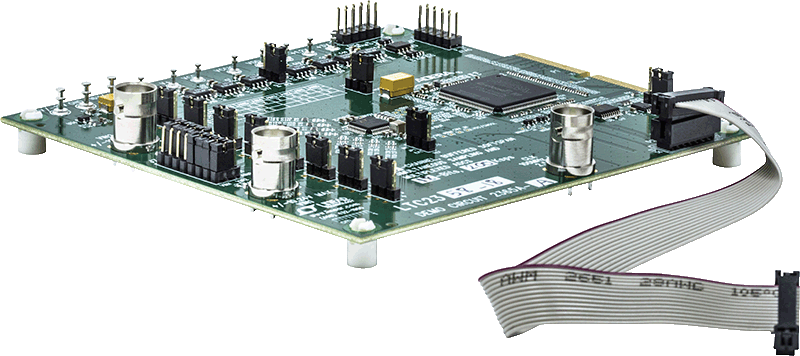

Demonstration circuit 2365A highlights the LTC2358 family of buffered input ADCs. The LTC2358/LTC2357/LTC2353/LTC2333 are low noise, high speed, 16-/18-bit successive approximation register (SAR) ADCs with integrated front end buffers. These ADCs accept a wide common mode range. Pico-amp inputs and high CMRR enable these ADCs to connect directly to a wide range of sensors without compromising measurement accuracy. The demo manual refers to the LTC2358-18 but applies to all parts in the family, the only differences being the number of bits, number of channels and the maximum sample rate. The LTC2358-18 has a flexible SoftSpan^™ interface that allows conversion-by-conversion control of the input voltage span on a per-channel basis. An internal 2.048V reference and 2X buffer simplify basic operation while an external reference can be used to increase the input range and the SNR of the ADC.

Resources

DC2365A - Design Files
4/24/2017

DC2365A - Demo Manual
5/2/2017

DC2365A - Schematic
4/24/2017

Software

GUI Install Files

DC2094A/DC2326A/DC2365A CPLD Source Code
36.00K

LTC2358-18, LT6658, ADA4522-2 Industrial Data Acquisition Nonisolated Board

Buy Now View Details

Product Details

Demonstration circuit 2677A is a reference design for robust industrial data acquisition applications for the LTC^®2358-18. The LTC2358-18 is capable of high voltage measurements with a large input common range; however, the DC2677A implements input protection that allows up to 400V of continuous input protection. Combined with gas discharge tubes, which provide protection from surges, the DC2677A is capable of surviving extreme abuse.

This reference design includes the LTC2358-18 SAR ADC, ADA4522-2 dual zero-drift operational amplifier, and an LT6658 dual-output, high current reference for sensor excitation.

The digital interface is an HSMC (high-speed mezzanine connector), which is compatible with Altera Cyclone V SoCkit and other Altera FPGA evaluation boards that support 3.3V CMOS I/O.

Resources

DC2677A - Demo Manual
6/29/2018

DC2677A - Schematic
6/29/2018

DC2677A - Design Files
6/29/2018
