LTC2324-16

Quad, 16-Bit, 2Msps/Ch Simultaneous Sampling ADC

Data Sheet

Recommended for New Designs

Top

Overview

Features and Benefits
Product Details

Features and Benefits

2Msps/Ch Throughput Rate
Four Simultaneously Sampling Channels
Guaranteed 16-Bit, No Missing Codes
8V_P-P Differential Inputs with Wide Input
Common Mode Range

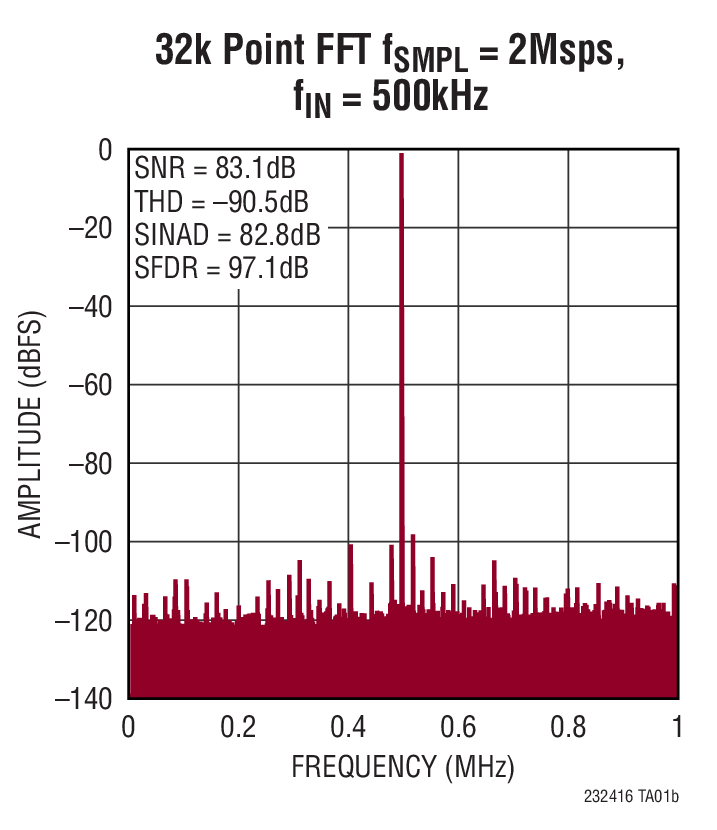

82dB SNR (Typ) at f_IN = 500kHz
–90dB THD (Typ) at f_IN= 500kHz
Guaranteed Operation to 125°C
Single 3.3V or 5V Supply
Low Drift (20ppm/°C Max) 2.048V or 4.096V Internal Reference
1.8V to 2.5V I/O Voltages
CMOS or LVDS SPI-Compatible Serial I/O
Power Dissipation 40mW/Ch (Typ)

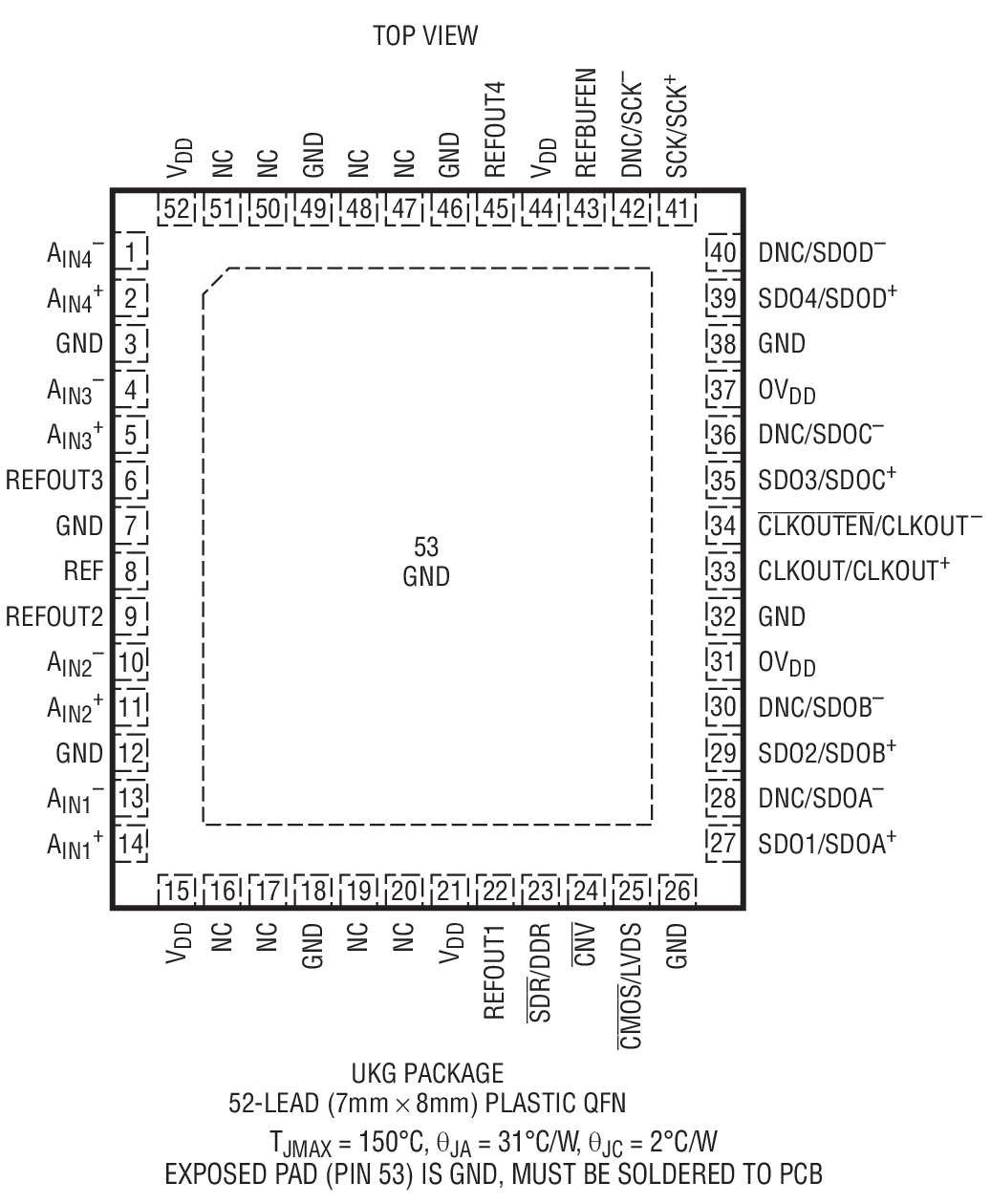

Small 52-Pin (7mm × 8mm) QFN Package

Product Details

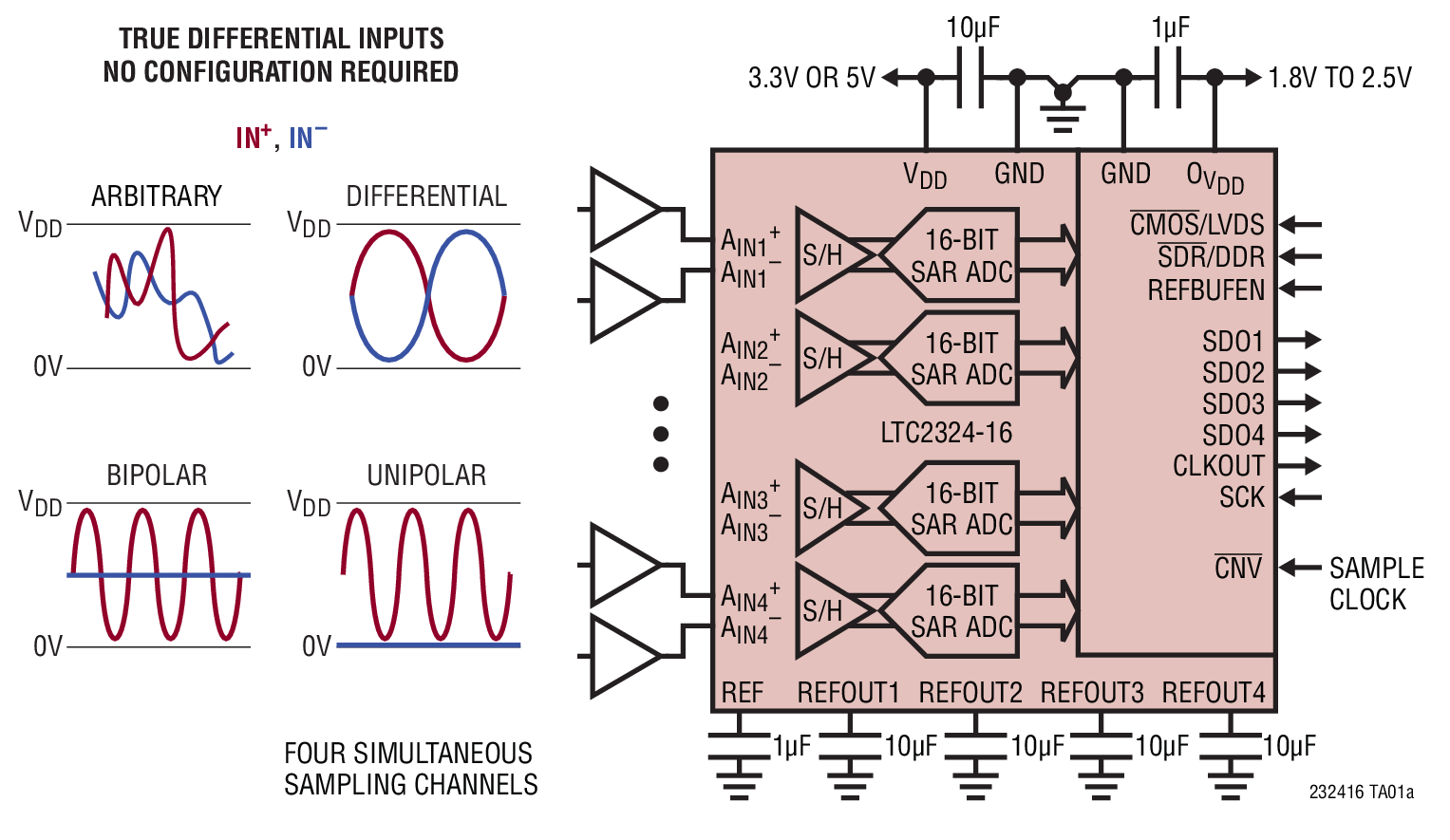

The LTC2324-16 is a low noise, high speed quad 16‐bit successive approximation register (SAR) ADC with differential inputs and wide input common mode range. Operating from a single 3.3V or 5V supply, the LTC2324-16 has an 8V_P-P differential input range, making it ideal for applications which require a wide dynamic range with high common mode rejection. The LTC2324-16 achieves ±2LSB INL typical, no missing codes at 16 bits and 82dB SNR.

The LTC2324-16 has an onboard low drift (20ppm/°C max) 2.048V or 4.096V temperature-compensated reference. The LTC2324-16 also has a high speed SPI-compatible serial interface that supports CMOS or LVDS. The fast 2Msps per channel throughput with no latency makes the LTC2324-16 ideally suited for a wide variety of high speed applications. The LTC2324-16 dissipates only 40mW per channel and offers nap and sleep modes to reduce the power consumption to 26μW for further power savings during inactive periods.

Applications

High Speed Data Acquisition Systems
Communications
Optical Networking
Multiphase Motor Control

Product Categories

A/D Converters (ADC)
- Simultaneous Sampling A/D Converters

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

Evaluation Kits (1)

DC2395A-B

LTC2324-16 Demo Board | Quad, 16-Bit, 2Msps/ch Simultaneous Sampling SAR ADC (Requires DC890)

DC2395A-B

View Detailed Evaluation Kit Information

Demonstration circuit 2395A features the LTC2325/LTC2324/LTC2320 family. With up to 5Msps, these differential, multiple channel, 16-bit, serial, high speed successive approximation register (SAR) ADCs are available in a 52-lead QFN package. Each ADC has an internal 20ppm/°C maximum drift reference and an SPI-compatible serial interface that supports CMOS and LVDS logic. Note the demo board is configured for CMOS operation by default; see the note under JP8 for LVDS operation. The following text refers to the LTC2325, but applies to all members of the family, the only difference being the number of channels, the sample rate and/or the number of bits. The DC2395A demonstrates the DC and AC performance of the LTC2325 in conjunction with the DC890 PScope^™ data collection board. Alternatively, by connecting the DC2395A into a customer application, the performance of the LTC2325 can be evaluated directly in that circuit.

Resources

Software

PScope

Documentation

Data Sheets (1)

PDF

1.00M

LTC2324-16: Quad, 16-Bit, 2Msps/Ch Simultaneous Sampling ADC Data Sheet

Software & Systems Requirements

Evaluation Software

LinearLab Tools

A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.
