LTC2310-16

16-Bit, 2Msps Differential Input ADC with Wide Input Common Mode Range

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 6
1ku List Price Starting From $9.85
Features
  • 2Msps Throughput Rate
  • ±3LSB INL (Typ), ±8LSB INL Guaranteed
  • Guaranteed 16-Bit, No Missing Codes

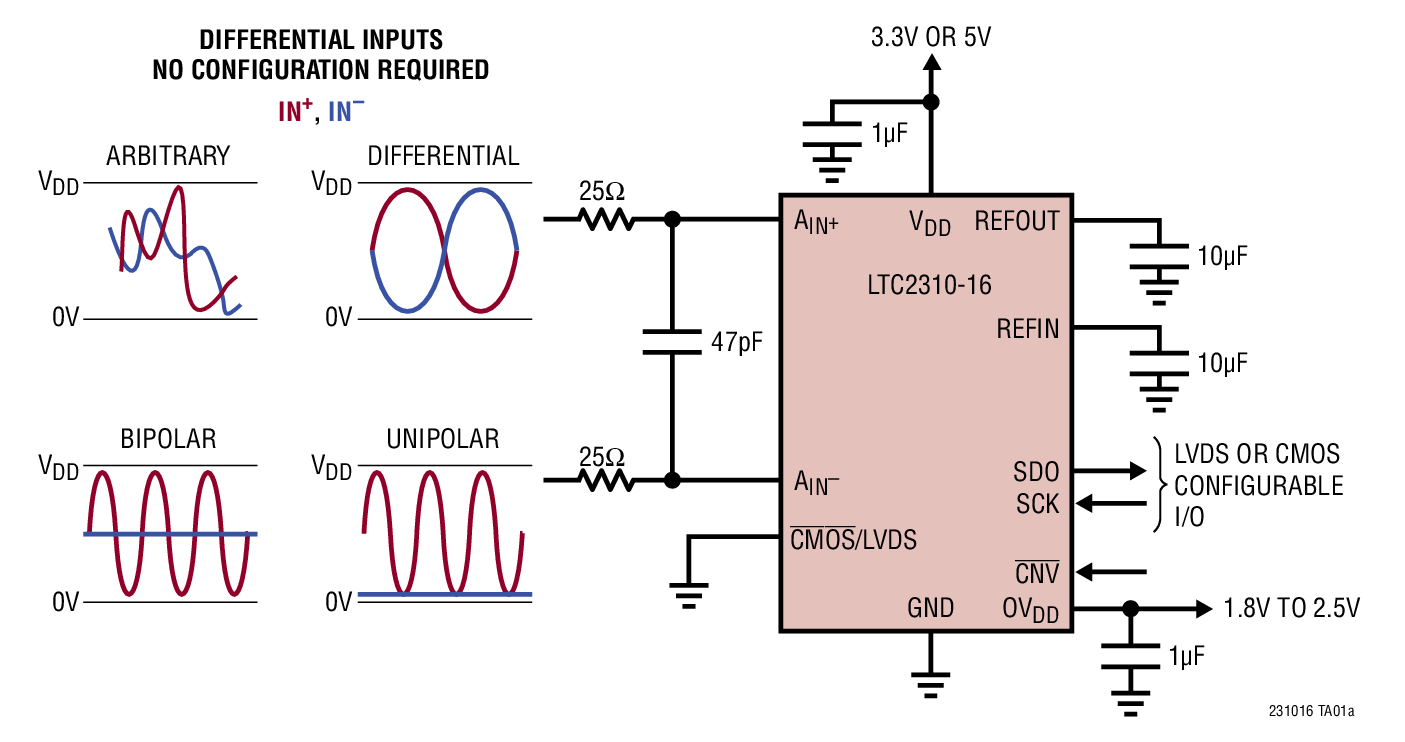

  • 8VP-P Differential Inputs with Wide Input Common Mode Range

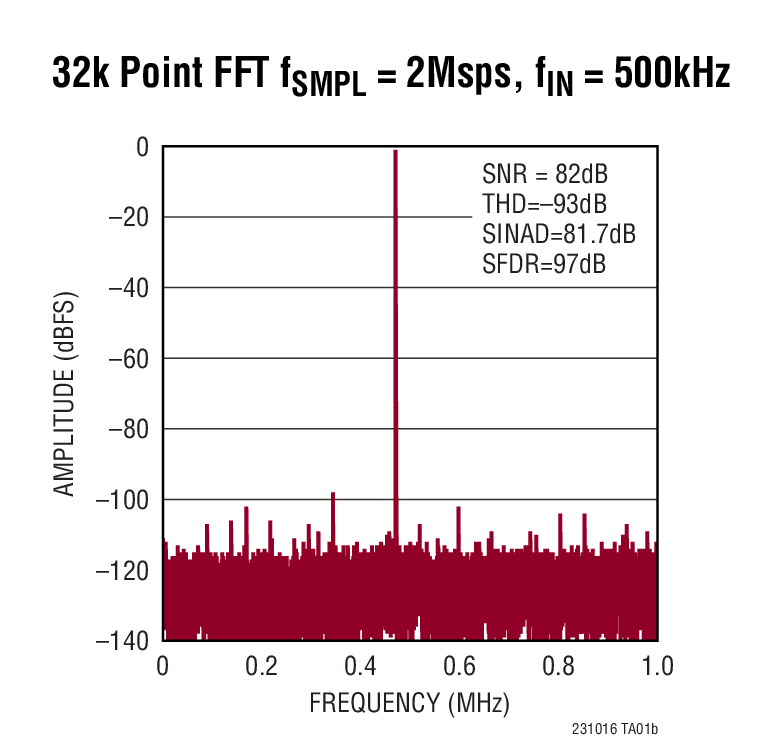

  • 82dB SNR (Typ) at fIN = 500kHz
  • –93dB THD (Typ) at fIN = 500kHz
  • No Cycle Latency
  • Guaranteed Operation –40°C to 125°C
  • Single 3.3V or 5V Supply
  • Low Drift (20ppm/°C Max) 2.048V or 4.096V Internal Reference with 1.25V External Reference Input
  • 1.8V to 2.5V I/O Voltages
  • CMOS or LVDS SPI-Compatible Serial I/O
  • Power Dissipation 35mW at VDD = 5V (Typ)

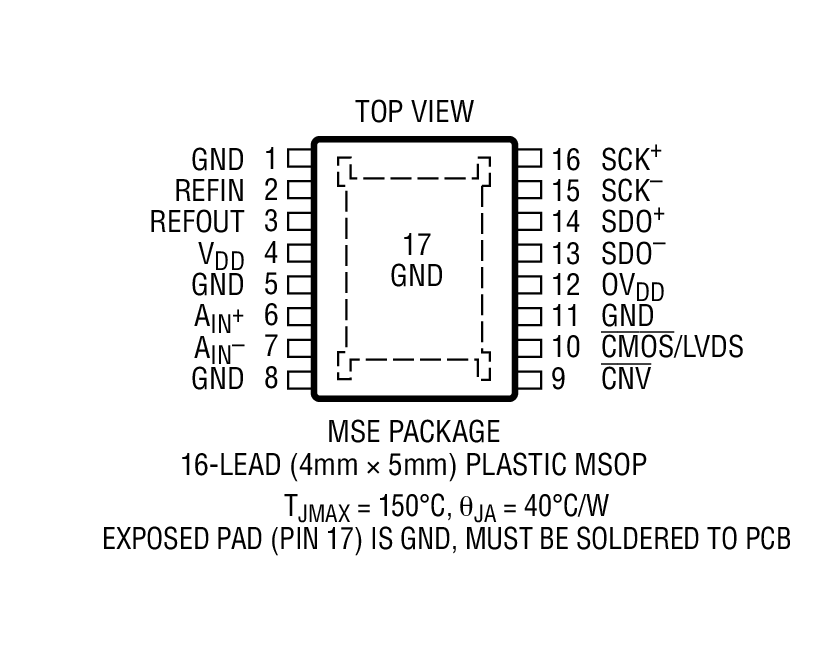

  • Small 16-Lead (4mm × 5mm) MSOP Package
Additional Details
show more Icon

The LTC2310-16 is a low noise, high speed 16-bit successive approximation register (SAR) ADC with differential inputs and wide input common mode range. Operating from a single 3.3V or 5V supply, the LTC2310-16 has an 8VP-P differential input range, making it ideal for applications which require a wide dynamic range with high common mode rejection. The LTC2310-16 achieves ±3LSB INL typical, no missing codes at 16 bits and 82dB SNR typical.

The LTC2310-16 has an on-board low drift (20ppm/°C max) 2.048V or 4.096V temperature-compensated reference and provides an external 1.25V buffered reference input. The LTC2310-16 also has a high speed SPI-compatible serial interface that supports CMOS or LVDS. The fast 2Msps throughput with no cycle latency makes the LTC2310-16 ideally suited for a wide variety of high speed applications. The LTC2310-16 dissipates only 35mW with a 5V supply and offers nap and sleep modes to reduce the power consumption for further power savings during inactive periods.

Applications

  • High Speed Data Acquisition Systems
  • Communications
  • Remote Data Acquisition
  • Imaging
  • Optical Networking
  • Automotive
  • Multiphase Motor Control
Part Models 6
1ku List Price Starting From $9.85

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2310CMSE-16#PBF
  • HTML
  • HTML
LTC2310CMSE-16#TRPBF
  • HTML
  • HTML
LTC2310HMSE-16#PBF
  • HTML
  • HTML
LTC2310HMSE-16#TRPBF
  • HTML
  • HTML
LTC2310IMSE-16#PBF
  • HTML
  • HTML
LTC2310IMSE-16#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0132

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC2310CMSE-16#PBF

PRODUCTION

LTC2310CMSE-16#TRPBF

PRODUCTION

LTC2310HMSE-16#PBF

PRODUCTION

LTC2310HMSE-16#TRPBF

PRODUCTION

LTC2310IMSE-16#PBF

PRODUCTION

LTC2310IMSE-16#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0132

arrow down

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC2310CMSE-16#PBF

PRODUCTION

LTC2310CMSE-16#TRPBF

PRODUCTION

LTC2310HMSE-16#PBF

PRODUCTION

LTC2310HMSE-16#TRPBF

PRODUCTION

LTC2310IMSE-16#PBF

PRODUCTION

LTC2310IMSE-16#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem


LinearLab Tools
Info:False

A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 1

reference details image

DC2425A-B

LTC2310-16 Demo Board | 16-Bit, 2Msps True Differential Input Serial SAR ADC (Req DC890)

zoom

DC2425A-B

LTC2310-16 Demo Board | 16-Bit, 2Msps True Differential Input Serial SAR ADC (Req DC890)

LTC2310-16 Demo Board | 16-Bit, 2Msps True Differential Input Serial SAR ADC (Req DC890)

Product Detail

Demonstration circuit 2425A features the LTC®2311 family. With up to 5Msps, these differential, single channel, 16-bit, serial, high speed successive approximation register (SAR) ADCs are available in a 16-lead MSOP package. The LTC2311 family has an internal 20ppm/°C maximum drift reference and an SPI-compatible serial interface that supports CMOS and LVDS logic. Note the demo board is configured for CMOS operation by default; see the note under JP3 for LVDS operation. The demo manual refers to the LTC2311, but applies to all members of the family, the only difference being the sample rate and/or the number of bits.
