Features
- Integrated Dual 10-Bit ADCs
- Sample Rate: 65Msps/40Msps/25Msps
- Single 3V Supply (2.7V to 3.4V)
- Low Power: 400mW/235mW/150mW
- 61.8dB SNR
- 85dB SFDR
- 110dB Channel Isolation at 100MHz
- Multiplexed or Separate Data Bus
- Flexible Input: 1VP-P to 2VP-P Range
- 575MHz Full Power Bandwidth S/H
- Clock Duty Cycle Stabilizer
- Shutdown and Nap Modes
- Pin Compatible Family
- 105Msps: LTC2282 (12-Bit), LTC2280 (10-Bit)
- 80Msps: LTC2294 (12-Bit), LTC2289 (10-Bit)
- 65Msps: LTC2293 (12-Bit), LTC2288 (10-Bit)
- 40Msps: LTC2292 (12-Bit), LTC2287 (10-Bit)
- 25Msps: LTC2291 (12-Bit), LTC2286 (10-Bit)
- 64-Pin (9mm × 9mm) QFN Package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The LTC2288/LTC2287/LTC2286 are 10-bit 65Msps/ 40Msps/25Msps, low noise dual 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2288/LTC2287/LTC2286 are perfect for demanding imaging and communications applications with AC performance that includes 61.8dB SNR and 85dB SFDR for signals at the Nyquist frequency.
DC specs include ±0.1LSB INL (typ), ±0.05LSB DNL (typ) and ±0.6 LSB INL, ±0.5 LSB DNL over temperature. The transition noise is a low 0.07LSBRMS.
A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic. An optional multiplexer allows both channels to share one digital output bus.
A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
Applications
- Wireless and Wired Broadband Communication
- Imaging Systems
- Spectral Analysis
- Portable Instrumentation
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LTC2288
Documentation
Filters
1 Applied
-
All
-
Reliability Data
-
User Guide
-
Data Sheet
-
All
-
English
-
Japanese
Data Sheet
2
Reliability Data
1
53.86 K
User Guide
2
1.00M
324.00K
Documentation
Data Sheet 1
Reliability Data 1
User Guide 2
Product Selector Card 3
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC2288CUP#PBF |
64-Lead QFN (9mm x 9mm x 0.75mm w/ EP)
|
|
|
| LTC2288CUP#TRPBF |
64-Lead QFN (9mm x 9mm x 0.75mm w/ EP)
|
|
|
| LTC2288IUP#PBF |
64-Lead QFN (9mm x 9mm x 0.75mm w/ EP)
|
|
|
| LTC2288IUP#TRPBF |
64-Lead QFN (9mm x 9mm x 0.75mm w/ EP)
|
|
- LTC2288CUP#PBF
- Pin/Package Drawing
-
64-Lead QFN (9mm x 9mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2288CUP#TRPBF
- Pin/Package Drawing
-
64-Lead QFN (9mm x 9mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2288IUP#PBF
- Pin/Package Drawing
-
64-Lead QFN (9mm x 9mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2288IUP#TRPBF
- Pin/Package Drawing
-
64-Lead QFN (9mm x 9mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
Fully Differential Amplifiers1 |
||||
|
LAST TIME BUY |
Dual Matched 1.8GHz Differential Amplifiers/ADC Drivers |
|||
|
Integer-N PLL1 |
||||
|
LAST TIME BUY |
Ultralow Noise and Spurious 0.37GHz to 6.39GHz Integer-N Synthesizer with Integrated VCO |
|||
A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 2

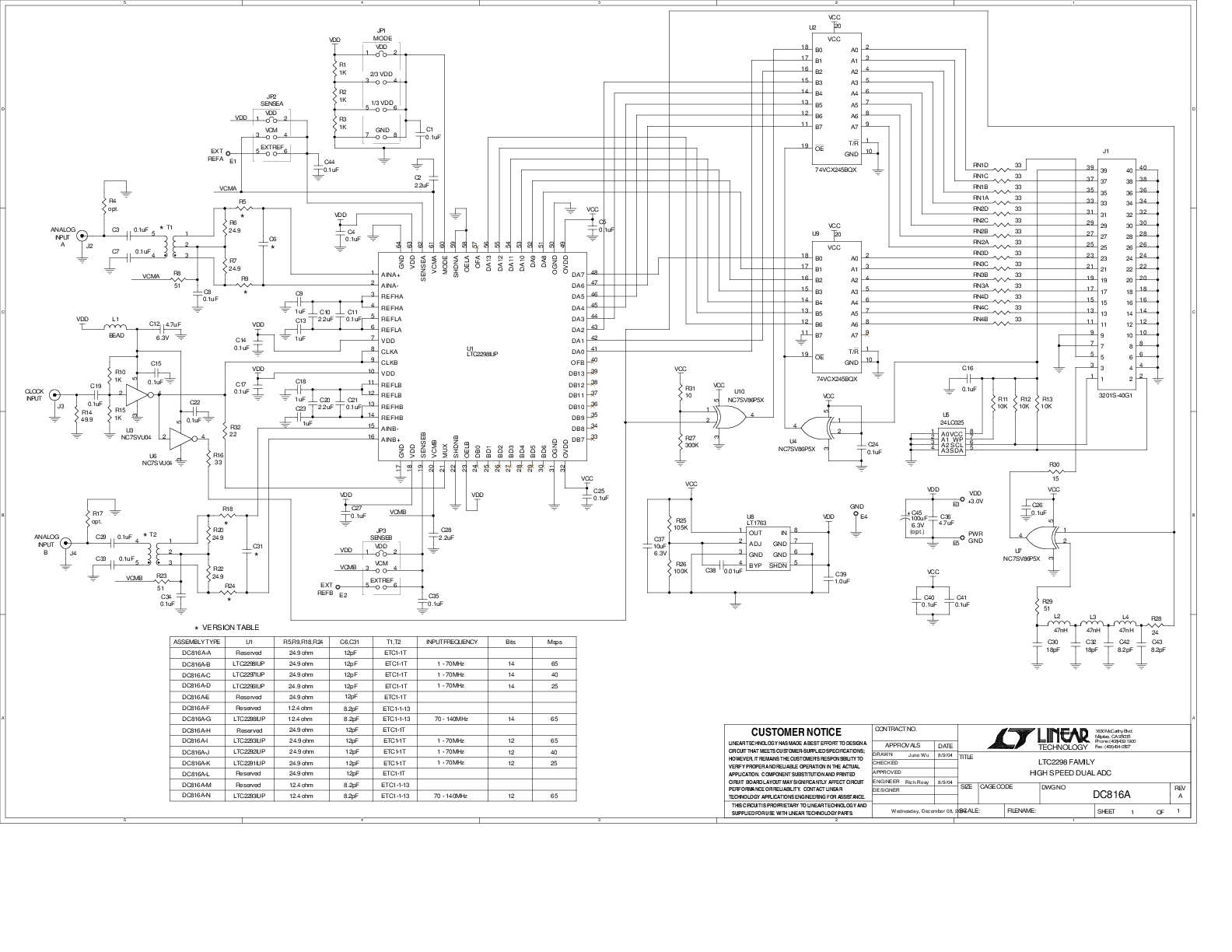

DC816A-P
LTC2288IUP | MUX Dual ADC, VDD = +3.0V, 65Msps 10-Bit 1MHz < AIN < 70MHz, (Requires DC718)
Product Detail
DC816A-P: Demo Board for the LTC2288 Dual 10-Bit, 65Msps Low Noise 3V ADCs.
Resources

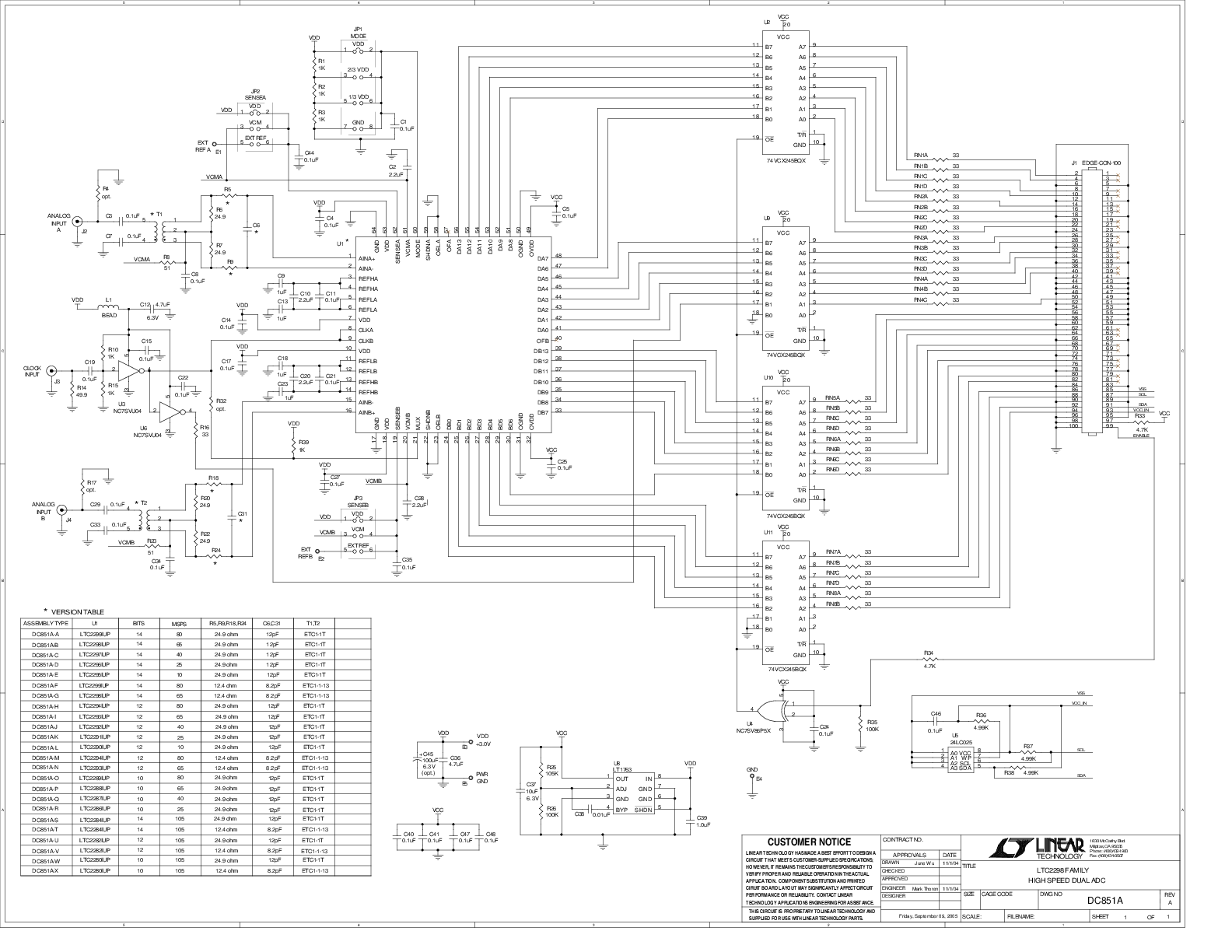

DC851A-P
LTC2288IUP | DeMUX Dual ADC, +3.0V, 65Msps 10-Bit 1MHz < AIN < 70MHz, (Requires DC890)
Product Detail
DC851A-P: Demo Board for the LTC2288 Dual 10-Bit, 65Msps Low Noise 3V ADCs.
Resources
