LTC2240-10: 10-Bit, 170Msps ADC Data Sheet12/13/2007PDF468K
Overview
Features and Benefits
- Sample Rate: 170Msps

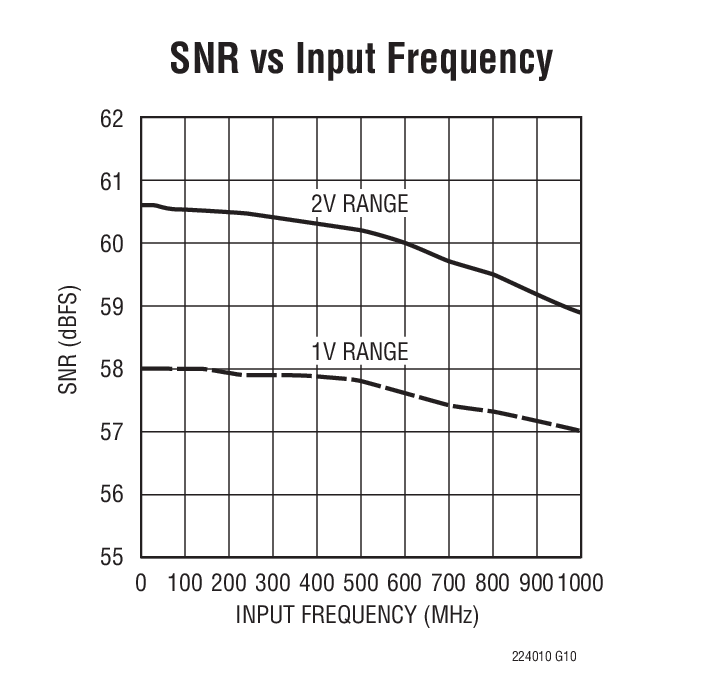

- 60.6dB SNR
- 80dB SFDR
- 1.2GHz Full Power Bandwidth S/H
- Single 2.5V Supply
- Low Power Dissipation: 445mW
- LVDS, CMOS, or Demultiplexed CMOS Outputs
- Selectable Input Ranges: ±0.5V or ±1V
- No Missing Codes
- Optional Clock Duty Cycle Stabilizer
- Shutdown and Nap Modes
- Data Ready Output Clock
- Pin Compatible Family
- 250Msps: LTC2242-12 (12-Bit), LTC2242-10 (10-Bit)
- 210Msps: LTC2241-12 (12-Bit), LTC2241-10 (10-Bit)
- 170Msps: LTC2240-12 (12-Bit), LTC2240-10 (10-Bit)
- 185Msps: LTC2220-1 (12-Bit)*
- 170Msps: LTC2220 (12-Bit), LTC2230 (10-Bit)*
- 135Msps: LTC2221 (12-Bit), LTC2231 (10-Bit)*

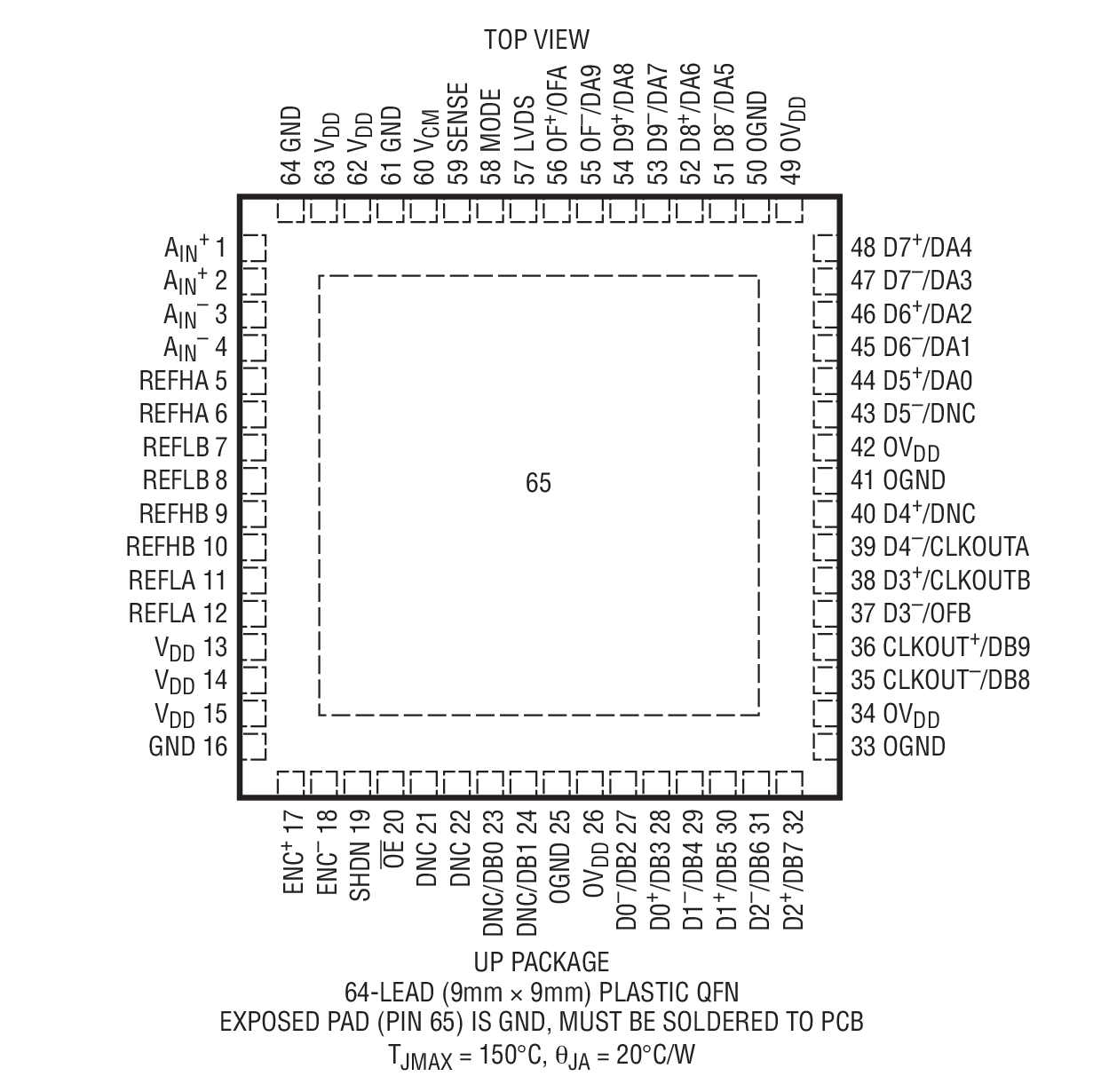

- 64-Pin 9mm × 9mm QFN Package
Product Details
The LTC2240-10 is a 170Msps, sampling 10-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2240-10 is perfect for demanding communications applications with AC performance that includes 60.6dB SNR and 80dB SFDR. Ultralow jitter of 95fsRMS allows IF undersampling with excellent noise performance.
DC specs include ±0.3LSB INL (typ), ±0.1LSB DNL (typ) and no missing codes over temperature.
The digital outputs can be either differential LVDS, or single-ended CMOS. There are three format options for the CMOS outputs: a single bus running at the full data rate or two demultiplexed buses running at half data rate with either interleaved or simultaneous update. A separate output power supply allows the CMOS output swing to range from 0.5V to 2.625V.
The ENC+ and ENC– inputs may be driven differentially or single ended with a sine wave, PECL, LVDS, TTL, or CMOS inputs. An optional clock duty cycle stabilizer allows high performance over a wide range of clock duty cycles.
| Bits | |
| LTC2240-10 | 10 |
| LTC2240-12 | 12 |
Applications
- Wireless and Wired Broadband Communication
- Cable Head-End Systems
- Power Amplifier Linearization
- Communications Test Equipment
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (2)
Documentation & Resources
-
R492 Reliability Data3/26/2018PDF21 K
-

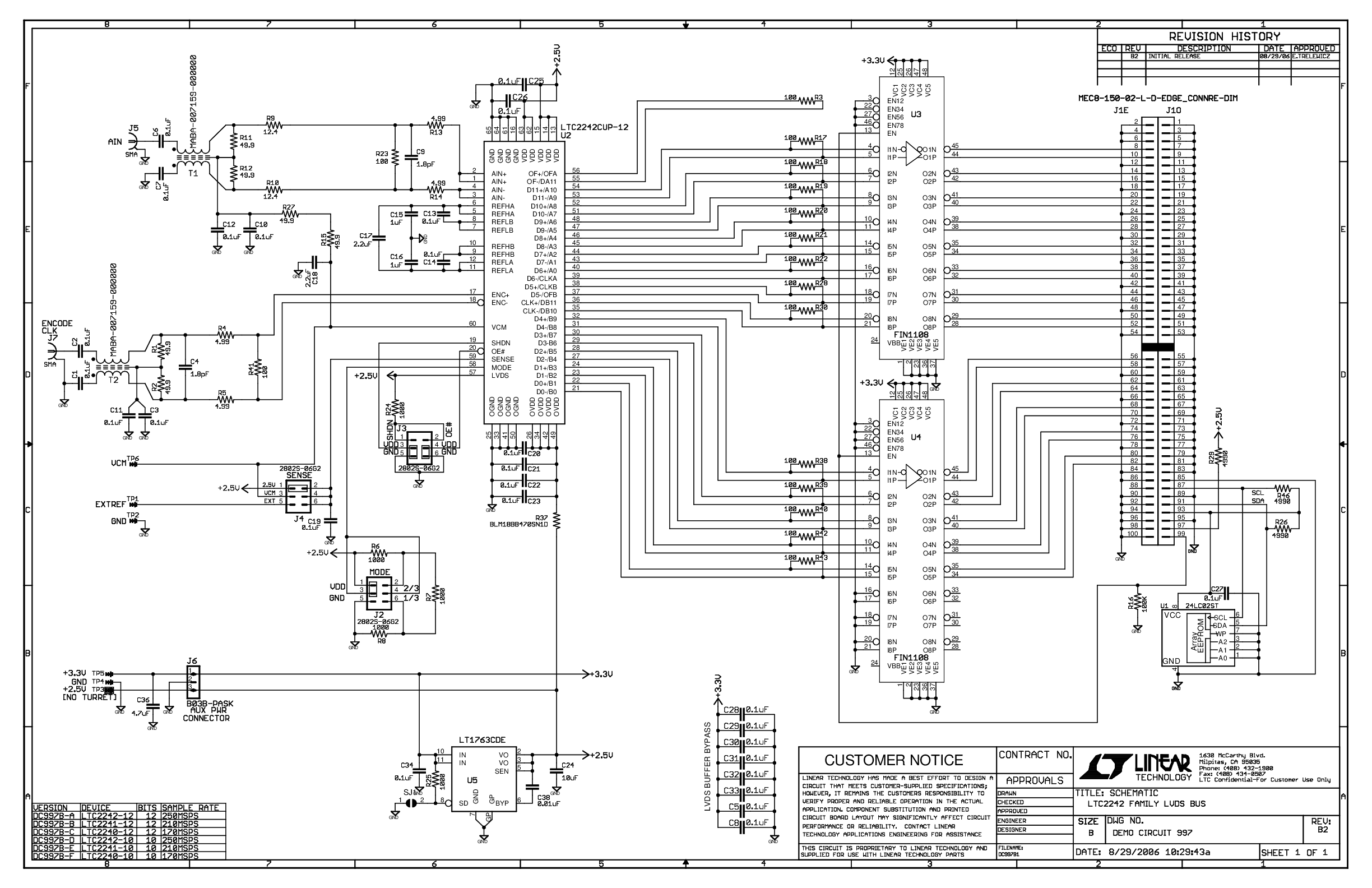

DC997B - Demo Manual5/22/2012PDF432K
-

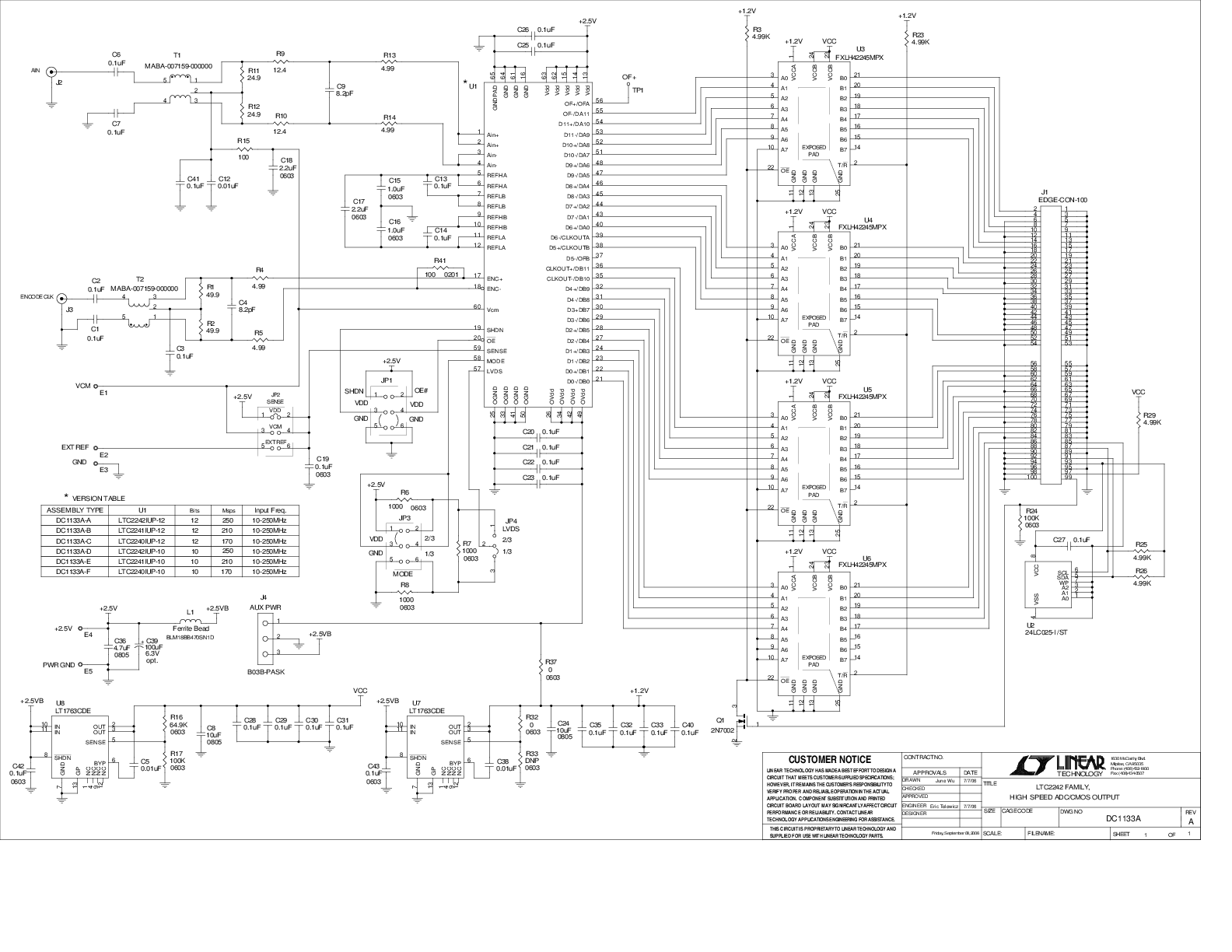

DC1133A - Demo Manual9/24/2009PDF442K
-
14-Bit/12-Bit 125Msps Quad/Dual ADC Family5/19/2015PDF850K
-
High Speed Amplifiers/ADC Drivers4/29/2015PDF152K
Software & Systems Requirements
Evaluation Software
LinearLab Tools
A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.
Tools & Simulations
IBIS Models
Product Recommendations
LTC2240-10 Companion Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC2240CUP-10#PBF | Material Declaration | Reliability Data | 64-Lead QFN (9mm x 9mm x 0.75mm w/ EP) | |
| LTC2240CUP-10#TRPBF | Material Declaration | Reliability Data | 64-Lead QFN (9mm x 9mm x 0.75mm w/ EP) | |
| LTC2240IUP-10#PBF | Material Declaration | Reliability Data | 64-Lead QFN (9mm x 9mm x 0.75mm w/ EP) | |
| LTC2240IUP-10#TRPBF | Material Declaration | Reliability Data | 64-Lead QFN (9mm x 9mm x 0.75mm w/ EP) | |
| Wafer Fabrication Data | R492 Reliability Data |
