Features
- 77dB SNR
- 90dB SFDR
- Low Power: 88mW/63mW/45mW
- Single 1.8V Supply
- CMOS, DDR CMOS, or DDR LVDS Outputs
- Selectable Input Ranges: 1VP-P to 2VP-P
- 550MHz Full Power Bandwidth S/H
- Optional Data Output Randomizer
- Optional Clock Duty Cycle Stabilizer
- Shutdown and Nap Modes
- Serial SPI Port for Configuration

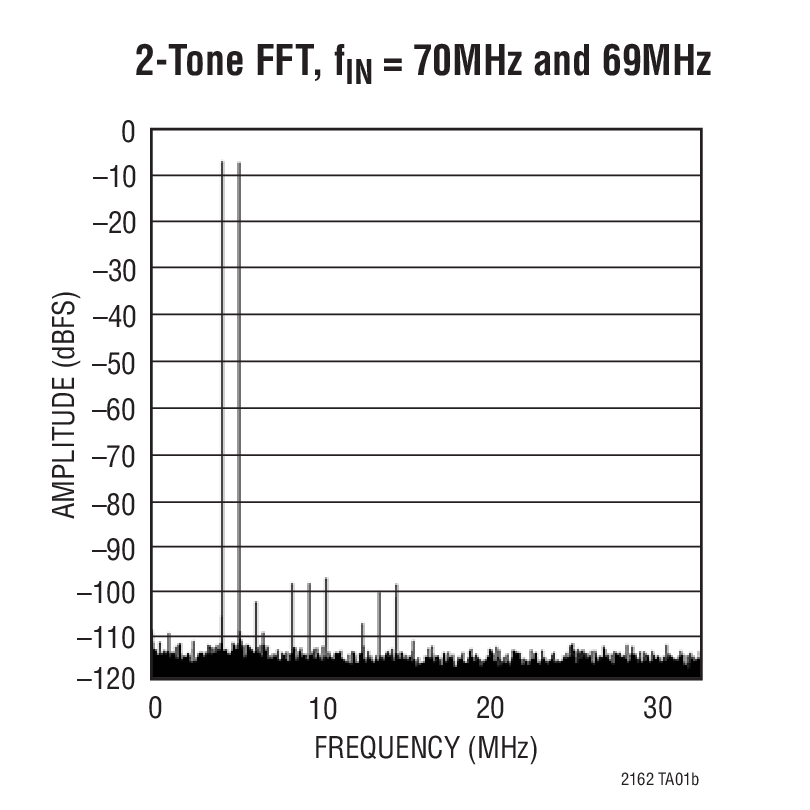

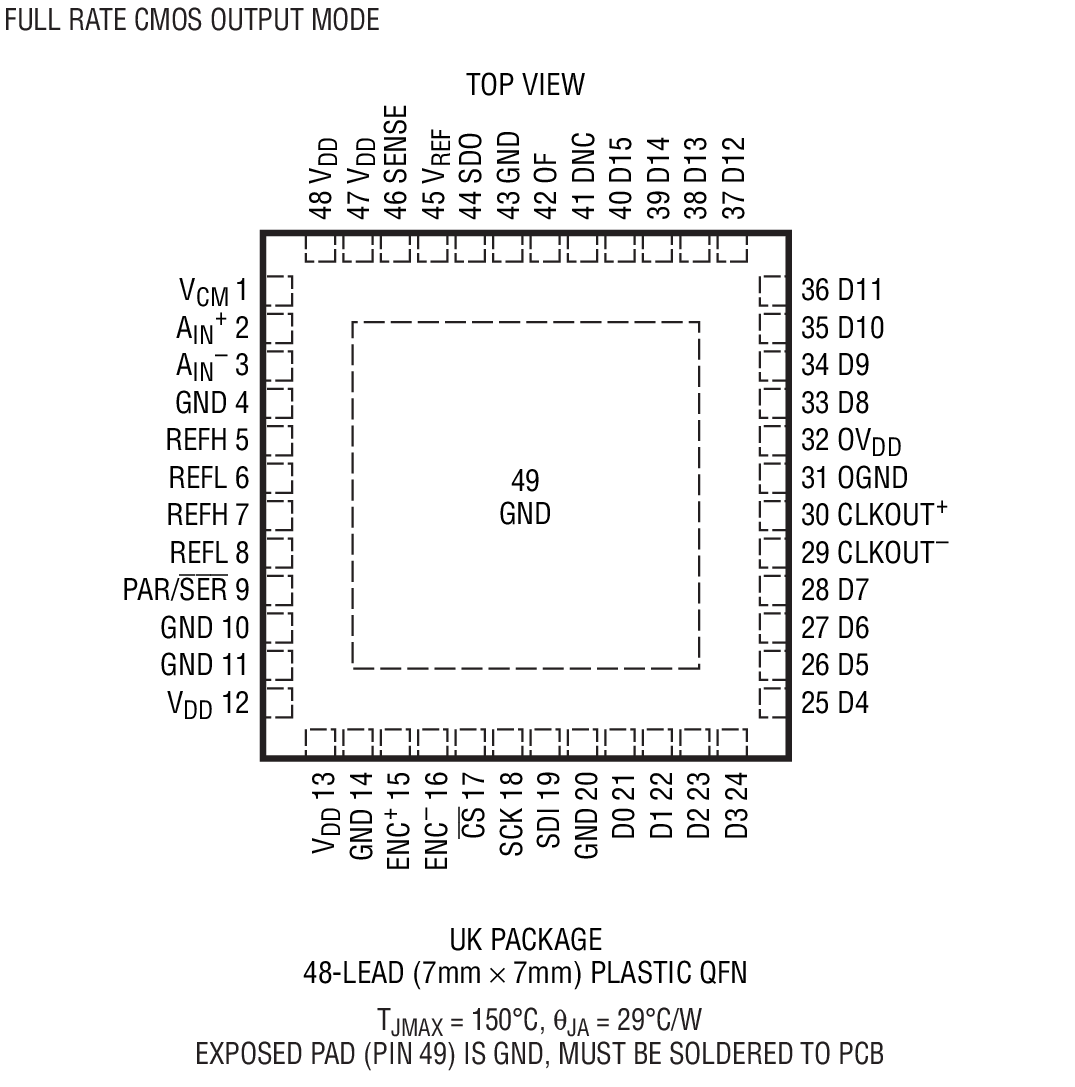

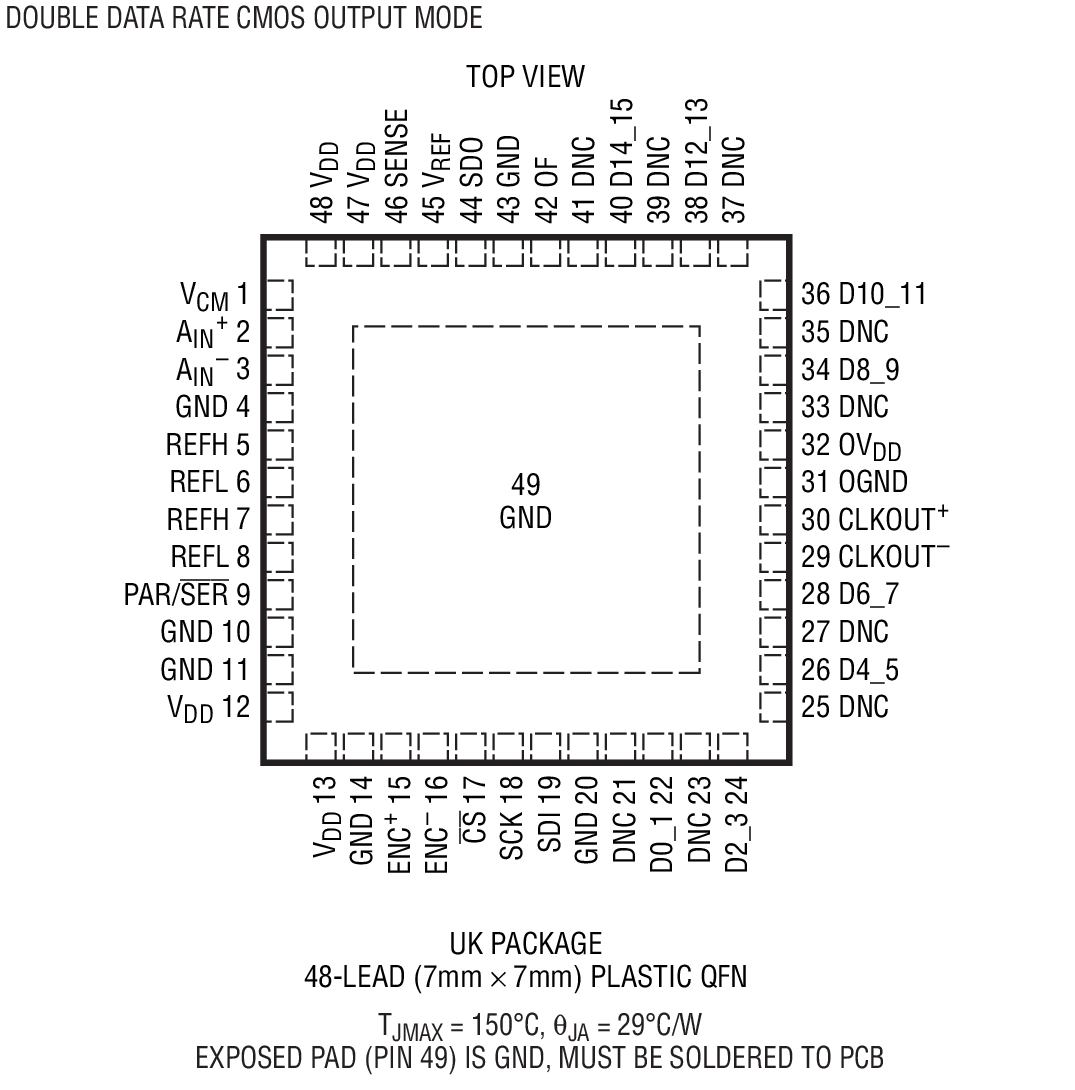

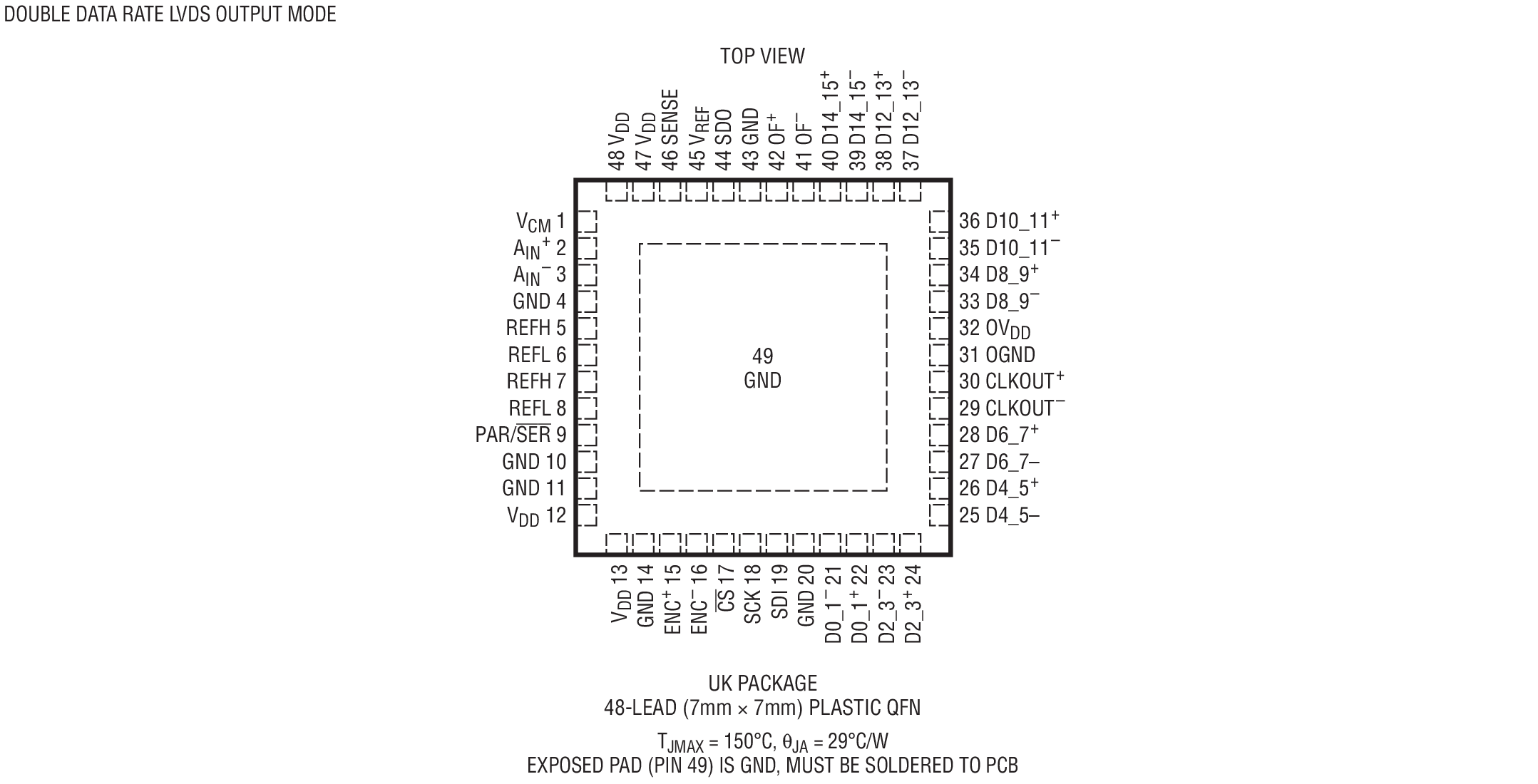

- 48-Pin (7mm × 7mm) QFN Package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The LTC2162/LTC2161/LTC2160 are sampling 16-bit A/D converters designed for digitizing high frequency, wide dynamic range signals. They are perfect for demanding communications applications with AC performance that includes 77dB SNR and 90dB spurious free dynamic range (SFDR). Ultralow jitter of 0.07psRMS allows undersampling of IF frequencies with excellent noise performance.
DC specs include ±2LSB INL (typ), ±0.5LSB DNL (typ) and no missing codes over temperature. The transition noise is 3.3LSBRMS.
The digital outputs can be either full rate CMOS, double data rate CMOS, or double data rate LVDS. A separate output power supply allows the CMOS output swing to range from 1.2V to 1.8V.
The ENC+ and ENC– inputs may be driven differentially or single-ended with a sine wave, PECL, LVDS, TTL, or CMOS inputs. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
Applications
- Communications
- Cellular Base Stations
- Software Defined Radios
- Portable Medical Imaging
- Multichannel Data Acquisition
- Nondestructive Testing
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LTC2161
Documentation
Filters
1 Applied
-
All
-
Reliability Data
-
User Guide
-
Data Sheet
-
All
-
English
-
Japanese
Data Sheet
2
Reliability Data
1
68.74 K
User Guide
1
1.00M
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
Product Selector Card 3
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC2161CUK#PBF |
48-Lead QFN (7mm x 7mm x 0.75mm w/ EP)
|
|
|
| LTC2161CUK#TRPBF |
48-Lead QFN (7mm x 7mm x 0.75mm w/ EP)
|
|
|
| LTC2161IUK#PBF |
48-Lead QFN (7mm x 7mm x 0.75mm w/ EP)
|
|
|
| LTC2161IUK#TRPBF |
48-Lead QFN (7mm x 7mm x 0.75mm w/ EP)
|
|
- LTC2161CUK#PBF
- Pin/Package Drawing
-
48-Lead QFN (7mm x 7mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2161CUK#TRPBF
- Pin/Package Drawing
-
48-Lead QFN (7mm x 7mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2161IUK#PBF
- Pin/Package Drawing
-
48-Lead QFN (7mm x 7mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2161IUK#TRPBF
- Pin/Package Drawing
-
48-Lead QFN (7mm x 7mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
Fully Differential Amplifiers2 |
||||
|
LAST TIME BUY |
3GHz, Low Noise, Rail-to-Rail Input Differential Amplifier/Driver |
|||
|
RECOMMENDED FOR NEW DESIGNS |
10GHz GBW, 1.1nV/√Hz Differential Amplifier/ADC Driver |
|||
|
Integer-N PLL1 |
||||
|
LAST TIME BUY |
Ultralow Noise and Spurious 0.37GHz to 6.39GHz Integer-N Synthesizer with Integrated VCO |
|||
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 1
DC1762A-E
LTC2161: 16-bit 40Msps ADC, LVDS Outputs, 5-140MHz, requires DC890, LVDS_XFMR and DC1075
Product Detail
DC1762A-E: Demo Board for the LTC2161 16-Bit, 40Msps Low Power ADCs.
