LTC1773

Synchronous Step-Down DC/DC Controller

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 2
1ku List Price Starting From $3.15
Features
  • High Efficiency: Up to 95%
  • Constant Frequency 550kHz Operation
  • VIN from 2.65V to 8.5V
  • VOUT from 0.8V to VIN
  • OPTI-LOOP® Compensation Minimizes COUT
  • Synchronizable up to 750kHz
  • Selectable Burst Mode Operation
  • Low Quiescent Current: 80µA
  • Low Dropout Operation: 100% Duty Cycle
  • Secondary Winding Regulation
  • Soft-Start
  • Current Mode Operation for Excellent Line and Load Transient Response
  • Low Quiescent Current: 80µA
  • Low Shutdown IQ = 10µA
  • ±1.5% Reference Accuracy
  • Precision 2.5V Undervoltage Lockout
  • Available in 10-Lead MSOP
Additional Details
show more Icon

The LTC1773 is a current mode synchronous buck regulator controller that drives external complementary power MOSFETs using a fixed frequency architecture. The operating supply range is from 2.65V to 8.5V, making it suitable for 1- or 2-cell lithium-ion battery powered applications. Burst Mode® operation provides high efficiency at low load currents. 100% duty cycle provides low dropout operation which extends operating time in battery-operated systems.

The operating frequency is internally set at 550kHz, allowing the use of small surface mount inductors. For switching-noise sensitive applications, it can be synchronized up to 750kHz. Peak current limit is user programmable with an external high side sense resistor. A SYNC/FCB control pin guarantees regulation of secondary windings regardless of load on the main output by forcing continuous operation. Burst Mode operation is inhibited during synchronization or when the SYNC/FCB pin is pulled low to reduce noise and RF interference. Soft-start is provided by an external capacitor.

Synchronous rectification increases efficiency and eliminates the need for a Schottky diode, saving components and board space. The LTC1773 comes in a 10-lead MSOP package.

Applications

  • Cellular Telephones
  • RF PA Supply
  • Portable Instruments
  • Wireless MODEMS
  • Distributed Power Systems
  • Notebook and Palm Top Computers, PDAs
  • Single and Dual Cell Lithium-Ion Powered Devices
Part Models 2
1ku List Price Starting From $3.15

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC1773EMS#PBF
  • HTML
  • HTML
LTC1773EMS#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0004

Epoxy Change from Henkel 8290 to 8290A for MSOP (3)

Feb 4, 2020

- 20_0130

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC1773EMS#PBF

PRODUCTION

LTC1773EMS#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0004

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP (3)

Feb 4, 2020

- 20_0130

arrow down

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC1773EMS#PBF

PRODUCTION

LTC1773EMS#TRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 2

reference details image

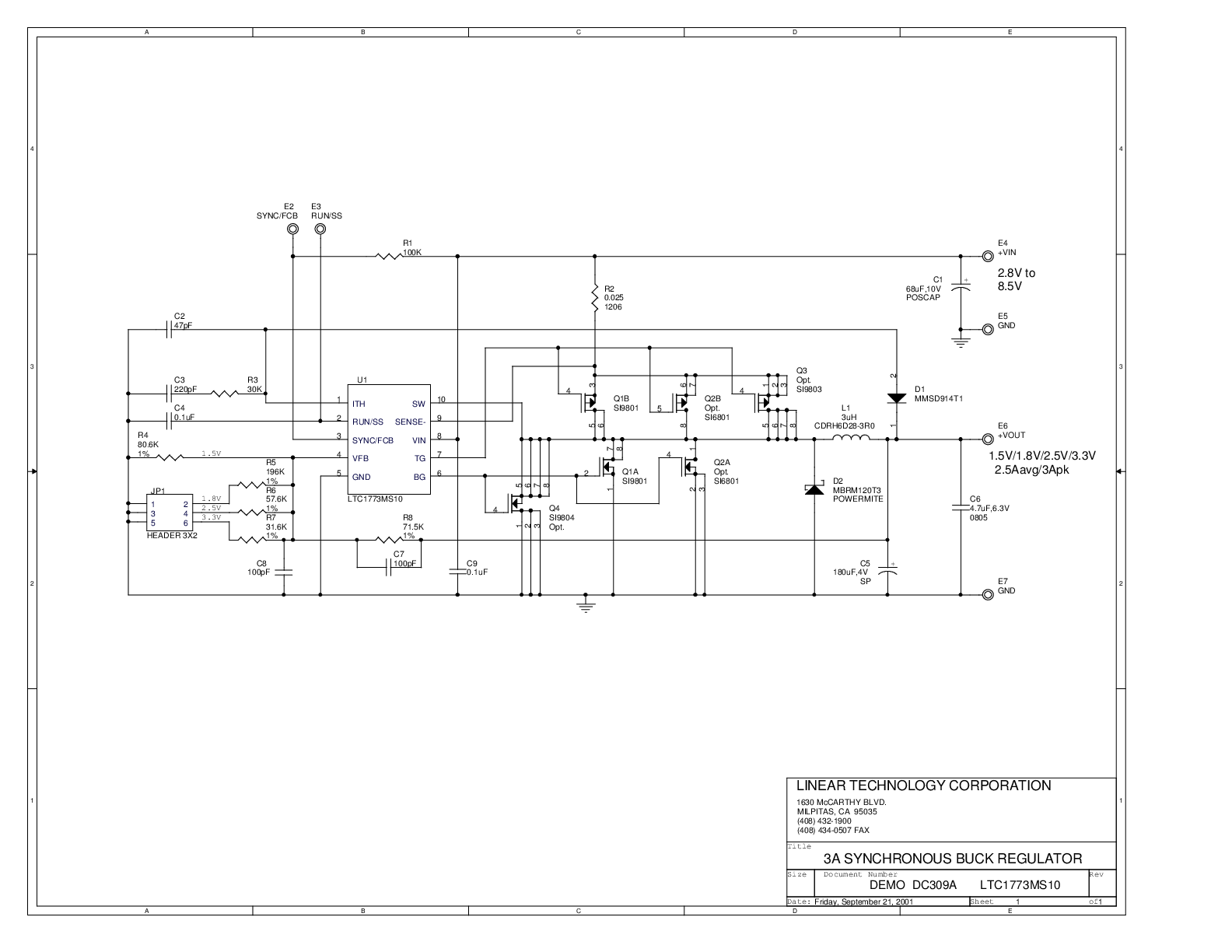

DC309A

LTC1773EMS | 3A Synchronous Buck Regulator, 2.8V to 8.5V Input, 1.5V/1.8V/2.5V/3.3V @ 2.5A avg/3A Peak

reference details image

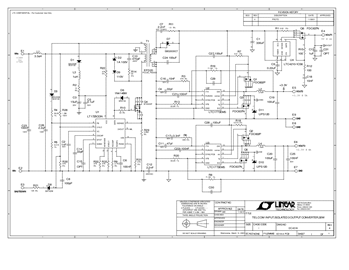

DC431A

LT1725CGN LTC1773EMS | Telecom Input, Isolated 3 Output DC/DC Converter, +36V to +72V Input, VOUT = 5V/1A, 3.3V/5A, 2.5V/4A

zoom

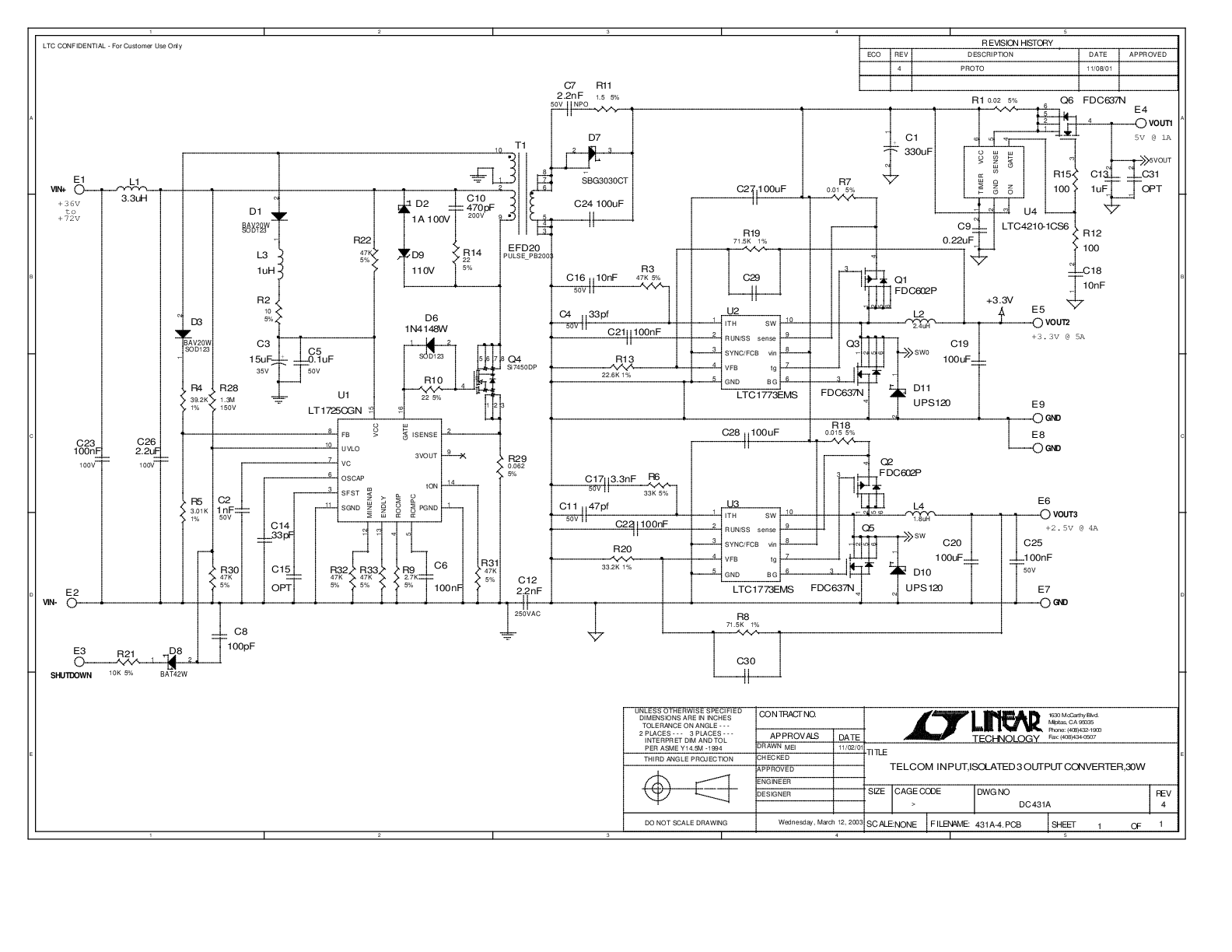

DC431A

LT1725CGN LTC1773EMS | Telecom Input, Isolated 3 Output DC/DC Converter, +36V to +72V Input, VOUT = 5V/1A, 3.3V/5A, 2.5V/4A

LT1725CGN LTC1773EMS | Telecom Input, Isolated 3 Output DC/DC Converter, +36V to +72V Input, VOUT = 5V/1A, 3.3V/5A, 2.5V/4A

Product Detail

DC431A Demo Board for:
LT1725 General Purpose Isolated Flyback Controller
LTC1773 Synchronous Step-Down DC/DC Controller

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
