LTC1609

16-Bit, 200ksps, Serial Sampling ADC with Multiple Input Ranges

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
Part Models 12
1ku List Price Starting From $19.49
Features
  • Sample Rate: 200ksps
  • Input Ranges
    • Unipolar: 0V to 10V, 0V to 5V and 0V to 4V
    • Bipolar: ±10V, ±5V and ±3.3V
  • Guaranteed No Missing Codes
  • Serial I/O
  • Single 5V Supply
  • Power Dissipation: 65mW Typ
  • Power Down Mode: 50µW

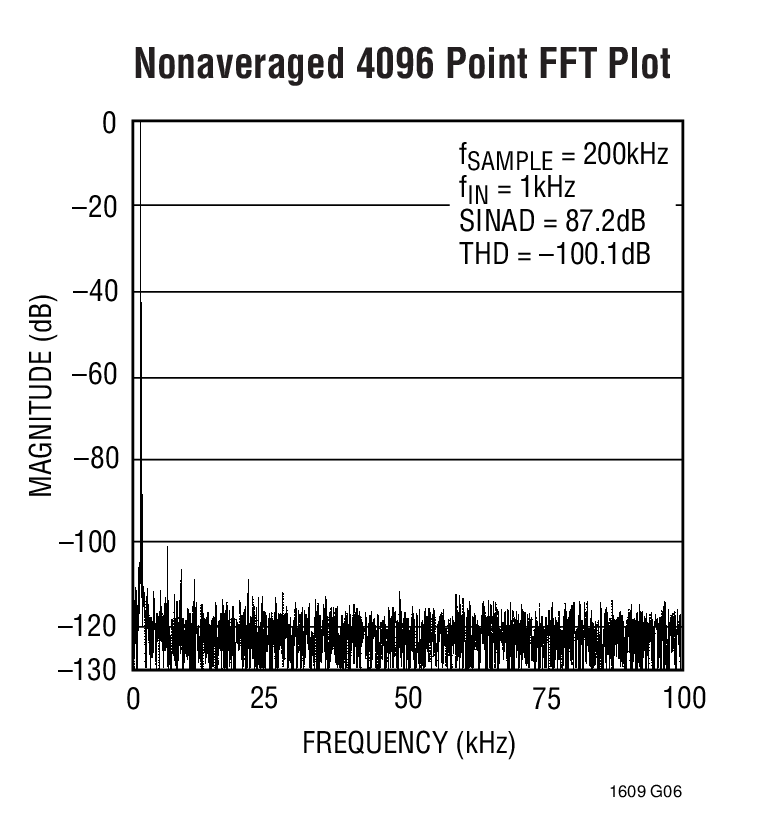

  • SNR: 87dB Typ
  • Operates with Internal or External Reference

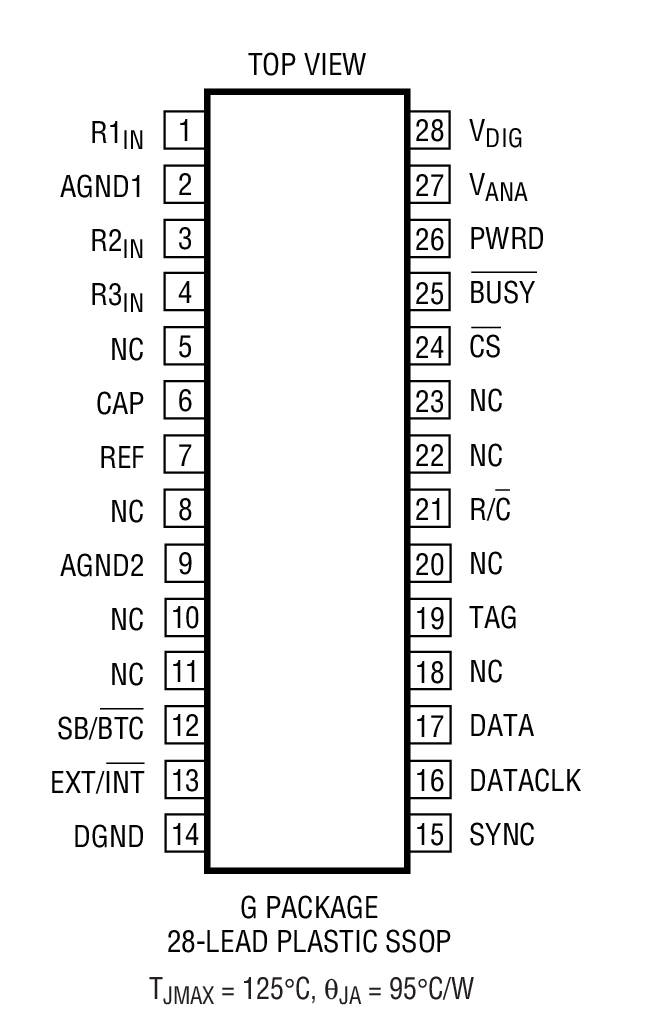

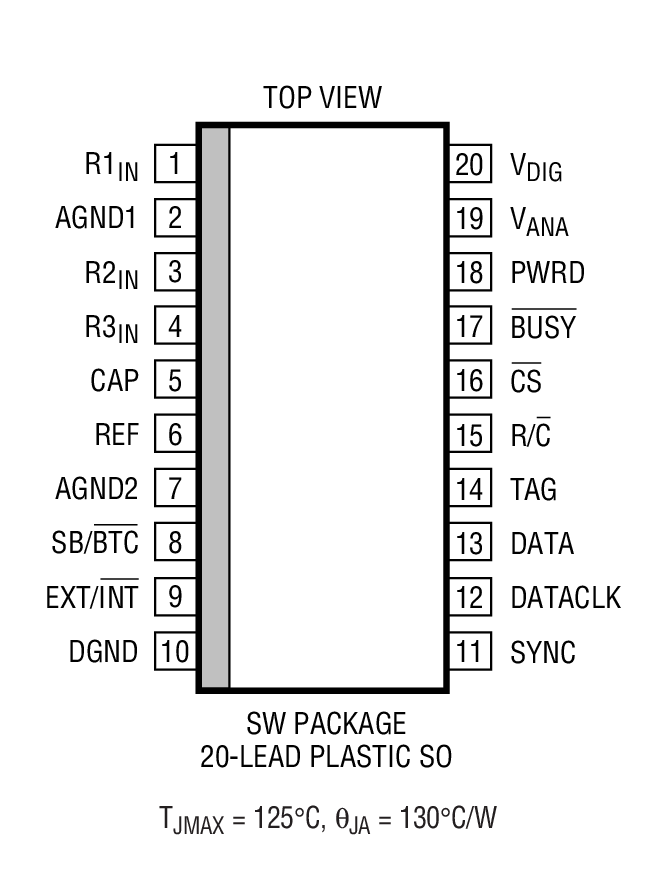

  • 28-Pin SSOP and 20-Pin SSO Packages
  • Improved 2nd Source to ADS7809 and AD977A
Additional Details
show more Icon

The LTC1609 is a 200ksps, serial sampling 16-bit A/D converter that draws only 65mW (typical) from a single 5V supply. This easy-to-use device includes a sample-and- hold, a precision reference, a switched capacitor successive approximation A/D and trimmed internal clock.

The input range is specified for bipolar inputs of ±10V, ±5V and ±3.3V and unipolar inputs of 0V to 10V, 0V to 5V and 0V to 4V. Maximum DC specs include ±2LSB INL and 16-bit no missing codes overtemperature. It has a typical signal-to-noise ratio of 87dB.

The ADC has a high speed serial interface. The serial output data can be clocked out using either the internal serial shift clock or be clocked out by an external shift clock. A separate convert start input(R/C) and a data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.

Applications

  • Industrial Process Control
  • Multiplexed Data Acquisition Systems
  • High Speed Data Acquisition for PCs
  • Digital Signal Processing
