Features
- Extremely Easy to Use—A Single Resistor Value Sets the Cutoff Frequency (256Hz < fC < 256kHz)
- Extremely Flexible—Different Resistor Values Allow Arbitrary Transfer Functions with or without Gain (256Hz < fC < 256kHz)
- Supports Cutoff Frequencies Up to 360kHz Using FilterCAD™
- LTC1563-2: Unity-Gain Butterworth Response Uses a Single Resistor Value, Different Resistor Values Allow Other Responses with or without Gain
- LTC1563-3: Unity-Gain Bessel Response Uses a Single Resistor Value, Different Resistor Values Allow Other Responses with or without Gain
- Rail-to-Rail Input and Output Voltages
- Operates from a Single 3V (2.7V Min) to ±5V Supply
- Low Noise: 36µVRMS for fC = 25.6kHz, 60µVRMS for fC = 256kHz
- fC Accuracy < ±2% (Typ)
- DC Offset < 1mV
- Cascadable to Form 8th Order Lowpass Filters

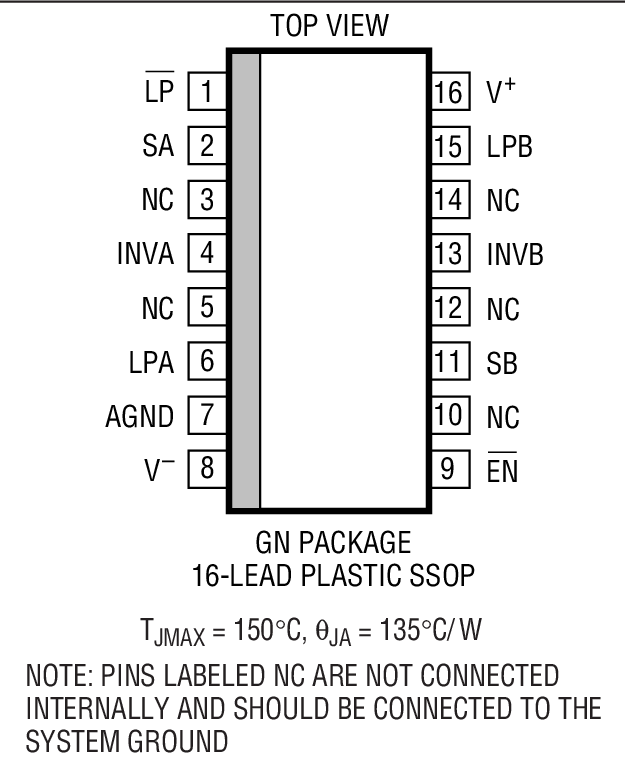

- Available in Narrow SSOP-16 Package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The LTC1563-2/LTC1563-3 are a family of extremely easy-to-use, active RC lowpass filters with rail-to-rail inputs and outputs and low DC offset suitable for systems with a resolution of up to 16 bits. The LTC1563-2, with a single resistor value, gives a unity-gain Butterworth response. The LTC1563-3, with a single resistor value, gives a unity-gain Bessel response. The proprietary architecture of these parts allows for a simple resistor calculation:

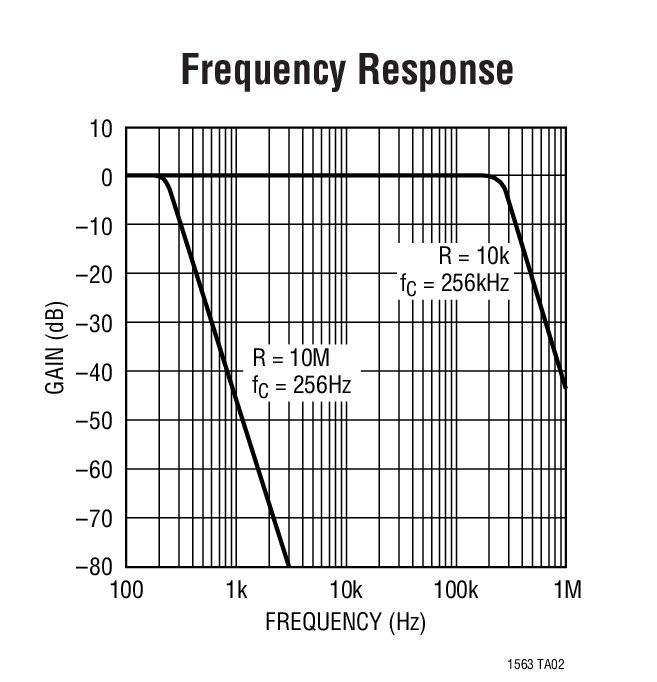

R = 10k (256kHz/fC); fC = Cutoff Frequency
where fC is the desired cutoff frequency. For many applications, this formula is all that is needed to design a filter. By simply utilizing different valued resistors, gain and other responses are achieved.
The LTC1563-X features a low power mode, for the lower frequency applications, where the supply current is reduced by an order of magnitude and a near zero power shutdown mode.
The LTC1563-Xs are available in the narrow SSOP-16 package (Same footprint as an SO-8 package).
Applications
- Discrete RC Active Filters and Modules
- Antialiasing Filters
- Smoothing or Reconstruction Filters
- Linear Phase Filtering for Data Communication
- Phase Locked Loops
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LTC1563
Documentation
Filters
1 Applied
-
All
-
User Guide
-
Data Sheet
-
Reliability Data
-
Design Note
-
Technical Articles
-
All
-
English
-
Japanese
Data Sheet
2
User Guide
1
752.00K
Reliability Data
1
20.42 K
Design Note
4
HTML
HTML
HTML
HTML
Technical Articles
2
HTML
HTML
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
Design Note 2
Technical Articles 2
Video
1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC1563-2CGN#PBF |
16-Lead SSOP (Narrow 0.15 Inch)
|
|
|
| LTC1563-2CGN#TRPBF |
16-Lead SSOP (Narrow 0.15 Inch)
|
|
|
| LTC1563-2IGN#PBF |
16-Lead SSOP (Narrow 0.15 Inch)
|
|
|
| LTC1563-2IGN#TRPBF |
16-Lead SSOP (Narrow 0.15 Inch)
|
|
|
| LTC1563-3CGN#PBF |
16-Lead SSOP (Narrow 0.15 Inch)
|
|
|
| LTC1563-3CGN#TRPBF |
16-Lead SSOP (Narrow 0.15 Inch)
|
|
|
| LTC1563-3IGN#PBF |
16-Lead SSOP (Narrow 0.15 Inch)
|
|
|
| LTC1563-3IGN#TRPBF |
16-Lead SSOP (Narrow 0.15 Inch)
|
|
- LTC1563-2CGN#PBF
- Pin/Package Drawing
-
16-Lead SSOP (Narrow 0.15 Inch)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC1563-2CGN#TRPBF
- Pin/Package Drawing
-
16-Lead SSOP (Narrow 0.15 Inch)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC1563-2IGN#PBF
- Pin/Package Drawing
-
16-Lead SSOP (Narrow 0.15 Inch)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC1563-2IGN#TRPBF
- Pin/Package Drawing
-
16-Lead SSOP (Narrow 0.15 Inch)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC1563-3CGN#PBF
- Pin/Package Drawing
-
16-Lead SSOP (Narrow 0.15 Inch)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC1563-3CGN#TRPBF
- Pin/Package Drawing
-
16-Lead SSOP (Narrow 0.15 Inch)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC1563-3IGN#PBF
- Pin/Package Drawing
-
16-Lead SSOP (Narrow 0.15 Inch)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC1563-3IGN#TRPBF
- Pin/Package Drawing
-
16-Lead SSOP (Narrow 0.15 Inch)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Oct 3, 2024
- 24_0235
(QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking
LTC1563-2CGN#PBF
PRODUCTION
LTC1563-2CGN#TRPBF
PRODUCTION
LTC1563-2IGN#PBF
PRODUCTION
LTC1563-2IGN#TRPBF
PRODUCTION
LTC1563-3CGN#PBF
PRODUCTION
LTC1563-3CGN#TRPBF
PRODUCTION
LTC1563-3IGN#PBF
PRODUCTION
LTC1563-3IGN#TRPBF
PRODUCTION
Oct 11, 2022
- 22_0235
Epoxy Change from Henkel 8290 to 8290A for GN Package
LTC1563-2CGN#PBF
PRODUCTION
LTC1563-2CGN#TRPBF
PRODUCTION
LTC1563-2IGN#PBF
PRODUCTION
LTC1563-2IGN#TRPBF
PRODUCTION
LTC1563-3CGN#PBF
PRODUCTION
LTC1563-3CGN#TRPBF
PRODUCTION
LTC1563-3IGN#PBF
PRODUCTION
LTC1563-3IGN#TRPBF
PRODUCTION
Apr 6, 2022
- 22_0066
Laser Top Mark for 16QSOP Assembled in ADPG [PNG]
LTC1563-2CGN#PBF
PRODUCTION
LTC1563-2CGN#TRPBF
PRODUCTION
LTC1563-2IGN#PBF
PRODUCTION
LTC1563-2IGN#TRPBF
PRODUCTION
LTC1563-3CGN#PBF
PRODUCTION
LTC1563-3CGN#TRPBF
PRODUCTION
LTC1563-3IGN#PBF
PRODUCTION
LTC1563-3IGN#TRPBF
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Oct 3, 2024
- 24_0235
(QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking
LTC1563-2CGN#PBF
PRODUCTION
LTC1563-2CGN#TRPBF
PRODUCTION
LTC1563-2IGN#PBF
PRODUCTION
LTC1563-2IGN#TRPBF
PRODUCTION
LTC1563-3CGN#PBF
PRODUCTION
LTC1563-3CGN#TRPBF
PRODUCTION
LTC1563-3IGN#PBF
PRODUCTION
LTC1563-3IGN#TRPBF
PRODUCTION
Oct 11, 2022
- 22_0235
Epoxy Change from Henkel 8290 to 8290A for GN Package
LTC1563-2CGN#PBF
PRODUCTION
LTC1563-2CGN#TRPBF
PRODUCTION
LTC1563-2IGN#PBF
PRODUCTION
LTC1563-2IGN#TRPBF
PRODUCTION
LTC1563-3CGN#PBF
PRODUCTION
LTC1563-3CGN#TRPBF
PRODUCTION
LTC1563-3IGN#PBF
PRODUCTION
LTC1563-3IGN#TRPBF
PRODUCTION
Apr 6, 2022
- 22_0066
Laser Top Mark for 16QSOP Assembled in ADPG [PNG]
LTC1563-2CGN#PBF
PRODUCTION
LTC1563-2CGN#TRPBF
PRODUCTION
LTC1563-2IGN#PBF
PRODUCTION
LTC1563-2IGN#TRPBF
PRODUCTION
LTC1563-3CGN#PBF
PRODUCTION
LTC1563-3CGN#TRPBF
PRODUCTION
LTC1563-3IGN#PBF
PRODUCTION
LTC1563-3IGN#TRPBF
PRODUCTION
Software & Part Ecosystem
Evaluation Kits 2

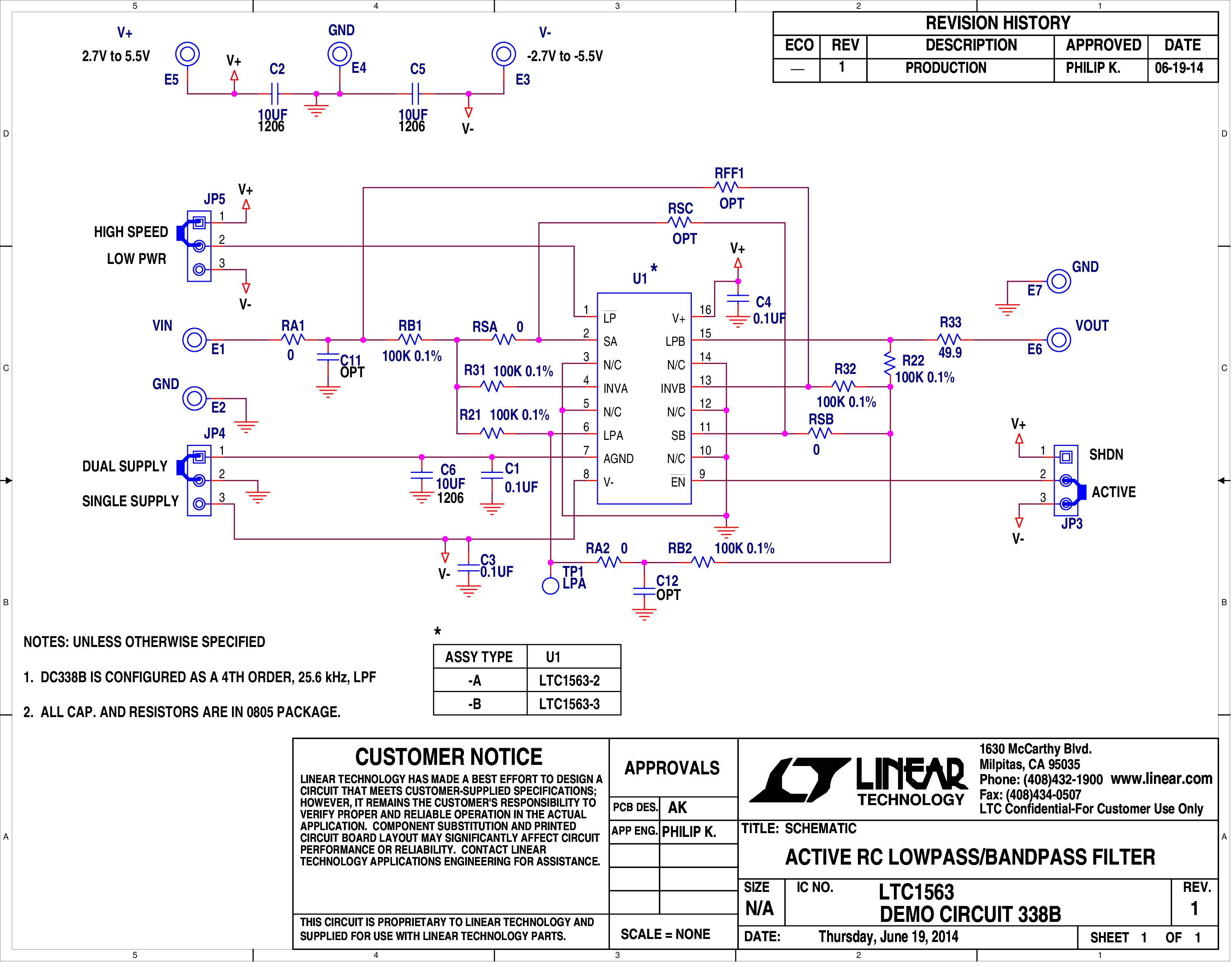

DC338B-A
LTC1563-2CGN Demo Board | Universal Lowpass Filter
Product Detail
Demonstration circuit DC338B-A is for the evaluation of filter circuits using an LTC1563-2 and DC338B-B for an LTC1563-3. LTC1563-2 and LTC1563-3 are dual 2nd order active RC filter building blocks with precision ±1.5% capacitors. The LTC1563-2 uses six equal value resistors to implement a 4th order Butterworth lowpass filter, and the LTC1563-3 uses six equal value resistors to implement a 4th order Bessel lowpass filter. The lowpass cutoff frequency (f C ) range of an LTC1563-X filter is 256Hz to 256kHz.
Resources
DC338B-B
LTC1563-3CGN Demo Board | Universal Lowpass Filter
Product Detail
Demonstration circuit DC338B-A is for the evaluation of filter circuits using an LTC1563-2 and DC338B-B for an LTC1563-3. LTC1563-2 and LTC1563-3 are dual 2nd order active RC filter building blocks with precision ±1.5% capacitors. The LTC1563-2 uses six equal value resistors to implement a 4th order Butterworth lowpass filter, and the LTC1563-3 uses six equal value resistors to implement a 4th order Bessel lowpass filter. The lowpass cutoff frequency (f C ) range of an LTC1563-X filter is 256Hz to 256kHz.
Resources
Tools & Simulations 1
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Lt Spice
