LTC1042: Window Comparator Data Sheet8/22/2007
Overview
Features and Benefits
- Micropower 1.5µW (1 Sample/Second)
- Wide Supply Range — 2.8V to 16V
- High Accuracy
- Center Error ±1mV Max
- Width Error ±0.15% Max
- Wide Input Voltage Range V+ to Ground
- TTL Outputs with 5V Supply
- Two Independent Ground-Referred Control Inputs
- Small Size 8-Pin MiniDIP
Product Details
The LTC1042 is a monolithic CMOS window comparator manufactured using Linear Technology’s enhanced LTCMOS™ silicon gate process. Two high impedance voltage inputs, CENTER and WIDTH/2, define the middle and width of the comparison window. Whenever the input voltage, VIN, is inside the window the WITHIN WINDOW output is high. The ABOVE WINDOW output is high whenever VIN is above the window. By interchanging VIN and CENTER, the ABOVE WINDOW output becomes BELOW WINDOW and is high if VIN is below the window.
Sampling techniques provide high impedance voltage inputs that can common mode to both supply rails (V+ and GND). An important feature of the inputs is their non-interaction. Also the device is effectively "chopper stabilized," giving it extremely high accuracy over all conditions of temperature, power supply and input voltage range.

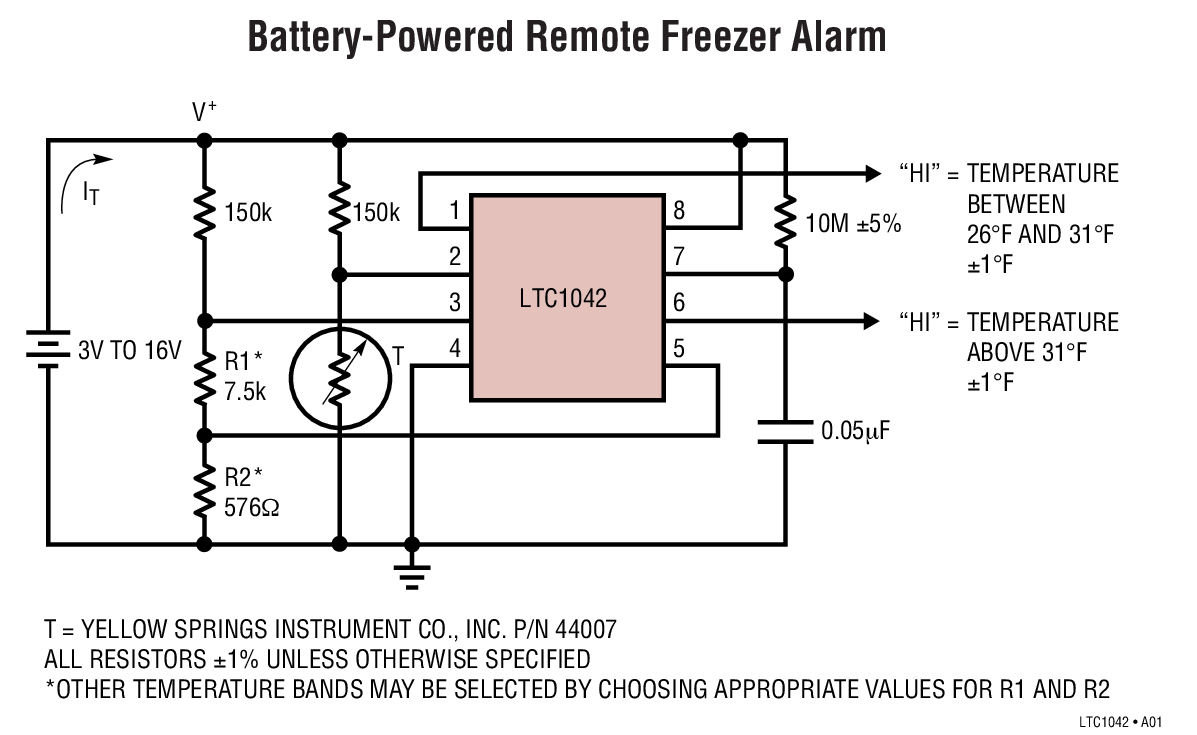

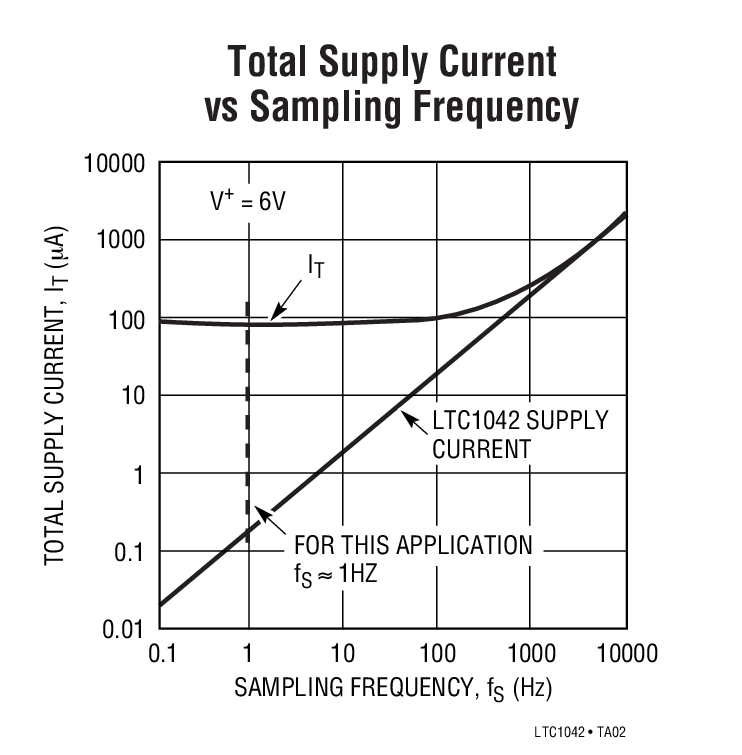

Another benefit of the sampling techniques used to design the LTC1042 is the extremely low power consumption. When the device is strobed, it internally turns on the power to the comparators, samples the inputs, stores the outputs in CMOS latches and then turns off power to the comparators. This all happens in about 80µs. Average power can be made small, almost arbitrarily, by lowering the strobe rate. The device can be self-strobed using an external RC network or strobed externally by driving the OSC pin with a CMOS gate.
Applications
- Fault Detectors
- Go/No-Go Testing
- Microprocessor Power Supply Monitor
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
-
R102 Reliability Data3/23/2018
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
LTC1042
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|

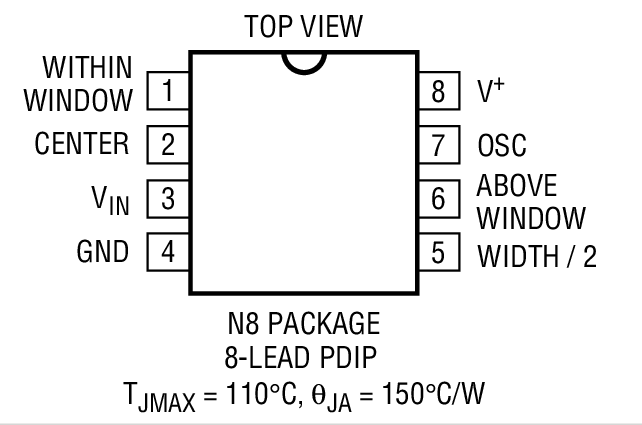

| LTC1042CN8#PBF | Material Declaration | Reliability Data | 8-Lead PDIP (Narrow 0.3 Inch) | |
