LT8705

80V VIN and VOUT Synchronous 4-Switch Buck-Boost DC/DC Controller

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 12
1ku List Price Starting From $7.07
Features
  • Single Inductor Allows VIN Above, Below, or Equal to Regulated VOUT
  • VIN Range 2.8V (Need EXTVCC > 6.4V) to 80V
  • VOUT Range: 1.3V to 80V
  • Quad N-Channel MOSFET Gate Drivers
  • Synchronous Rectification: Up to 98% Efficiency
  • Input and Output Current Monitor Pins
  • Synchronizable Fixed Frequency: 100kHz to 400kHz
  • Integrated Input Current, Input Voltage, Output and Output Voltage Feedback Loops
  • Clock Output Usable To Monitor Die Temperature
  • Available in 38-Lead (5mm × 7mm) QFN and TSSOP Packages with the TSSOP Modified for Improve Voltage Operation
Additional Details
show more Icon

The LT8705 is a high performance buck-boost switching regulator controller that operates from input voltages above, below or equal to the output voltage. The part has integrated input current, input voltage, output current and output voltage feedback loops. With a wide 2.8V to 80V input and 1.3V to 80V output range, the LT8705 is compatible with most solar, automotive, telecom and battery-powered systems.

The LT8705 includes servo pins to indicate which feedback loops are active. The MODE pin selects among Burst Mode® operation, discontinuous or continuous conduction mode at light loads. Additional features include a 3.3V/12mA LDO, a synchronizable fixed operating frequency, onboard gate drivers, adjustable UVLO, along with input and output current monitoring with programmable maximum levels.

LT8705
LT8705A Improved, pin-to-pin compatible version of LT8705. Recommended for all new designs


Applications

  • High Voltage Buck-Boost Converters
  • Input or Output Current Limited Converters

Part Models 12
1ku List Price Starting From $7.07

close icon

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT8705EFE#PBF
  • HTML
  • HTML
LT8705EFE#TRPBF
  • HTML
  • HTML
LT8705EUHF#PBF
  • HTML
  • HTML
LT8705EUHF#TRPBF
  • HTML
  • HTML
LT8705HFE#PBF
  • HTML
  • HTML
LT8705HFE#TRPBF
  • HTML
  • HTML
LT8705IFE#PBF
  • HTML
  • HTML
LT8705IFE#TRPBF
  • HTML
  • HTML
LT8705IUHF#PBF
  • HTML
  • HTML
LT8705IUHF#TRPBF
  • HTML
  • HTML
LT8705MPFE#PBF
  • HTML
  • HTML
LT8705MPFE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT8705EFE#PBF

PRODUCTION

LT8705EFE#TRPBF

PRODUCTION

LT8705HFE#PBF

PRODUCTION

LT8705HFE#TRPBF

PRODUCTION

LT8705IFE#PBF

PRODUCTION

LT8705IFE#TRPBF

PRODUCTION

LT8705MPFE#PBF

PRODUCTION

LT8705MPFE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT8705EFE#PBF

PRODUCTION

LT8705EFE#TRPBF

PRODUCTION

LT8705HFE#PBF

PRODUCTION

LT8705HFE#TRPBF

PRODUCTION

LT8705IFE#PBF

PRODUCTION

LT8705IFE#TRPBF

PRODUCTION

LT8705MPFE#PBF

PRODUCTION

LT8705MPFE#TRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 1

reference details image

DC1924A

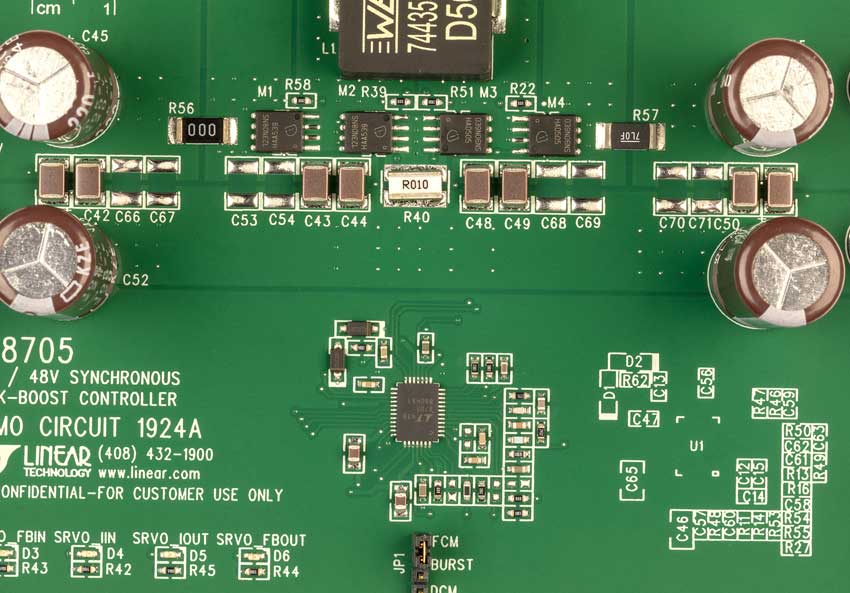

LT8705EUHF Demo Board | 36V ≤ VIN ≤ 80V; VOUT = 48V @ 5A
