LT8390A

60V 2MHz Synchronous 4-Switch Buck-Boost Controller with Spread Spectrum

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 26
1ku List Price Starting From $5.48
Features
  • 4-Switch Single Inductor Architecture Allows VIN Above, Below or Equal to VOUT

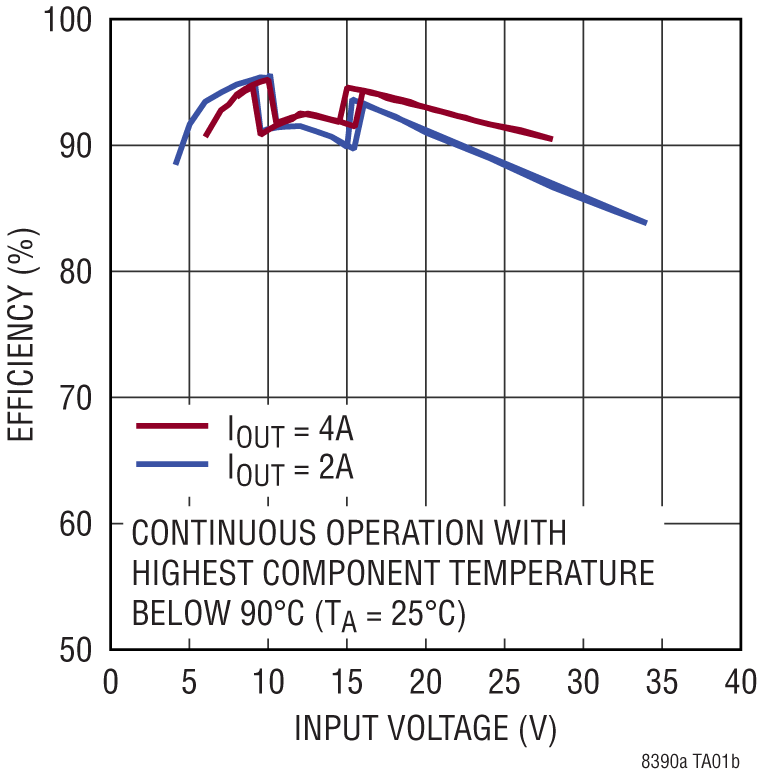

  • Up to 95% Efficiency at 2MHz
  • Proprietary Peak-Buck Peak-Boost Current Mode
  • Wide VIN Range: 4V to 60V
  • ±1.5% Output Voltage Accuracy: 1V ≤ VOUT ≤ 60V
  • ±3% Input or Output Current Accuracy with Monitor
  • Spread Spectrum Frequency Modulation for Low EMI
  • High Side PMOS Load Switch Driver
  • No Top MOSFET Refresh Noise in Buck or Boost
  • Adjustable and Synchronizable: 600kHz to 2MHz
  • VOUT Disconnected from VIN During Shutdown

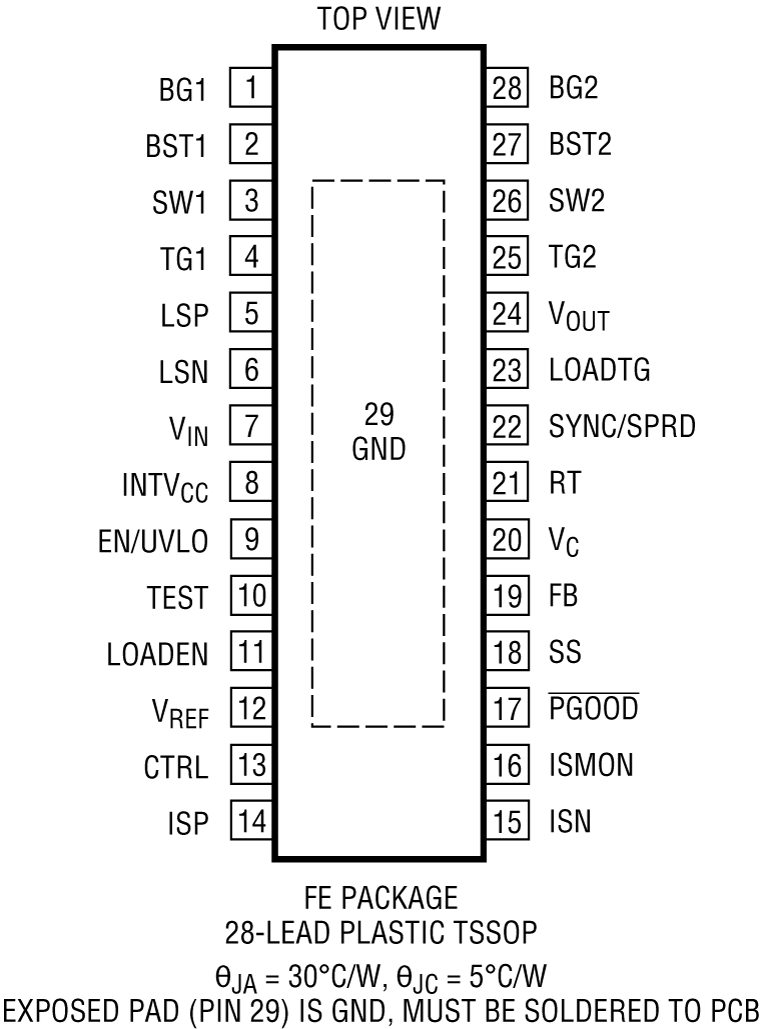

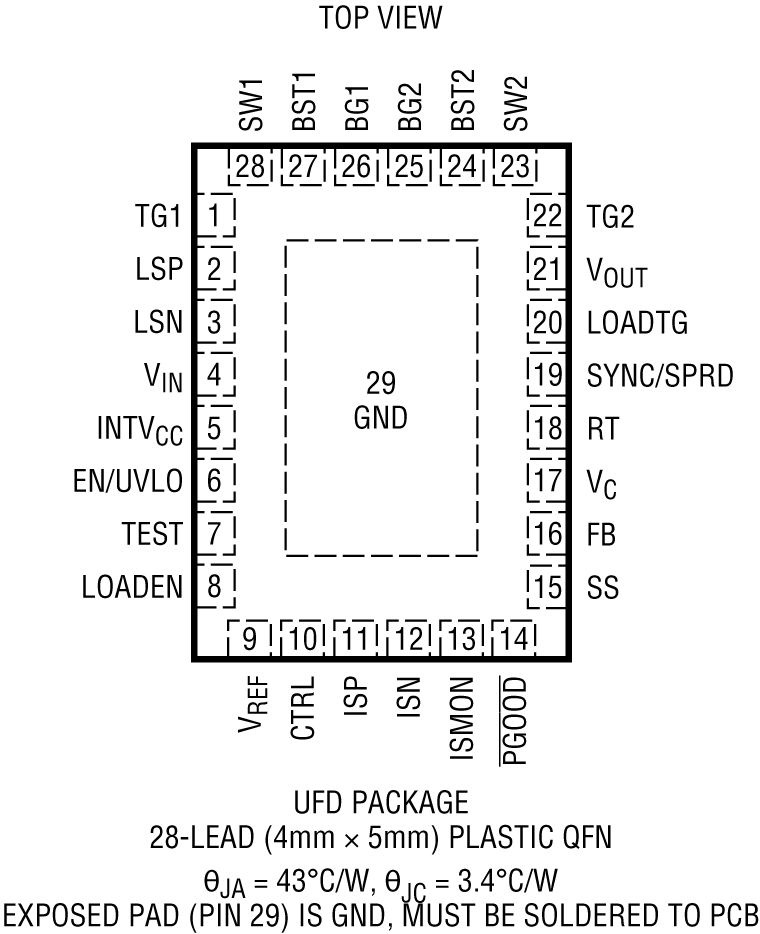

  • Available in 28-Lead TSSOP with Exposed Pad and 28-Lead QFN (4mm × 5mm)
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LT8390A is a synchronous 4-switch buck-boost DC/DC controller that regulates output voltage, input or output current from an input voltage above, below, or equal to the output voltage. The proprietary peak-buck peak-boost current mode control scheme allows adjustable and synchronizable 600kHz to 2MHz fixed frequency operation, or internal 25% triangle spread spectrum frequency modulation for low EMI. With a 4V to 60V input voltage range, 0V to 60V output voltage capability, and seamless low-noise transitions between operation regions, the LT8390A is ideal for voltage regulator, battery and supercapacitor charger applications in automotive, industrial, telecom, and even battery-powered systems.

The LT8390A provides input or output current monitor and power good flag. Fault protection is also provided to detect output short-circuit condition, during which the LT8390A retries, latches off, or keeps running.




Max Switching Frequency Max Output Power
LT8390 650kHz 450W+
LT8390A 2MHz 50W+


APPLICATIONS

  • Automotive, Industrial, Telecom Systems
  • High Frequency Battery-Powered System
Part Models 26
1ku List Price Starting From $5.48

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT8390AEFE#PBF
  • HTML
  • HTML
LT8390AEFE#TRPBF
  • HTML
  • HTML
LT8390AEFE#WPBF
  • HTML
  • HTML
LT8390AEFE#WTRPBF
  • HTML
  • HTML
LT8390AEUFD#PBF
  • HTML
  • HTML
LT8390AEUFD#TRPBF
  • HTML
  • HTML
LT8390AHFE#PBF
  • HTML
  • HTML
LT8390AHFE#TRPBF
  • HTML
  • HTML
LT8390AHFE#WPBF
  • HTML
  • HTML
LT8390AHFE#WTRPBF
  • HTML
  • HTML
LT8390AHUFD#PBF
  • HTML
  • HTML
LT8390AHUFD#TRPBF
  • HTML
  • HTML
LT8390AHUFD#WPBF
  • HTML
  • HTML
LT8390AHUFD#WTRPBF
  • HTML
  • HTML
LT8390AIFE#PBF
  • HTML
  • HTML
LT8390AIFE#TRPBF
  • HTML
  • HTML
LT8390AIUFD#PBF
  • HTML
  • HTML
LT8390AIUFD#TRPBF
  • HTML
  • HTML
LT8390AJFE#PBF
  • HTML
  • HTML
LT8390AJFE#TRPBF
  • HTML
  • HTML
LT8390AJFE#WPBF
  • HTML
  • HTML
LT8390AJFE#WTRPBF
  • HTML
  • HTML
LT8390AJUFD#PBF
  • HTML
  • HTML
LT8390AJUFD#TRPBF
  • HTML
  • HTML
LT8390AJUFD#WPBF
  • HTML
  • HTML
LT8390AJUFD#WTRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT8390AEFE#PBF

PRODUCTION

LT8390AEFE#TRPBF

PRODUCTION

LT8390AEFE#WPBF

PRODUCTION

LT8390AEFE#WTRPBF

PRODUCTION

LT8390AHFE#PBF

PRODUCTION

LT8390AHFE#TRPBF

PRODUCTION

LT8390AHFE#WPBF

PRODUCTION

LT8390AHFE#WTRPBF

PRODUCTION

LT8390AIFE#PBF

PRODUCTION

LT8390AIFE#TRPBF

PRODUCTION

LT8390AJFE#PBF

PRODUCTION

LT8390AJFE#TRPBF

PRODUCTION

LT8390AJFE#WPBF

PRODUCTION

LT8390AJFE#WTRPBF

PRODUCTION

Apr 11, 2019

- 19_0067

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT8390AEFE#PBF

PRODUCTION

LT8390AEFE#TRPBF

PRODUCTION

LT8390AEUFD#PBF

PRODUCTION

LT8390AEUFD#TRPBF

PRODUCTION

LT8390AHFE#PBF

PRODUCTION

LT8390AHFE#TRPBF

PRODUCTION

LT8390AHUFD#PBF

PRODUCTION

LT8390AHUFD#TRPBF

PRODUCTION

LT8390AIFE#PBF

PRODUCTION

LT8390AIFE#TRPBF

PRODUCTION

LT8390AIUFD#PBF

PRODUCTION

LT8390AIUFD#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT8390AEFE#PBF

PRODUCTION

LT8390AEFE#TRPBF

PRODUCTION

LT8390AEFE#WPBF

PRODUCTION

LT8390AEFE#WTRPBF

PRODUCTION

LT8390AHFE#PBF

PRODUCTION

LT8390AHFE#TRPBF

PRODUCTION

LT8390AHFE#WPBF

PRODUCTION

LT8390AHFE#WTRPBF

PRODUCTION

LT8390AIFE#PBF

PRODUCTION

LT8390AIFE#TRPBF

PRODUCTION

LT8390AJFE#PBF

PRODUCTION

LT8390AJFE#TRPBF

PRODUCTION

LT8390AJFE#WPBF

PRODUCTION

LT8390AJFE#WTRPBF

PRODUCTION

Apr 11, 2019

- 19_0067

arrow down

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT8390AEFE#PBF

PRODUCTION

LT8390AEFE#TRPBF

PRODUCTION

LT8390AEUFD#PBF

PRODUCTION

LT8390AEUFD#TRPBF

PRODUCTION

LT8390AHFE#PBF

PRODUCTION

LT8390AHFE#TRPBF

PRODUCTION

LT8390AHUFD#PBF

PRODUCTION

LT8390AHUFD#TRPBF

PRODUCTION

LT8390AIFE#PBF

PRODUCTION

LT8390AIFE#TRPBF

PRODUCTION

LT8390AIUFD#PBF

PRODUCTION

LT8390AIUFD#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

DC2598A

LT8390A Demo Board | VIN = 4V to 24V, (60V Transient) with VOUT = 12V at 4A @ 2MHz

zoom

DC2598A

LT8390A Demo Board | VIN = 4V to 24V, (60V Transient) with VOUT = 12V at 4A @ 2MHz

LT8390A Demo Board | VIN = 4V to 24V, (60V Transient) with VOUT = 12V at 4A @ 2MHz

Product Detail

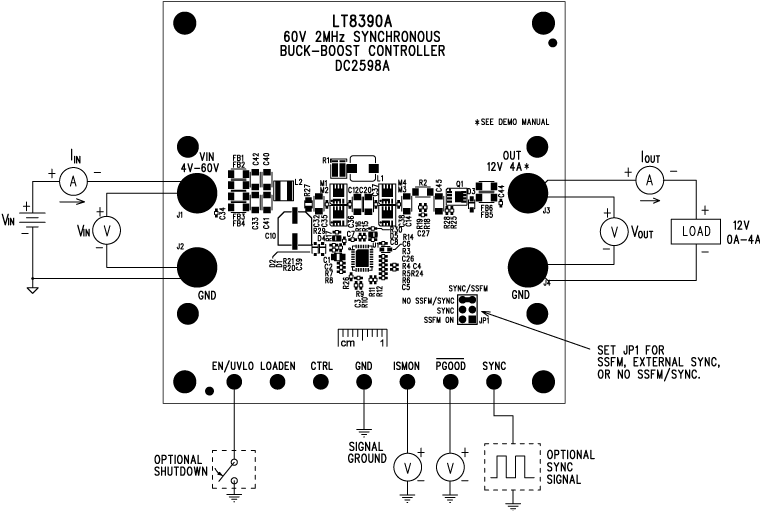

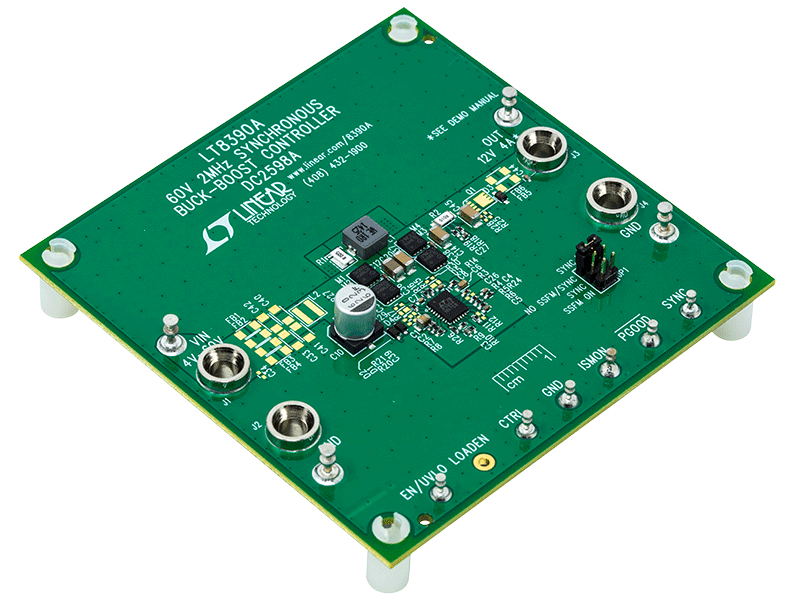

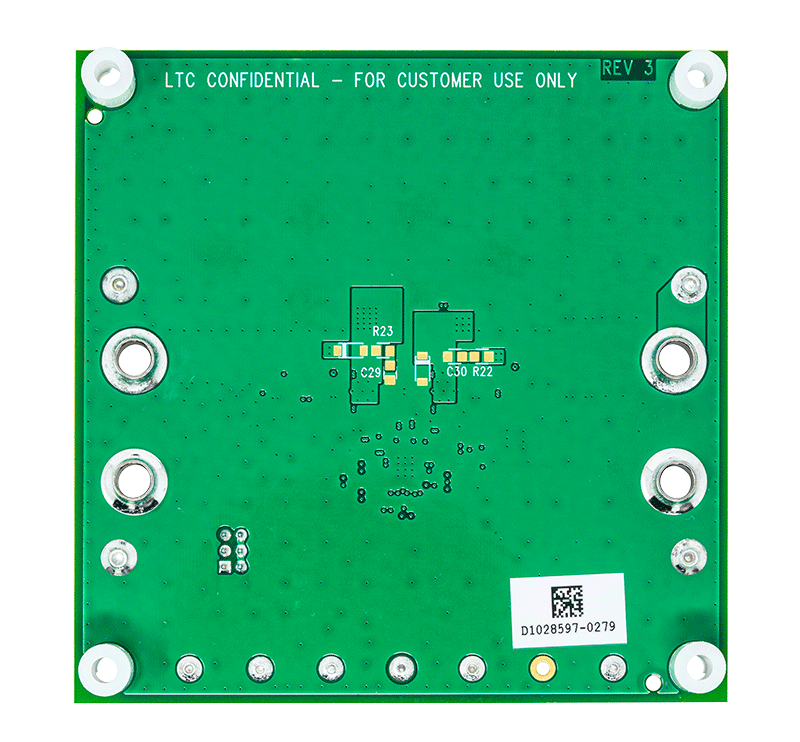

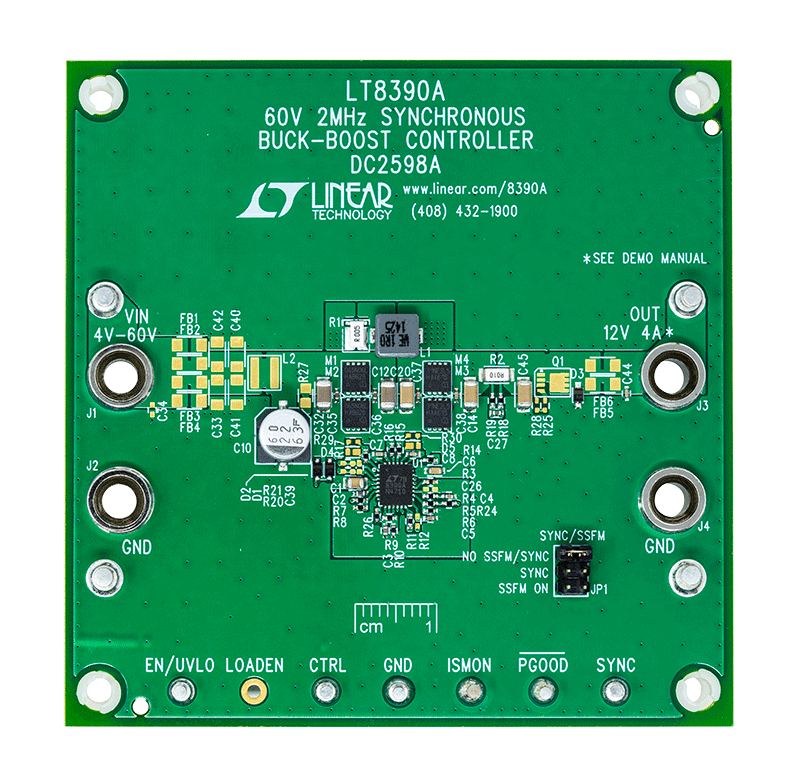

Demonstration circuit 2598A is a 60V 2MHz synchronous buck-boost controller featuring the LT8390A. It accepts an input voltage from 4V to 24V (with transient to 60V) and regulates 12V output at up to 4A. DC2598A features high efficiency and 2MHz switching frequency, a high speed for a 4-switch buck-boost controller. It has a PGOOD flag, short-circuit fault protection, ISMON current-monitoring output signal, and spread spectrum frequency modulation (SSFM) or frequency synchronization.

reference details image

EVAL-LT8390A-AZ

60V High-Frequency Synchronous GaN Buck-Boost Controller

zoom

EVAL-LT8390A-AZ

60V High-Frequency Synchronous GaN Buck-Boost Controller

60V High-Frequency Synchronous GaN Buck-Boost Controller

Product Detail

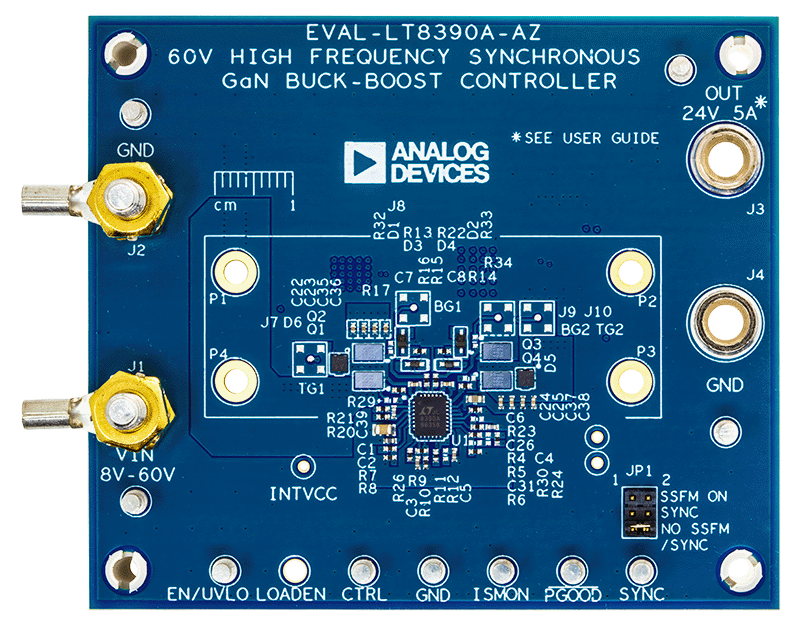

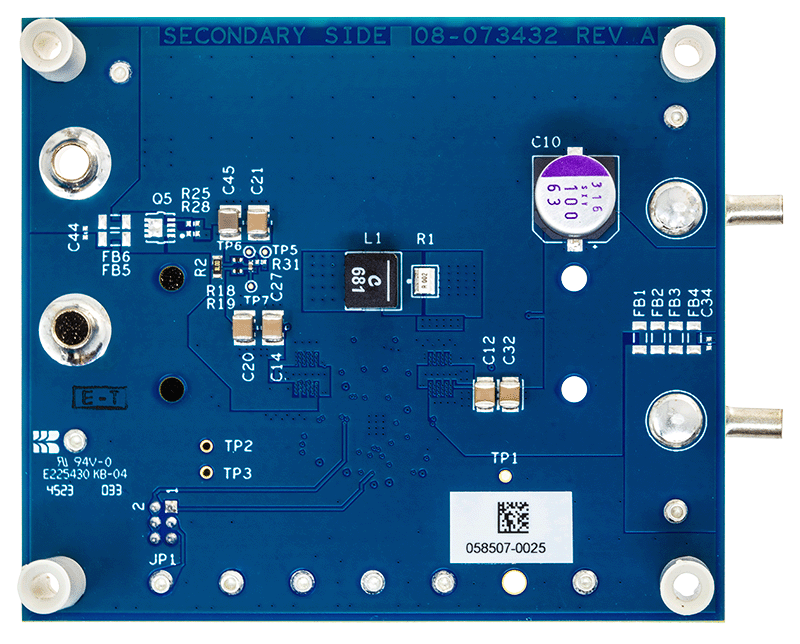

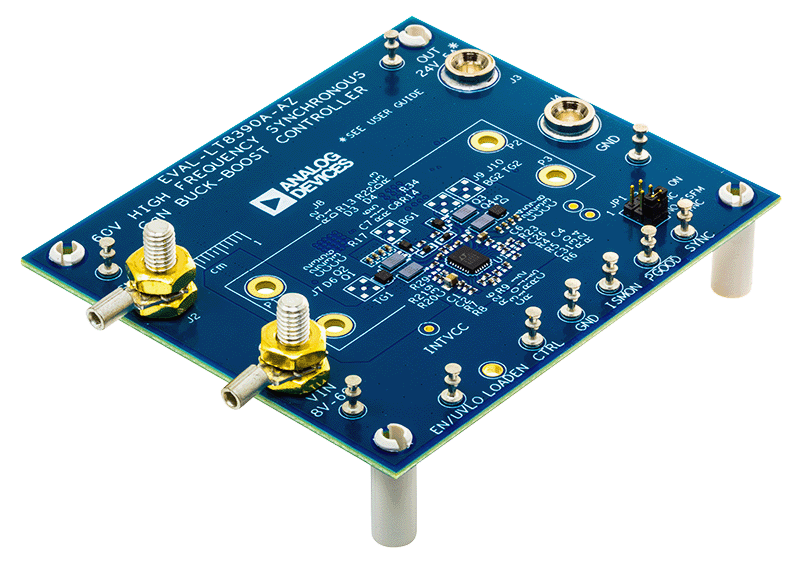

The evaluation circuit EVAL-LT8390A-AZ is a synchronous 4-switch buck-boost controller featuring the LT8390A and 4 EPC GaN FETs. This circuit outputs 24V and maintains tight regulation with up to 5A load current and over an input voltage from 8V to 60V. 2MHz switching frequency provides a small footprint using a single 6mm x 6mm x 6mm inductor while maintaining high efficiency.
