LT8618
LT8618-3.3
LT8618C

High Efficiency 65V/100mA Synchronous Bucks

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 30
1ku List Price Starting From $1.95
Features
  • High Efficiency Synchronous Operation
    • > 90% Efficiency at 30mA, 12VIN to 3.3VOUT
  • Pin Selectable Forced Continuous or Burst Mode® Operation (LT8618C Only)
  • Ultralow Quiescent Current Burst Mode Operation
    • < 2.5μA IQ Regulating 48VIN to 3.3VOUT
    • Output Ripple < 10mVP-P
  • 3.4V to 60V Input Operation Range (65V Max)
  • Fast Minimum Switch-On Time: 35ns
  • Adjustable (All) And Synchronizable (LT8618C Only) Switching Frequency: 200kHz to 2.2MHz
  • Fixed 3.3V Output Voltage Version (LT8618-3.3)
  • Accurate 1V Enable Pin Threshold (All) with Adjustable Hysteresis (LT8618C Only)
  • Internal Compensation
  • Output Soft-Start and Tracking
  • Small 12-Lead 2mm × 2mm LQFN (LT8618C) and 10-Lead 3mm × 2mm DFN Packages
  • AEC-Q100 Qualified for Automotive Applications (LT8618/LT8618-3.3)
Additional Details
show more Icon

The LT8618 family are compact, high speed synchronous monolithic step-down switching regulators that deliver up to 100mA to the output with high efficiency at a constant frequency, even up to 2.2MHz. They accept a wide input voltage range up to 65V (transients only, 60V for continuous operation), and consume only 2.5μA of quiescent current when operating in Burst Mode. Top and bottom power switches are included with all necessary circuitry to minimize the need for external components.

The LT8618C includes BST and INTVCC ceramic capacitors for a more compact solution while having SYNC/MODE and HYST pins. The SYNC/MODE pin selects the regulator’s operation between forced continuous mode, for predictive interference in sampling systems, Burst Mode, for increased efficiency at light loads or spread spectrum for Low EMI. It also allows synchronization to an external clock to further increase signal to noise ratio in high-resolution acquisition systems.

A PG flag signals when VOUT is within ±7.5% of the programmed output voltage and when in fault conditions. Thermal shutdown provides additional protection.

  PACKAGE SYNC/HYST 150°C GRADE INTERNAL CAPS FB RESISTORS
LT8618 DFN No Yes No External
LT8618-3.3 DFN No Yes No Internal
LT8618C LQFN Yes No Yes External


Applications

  • Industrial Sensors
  • Industrial Internet of Things
  • 4mA to 20mA Current Loops
  • Flow Meters
  • Automotive Housekeeping Supplies
Part Models 30
1ku List Price Starting From $1.95

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT8618ARDDBM-3.3#WTRMPBF
  • HTML
  • HTML
LT8618ARDDBM-3.3#WTRPBF
  • HTML
  • HTML
LT8618ARDDBM-5#WTRMPBF
  • HTML
  • HTML
LT8618ARDDBM-5#WTRPBF
  • HTML
  • HTML
LT8618CAV#TRMPBF
  • HTML
  • HTML
LT8618CAV#TRPBF
  • HTML
  • HTML
LT8618EDDB#TRMPBF
  • HTML
  • HTML
LT8618EDDB#TRPBF
  • HTML
  • HTML
LT8618EDDB#WTRMPBF
  • HTML
  • HTML
LT8618EDDB#WTRPBF
  • HTML
  • HTML
LT8618EDDB-3.3#TRMPBF
  • HTML
  • HTML
LT8618EDDB-3.3#TRPBF
  • HTML
  • HTML
LT8618EDDB-3.3#WTRMPBF
  • HTML
  • HTML
LT8618EDDB-3.3#WTRPBF
  • HTML
  • HTML
LT8618IDDB#TRMPBF
  • HTML
  • HTML
LT8618IDDB#TRPBF
  • HTML
  • HTML
LT8618IDDB#WTRMPBF
  • HTML
  • HTML
LT8618IDDB#WTRPBF
  • HTML
  • HTML
LT8618IDDB-3.3#TRMPBF
  • HTML
  • HTML
LT8618IDDB-3.3#TRPBF
  • HTML
  • HTML
LT8618IDDB-3.3#WTRMPBF
  • HTML
  • HTML
LT8618IDDB-3.3#WTRPBF
  • HTML
  • HTML
LT8618JDDB#TRMPBF
  • HTML
  • HTML
LT8618JDDB#TRPBF
  • HTML
  • HTML
LT8618JDDB#WTRMPBF
  • HTML
  • HTML
LT8618JDDB#WTRPBF
  • HTML
  • HTML
LT8618JDDB-3.3#TRMPBF
  • HTML
  • HTML
LT8618JDDB-3.3#TRPBF
  • HTML
  • HTML
LT8618JDDB-3.3#WTRMPBF
  • HTML
  • HTML
LT8618JDDB-3.3#WTRPBF
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 4

reference details image

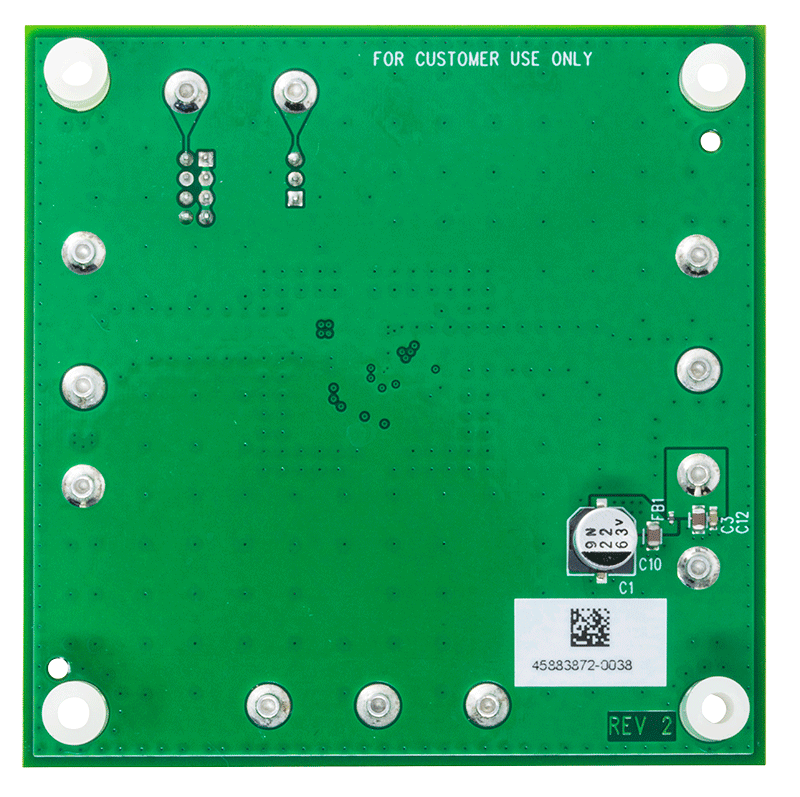

DC3214A

LT8618C | High Efficiency 65V, 100mA Synchronous Buck Regulator

zoom

DC3214A

LT8618C | High Efficiency 65V, 100mA Synchronous Buck Regulator

LT8618C | High Efficiency 65V, 100mA Synchronous Buck Regulator

Product Detail

Demonstration circuit 3214A features the LT8618C, a high efficiency 65V, 100mA synchronous step-down regulator in 12-Lead 2mm . 2mm LQFN package. The demo board is designed for 100mA at 5V output from a 5.9V to 65V input, with the switching frequency programmed at 2MHz.

The LT8618C is a compact high efficiency, and high frequency synchronous monolithic step-down switching regulator, with internal soft-start capacitor, compensation network, BST and INTVCC capacitors.

The operation mode can be configured via the SYNC/MODE pin for forced continuous mode, Burst Mode® operation, or spread spectrum mode. The low quiescent current and high efficiency in Burst Mode make it an ideal solution for applications requiring highest efficiency at light load conditions, such as automotive housekeeping supplies, industrial sensors, flow meters, Internet of Things, and battery powered portable instruments.

The demo board DC3214A has an EMI filter installed. The EMI performance of the board running in spread spectrum mode is shown in Figure 2 in the demo manual, where the red lines are CISPR25 Class 5 average limits. The circuit passes the average limit with a wide margin.

The LT8618/LT8618C data sheet gives a complete description of the part, operation, and application information. The data sheet must be read in conjunction with the DC3214A demo manual. Contact ADI applications engineer for technical support.

reference details image

DC2822A

LT8618 Demo Board | High Efficiency 65V, 100mA Synchronous Buck Regulator

zoom

DC2822A

LT8618 Demo Board | High Efficiency 65V, 100mA Synchronous Buck Regulator

LT8618 Demo Board | High Efficiency 65V, 100mA Synchronous Buck Regulator

Product Detail

Demonstration circuit 2822A features the LT8618, a high efficiency 65V, 100mA synchronous step-down regulator. The DC2822A demo board is designed for 100mA at 5V output from a 5.5V to 60V input with switching frequency of 2MHz. The wide input range allows a variety of input sources, such as automotive batteries and industrial supplies. The LT8618 is a high efficiency, and high frequency synchronous monolithic step-down switching regulator in a 3mm × 2mm DFN package with exposed pads for low thermal resistance. The regulator’s ultralow 2.5μA quiescent current with the output in full regulation enables applications requiring highest efficiency at very light load currents, such as automotive and battery powered portable instruments.

Peak current mode control with minimum on-time of as small as 35ns allows high step-down conversion even at high frequency. The LT8618 switching frequency can be programmed via an oscillator resistor over a 200kHz to 2.2MHz range. The default frequency of the DC2822A is 2MHz.

The DC2822A demo board has an EMI filter installed. The EMI performance of the board is shown on Figure 2. The red line in radiated EMI performance is CISPR25 Class 5 peak limit. The figure shows that the circuit passes the test with a wide margin.

The LT8618 data sheet gives a complete description of the part, operation and application information. The data sheet must be read in conjunction with this demo manual. The layout recommendations for best thermal performance are available in the data sheet Application Information section. Contact ADI applications engineer for technical support.

reference details image

SCP-LT8618-BEVALZ

LT8618 Signal Chain Evaluation Board | High Efficiency 60V/100mA Sync Buck

zoom

SCP-LT8618-BEVALZ

LT8618 Signal Chain Evaluation Board | High Efficiency 60V/100mA Sync Buck

LT8618 Signal Chain Evaluation Board | High Efficiency 60V/100mA Sync Buck

Product Detail

Demonstration circuit SCP-LT8618-BEVALZ is a high efficiency 60V, 100mA synchronous step-down regulator. The wide input range also allows output voltage inversion by using the SCP-LT8618-IEVALZ version of this board.

Like all boards in the Signal Chain Power series, this board is designed to be easily plugged into other SCP boards to form a complete signal chain power system, enabling fast evaluation of low power signal chains. To evaluate this board, some universal SCP hardware is required, namely:

  • SCP-INPUT-EVALZ
  • SCP-OUTPUT-EVALZ
  • SCP-1X5BKOUT-EVALZ
  • SCP-THRUBRD-EVALZ
  • SCP-FILTER-EVALZ
  • SCP-1X2BKOUT-EVALZ
  • SCP-5X1-EVALZ



To properly evaluate SCP series demo boards, you will need the SCP Configurator companion software. SCP Configurator can help you choose the right board and topology for your design.

Note that the Demo Manual does not cover details important to the operation and configuration regarding the LT8618. Please refer to the LT8618 datasheet for a complete description of the part.

reference details image

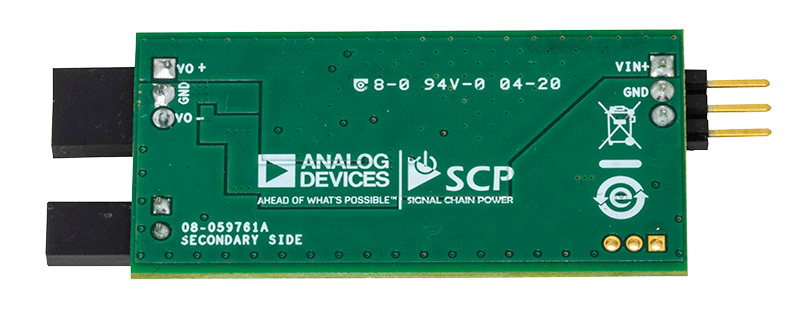

SCP-LT8618-IEVALZ

LT8618 Signal Chain Evaluation Board | High Efficiency 60V/100mA Sync Inverting Buck

zoom

SCP-LT8618-IEVALZ

LT8618 Signal Chain Evaluation Board | High Efficiency 60V/100mA Sync Inverting Buck

LT8618 Signal Chain Evaluation Board | High Efficiency 60V/100mA Sync Inverting Buck

Product Detail

Demonstration circuit SCP-LT8618-BEVALZ is a high efficiency 60V, 100mA synchronous step-down regulator. The wide input range also allows output voltage inversion by using the SCP-LT8618-IEVALZ version of this board.

Like all boards in the Signal Chain Power series, this board is designed to be easily plugged into other SCP boards to form a complete signal chain power system, enabling fast evaluation of low power signal chains. To evaluate this board, some universal SCP hardware is required, namely:

  • SCP-INPUT-EVALZ
  • SCP-OUTPUT-EVALZ
  • SCP-FILTER-EVALZ
  • SCP-THRUBRD-EVALZ
  • SCP-1X2BKOUT-EVALZ
  • SCP-1X5BKOUT-EVALZ
  • SCP-5X1-EVALZ



To properly evaluate SCP series demo boards, you will need the SCP Configurator companion software. SCP Configurator can help you choose the right board and topology for your design.

Note that the Demo Manual does not cover details important to the operation and configuration regarding the LT8618. Please refer to the LT8618 datasheet for a complete description of the part.

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
