LT7176

RECOMMENDED FOR NEW DESIGNS

24A, 4V, Single- or Dual-Phase, Silent Switcher Step-Down Regulators with Digital Power System Management

Data Sheet (Rev. A) Product Selection Table
Viewing:

Overview

  • Silent Switcher® Architecture: Enables a Compact, Efficient, Low EMI Solution
  • PMBus/I2C Serial Interface
    • Telemetry Read Back includes VOUT, IOUT, VIN, Die Temperature, and Faults
    • Programmable Voltage, Current Limit, Sequencing, Soft Start and Stop, Undervoltage and Overvoltage, Phase, Frequency (up to 3MHz), and Loop Compensation
    • Integrated Three Times Programmable NVM
  • Key Parameters Selectable by Resistor
  • VOUT Set Point Range: 0.3V to 3.4V
  • VOUT Accuracy: ±0.25%, 0.6V ≤ VOUT ≤ 1.375V
  • PolyPhase Load Sharing up to Four Devices
  • Optional Pulse-Skipping Mode Enables Low Quiescent Current
  • Differential Remote VOUT Sense
  • Fast Transient Response
  • Wide VIN Supply Range: Down to 2.7V or 1.5V with EXTVCC
  • Programmable and Synchronizable: 1MHz to 3MHz
  • 30-lead (3.5mm × 4mm) LQFN
LT7176
24A, 4V, Single- or Dual-Phase, Silent Switcher Step-Down Regulators with Digital Power System Management

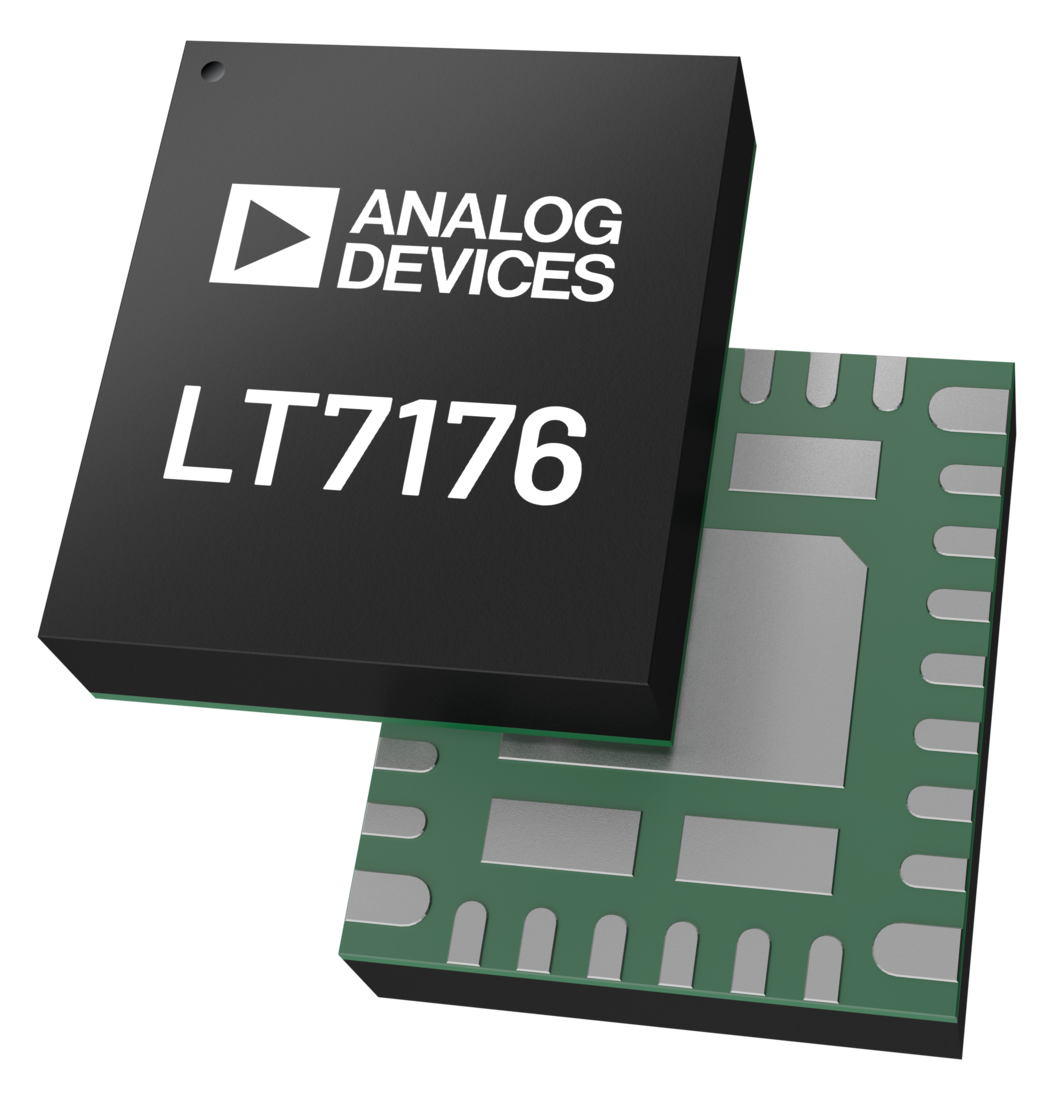

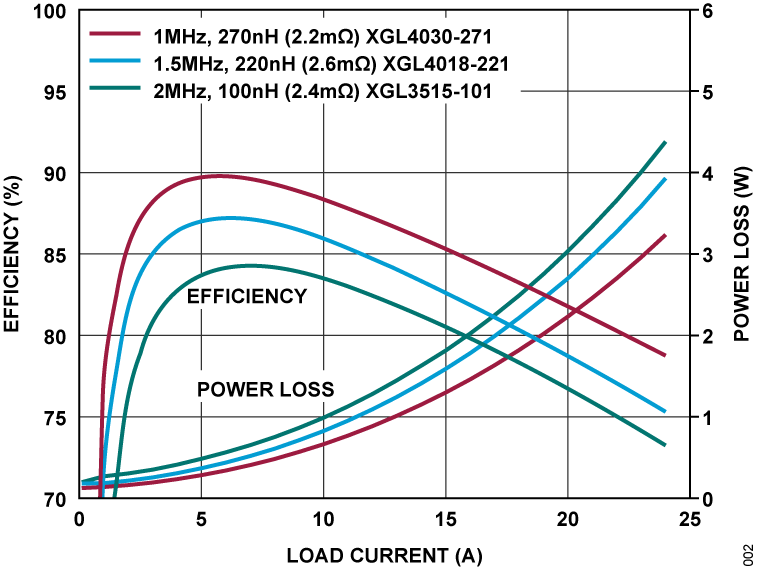

LT7176-LT7176-1 Typical Application LT7176_LT7176-1 View Efficiency LT7176-LT7176-1 Pin Configuration LT7176 Chip Illustration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 2

User Guide 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

  • LT7176
  • LT7176-1
  • LT7176P-1

LTpowerCAD

Design tools for the following parts are available in LTpowerCAD:

  • LT7176
  • LT7176-1
  • LT7176P-1
LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
EVAL-LT7176-AZ

4V, PolyPhase Silent Switcher Step-Down Regulator with Digital Power System Management 2xLT7176, 48A

Buy Now View Details

Product Details

The evaluation kit EVAL-LT7176-AZ is a dual-phase single-output monolithic DC/DC synchronous step-down regulator with a 2.7V to 4V input range featuring LT®7176. With 3V to 12V EXTVCC provided, the input voltage can be as low as 1.5V. The output can supply 48A continuous load current. The Silent Switcher® regulator structure is incorporated into the LT7176 to minimize EMI and reduce PCB layout sensitivity. It also integrates digital power system management functionality, allowing for programmability and telemetry with a PMBus/I2C compliant serial interface. Refer to the LT7176 data sheet for more detailed information.

The EVAL-LT7176-AZ evaluation board is designed for 0.5V output with a switching frequency set at 1.5MHz. The controlled on-time valley current-mode control with 25ns typical minimum on-time enables a high switching frequency at a low output voltage with excellent transient response in a small overall solution size.

The EVAL-LT7176-AZ powers up to default settings and produces power based on the NVM configuration without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the power system management features of the part, download the GUI software LTpowerPlay® onto the PC and use ADI’s I2C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on the fly, and store the configuration in NVM, view telemetry of voltage, current, temperature, and fault status. The NVM can be programmed up to three times.

GUI Download

The software can be downloaded from LTpowerPlay.

The LT7176 data sheet gives a complete description of the part, operation, and application information. The data sheet must be read in conjunction with this demo manual for EVAL-LT7176-AZ.

For more details and instructions of the LTpowerPlay, refer to LTpowerPlay GUI for the LT7176 Quick Start Guide.

eval board
schematic 4
schematic 5
schematic 6
EVAL-LT7176-AZ

4V, PolyPhase Silent Switcher Step-Down Regulator with Digital Power System Management 2xLT7176, 48A

Buy Now View Details

Product Details

The evaluation kit EVAL-LT7176-AZ is a dual-phase single-output monolithic DC/DC synchronous step-down regulator with a 2.7V to 4V input range featuring LT®7176. With 3V to 12V EXTVCC provided, the input voltage can be as low as 1.5V. The output can supply 48A continuous load current. The Silent Switcher® regulator structure is incorporated into the LT7176 to minimize EMI and reduce PCB layout sensitivity. It also integrates digital power system management functionality, allowing for programmability and telemetry with a PMBus/I2C compliant serial interface. Refer to the LT7176 data sheet for more detailed information.

The EVAL-LT7176-AZ evaluation board is designed for 0.5V output with a switching frequency set at 1.5MHz. The controlled on-time valley current-mode control with 25ns typical minimum on-time enables a high switching frequency at a low output voltage with excellent transient response in a small overall solution size.

The EVAL-LT7176-AZ powers up to default settings and produces power based on the NVM configuration without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the power system management features of the part, download the GUI software LTpowerPlay® onto the PC and use ADI’s I2C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on the fly, and store the configuration in NVM, view telemetry of voltage, current, temperature, and fault status. The NVM can be programmed up to three times.

GUI Download

The software can be downloaded from LTpowerPlay.

The LT7176 data sheet gives a complete description of the part, operation, and application information. The data sheet must be read in conjunction with this demo manual for EVAL-LT7176-AZ.

For more details and instructions of the LTpowerPlay, refer to LTpowerPlay GUI for the LT7176 Quick Start Guide.
EVAL-LT7176-AZ
4V, PolyPhase Silent Switcher Step-Down Regulator with Digital Power System Management 2xLT7176, 48A

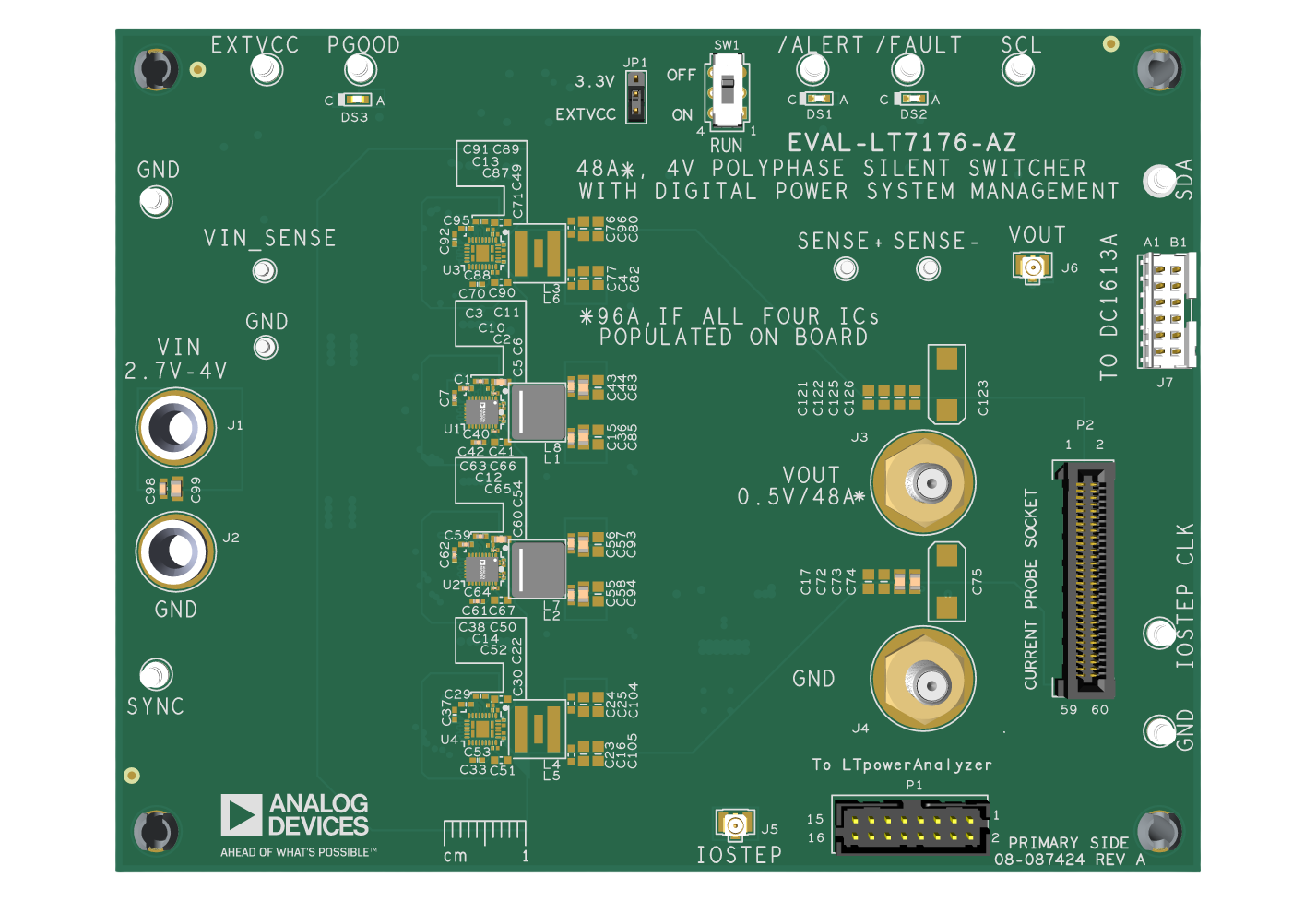

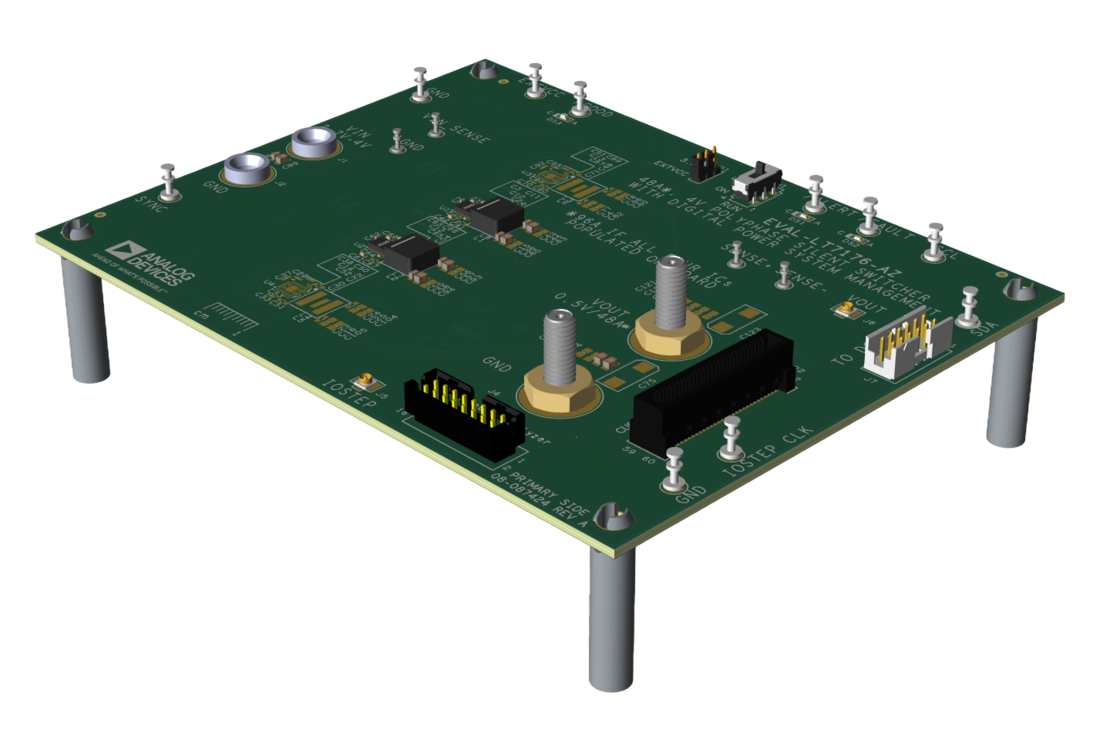

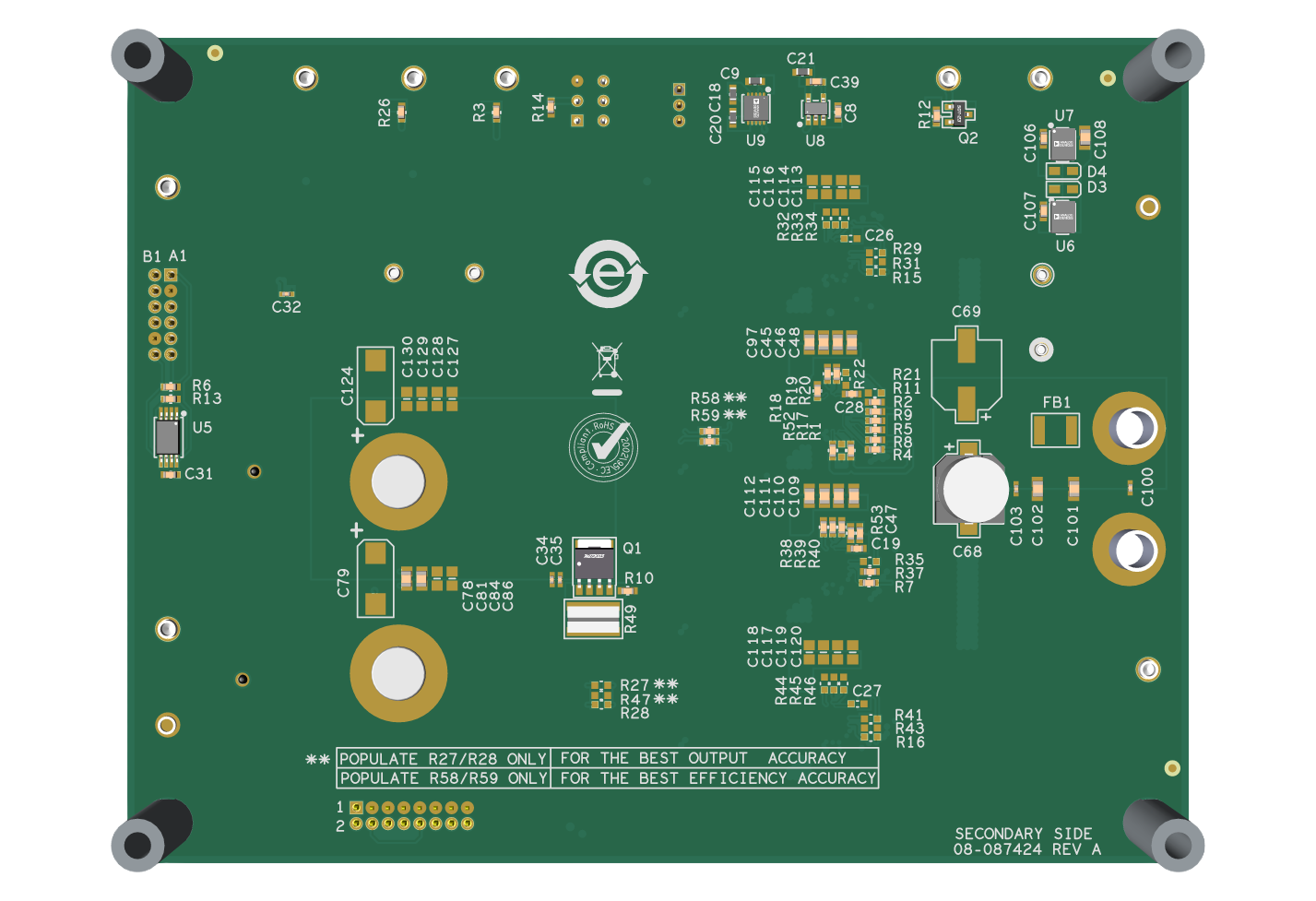

EVAL-LT7176-AZ Evaluation Board Angle View EVAL-LT7176-AZ Evaluation Board Top View EVAL-LT7176-AZ Evaluation Board Bottom View
EVAL-LT7176-AZ
4V, PolyPhase Silent Switcher Step-Down Regulator with Digital Power System Management 2xLT7176, 48A
EVAL-LT7176-AZ Evaluation Board Angle View EVAL-LT7176-AZ Evaluation Board Top View EVAL-LT7176-AZ Evaluation Board Bottom View
