LT3932
LT3932-1

36V, 2A Synchronous Step-Down LED Driver

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 18
1ku List Price Starting From $3.26
Features
  • ±1.5% LED Current Regulation
  • ±1.2% Output Voltage Regulation

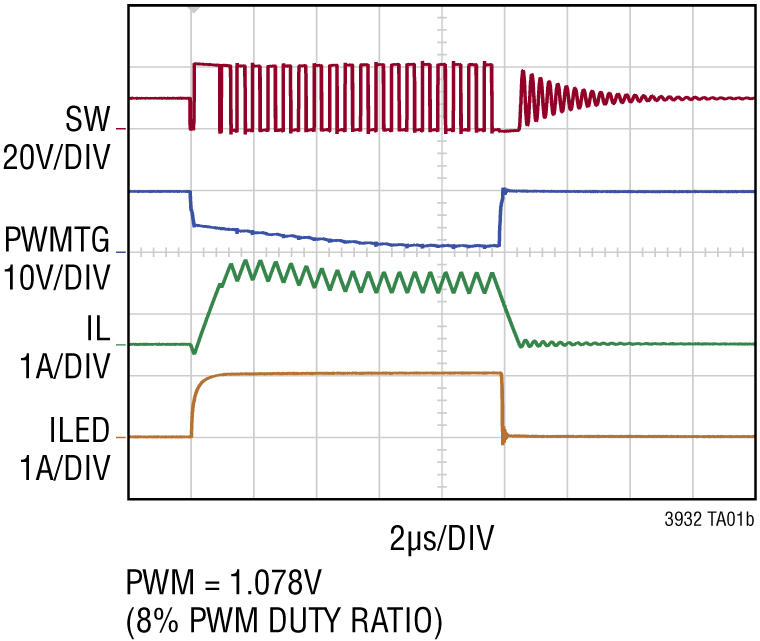

  • 5000:1/10000+:1 PWM Dimming at 100Hz (LT3932/LT3932-1)
  • 128:1 Internal PWM Dimming
  • Spread-Spectrum Frequency Modulation
  • Silent Switcher® Architecture for Low EMI
  • 3.6V to 36V Input Voltage Range
  • 0V to 36V LED String Voltage
  • 200kHz to 2MHz with SYNC Function
  • 99.9% Maximum Duty Cycle
  • 20:1 Analog or Duty Cycle LED Current Control
  • Open/Short LED Protection and Fault Indication
  • Accurate LED Current Sense with Monitor Output
  • Programmable UVLO

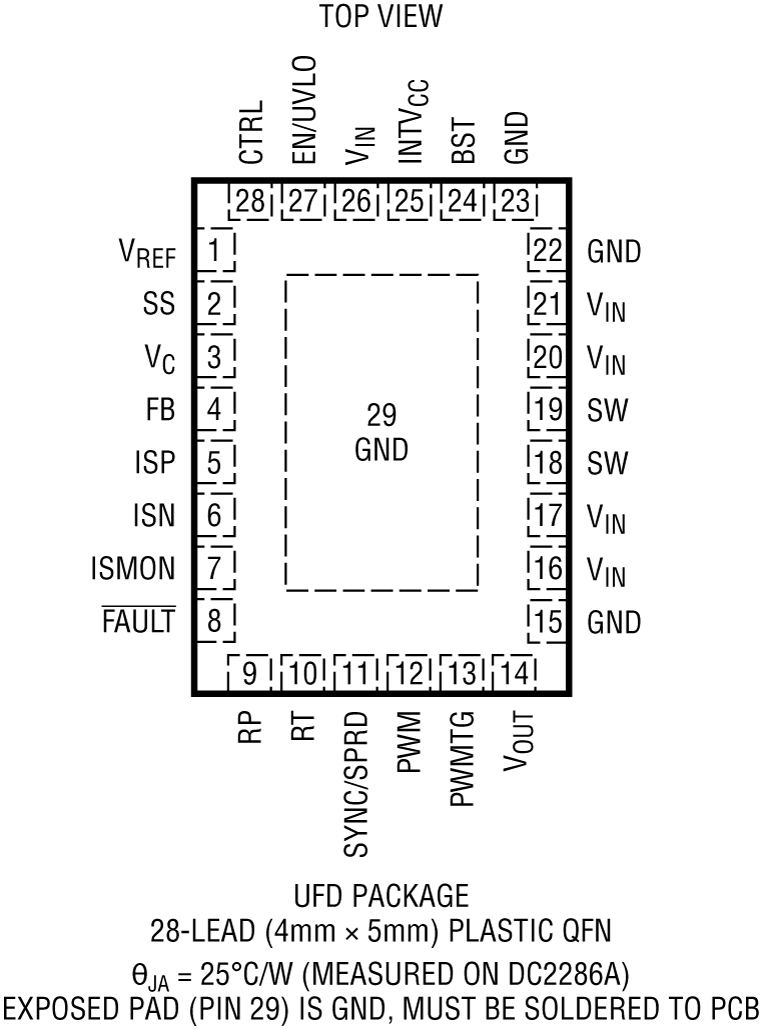

  • Thermally Enhanced 28-Pin (4mm × 5mm) QFN
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LT3932, featuring the Silent Switcher® architecture to minimize EMI/EMC emissions, utilizes fixed-frequency, peak current control and provides PWM dimming for a string of LEDs. The LED current is programmed by an analog voltage or the duty cycle of pulses at the CTRL pin. An output voltage limit can be set with a resistor divider to the FB pin.

The switching frequency is programmable from 200kHz to 2MHz by an external resistor at the RT pin or by an external clock at the SYNC/SPRD pin. With the optional spread spectrum frequency modulation enabled, the frequency varies from 100% to 125% to reduce EMI. The LT3932 also includes a driver for an external, high side PMOS for PWM dimming and an internal PWM signal generator for analog control of PWM dimming when an external signal is not available. The LT3932-1 permits higher dimming ratios.

Additional features include an LED current monitor, an accurate EN/UVLO pin threshold, open-drain fault reporting for open-circuit and short-circuit load conditions, and thermal shutdown.

APPLICATIONS

  • Automotive Lighting
  • Industrial and General Purpose Lighting
  • Machine Vision Systems
Part Models 18
1ku List Price Starting From $3.26

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3932EUFD#PBF
  • HTML
  • HTML
LT3932EUFD#TRPBF
  • HTML
  • HTML
LT3932EUFD#WPBF
  • HTML
  • HTML
LT3932EUFD#WTRPBF
  • HTML
  • HTML
LT3932EUFD-1#PBF
  • HTML
  • HTML
LT3932EUFD-1#TRPBF
  • HTML
  • HTML
LT3932HUFD#PBF
  • HTML
  • HTML
LT3932HUFD#TRPBF
  • HTML
  • HTML
LT3932HUFD#WPBF
  • HTML
  • HTML
LT3932HUFD#WTRPBF
  • HTML
  • HTML
LT3932HUFD-1#PBF
  • HTML
  • HTML
LT3932HUFD-1#TRPBF
  • HTML
  • HTML
LT3932IUFD#PBF
  • HTML
  • HTML
LT3932IUFD#TRPBF
  • HTML
  • HTML
LT3932IUFD#WPBF
  • HTML
  • HTML
LT3932IUFD#WTRPBF
  • HTML
  • HTML
LT3932IUFD-1#PBF
  • HTML
  • HTML
LT3932IUFD-1#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 11, 2019

- 19_0067

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT3932EUFD#PBF

PRODUCTION

LT3932EUFD#TRPBF

PRODUCTION

LT3932EUFD-1#PBF

PRODUCTION

LT3932EUFD-1#TRPBF

PRODUCTION

LT3932HUFD#PBF

PRODUCTION

LT3932HUFD#TRPBF

PRODUCTION

LT3932HUFD-1#PBF

PRODUCTION

LT3932HUFD-1#TRPBF

PRODUCTION

LT3932IUFD#PBF

PRODUCTION

LT3932IUFD#TRPBF

PRODUCTION

LT3932IUFD-1#PBF

PRODUCTION

LT3932IUFD-1#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 11, 2019

- 19_0067

arrow down

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT3932EUFD#PBF

PRODUCTION

LT3932EUFD#TRPBF

PRODUCTION

LT3932EUFD-1#PBF

PRODUCTION

LT3932EUFD-1#TRPBF

PRODUCTION

LT3932HUFD#PBF

PRODUCTION

LT3932HUFD#TRPBF

PRODUCTION

LT3932HUFD-1#PBF

PRODUCTION

LT3932HUFD-1#TRPBF

PRODUCTION

LT3932IUFD#PBF

PRODUCTION

LT3932IUFD#TRPBF

PRODUCTION

LT3932IUFD-1#PBF

PRODUCTION

LT3932IUFD-1#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC2286A

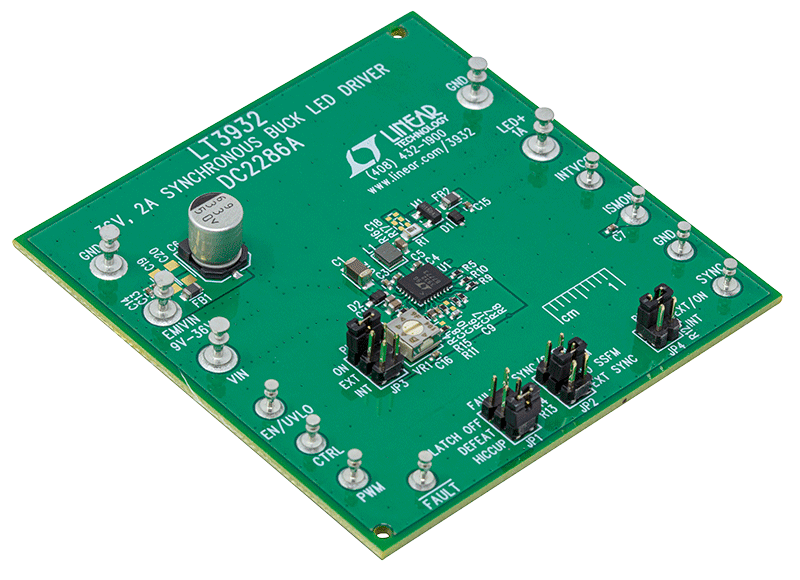

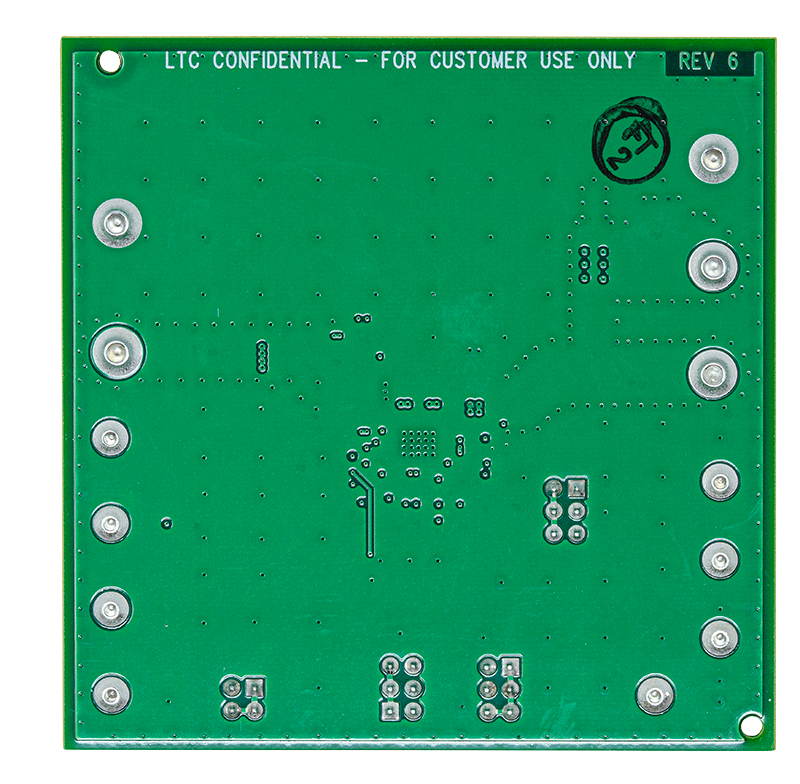

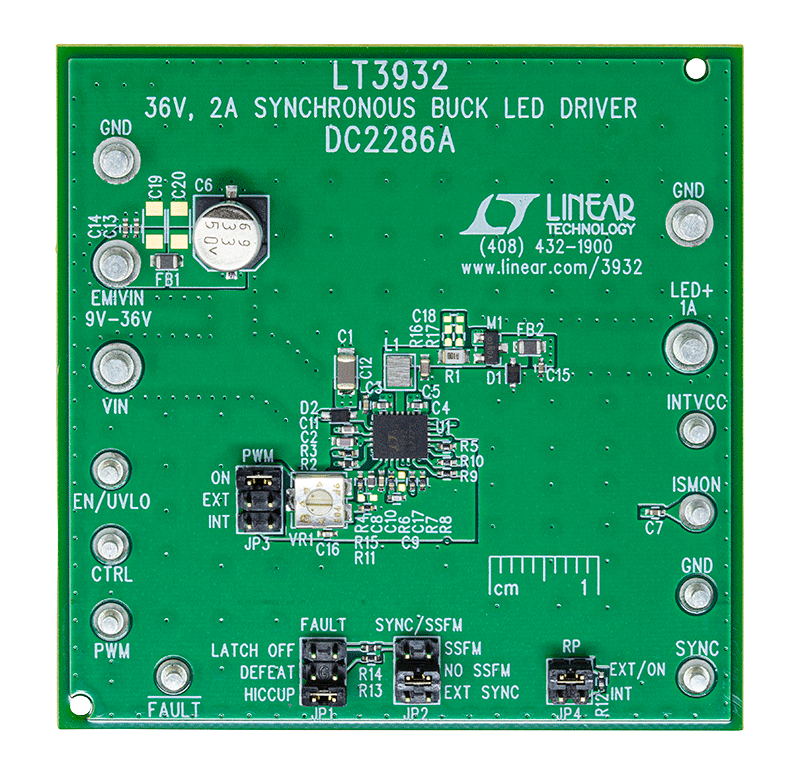

LT3932 Demo Board | VIN = 8V to 36V driving two series LEDs (1ALED/6.6VLED) at 2MHz

zoom

DC2286A

LT3932 Demo Board | VIN = 8V to 36V driving two series LEDs (1ALED/6.6VLED) at 2MHz

LT3932 Demo Board | VIN = 8V to 36V driving two series LEDs (1ALED/6.6VLED) at 2MHz

Product Detail

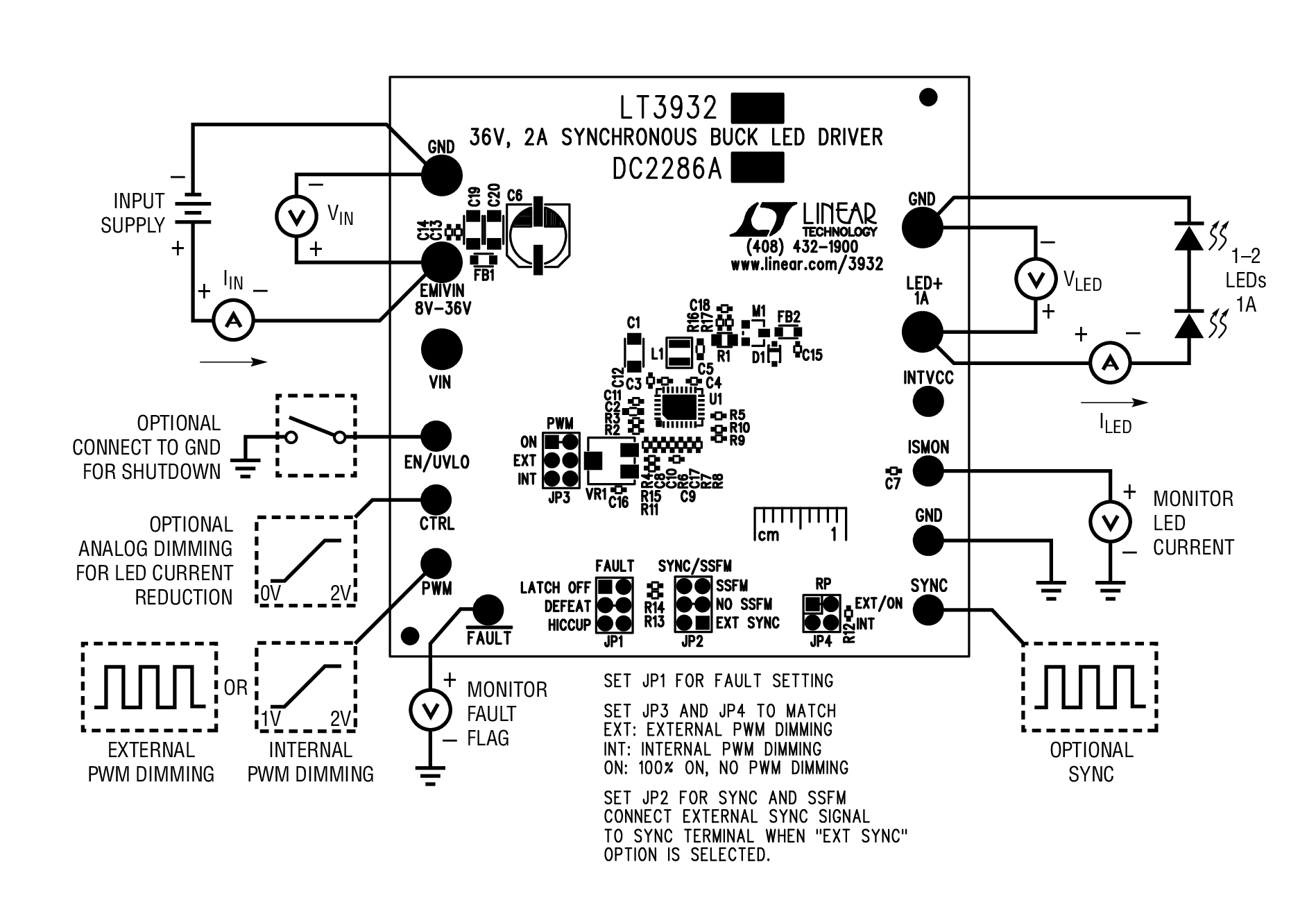

Demonstration circuit DC2286A is a 36V, 2A synchronous 2MHz buck LED driver featuring the LT3932. It drives one or two series LEDs at 1A when VIN is between 8V and 36V. It can run down to 4VIN with a single LED (if UVLO is adjusted). DC2286A runs at 2MHz switching frequency. Spread spectrum frequency modulation (SSFM) can be turned on with a simple jumper, reducing EMI. DC2286A comes with low EMI features including optimized layout, SSFM, and input and output filters. It passes CISPR 25 class 5 conducted and radiated EMI. It is protected against both open and short LED conditions and reports the faults.

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
