Features and Benefits
- Up to 36V of LEDs, 2-String × 60mA LED Driver
- Wide Input Range: 2.9V to 40V
- Up to 40,000:1 PWM Dimming (250ns LED On-Time) (Independent of Leakage at VOUT)
- ±2% LED Current Matching (Typ ±0.3%)
- Integrated Schottky Diode
- Internal 400mΩ, 40V, 1A Switch
- Single Resistor Sets LED Current (10mA to 60mA) for Both High-Side Current Sources
- Output Adapts to LED VF for Optimum Efficiency
- LED Current Regulated Even for VIN > VOUT
- Fault Flag + Protection for Open-LED and LED-Short-to- GND (Other String Remains in Regulation)
- Programmable Maximum VOUT (Regulated)
- Internal Compensation, Soft-Start and Thermal Regulation
- Accurate EN/UVLO Threshold
- Fixed 2MHz Switching Frequency
The LT3909 is a 2-string × 60mA LED driver with a fixed 2MHz step-up DC/DC converter capable of driving up to 36V of LEDs. Each LED string contains an accurate high-side current source with ±2% current matching. Output voltage adapts to variations in LED VF for optimum efficiency.
Maximum LED current can be programmed from 10mA to 60mA per string using a single resistor. LED brightness can be reduced with analog dimming (up to 10:1) or with PWM dimming (up to 40,000:1 at 100Hz, up to 160:1 at 25kHz) (independent of leakage at VOUT). The LED pins can be paralleled for higher LED current.
Additional features include: programmable maximum VOUT for open LED protection, a fault flag to indicate open-LED or LED-short-to-GND and an internal regulation loop to safely limit junction temperature. The LT3909 also includes internal compensation, internal soft-start and micropower shutdown. The LT3909 is available in the 12-pin (3mm × 3mm) DFN and 12-pin MSOP packages.
- PDAs, Handheld Computers
- GPS Receivers
- Automotive Displays
- High Contrast Instrument Clusters
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

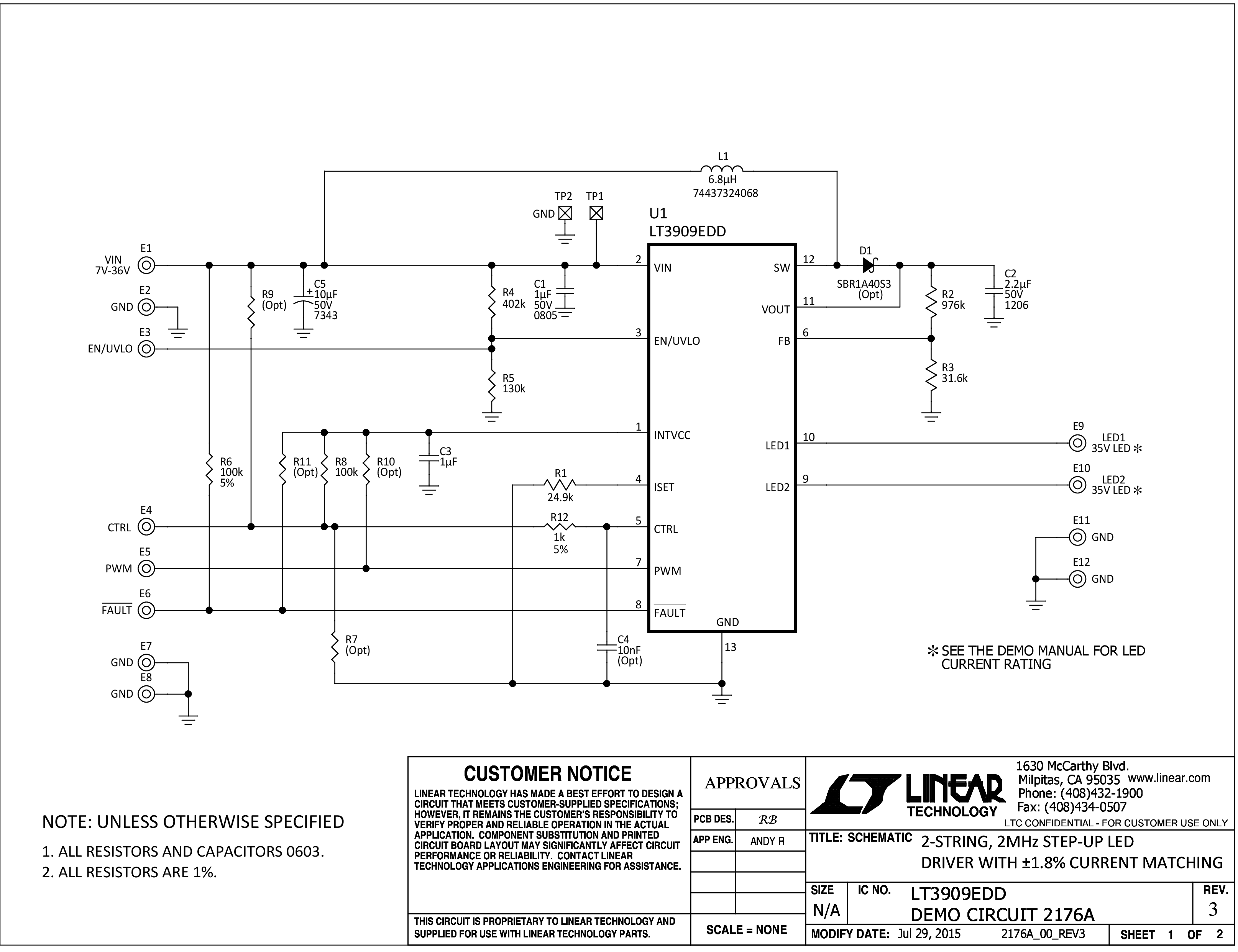

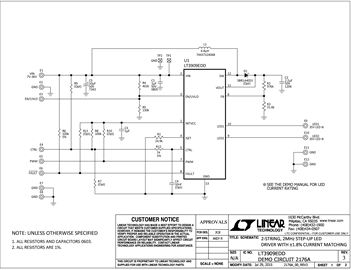

Demonstration circuit 2176A features the LT3909, a 2-string × 50mA, 2MHz step-up LED driver with ±1.8% current matching. The LT3909 precisely regulates two LED strings for equal current, supports LED dimming that reduces brightness down to a 1/40,000 ratio, protects against faults and also reports faults. The LT3909 consists of a step-up converter with a fixed 2MHz switching frequency and current sources for the LED strings.
The maximum current in each LED string is 40mA. The ISET resistor can be changed to 20.0kΩ to program the string current to 50mA – see the data sheet for an application example with 50mA string current. Voltage feedback resistors optimize operation for LEDs that are 35V maximum.
Tools & Simulations
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Models for the following parts are available in LTspice:
LT3909 Companion Parts
Recommended Related Parts
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LT3909EDD#PBF||Material Declaration||Reliability Data||12-Lead DFN (3mm x 3mm w/ EP)|
|LT3909EDD#TRPBF||Material Declaration||Reliability Data||12-Lead DFN (3mm x 3mm w/ EP)|
|LT3909EMSE#PBF||Material Declaration||Reliability Data||12-Lead MSOP w/ EP|
|LT3909EMSE#TRPBF||Material Declaration||Reliability Data||12-Lead MSOP w/ EP|
|LT3909IDD#PBF||Material Declaration||Reliability Data||12-Lead DFN (3mm x 3mm w/ EP)|
|LT3909IDD#TRPBF||Material Declaration||Reliability Data||12-Lead DFN (3mm x 3mm w/ EP)|
|LT3909IMSE#PBF||Material Declaration||Reliability Data||12-Lead MSOP w/ EP|
|LT3909IMSE#TRPBF||Material Declaration||Reliability Data||12-Lead MSOP w/ EP|
|Wafer Fabrication Data||R580 Reliability Data|
