LT3757
LT3757A

Boost, Flyback, SEPIC and Inverting Controller

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.G)
Documentation View All Documentation
LTspice LT3757 Demo Circuit - Inverting (CUK) Converter (5-15V to -5V @ 5A) Download 4.00KB LTspice LT3757 Demo Circuit - Boost Controller (12V to 24V @ 2A) Download 3.00KB LTspice LT3757 Demo Circuit - SEPIC Controller (5.5-36V to 12V @ 2A) Download 4.00KB LTspice LT3757 - Switching Regulators Download 2.82 KB
Part Models 30
1ku List Price Starting From $2.47
Features
  • Wide Input Voltage Range: 2.9V to 40V
  • Positive or Negative Output Voltage Programming with a Single Feedback Pin
  • Current Mode Control Provides Excellent Transient Response
  • Programmable Operating Frequency (100kHz to 1MHz) with One External Resistor
  • Synchronizable to an External Clock
  • Low Shutdown Current < 1µA
  • Internal 7.2V Low Dropout Voltage Regulator
  • Programmable Input Undervoltage Lockout with Hysteresis
  • Programmable Soft-Start

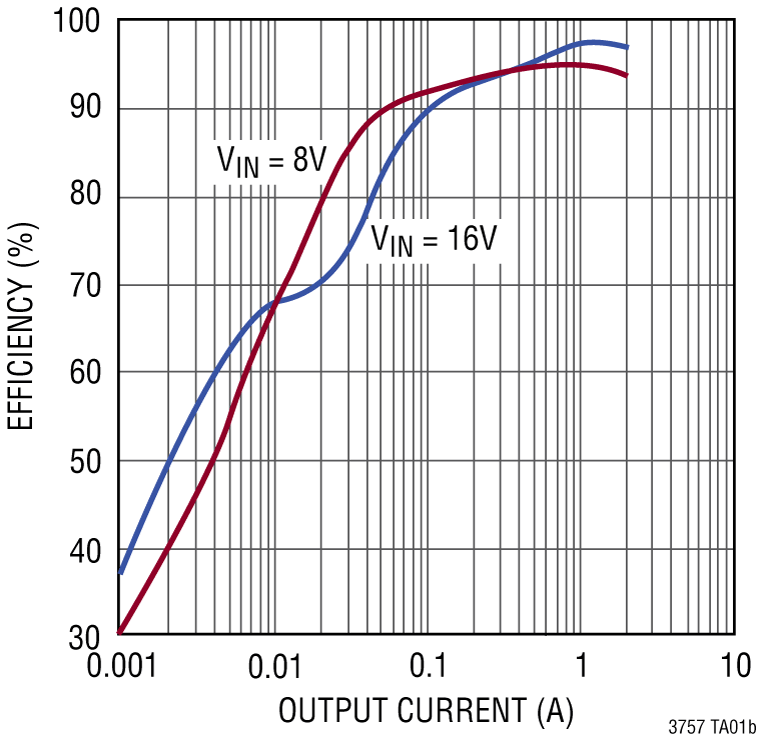

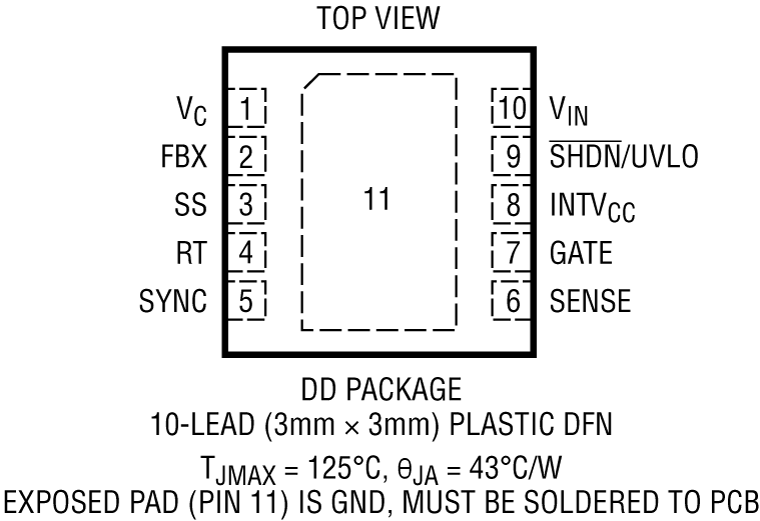

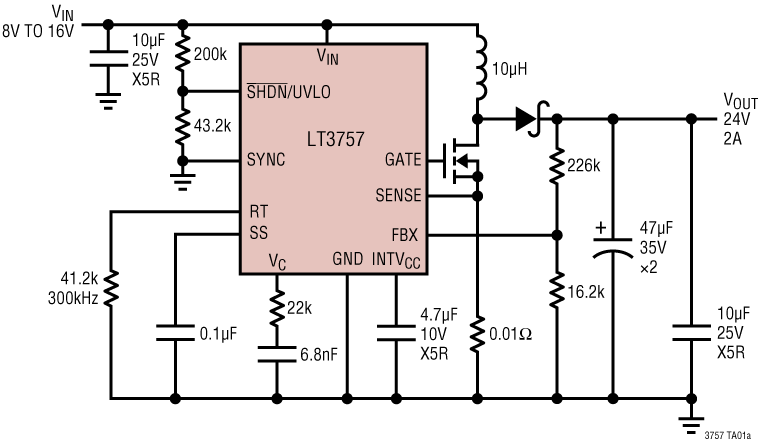

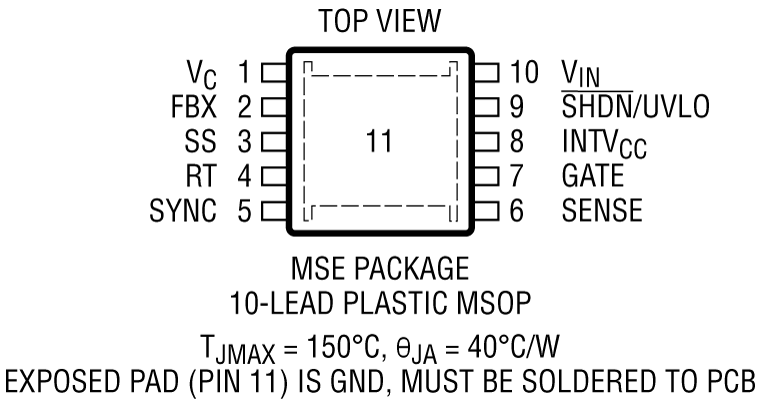

  • Small 10-Lead DFN (3mm × 3mm) and Thermally Enhanced 10-Pin MSOP Packages
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LT3757/LT3757A are wide input range, current mode, DC/DC controllers which are capable of generating either positive or negative output voltages. They can be configured as either a boost, flyback, SEPIC or inverting converter. The LT3757/LT3757A drive a low side external N-channel power MOSFET from an internal regulated 7.2V supply. The fixed frequency, current-mode architecture results in stable operation over a wide range of supply and output voltages.

The operating frequency of LT3757/LT3757A can be set with an external resistor over a 100kHz to 1MHz range, and can be synchronized to an external clock using the SYNC pin. A low minimum operating supply voltage of 2.9V, and a low shutdown quiescent current of less than 1µA, make the LT3757/LT3757A ideally suited for battery-operated systems.

The LT3757/LT3757A feature soft-start and frequency foldback functions to limit inductor current during startup and output short-circuit. The LT3757A has improved load transient performance compared to the LT3757.

APPLICATIONS

  • Automotive and Industrial Boost, Flyback, SEPIC and Inverting Converters
  • Telecom Power Supplies
  • Portable Electronic Equipment
Show More Arrow image
file View Data Sheet (Rev.G)
Documentation View All Documentation
LTspice LT3757 Demo Circuit - Inverting (CUK) Converter (5-15V to -5V @ 5A) Download 4.00KB LTspice LT3757 Demo Circuit - Boost Controller (12V to 24V @ 2A) Download 3.00KB LTspice LT3757 Demo Circuit - SEPIC Controller (5.5-36V to 12V @ 2A) Download 4.00KB LTspice LT3757 - Switching Regulators Download 2.82 KB
Part Models 30
1ku List Price Starting From $2.47
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT3757
LT3757A

Documentation

7
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • User Guide
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

3

PDF Vector

PDF

UPDATED 01/12/2021
English

LT3757/LT3757A: Boost, Flyback, SEPIC and Inverting Controller Data Sheet (Rev.G)

Open PDF File

redirect
1.36 M
download

Download PDF

PDF Vector

PDF

UPDATED 06/29/2017
Chinese

LT3757/LT3757A: Boost, Flyback, SEPIC and Inverting Controller Data Sheet

Open PDF File

redirect
1.36 M
download

Download PDF

PDF Vector

PDF

UPDATED 09/28/2012
Japanese

LT3757: 昇圧、フライバック、SEPIC および反転コントローラ データシート

Open PDF File

redirect
951.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R530 Reliability Data redirect icon

20.92 K

download

Download PDF

User Guide

3

PDF Vector

PDF

UPDATED 08/25/2010
English

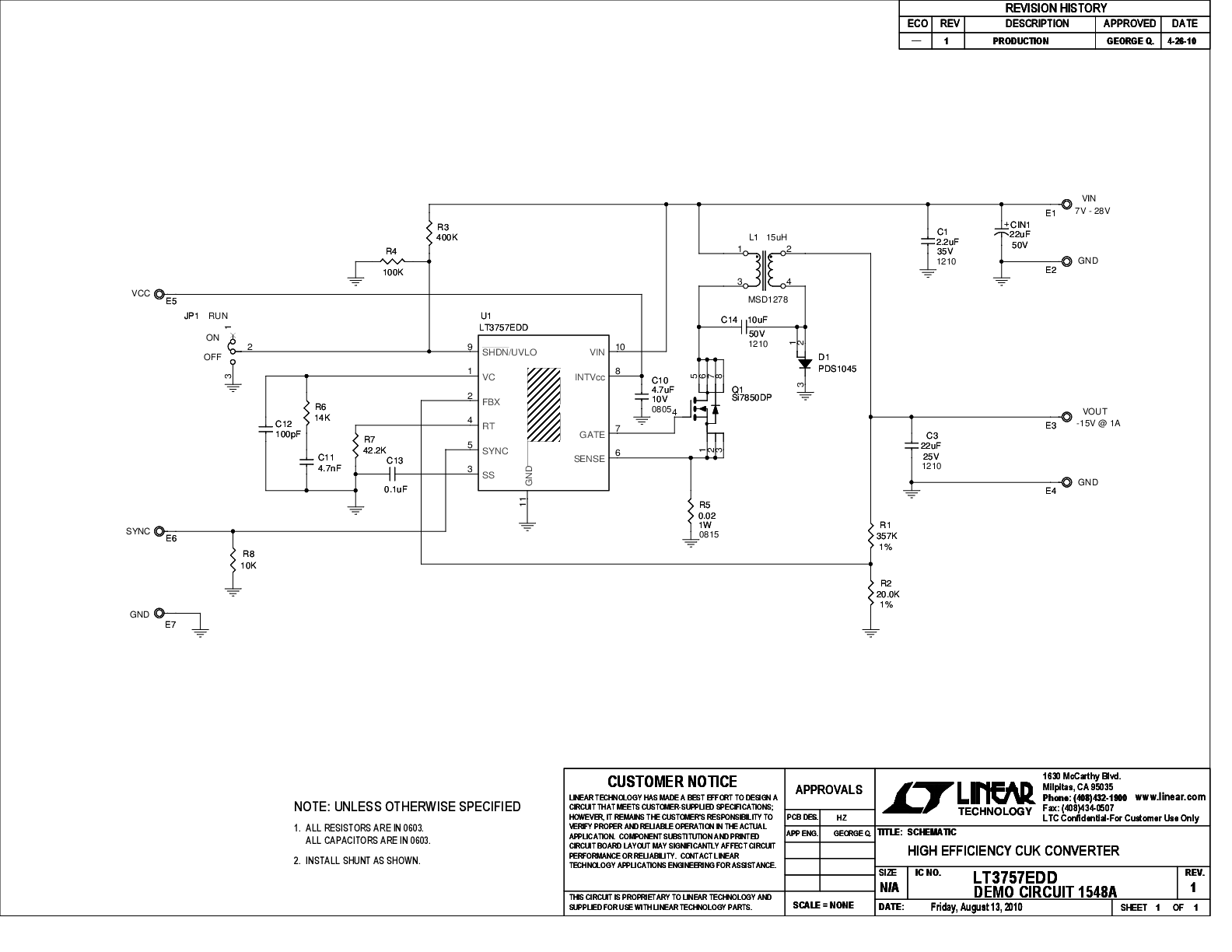

DC1548A - Demo Manual redirect icon

271.00K

download

Download PDF

PDF Vector

PDF

UPDATED 09/24/2009
English

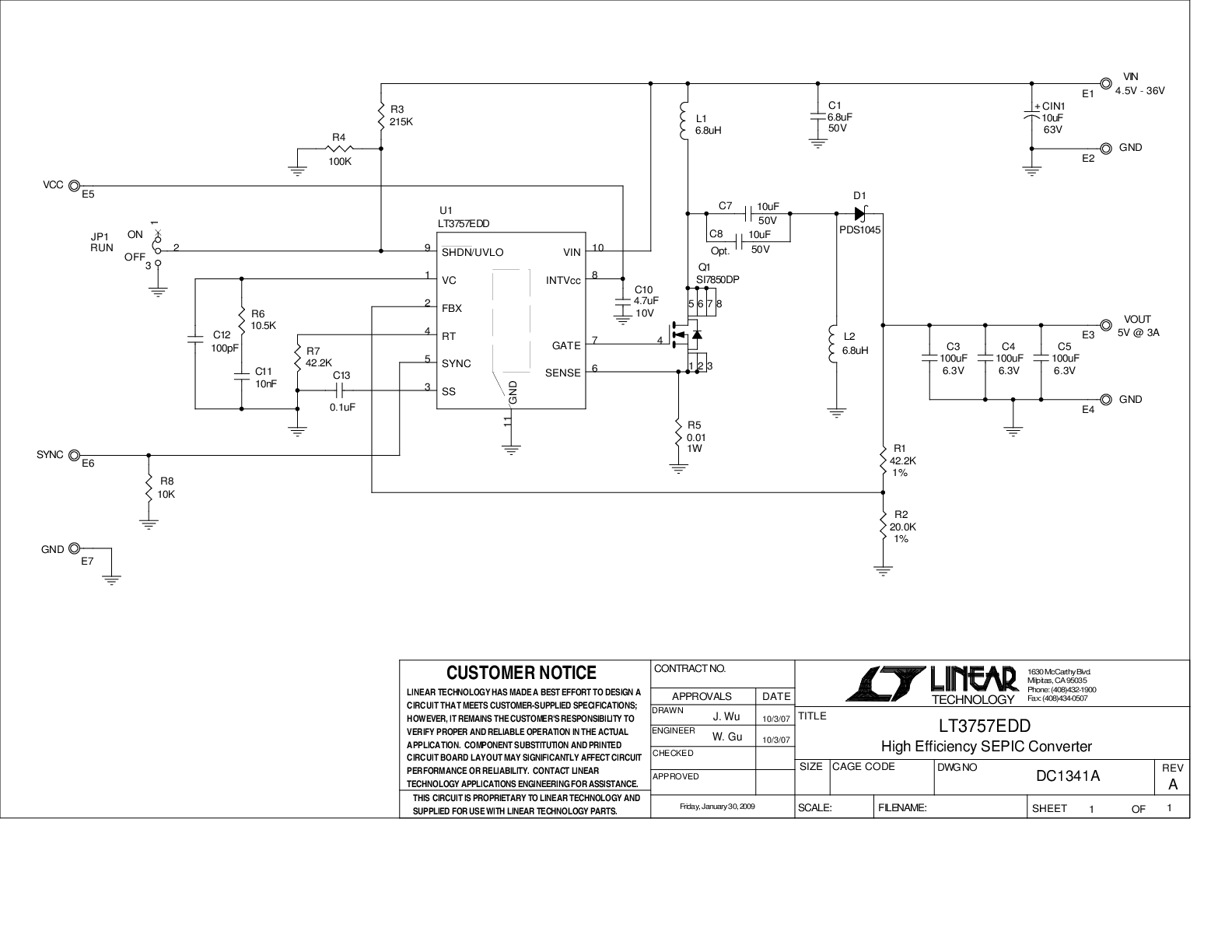

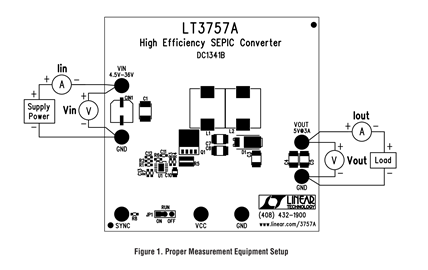

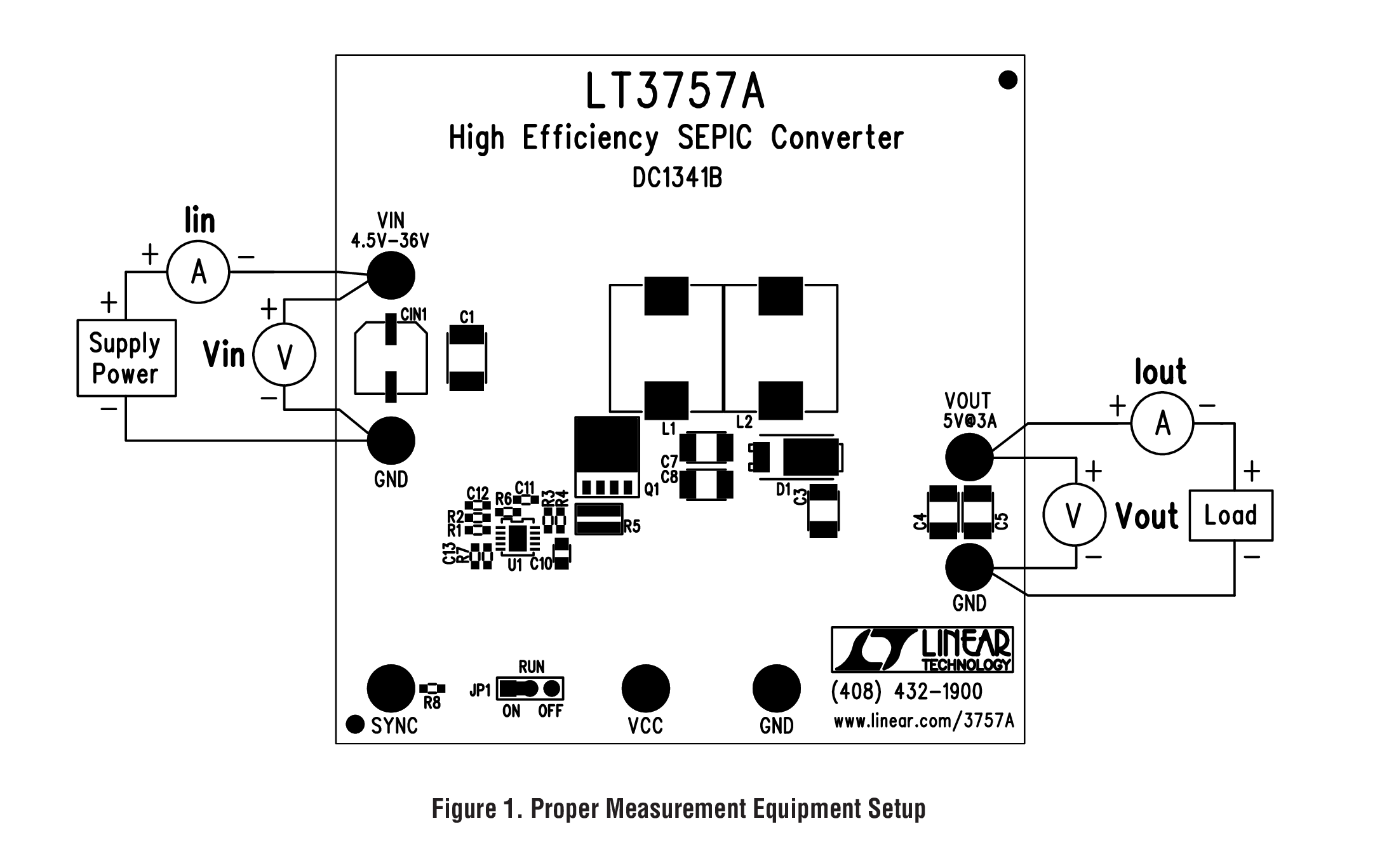

DC1341A - Demo Manual redirect icon

890.00K

download

Download PDF

PDF Vector

PDF

UPDATED 05/29/2015
English

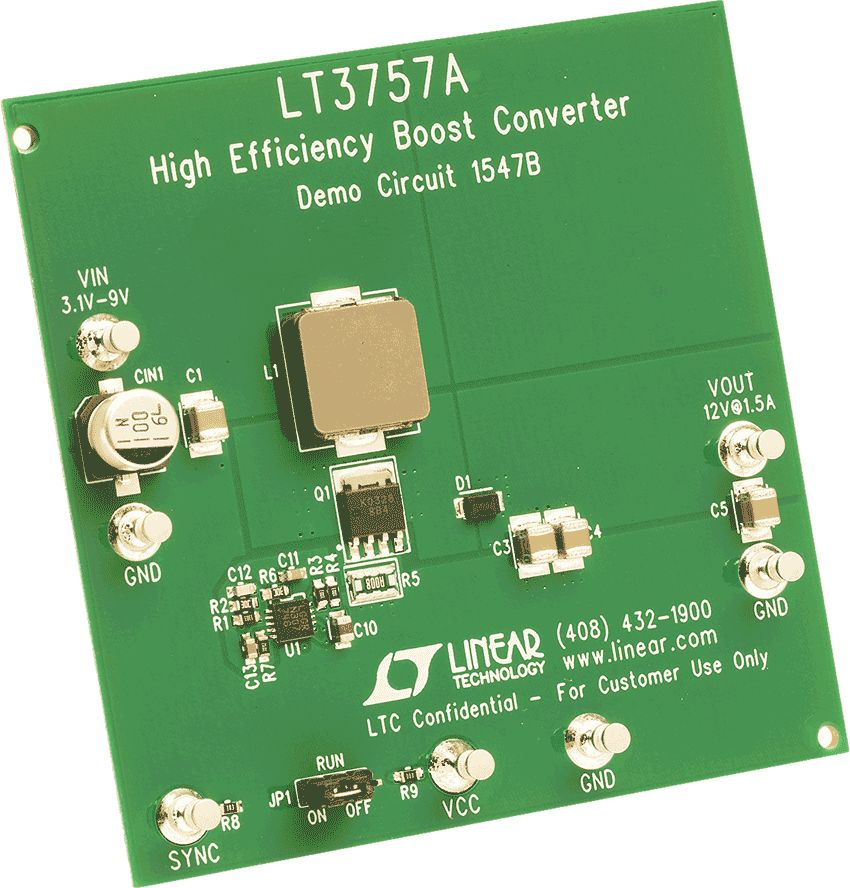

DC1547B - Demo Manual redirect icon
