Overview

Features and Benefits

  • Charges Any Size Capacitor
  • Easily Adjustable Output Voltage
  • Drives High Current NMOS FETs
  • Primary-Side Sense—No Output Voltage Divider Necessary
  • Wide Input Range: 3V to 24V
  • Drives Gate to VCC – 2V

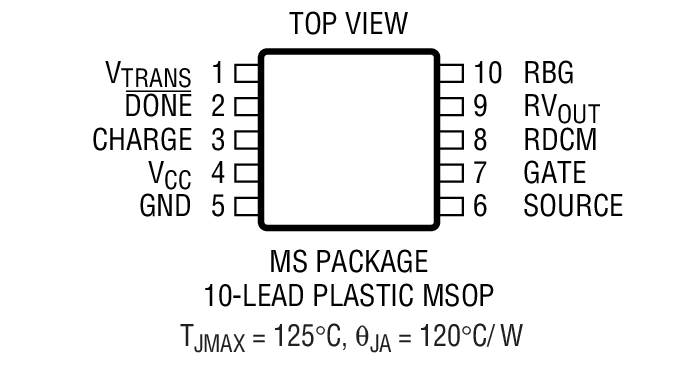

  • Available in 10-Lead MS Package

Product Details

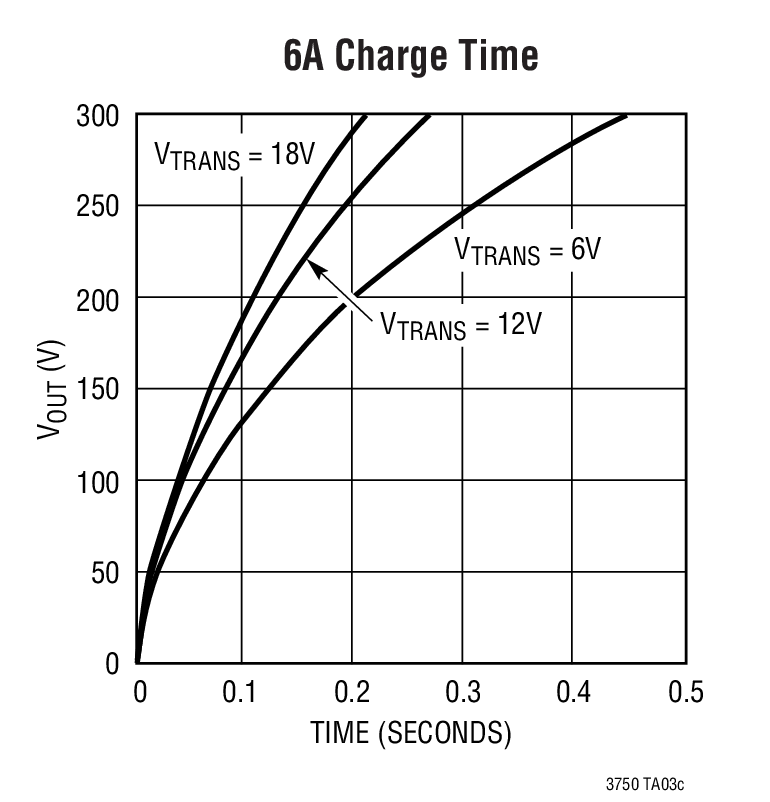

The LT3750 is a flyback converter designed to rapidly charge large capacitors to a user-adjustable target voltage. A patented boundary mode control scheme* minimizes transition losses and reduces transformer size. The transformer turns ratio and two external resistors easily adjust the output voltage.* A low 78mV current sense accurately limits peak switch current and also helps to maximize efficiency. With a wide input voltage range, the LT3750 can operate from a variety of power sources. A typical application can charge a 100μF capacitor to 300V in less than 300ms.

The CHARGE pin gives full control of the LT3750 to the user. The DONE pin indicates when the capacitor has reached its programmed value and the part has stopped charging.

Applications

  • Emergency Warning Beacons
  • Professional Photoflash Systems
  • Security/Inventory Control Systems
  • High Voltage Power Supply
  • Electric Fences
  • Detonators

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

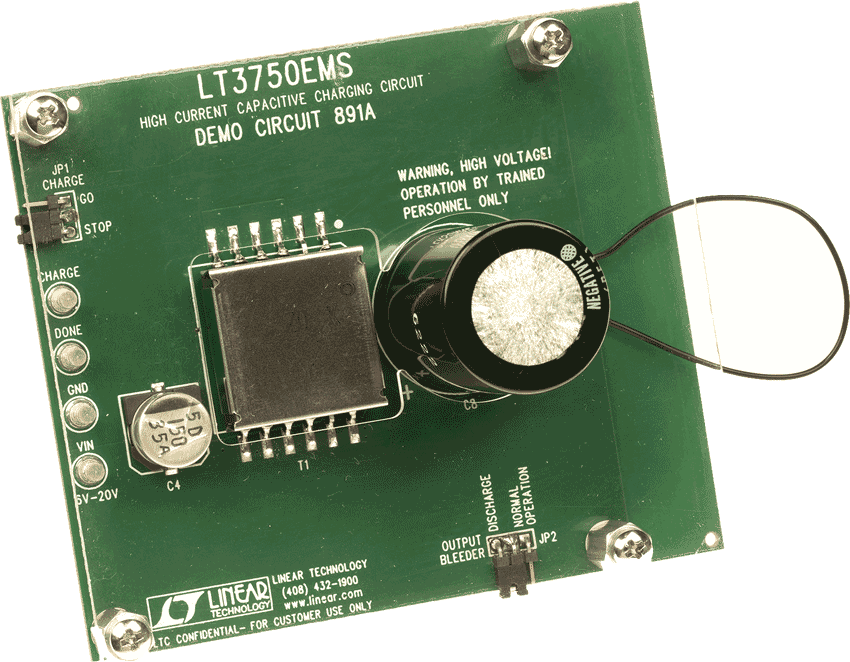

Evaluation Kits (1)

Documentation & Resources

  • View All (6)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Design Notes (1)
  • Press Releases (1)
  • Technical Articles (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    To launch ready-to-run LTspice demonstration circuits for this part:

    Step 1: Download and install LTspice on your computer.

    Step 2: Click on the link in the section below to download a demonstration circuit.

    Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

    LTspice

    LTspice Simulations

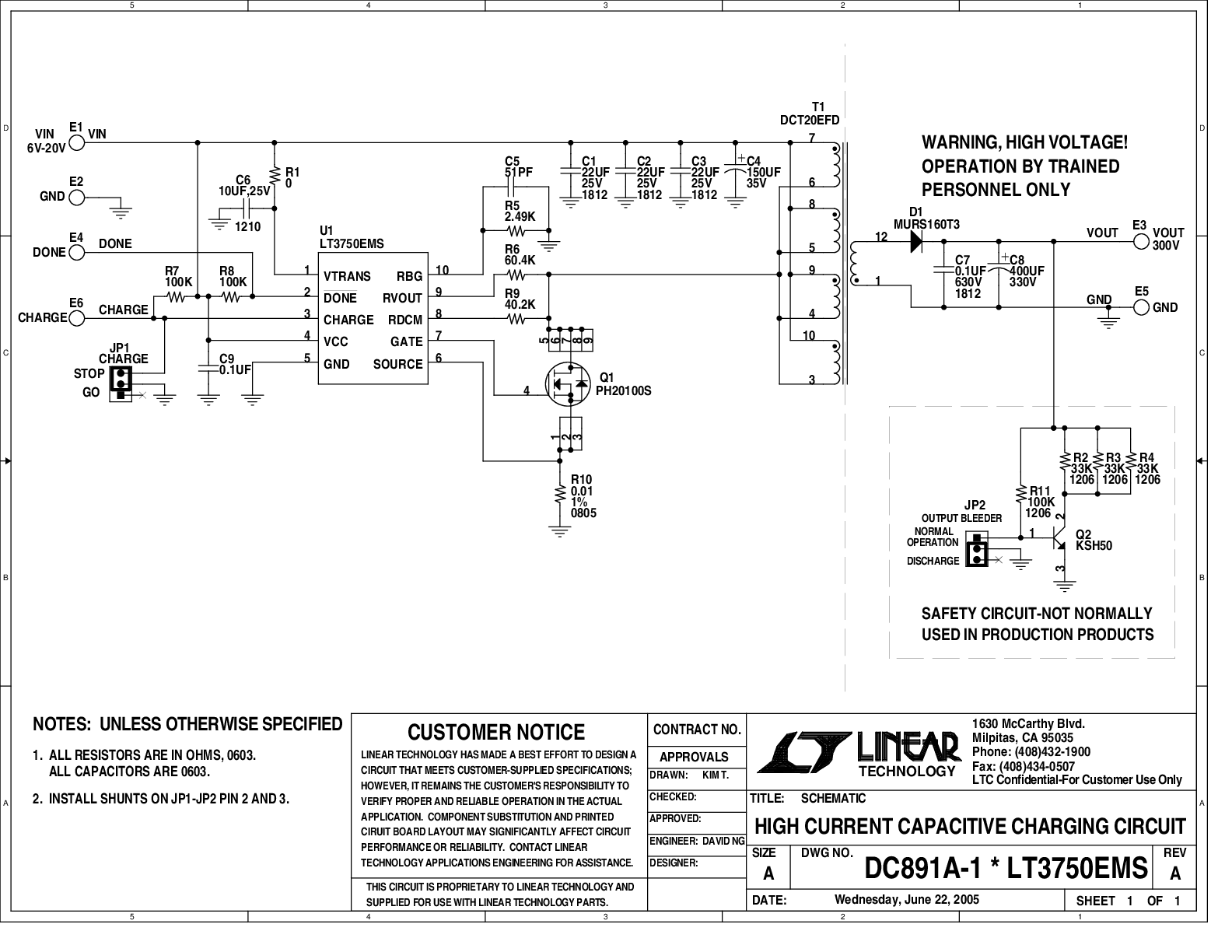

    LT3750 Demo Circuit - Capacitor Charger Controller (12V to 300V Cap)

    Models for the following parts are available in LTspice:

    LT3750

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LT3750EMS#PBF Material Declaration Reliability Data 10-Lead MSOP
    LT3750EMS#TRPBF Material Declaration Reliability Data 10-Lead MSOP
    Wafer Fabrication Data R365 Reliability Data
