LT3745-1

PRODUCTION

16-Channel 50mA LED Driver with Buck Controller

Data Sheet Product Selection Table
Viewing:

Overview

  • 6V to 55V Power Input Voltage Range
  • 16 Independent LED Outputs Up to 75mA/36V
  • ±4% LED Current Matching at 50mA (Typ ±1%)
  • 6-Bit Dot Correction Current Adjustment
  • 12-Bit Grayscale PWM Dimming
  • 0.5μs Minimum LED On-Time
  • Adaptive LED Bus Voltage for High Efficiency
  • Cascadable 30MHz LVDS Serial Data Interface
  • Full Diagnostic and Protection: Individual Open/Short LED and Overtemperature Fault
  • 40-Lead 6mm × 6mm QFN Package

The LT3745-1 integrates a 16-channel LED driver with a 55V buck controller. The LED driver lights up to 75mA/36V of LEDs in series per channel, and the buck controller generates an adaptive bus voltage supplying the parallel LED strings. Each channel has individual 6-bit dot correction current adjustment and 12-bit grayscale PWM dimming. Both dot correction and grayscale are accessible via a serial data interface in LVDS logic. A ±4% LED current matching and a 0.5μs minimum LED on-time can be achieved at 50mA per channel.

The LT3745-1 performs full diagnostic and protection against open/short LED and overtemperature fault. The fault status is sent back through the serial data interface. The 30MHz fully buffered, cascadable LVDS serial data interface makes the chip extremely suitable for large screen LCD dynamic backlighting and mono-, multi-, full-color LED displays. The LT3745 uses a TTL/CMOS serial data interface instead of LVDS.

Applications

  • Large Screen Display LED Backlighting
  • Mono-, Multi-, Full-Color LED Displays
  • LED Billboards and Signboards
LT3745-1
16-Channel 50mA LED Driver with Buck Controller

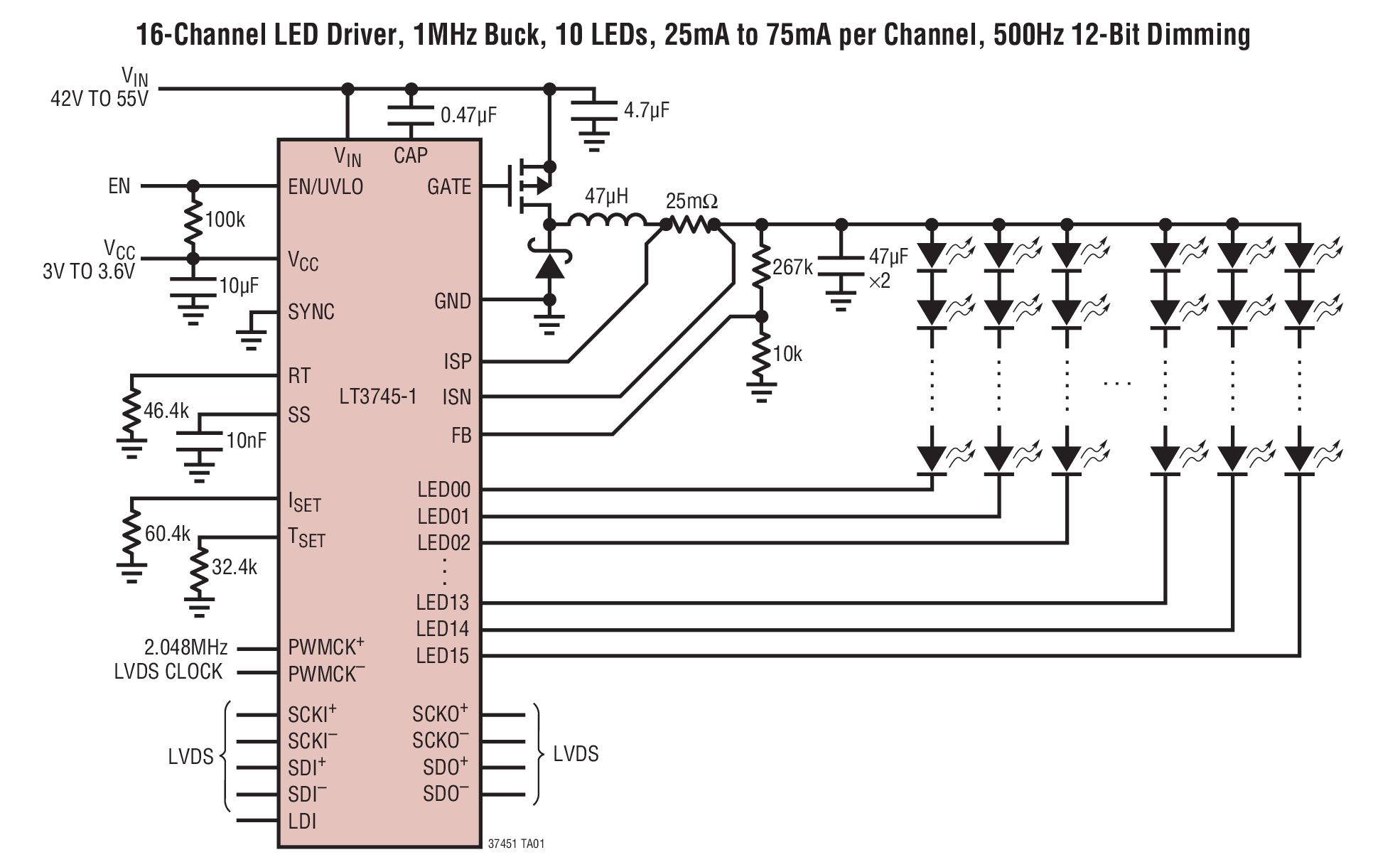

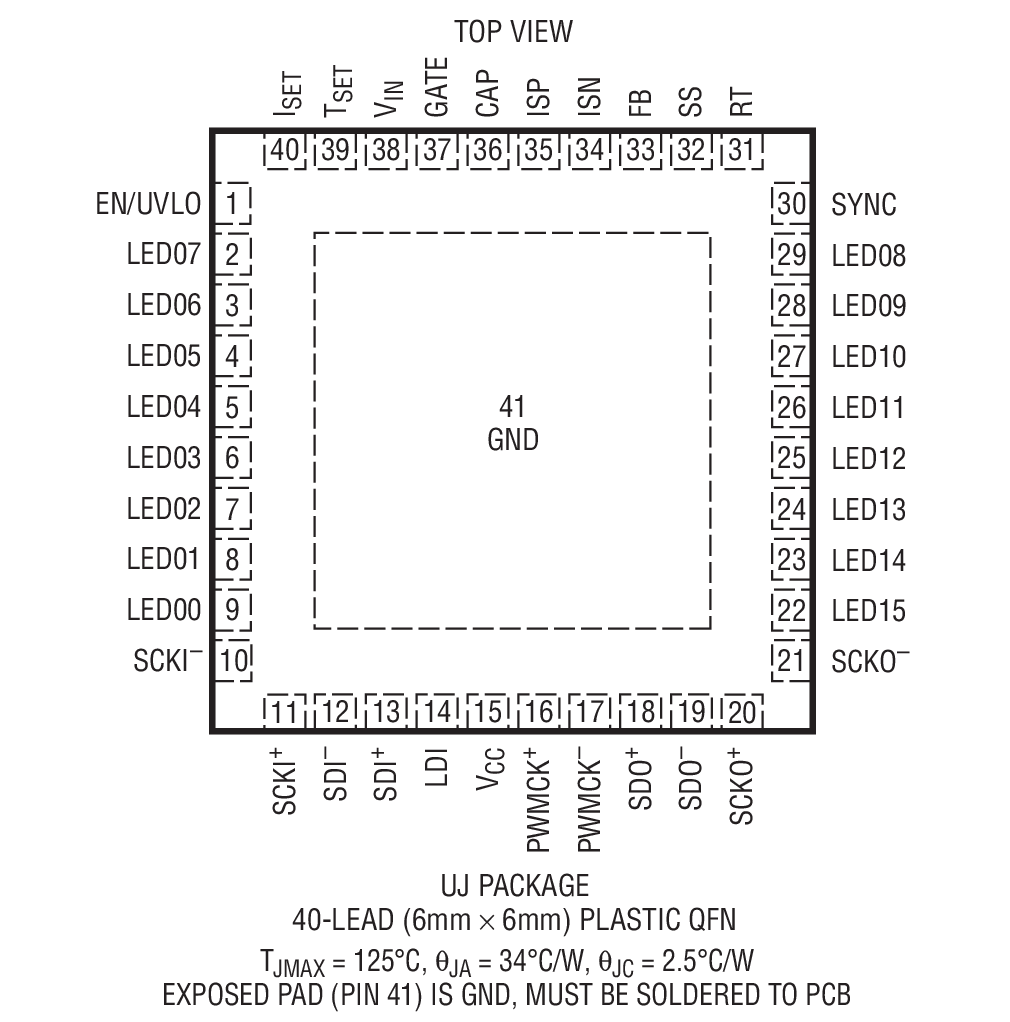

16-Channel LED Driver, 1MHz Buck, 10 LEDs, 25mA to 75mA per Channel, 500Hz 12-Bit Dimming Product Package 1
