LT3573

Isolated Flyback Converter without an Opto-Coupler

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 4
1ku List Price Starting From $3.32
Features
  • 3V to 40V Input Voltage Range
  • 1.25A, 60V Integrated NPN Power Switch
  • Boundary Mode Operation
  • No Transformer Third Winding or Opto-Isolator Required for Regulation
  • Improved Primary-Side Winding Feedback Load Regulation
  • VOUT Set with Two External Resistors
  • BIAS Pin for Internal Bias Supply and Power NPN Driver
  • Programmable Soft-Start
  • Programmable Power Switch Current Limit
  • Thermally Enhanced 16-Lead MSOP
Additional Details
show more Icon

The LT3573 is a monolithic switching regulator specifically designed for the isolated flyback topology. No third winding or opto-isolator is required for regulation. The part senses the isolated output voltage directly from the primary-side flyback waveform. A 1.25A, 60V NPN power switch is integrated along with all control logic into a 16-lead MSOP package.

The LT3573 operates with input supply voltages from 3V to 40V, and can deliver output power up to 7W with no external power devices.The LT3573 utilizes boundary mode operation to provide a small magnetic solution with improved load regulation.

Applications

  • Industrial, Automotive and Medical Isolated Power Supplies
Part Models 4
1ku List Price Starting From $3.32

close icon

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3573EMSE#PBF
  • HTML
  • HTML
LT3573EMSE#TRPBF
  • HTML
  • HTML
LT3573IMSE#PBF
  • HTML
  • HTML
LT3573IMSE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT3573EMSE#PBF

PRODUCTION

LT3573EMSE#TRPBF

PRODUCTION

LT3573IMSE#PBF

PRODUCTION

LT3573IMSE#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0132

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LT3573EMSE#PBF

PRODUCTION

LT3573EMSE#TRPBF

PRODUCTION

LT3573IMSE#PBF

PRODUCTION

LT3573IMSE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT3573EMSE#PBF

PRODUCTION

LT3573EMSE#TRPBF

PRODUCTION

LT3573IMSE#PBF

PRODUCTION

LT3573IMSE#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0132

arrow down

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LT3573EMSE#PBF

PRODUCTION

LT3573EMSE#TRPBF

PRODUCTION

LT3573IMSE#PBF

PRODUCTION

LT3573IMSE#TRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 1

reference details image

DC1228A

LT3573EMSE | 10V to 30 VIN, 5 VOUT at 1A Isolated Monolithic Flyback Converter

zoom

DC1228A

LT3573EMSE | 10V to 30 VIN, 5 VOUT at 1A Isolated Monolithic Flyback Converter

LT3573EMSE | 10V to 30 VIN, 5 VOUT at 1A Isolated Monolithic Flyback Converter

Product Detail

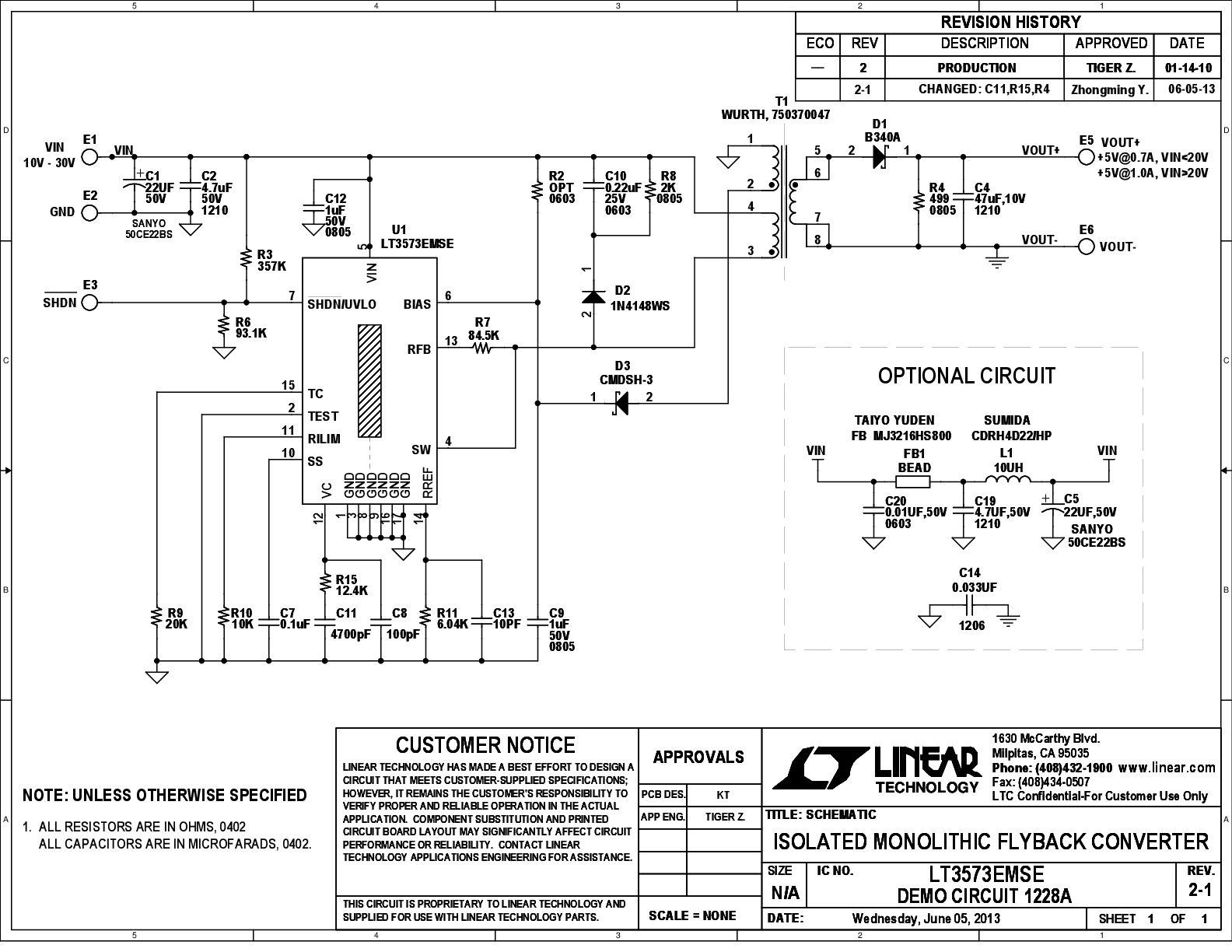

Demonstration circuit 1228A is an isolated flyback converter featuring the LT3573. This demo circuit is designed for a 5.0V output from a 10V to 30V input. The maximum output current is 1A when the input voltage is higher than 20V. No third winding or opto-isolator is required for regulation. The part senses the isolated output voltage directly from the primary-side flyback waveform. The LT3573 operates with input supply voltages from 3V to 40V, and can deliver an output power up to 7W with no external power devices. The LT3573 utilizes boundary mode operation to provide a small magnetic solution with improved load regulation.





Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
