  6. LT3464

Data Sheet
PDF
JP
User Guides
1 View All

Overview

Features and Benefits

  • Tiny Solution Size
  • Low Quiescent Current
    • 25µA in Active Mode
    • 0.5µA in Shutdown Mode
  • Internal 115mA, 36V Switch
  • Integrated Schottky Diode
  • Integrated PNP Output Disconnect with Short-Circuit Protection
  • Internal Reference Override Pin
  • 16V at 8mA from 3.6V Input
  • 12V at 20mA from 5V Input
  • Input Range: 2.3V to 10V
  • High Output Voltage: Up to 34V
  • Low Profile (1mm) SOT-23 Package

Product Details

The LT3464 is a micropower step-up DC/DC converter with integrated Schottky diode and output disconnect packaged in an 8-lead low profile (1mm) SOT-23. The small package size, high level of integration, and the use of tiny SMT components yield a solution size of less than 40mm². The LT3464 has a typical current limit of 115mA as well as fast switching speed to allow the use of a chip inductor and small ceramic capacitors. The internal PNP disconnects the output load from the input during shutdown, and also provides output short-circuit protection. An auxiliary reference input allows the user to override the internal 1.25V feedback reference with any lower value, allowing full control of the output voltage during operation. This device features a low 25µA quiescent current, which is further reduced to less than 0.5µA in shutdown. A current limited fixed off-time control scheme conserves operating current, resulting in high efficiency over a broad range of operating current. The rugged 36V switch and output disconnect circuitry allow outputs up to 34V to be easily generated in a simple boost topology.

Applications

  • OEL Panel Bias
  • LCD Bias
  • Handheld Computers
  • Battery Backup
  • Digital Cameras
  • Cellular Phones

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

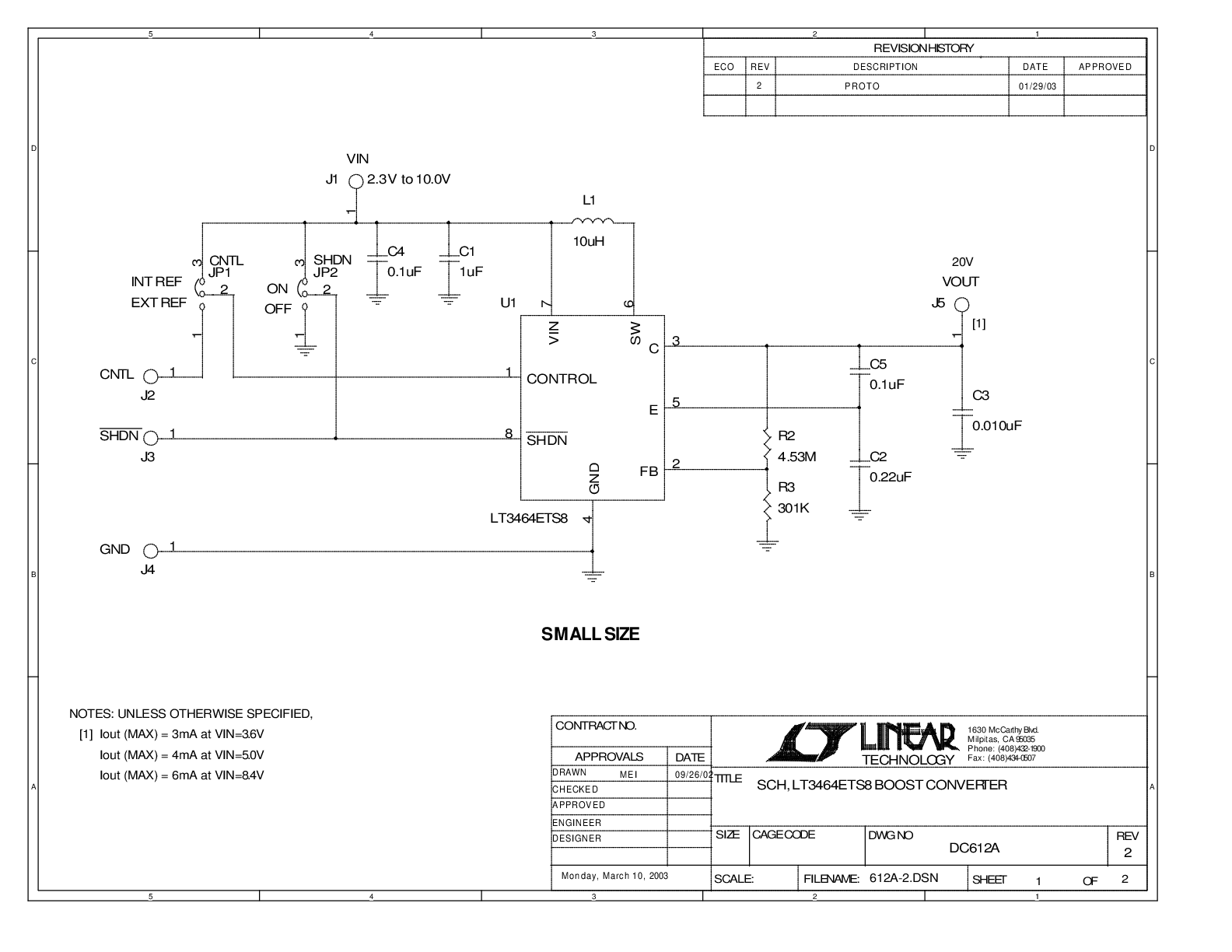

Evaluation Kits (1)

Documentation & Resources

  • View All (5)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Design Notes (1)
  • Technical Articles (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LT3464

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LT3464ETS8#TRMPBF Material Declaration Reliability Data 8-Lead SOT-23
    LT3464ETS8#TRPBF Material Declaration Reliability Data 8-Lead SOT-23
    Wafer Fabrication Data R390 Reliability Data
