LT1996

PRODUCTION

Precision, 100µA Gain Selectable Amplifier

Part Models: 16
1ku List Price: Starting From $1.88

Viewing:

Overview

Pin Configurable as a Difference Amplifier,
Inverting and Noninverting Amplifier

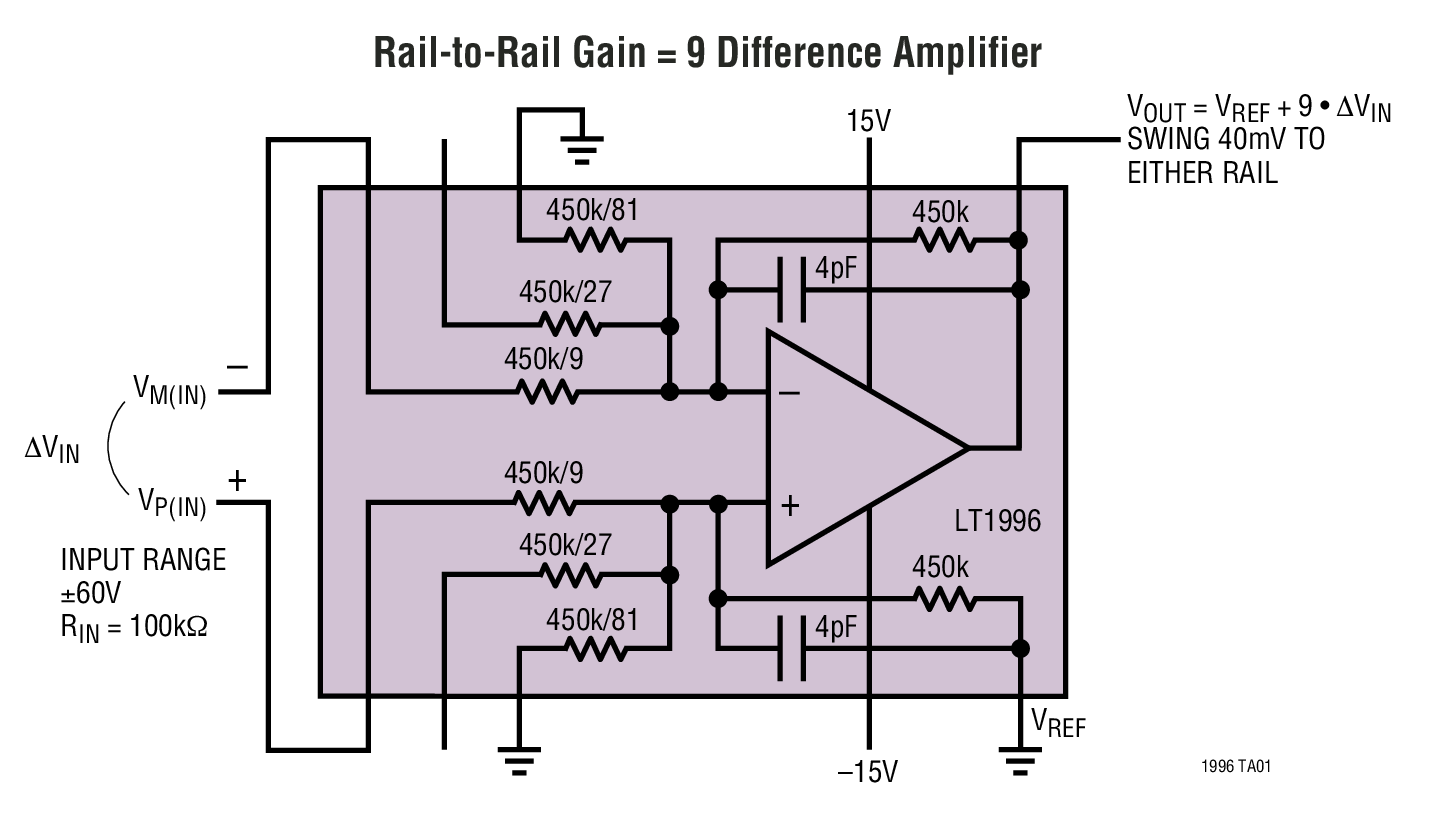

Difference Amplifier
- Gain Range 9 to 117
- CMRR >80dB
Noninverting Amplifier
- Gain Range 0.008 to 118
Inverting Amplifier
- Gain Range -0.08 to -117
Gain Error: <0.05%
Gain Drift: < 3ppm/°C
Wide Supply Range: Single 2.7V to Split ±18V
Micropower Operation: 100µA Supply
Input Offset Voltage: 50µV (Max)
Gain Bandwidth Product: 560kHz
Rail-to-Rail Output

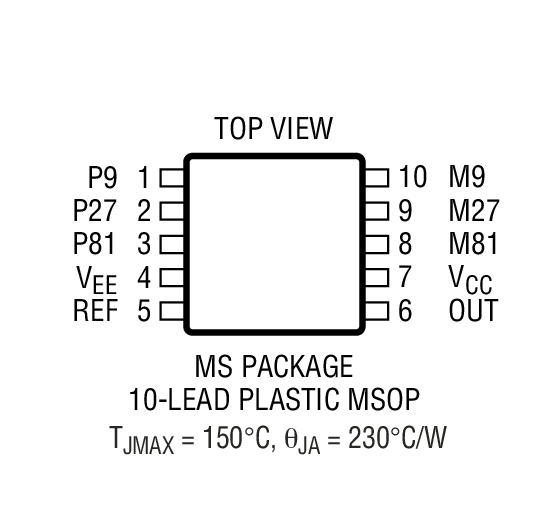

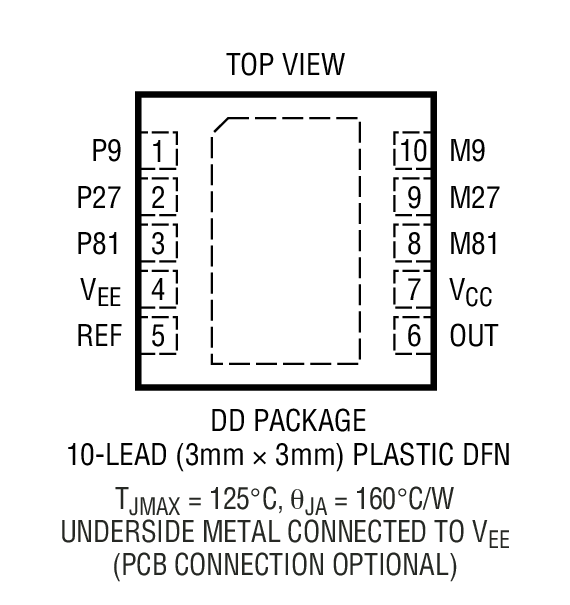

Space Saving 10-Lead MSOP and DFN Packages

The LT1996 combines a precision operational amplifier with eight precision resistors to form a one-chip solution for accurately amplifying voltages. Gains from -117 to 118 with a gain accuracy of 0.05% can be achieved without any external components. The device is particularly well suited for use as a difference amplifier, where the excellent resistor matching results in a common mode rejection ratio of greater than 80dB.

The amplifier features a 50µV maximum input offset voltage and a gain bandwidth product of 560kHz. The device operates from any supply voltage from 2.7V to 36V and draws only 100µA supply current on a 5V supply. The output swings to within 40mV of either supply rail.

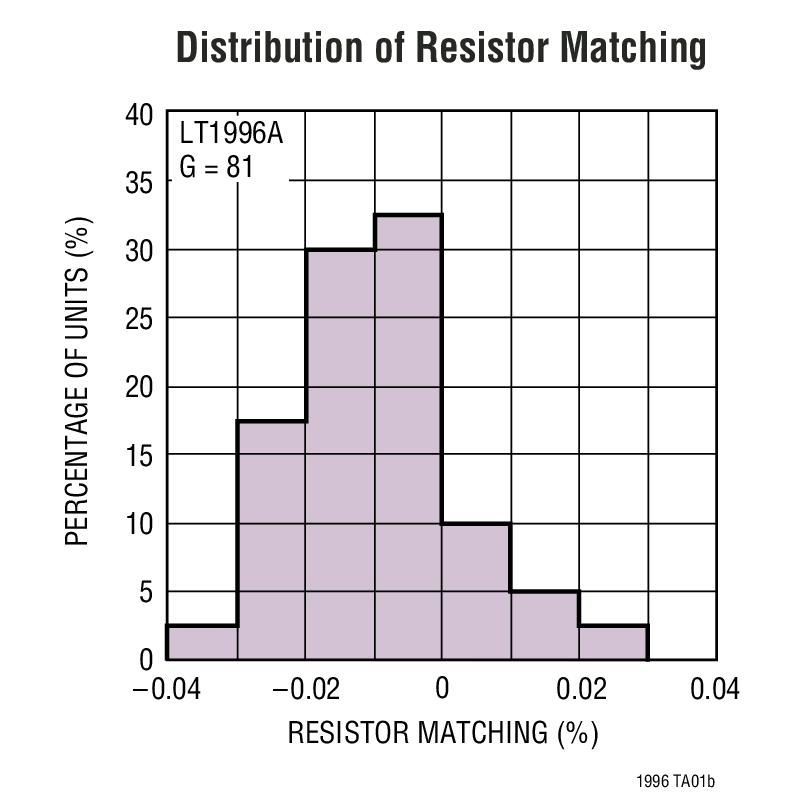

The internal resistors have excellent matching characteristics; variation is 0.05% over temperature with a guaranteed matching temperature coefficent of less than 3ppm/°C. The resistors are also extremely stable over voltage, exhibiting a nonlinearity of less than 10ppm.

The LT1996 is fully specified at 5V and ±15V supplies and from -40°C to 85°C. The device is available in space saving 10-lead MSOP and DFN packages. For an amplifier with selectable gains from -13 to 14, see the LT1991 data sheet.

Applications

Handheld Instrumentation
Medical Instrumentation
Strain Gauge Amplifiers
Differential to Single-Ended Conversion

Part Models: 16
1ku List Price: Starting From $1.88

Documentation

Data Sheet 1

LT1996: Precision, 100µA Gain Selectable Amplifier Data Sheet 11/09/2007

Reliability Data 1

R423 Reliability Data 03/26/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT1996ACDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1996ACDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1996ACMS#PBF	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1996ACMS#TRPBF	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1996AIDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1996AIDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1996AIMS#PBF	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1996AIMS#TRPBF	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1996CDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1996CDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1996CMS#PBF	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1996CMS#TRPBF	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1996IDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1996IDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1996IMS#PBF	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1996IMS#TRPBF	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jun 5, 2024 - 24_0003 Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)
		PCN24_0003_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT1996ACMS#PBF	PRODUCTION
LT1996ACMS#TRPBF	PRODUCTION
LT1996AIMS#PBF	PRODUCTION
LT1996AIMS#TRPBF	PRODUCTION
LT1996CMS#PBF	PRODUCTION
LT1996CMS#TRPBF	PRODUCTION
LT1996IMS#PBF	PRODUCTION
LT1996IMS#TRPBF	PRODUCTION
Feb 4, 2020 - 20_0130 Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0130_Form Material_Report
LT1996ACMS#PBF	PRODUCTION
LT1996ACMS#TRPBF	PRODUCTION
LT1996AIMS#PBF	PRODUCTION
LT1996AIMS#TRPBF	PRODUCTION
LT1996CMS#PBF	PRODUCTION
LT1996CMS#TRPBF	PRODUCTION
LT1996IMS#PBF	PRODUCTION
LT1996IMS#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LT1996

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
